AnisothermalPhaseModel< BasePhaseModel > Class Template Reference

Class which represents a phase for which the temperature (strictly energy) varies. Returns the energy equation and corrects the thermodynamic model. More...

#include <AnisothermalPhaseModel.H>

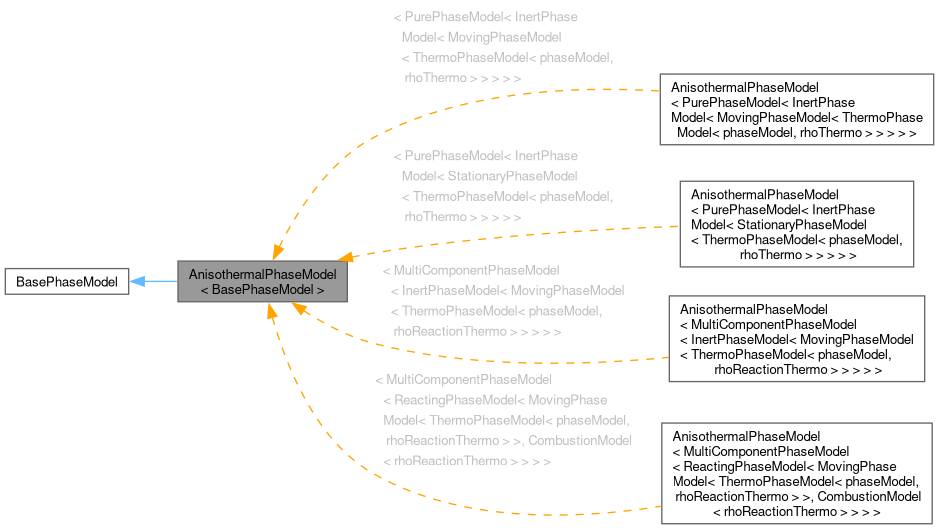

Inheritance diagram for AnisothermalPhaseModel< BasePhaseModel >:

Collaboration diagram for AnisothermalPhaseModel< BasePhaseModel >:

Public Member Functions
	AnisothermalPhaseModel (const phaseSystem &fluid, const word &phaseName, const label index)
	Construct from phase system and phase name.
virtual	~AnisothermalPhaseModel ()=default
	Destructor.
virtual void	correctThermo ()
	Correct the thermodynamics.
virtual bool	isothermal () const
	Return whether the phase is isothermal.
virtual tmp< fvScalarMatrix >	heEqn ()
	Return the enthalpy equation.

Detailed Description

template<class BasePhaseModel>
class Foam::AnisothermalPhaseModel< BasePhaseModel >

Class which represents a phase for which the temperature (strictly energy) varies. Returns the energy equation and corrects the thermodynamic model.

Source files

• AnisothermalPhaseModel.H
• AnisothermalPhaseModel.C

Definition at line 49 of file AnisothermalPhaseModel.H.

Constructor & Destructor Documentation

AnisothermalPhaseModel()

template<class BasePhaseModel>

AnisothermalPhaseModel	(	const phaseSystem &	fluid,
		const word &	phaseName,
		const label	index )

Construct from phase system and phase name.

Definition at line 55 of file AnisothermalPhaseModel.C.

References fluid.

~AnisothermalPhaseModel()

template<class BasePhaseModel>

virtual ~AnisothermalPhaseModel ( )

virtualdefault

Destructor.

Member Function Documentation

correctThermo()

template<class BasePhaseModel>

void correctThermo ( )

virtual

Correct the thermodynamics.

Definition at line 69 of file AnisothermalPhaseModel.C.

isothermal()

template<class BasePhaseModel>

bool isothermal ( ) const

virtual

Return whether the phase is isothermal.

Definition at line 78 of file AnisothermalPhaseModel.C.

heEqn()

template<class BasePhaseModel>

Foam::tmp< Foam::fvScalarMatrix > heEqn ( )

virtual

Return the enthalpy equation.

Definition at line 86 of file AnisothermalPhaseModel.C.

References Foam::fvc::absolute(), alpha, alphaEff(), alphaPhi(), contErr(), Foam::fvc::ddt(), Foam::fvm::ddt(), Foam::fvc::div(), Foam::fvm::div(), dpdt, fluid, he, Foam::fvc::interpolate(), Foam::fvm::laplacian(), IOobject::name(), p, Qdot, tmp< T >::ref(), rho, Foam::fvm::Sp(), talphaPhi, thermo, trho, and U.

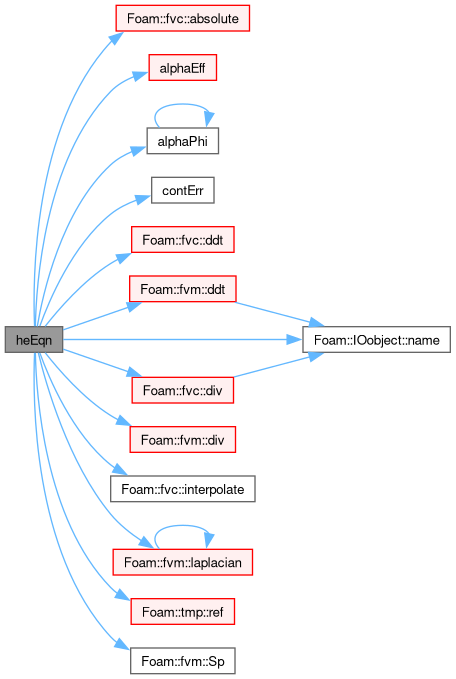

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/phaseModel/AnisothermalPhaseModel/AnisothermalPhaseModel.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/phaseModel/AnisothermalPhaseModel/AnisothermalPhaseModel.C
