Templated 3D Barycentric derived from VectorSpace. Has 4 components, one of which is redundant. More...

#include <Barycentric.H>

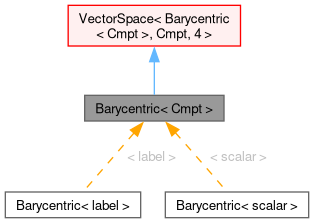

Inheritance diagram for Barycentric< Cmpt >:

[legend]

Collaboration diagram for Barycentric< Cmpt >:

Public Types
enum	components { A , B , C , D }
	Component labeling enumeration. More...
typedef Barycentric< label >	labelType
	Equivalent type of labels used for valid component indexing.
Public Types inherited from VectorSpace< Barycentric< Cmpt >, Cmpt, 4 >
typedef VectorSpace< Barycentric< Cmpt >, Cmpt, Ncmpts >	vsType
	VectorSpace type.
typedef Cmpt	cmptType
	Component type.
typedef Cmpt	magType
	Magnitude type.
typedef direction	size_type
	The type to represent the size of a VectorSpace.
typedef Cmpt *	iterator
	Random access iterator for traversing VectorSpace.
typedef const Cmpt *	const_iterator
	Random access iterator for traversing VectorSpace.

Public Member Functions
	Barycentric ()=default
	Default construct.
	Barycentric (const Foam::zero)
	Construct initialized to zero.
	Barycentric (const Cmpt &va, const Cmpt &vb, const Cmpt &vc, const Cmpt &vd)
	Construct from components.
	Barycentric (const Cmpt &va, const Cmpt &vb, const Cmpt &vc)
	Construct from three components, calculate fourth component.
const Cmpt &	a () const noexcept
const Cmpt &	b () const noexcept
const Cmpt &	c () const noexcept
const Cmpt &	d () const noexcept
Cmpt &	a () noexcept
Cmpt &	b () noexcept
Cmpt &	c () noexcept
Cmpt &	d () noexcept
Cmpt	inner (const Barycentric< Cmpt > &b2) const
	Scalar-product of `this` with another Barycentric.
Public Member Functions inherited from VectorSpace< Barycentric< Cmpt >, Cmpt, 4 >
const Foam::VectorSpace< Barycentric< Cmpt >, Cmpt, Ncmpts >::template ConstBlock< SubVector, BStart >	block () const
	VectorSpace ()=default
	Default construct.
const Cmpt &	component (const direction) const
void	replace (const direction, const Cmpt &)
const Cmpt *	cdata () const noexcept
	Return const pointer to the first data element.
Cmpt *	data () noexcept
	Return pointer to the first data element.
void	fill (const Cmpt &s)
	Assign all components to given value.
const Cmpt &	operator[] (const direction) const
void	operator= (const VectorSpace< Barycentric< Cmpt >, Cmpt, Ncmpts > &)
void	operator+= (const VectorSpace< Barycentric< Cmpt >, Cmpt, Ncmpts > &)
void	operator-= (const VectorSpace< Barycentric< Cmpt >, Cmpt, Ncmpts > &)
void	operator*= (const scalar)
void	operator/= (const scalar)
iterator	begin () noexcept
	Return an iterator (pointer) to begin of VectorSpace.
const_iterator	cbegin () const noexcept
	Return const_iterator (const pointer) to begin of VectorSpace.
iterator	end () noexcept
	Return an iterator (pointer) to end of VectorSpace.
const_iterator	cend () const noexcept
	Return const_iterator (const pointer) to end of VectorSpace.

Static Public Attributes
static constexpr direction	rank = 1
	Rank of Barycentric is 1.
Static Public Attributes inherited from VectorSpace< Barycentric< Cmpt >, Cmpt, 4 >
static constexpr direction	dim
	Dimensionality of space.
static constexpr direction	nComponents
	Number of components in this vector space.
static constexpr direction	mRows
static constexpr direction	nCols
static const char *const	typeName
static const char *const	componentNames []
static const Barycentric< Cmpt >	zero
static const Barycentric< Cmpt >	one
static const Barycentric< Cmpt >	max
static const Barycentric< Cmpt >	min
static const Barycentric< Cmpt >	rootMax
static const Barycentric< Cmpt >	rootMin

Additional Inherited Members
Static Public Member Functions inherited from VectorSpace< Barycentric< Cmpt >, Cmpt, 4 >
static constexpr direction	size () noexcept
	The number of elements in the VectorSpace = Ncmpts.
static Barycentric< Cmpt >	uniform (const Cmpt &s)
	Return a VectorSpace with all elements = s.
Public Attributes inherited from VectorSpace< Barycentric< Cmpt >, Cmpt, 4 >
Cmpt	v_ [Ncmpts]
	The components of this vector space.

Detailed Description

template<class Cmpt>
class Foam::Barycentric< Cmpt >

Templated 3D Barycentric derived from VectorSpace. Has 4 components, one of which is redundant.

Source files

Definition at line 50 of file Barycentric.H.

Member Typedef Documentation

◆ labelType

template<class Cmpt>

typedef Barycentric<label> labelType

Equivalent type of labels used for valid component indexing.

Definition at line 61 of file Barycentric.H.

Member Enumeration Documentation

◆ components

template<class Cmpt>

enum components

Component labeling enumeration.

Enumerator
A
B
C
D

Definition at line 75 of file Barycentric.H.

Constructor & Destructor Documentation

◆ Barycentric() [1/4]

template<class Cmpt>

Barycentric ( )

default

Default construct.

Referenced by Barycentric(), Barycentric(), and inner().

Here is the caller graph for this function:

◆ Barycentric() [2/4]

template<class Cmpt>

Barycentric ( const Foam::zero )

inline

Construct initialized to zero.

Definition at line 25 of file BarycentricI.H.

References Barycentric(), and Foam::Zero.

Here is the call graph for this function:

◆ Barycentric() [3/4]

template<class Cmpt>

Barycentric	(	const Cmpt &	va,
		const Cmpt &	vb,
		const Cmpt &	vc,
		const Cmpt &	vd )

inline

Construct from components.

Definition at line 32 of file BarycentricI.H.

References A, B, C, D, and VectorSpace< Barycentric< Cmpt >, Cmpt, 4 >::v_.

◆ Barycentric() [4/4]

template<class Cmpt>

Barycentric	(	const Cmpt &	va,
		const Cmpt &	vb,
		const Cmpt &	vc )

inline

Construct from three components, calculate fourth component.

Definition at line 48 of file BarycentricI.H.

References Barycentric(), and VectorSpace< Barycentric< Cmpt >, Cmpt, 4 >::one.

Here is the call graph for this function:

Member Function Documentation

◆ a() [1/2]

template<class Cmpt>

const Cmpt & a ( ) const

inlinenoexcept

Definition at line 114 of file Barycentric.H.

Referenced by tetIndices::barycentricToPoint(), tetrahedron< Point, PointRef >::barycentricToPoint(), inner(), and BarycentricTensor< Cmpt >::inner().

Here is the caller graph for this function:

◆ b() [1/2]

template<class Cmpt>

const Cmpt & b ( ) const

inlinenoexcept

Definition at line 115 of file Barycentric.H.

Referenced by tetIndices::barycentricToPoint(), tetrahedron< Point, PointRef >::barycentricToPoint(), inner(), and BarycentricTensor< Cmpt >::inner().

Here is the caller graph for this function:

◆ c() [1/2]

template<class Cmpt>

const Cmpt & c ( ) const

inlinenoexcept

Definition at line 116 of file Barycentric.H.

Referenced by tetIndices::barycentricToPoint(), tetrahedron< Point, PointRef >::barycentricToPoint(), inner(), and BarycentricTensor< Cmpt >::inner().

Here is the caller graph for this function:

◆ d() [1/2]

template<class Cmpt>

const Cmpt & d ( ) const

inlinenoexcept

Definition at line 117 of file Barycentric.H.

Referenced by tetIndices::barycentricToPoint(), tetrahedron< Point, PointRef >::barycentricToPoint(), inner(), and BarycentricTensor< Cmpt >::inner().

Here is the caller graph for this function:

◆ a() [2/2]

template<class Cmpt>

Cmpt & a ( )

inlinenoexcept

Definition at line 119 of file Barycentric.H.

◆ b() [2/2]

template<class Cmpt>

Cmpt & b ( )

inlinenoexcept

Definition at line 120 of file Barycentric.H.

◆ c() [2/2]

template<class Cmpt>

Cmpt & c ( )

inlinenoexcept

Definition at line 121 of file Barycentric.H.

◆ d() [2/2]

template<class Cmpt>

Cmpt & d ( )

inlinenoexcept

Definition at line 122 of file Barycentric.H.

◆ inner()

template<class Cmpt>

Cmpt inner ( const Barycentric< Cmpt > & b2 ) const

inline

Scalar-product of this with another Barycentric.

Definition at line 62 of file BarycentricI.H.

References a(), b(), Barycentric(), c(), and d().

Referenced by Foam::operator&().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ rank

template<class Cmpt>

direction rank = 1

staticconstexpr

Rank of Barycentric is 1.

Definition at line 69 of file Barycentric.H.

The documentation for this class was generated from the following files:

src/OpenFOAM/primitives/Barycentric/Barycentric.H
src/OpenFOAM/primitives/Barycentric/BarycentricI.H
