DiagonalPreconditioner< Type, DType, LUType > Class Template Reference

Diagonal preconditioner for both symmetric and asymmetric matrices. More...

#include <DiagonalPreconditioner.H>

Inheritance diagram for DiagonalPreconditioner< Type, DType, LUType >:

Collaboration diagram for DiagonalPreconditioner< Type, DType, LUType >:

Public Member Functions
	TypeName ("diagonal")
	Runtime type information.
	DiagonalPreconditioner (const typename LduMatrix< Type, DType, LUType >::solver &sol, const dictionary &preconditionerDict)
	Construct from matrix components and preconditioner data dictionary.
virtual	~DiagonalPreconditioner ()=default
virtual void	read (const dictionary &preconditionerDict)
	Read and reset the preconditioner parameters from the given.
virtual void	precondition (Field< Type > &wA, const Field< Type > &rA) const
	Return wA the preconditioned form of residual rA.
virtual void	preconditionT (Field< Type > &wT, const Field< Type > &rT) const
	Return wT the transpose-matrix preconditioned form of.
Public Member Functions inherited from LduMatrix< Type, DType, LUType >::preconditioner
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, preconditioner, symMatrix,(const solver &sol, const dictionary &preconditionerDict),(sol, preconditionerDict))
	declareRunTimeSelectionTable (autoPtr, preconditioner, asymMatrix,(const solver &sol, const dictionary &preconditionerDict),(sol, preconditionerDict))
	preconditioner (const solver &sol)
	Construct for given solver.
virtual	~preconditioner ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from LduMatrix< Type, DType, LUType >::preconditioner
static autoPtr< preconditioner >	New (const solver &sol, const dictionary &preconditionerDict)
	Return a new preconditioner.
Protected Attributes inherited from LduMatrix< Type, DType, LUType >::preconditioner
const solver &	solver_
	Reference to the base-solver this preconditioner is used with.

Detailed Description

template<class Type, class DType, class LUType>
class Foam::DiagonalPreconditioner< Type, DType, LUType >

Diagonal preconditioner for both symmetric and asymmetric matrices.

The inverse (reciprocal for scalar) of the diagonal is calculated and stored.

Source files

• DiagonalPreconditioner.H
• DiagonalPreconditioner.C

Definition at line 51 of file DiagonalPreconditioner.H.

Constructor & Destructor Documentation

DiagonalPreconditioner()

template<class Type, class DType, class LUType>

DiagonalPreconditioner	(	const typename LduMatrix< Type, DType, LUType >::solver &	sol,
		const dictionary &	preconditionerDict )

Construct from matrix components and preconditioner data dictionary.

Definition at line 26 of file DiagonalPreconditioner.C.

References Foam::diag(), Foam::inv(), LduMatrix< Type, DType, LUType >::preconditioner::preconditioner(), and LduMatrix< Type, DType, LUType >::preconditioner::solver_.

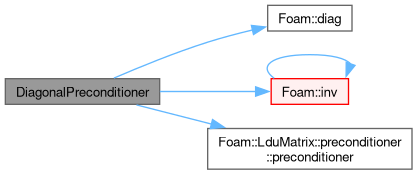

Here is the call graph for this function:

~DiagonalPreconditioner()

template<class Type, class DType, class LUType>

virtual ~DiagonalPreconditioner ( )

virtualdefault

Member Function Documentation

TypeName()

template<class Type, class DType, class LUType>

TypeName

(

"diagonal"

)

Runtime type information.

read()

template<class Type, class DType, class LUType>

void read ( const dictionary & preconditionerDict )

virtual

Read and reset the preconditioner parameters from the given.

dictionary

Reimplemented from LduMatrix< Type, DType, LUType >::preconditioner.

Definition at line 51 of file DiagonalPreconditioner.C.

precondition()

template<class Type, class DType, class LUType>

void precondition ( Field< Type > & wA, const Field< Type > & rA ) const

virtual

Return wA the preconditioned form of residual rA.

Implements LduMatrix< Type, DType, LUType >::preconditioner.

Definition at line 56 of file DiagonalPreconditioner.C.

References UList< T >::begin(), Foam::dot(), and UList< T >::size().

Referenced by preconditionT().

Here is the call graph for this function:

Here is the caller graph for this function:

preconditionT()

template<class Type, class DType, class LUType>

virtual void preconditionT ( Field< Type > & wT, const Field< Type > & rT ) const

inlinevirtual

Return wT the transpose-matrix preconditioned form of.

residual rT.

Reimplemented from LduMatrix< Type, DType, LUType >::preconditioner.

Definition at line 124 of file DiagonalPreconditioner.H.

References precondition().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/matrices/LduMatrix/Preconditioners/DiagonalPreconditioner/DiagonalPreconditioner.H
• src/OpenFOAM/matrices/LduMatrix/Preconditioners/DiagonalPreconditioner/DiagonalPreconditioner.C
