EulerImplicit< ChemistryModel > Class Template Reference

An Euler implicit solver for chemistry. More...

#include <EulerImplicit.H>

Inheritance diagram for EulerImplicit< ChemistryModel >:

Collaboration diagram for EulerImplicit< ChemistryModel >:

Public Member Functions
	TypeName ("EulerImplicit")
	Runtime type information.
	EulerImplicit (typename ChemistryModel::reactionThermo &thermo)
	Construct from thermo.
virtual	~EulerImplicit ()
	Destructor.
void	updateRRInReactionI (const label index, const scalar pr, const scalar pf, const scalar corr, const label lRef, const label rRef, const scalar p, const scalar T, simpleMatrix< scalar > &RR) const
virtual void	solve (scalarField &c, scalar &T, scalar &p, scalar &deltaT, scalar &subDeltaT) const
	Update the concentrations and return the chemical time.
Public Member Functions inherited from chemistrySolver< ChemistryModel >
	chemistrySolver (typename ChemistryModel::reactionThermo &thermo)
	Construct from thermo.
virtual	~chemistrySolver ()
	Destructor.

Detailed Description

template<class ChemistryModel>
class Foam::EulerImplicit< ChemistryModel >

An Euler implicit solver for chemistry.

Source files

• EulerImplicit.H
• EulerImplicit.C

Definition at line 51 of file EulerImplicit.H.

Constructor & Destructor Documentation

EulerImplicit()

template<class ChemistryModel>

EulerImplicit

(

typename ChemistryModel::reactionThermo &

thermo

)

Construct from thermo.

Definition at line 30 of file EulerImplicit.C.

References chemistrySolver< ChemistryModel >::chemistrySolver().

Here is the call graph for this function:

~EulerImplicit()

template<class ChemistryModel>

~EulerImplicit ( )

virtual

Destructor.

Definition at line 46 of file EulerImplicit.C.

Member Function Documentation

TypeName()

template<class ChemistryModel>

TypeName

(

"EulerImplicit< ChemistryModel >"

)

Runtime type information.

References p, and Foam::T().

Here is the call graph for this function:

updateRRInReactionI()

template<class ChemistryModel>

void updateRRInReactionI	(	const label	index,
		const scalar	pr,
		const scalar	pf,
		const scalar	corr,
		const label	lRef,
		const label	rRef,
		const scalar	p,
		const scalar	T,
		simpleMatrix< scalar > &	RR ) const

Definition at line 53 of file EulerImplicit.C.

References forAll, p, R, s(), and Foam::T().

Referenced by solve().

Here is the call graph for this function:

Here is the caller graph for this function:

solve()

template<class ChemistryModel>

void solve ( scalarField & c, scalar & T, scalar & p, scalar & deltaT, scalar & subDeltaT ) const

virtual

Update the concentrations and return the chemical time.

Implements chemistrySolver< ChemistryModel >.

Definition at line 88 of file EulerImplicit.C.

References e, forAll, Foam::max(), Foam::min(), mixture, nSpecie, p, Foam::sum(), Foam::T(), and updateRRInReactionI().

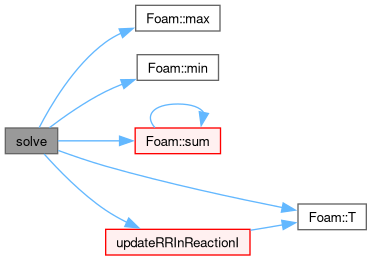

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/thermophysicalModels/chemistryModel/chemistrySolver/EulerImplicit/EulerImplicit.H
• src/thermophysicalModels/chemistryModel/chemistrySolver/EulerImplicit/EulerImplicit.C
