Function1 wrapper that maps the input value prior to it being used by another Function1. More...

#include <InputValueMapper.H>

Inheritance diagram for InputValueMapper< Type >:

Collaboration diagram for InputValueMapper< Type >:

[legend]

Public Types
enum class	mappingMode { NONE , FUNCTION1 , MINMAX }
	Input value mapping mode. More...
Public Types inherited from Function1< Type >
typedef Type	returnType
	The return type.
typedef autoPtr< Function1 >(*	dictionaryConstructorPtr) (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr)
	Declare runtime constructor selection table.
typedef ::Foam::HashTable< dictionaryConstructorPtr, ::Foam::word, ::Foam::Hash<::Foam::word > >	dictionaryConstructorTableType
typedef ::Foam::HashTable< std::pair<::Foam::word, int >, ::Foam::word, ::Foam::Hash<::Foam::word > >	dictionaryConstructorCompatTableType

Public Member Functions
	TypeName ("inputValueMapper")
	Runtime type information.
void	operator= (const InputValueMapper< Type > &)=delete
	No copy assignment.

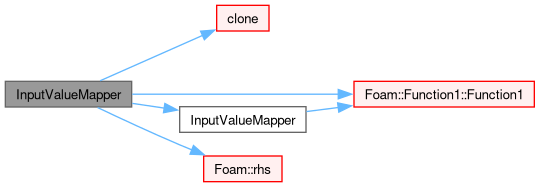

	InputValueMapper (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr=nullptr)
	Construct from entry name, dictionary and optional registry.
	InputValueMapper (const InputValueMapper< Type > &rhs)
	Copy construct.
virtual tmp< Function1< Type > >	clone () const
	Return a clone.
virtual	~InputValueMapper ()=default
	Destructor.
virtual Type	value (const scalar t) const
	Return value for time t.

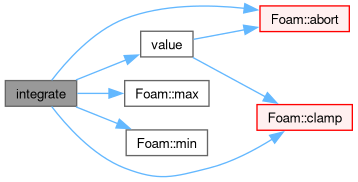

virtual Type	integrate (const scalar x1, const scalar x2) const
	Integrate between two (scalar) values.
virtual void	writeData (Ostream &os) const
	Write in dictionary format.
virtual void	writeEntries (Ostream &os) const
	Write coefficient entries in dictionary format.
const::Foam::word	typeName (Function1Types::InputValueMapper< scalar >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1Types::InputValueMapper< scalar >::typeName_(), 0))
const::Foam::word	typeName (Function1Types::InputValueMapper< vector >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1Types::InputValueMapper< vector >::typeName_(), 0))
const::Foam::word	typeName (Function1Types::InputValueMapper< sphericalTensor >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1Types::InputValueMapper< sphericalTensor >::typeName_(), 0))
const::Foam::word	typeName (Function1Types::InputValueMapper< symmTensor >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1Types::InputValueMapper< symmTensor >::typeName_(), 0))
const::Foam::word	typeName (Function1Types::InputValueMapper< tensor >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1Types::InputValueMapper< tensor >::typeName_(), 0))
Public Member Functions inherited from Function1< Type >
virtual const word &	type () const
	Function1 (const word &entryName, const objectRegistry *obrPtr=nullptr)
	Construct from entry name.
	Function1 (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr=nullptr)
	Construct from entry name, (unused) dictionary and optional registry.
	Function1 (const Function1< Type > &rhs)
	Copy construct.
virtual	~Function1 ()=default
	Destructor.
virtual bool	constant () const
	Is value constant (i.e. independent of x).
virtual bool	good () const
	Can function be evaluated?
virtual tmp< Field< Type > >	value (const scalarField &x) const
	Return value as a function of (scalar) independent variable.
virtual tmp< Field< Type > >	integrate (const scalarField &x1, const scalarField &x2) const
	Integrate between two (scalar) values.
const::Foam::word	typeName (Function1< label >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< label >::typeName_(), 0))
Function1< label >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< label >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< label >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< label >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< scalar >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< scalar >::typeName_(), 0))
Function1< scalar >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< scalar >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< scalar >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< scalar >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< vector >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< vector >::typeName_(), 0))
Function1< vector >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< vector >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< vector >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< vector >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< sphericalTensor >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< sphericalTensor >::typeName_(), 0))
Function1< sphericalTensor >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< sphericalTensor >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< sphericalTensor >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< sphericalTensor >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< symmTensor >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< symmTensor >::typeName_(), 0))
Function1< symmTensor >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< symmTensor >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< symmTensor >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< symmTensor >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< tensor >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< tensor >::typeName_(), 0))
Function1< tensor >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< tensor >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< tensor >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< tensor >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< scalarField >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< scalarField >::typeName_(), 0))
Function1< scalarField >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< scalarField >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< scalarField >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< scalarField >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
Public Member Functions inherited from function1Base
	function1Base (const word &entryName, const objectRegistry *obrPtr=nullptr)
	Construct from entry name and optional registry.
	function1Base (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr=nullptr)
	Construct from entry name, dictionary (unused) and optional registry.
	function1Base (const function1Base &rhs)
	Copy construct.
virtual	~function1Base ()
	Destructor.
const word &	name () const noexcept
	The name of the entry.
const objectRegistry *	whichDb () const noexcept
	Return the associated registry or nullptr.
void	resetDb (const objectRegistry *obrPtr=nullptr) noexcept
	Reset the associated objectRegistry.
void	resetDb (const objectRegistry &db) noexcept
	Reset the associated objectRegistry.
const objectRegistry &	obr () const
	Return the object registry.
bool	isTime () const noexcept
	Return true if this function was created with the time database.
const Time &	time () const
	Return the time database.
template<class MeshType>
const MeshType &	mesh (const word &regionName=word::null) const
	Return the mesh database if this Function1 was created using a mesh.
virtual void	userTimeToTime (const Time &t)
	Convert time.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Static Public Attributes
static const Enum< mappingMode >	mappingModeNames_
	Names for the input value mapping modes.
Static Public Attributes inherited from Function1< Type >
static const ::Foam::word	typeName
static int	debug
static dictionaryConstructorTableType *	dictionaryConstructorTablePtr_
static std::unique_ptr< dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_

Additional Inherited Members
Static Public Member Functions inherited from Function1< Type >
static const char *	typeName_ ()
	Runtime type information.
static dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
static void	dictionaryConstructorTablePtr_construct (bool load)
static dictionaryConstructorPtr	dictionaryConstructorTable (const ::Foam::word &k)
template<class Derived>
static tmp< Function1< Type > >	Clone (const Derived &fun)
	Clone a Function1.
static autoPtr< Function1< Type > >	New (const word &entryName, const dictionary &dict, const word &redirectType, const objectRegistry *obrPtr=nullptr, const bool mandatory=true)
	Selector, with fallback redirection.
static autoPtr< Function1< Type > >	NewCompat (const word &entryName, std::initializer_list< std::pair< const char , int > > compat, const dictionary &dict, const word &redirectType=word::null, const objectRegistry obrPtr=nullptr, const bool mandatory=true)
	Compatibility selector, with fallback redirection.
static autoPtr< Function1< Type > >	New (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr=nullptr, const bool mandatory=true)
	Selector, without fallback redirection.
static autoPtr< Function1< Type > >	NewIfPresent (const word &entryName, const dictionary &dict, const word &redirectType, const objectRegistry *obrPtr=nullptr)
	An optional selector, with fallback redirection.
static autoPtr< Function1< Type > >	NewIfPresent (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr=nullptr)
	An optional selector, without fallback redirection.
static refPtr< Function1< Type > >	New (HashPtrTable< Function1< Type > > &cache, const word &entryName, const dictionary &dict, enum keyType::option matchOpt=keyType::LITERAL, const objectRegistry *obrPtr=nullptr, const bool mandatory=true)
	Selector with external storage of Function1. This also allows wildcard matches in a dictionary.
Protected Member Functions inherited from Function1< Type >
void	operator= (const Function1< Type > &)=delete
	No copy assignment.
Protected Member Functions inherited from function1Base
void	operator= (const function1Base &)=delete
	No copy assignment.
Protected Attributes inherited from function1Base
const word	name_
	Name of entry.
const objectRegistry *	obrPtr_
	Pointer to an object registry.

Detailed Description

template<class Type>
class Foam::Function1Types::InputValueMapper< Type >

Function1 wrapper that maps the input value prior to it being used by another Function1.

Example usage for limiting a polynomial:

    <entryName>
    {
        type            inputValueMapper;
        mode            minMax;

        min             0.4;
        max             1.4;

        value polynomial
        (
            (5 1)
            (-2 2)
            (-2 3)
            (1 4)
        );
    }

Here the return value will be:

poly(0.4) for x <= 0.4;
poly(1.4) for x >= 1.4; and
poly(x) for 0.4 < x < 1.4.

Example usage for supplying a patch mass flux for a table lookup:

    <entryName>
    {
        type            inputValueMapper;
        mode            function;

        function
        {
            type            functionObjectValue;
            functionObject  surfaceFieldValue1;
            functionObjectResult sum(outlet,phi);
        }

        value
        {
            type        table;
            file        "<system>/fanCurve.txt";
        }
    }

Where:

Property	Description	Required
`mode`	Mapping mode (see below)	yes
`function`	Mapping Function1	no*
`min`	Minimum input value	no*
`max`	Maximum input value	no*
`value`	Function of type Function1<Type>	yes

Mapping modes include

none : the input value is simply passed to the 'value' Function1
function : the input value is passed through the 'function' Function1 before being passed to the 'value' Function1
minMax : limits the input value to 'min' and 'max' values before being passed to the 'value' Function1

Note: Replaces the LimitRange Function1 (v2106 and earlier)

Source files

Definition at line 144 of file InputValueMapper.H.

Member Enumeration Documentation

◆ mappingMode

template<class Type>

enum class mappingMode

strong

Input value mapping mode.

Enumerator
NONE
FUNCTION1
MINMAX

Definition at line 155 of file InputValueMapper.H.

Constructor & Destructor Documentation

◆ InputValueMapper() [1/2]

template<class Type>

InputValueMapper	(	const word &	entryName,
		const dictionary &	dict,
		const objectRegistry *	obrPtr = nullptr )

Construct from entry name, dictionary and optional registry.

Definition at line 84 of file InputValueMapper.C.

References dict, and Function1< Type >::Function1().

Referenced by InputValueMapper(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InputValueMapper() [2/2]

template<class Type>

InputValueMapper ( const InputValueMapper< Type > & rhs )

explicit

Copy construct.

Definition at line 103 of file InputValueMapper.C.

References clone(), Function1< Type >::Function1(), InputValueMapper(), and Foam::rhs().

Here is the call graph for this function:

◆ ~InputValueMapper()

template<class Type>

virtual ~InputValueMapper ( )

virtualdefault

Destructor.

References os().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

template<class Type>

TypeName ( "inputValueMapper" )

Runtime type information.

◆ operator=()

template<class Type>

void operator= ( const InputValueMapper< Type > & )

delete

No copy assignment.

References dict, InputValueMapper(), and Foam::rhs().

Here is the call graph for this function:

◆ clone()

template<class Type>

virtual tmp< Function1< Type > > clone ( ) const

inlinevirtual

Return a clone.

Implements Function1< Type >.

Definition at line 250 of file InputValueMapper.H.

References Function1< Type >::Clone().

Referenced by InputValueMapper().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ value()

template<class Type>

Type value ( const scalar t ) const

inlinevirtual

Return value for time t.

Reimplemented from Function1< Type >.

Definition at line 26 of file InputValueMapperI.H.

References Foam::abort(), Foam::clamp(), Foam::FatalError, FatalErrorInFunction, FUNCTION1, mappingModeNames_, MINMAX, and NONE.

Referenced by integrate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ integrate()

template<class Type>

Type integrate	(	const scalar	x1,
		const scalar	x2 ) const

inlinevirtual

Integrate between two (scalar) values.

Reimplemented from Function1< Type >.

Definition at line 61 of file InputValueMapperI.H.

References Foam::abort(), Foam::clamp(), Foam::FatalError, FatalErrorInFunction, FUNCTION1, mappingModeNames_, Foam::max(), Foam::min(), MINMAX, NONE, and value().

Here is the call graph for this function:

◆ writeData()

template<class Type>

void writeData ( Ostream & os ) const

virtual

Write in dictionary format.

Reimplemented from Function1< Type >.

Definition at line 160 of file InputValueMapper.C.

References name, os(), Function1< Type >::writeData(), and writeEntries().

Here is the call graph for this function:

◆ writeEntries()

template<class Type>

void writeEntries ( Ostream & os ) const

virtual

Write coefficient entries in dictionary format.

Reimplemented from Function1< Type >.

Definition at line 120 of file InputValueMapper.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, FUNCTION1, mappingModeNames_, MINMAX, NONE, and os().

Referenced by writeData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ typeName() [1/5]

const::Foam::word typeName ( Function1Types::InputValueMapper< scalar > ::typeName_() )

◆ debug() [1/5]

int debug ( ::Foam::debug::debugSwitch(Function1Types::InputValueMapper< scalar >::typeName_(), 0) )

◆ typeName() [2/5]

const::Foam::word typeName ( Function1Types::InputValueMapper< vector > ::typeName_() )

◆ debug() [2/5]

int debug ( ::Foam::debug::debugSwitch(Function1Types::InputValueMapper< vector >::typeName_(), 0) )

◆ typeName() [3/5]

const::Foam::word typeName ( Function1Types::InputValueMapper< sphericalTensor > ::typeName_() )

◆ debug() [3/5]

int debug ( ::Foam::debug::debugSwitch(Function1Types::InputValueMapper< sphericalTensor >::typeName_(), 0) )

◆ typeName() [4/5]

const::Foam::word typeName ( Function1Types::InputValueMapper< symmTensor > ::typeName_() )

◆ debug() [4/5]

int debug ( ::Foam::debug::debugSwitch(Function1Types::InputValueMapper< symmTensor >::typeName_(), 0) )

◆ typeName() [5/5]

const::Foam::word typeName ( Function1Types::InputValueMapper< tensor > ::typeName_() )

◆ debug() [5/5]

int debug ( ::Foam::debug::debugSwitch(Function1Types::InputValueMapper< tensor >::typeName_(), 0) )

Member Data Documentation

◆ mappingModeNames_

template<class Type>

const Foam::Enum< typename Foam::Function1Types::InputValueMapper< Type >::mappingMode > mappingModeNames_

static

Names for the input value mapping modes.

Definition at line 165 of file InputValueMapper.H.

Referenced by integrate(), value(), and writeEntries().

The documentation for this class was generated from the following files:

src/OpenFOAM/primitives/functions/Function1/InputValueMapper/InputValueMapper.H
src/OpenFOAM/primitives/functions/Function1/InputValueMapper/InputValueMapper.C
src/OpenFOAM/primitives/functions/Function1/InputValueMapper/InputValueMapperI.H

Public Types

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ mappingMode

Constructor & Destructor Documentation

◆ InputValueMapper() [1/2]

◆ InputValueMapper() [2/2]

◆ ~InputValueMapper()

Member Function Documentation

◆ TypeName()

◆ operator=()

◆ clone()

◆ value()

◆ integrate()

◆ writeData()

◆ writeEntries()

◆ typeName() [1/5]

◆ debug() [1/5]

◆ typeName() [2/5]

◆ debug() [2/5]

◆ typeName() [3/5]

◆ debug() [3/5]

◆ typeName() [4/5]

◆ debug() [4/5]

◆ typeName() [5/5]

◆ debug() [5/5]

Member Data Documentation

◆ mappingModeNames_
