Ramp function base class for the set of scalar functions starting from 0 and increasing monotonically to 1 from start over the duration and remaining at 1 thereafter. More...

#include <ramp.H>

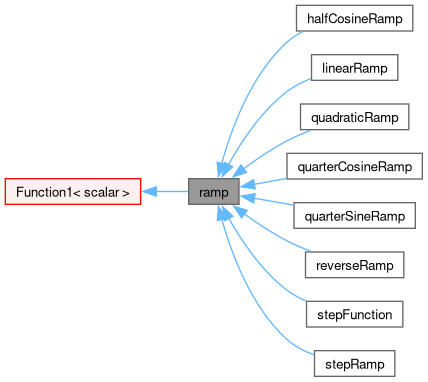

Inheritance diagram for ramp:

[legend]

Collaboration diagram for ramp:

[legend]

Public Member Functions
	ramp (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr=nullptr)
	Construct from entry name, dictionary and optional registry.
virtual	~ramp ()=default
	Destructor.
virtual void	userTimeToTime (const Time &t)
	Convert time.
virtual scalar	value (const scalar t) const =0
	Return value for time t.
virtual void	writeData (Ostream &os) const
	Write in dictionary format.
virtual void	writeEntries (Ostream &os) const
	Write coefficient entries in dictionary format.
Public Member Functions inherited from Function1< scalar >
virtual const word &	type () const
	Function1 (const word &entryName, const objectRegistry *obrPtr=nullptr)
	Construct from entry name.
	Function1 (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr=nullptr)
	Construct from entry name, (unused) dictionary and optional registry.
	Function1 (const Function1< scalar > &rhs)
	Copy construct.
virtual tmp< Function1< scalar > >	clone () const=0
	Return a clone.
virtual	~Function1 ()=default
	Destructor.
virtual bool	constant () const
	Is value constant (i.e. independent of x).
virtual bool	good () const
	Can function be evaluated?
virtual tmp< Field< scalar > >	value (const scalarField &x) const
	Return value as a function of (scalar) independent variable.
virtual scalar	integrate (const scalar x1, const scalar x2) const
	Integrate between two (scalar) values.
virtual tmp< Field< scalar > >	integrate (const scalarField &x1, const scalarField &x2) const
	Integrate between two (scalar) values.
const::Foam::word	typeName (Function1< label >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< label >::typeName_(), 0))
Function1< label >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< label >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< label >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< label >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< scalar >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< scalar >::typeName_(), 0))
Function1< scalar >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< scalar >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< scalar >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< scalar >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< vector >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< vector >::typeName_(), 0))
Function1< vector >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< vector >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< vector >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< vector >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< sphericalTensor >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< sphericalTensor >::typeName_(), 0))
Function1< sphericalTensor >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< sphericalTensor >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< sphericalTensor >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< sphericalTensor >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< symmTensor >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< symmTensor >::typeName_(), 0))
Function1< symmTensor >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< symmTensor >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< symmTensor >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< symmTensor >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< tensor >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< tensor >::typeName_(), 0))
Function1< tensor >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< tensor >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< tensor >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< tensor >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
const::Foam::word	typeName (Function1< scalarField >::typeName_())
int	debug (::Foam::debug::debugSwitch(Function1< scalarField >::typeName_(), 0))
Function1< scalarField >::dictionaryConstructorTableType *	dictionaryConstructorTablePtr_ (nullptr)
std::unique_ptr< Function1< scalarField >::dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_ (nullptr)
Function1< scalarField >::dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
void	dictionaryConstructorTablePtr_construct (bool load)
Function1< scalarField >::dictionaryConstructorPtr	dictionaryConstructorTable (const::Foam::word &k)
Public Member Functions inherited from function1Base
	function1Base (const word &entryName, const objectRegistry *obrPtr=nullptr)
	Construct from entry name and optional registry.
	function1Base (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr=nullptr)
	Construct from entry name, dictionary (unused) and optional registry.
	function1Base (const function1Base &rhs)
	Copy construct.
virtual	~function1Base ()
	Destructor.
const word &	name () const noexcept
	The name of the entry.
const objectRegistry *	whichDb () const noexcept
	Return the associated registry or nullptr.
void	resetDb (const objectRegistry *obrPtr=nullptr) noexcept
	Reset the associated objectRegistry.
void	resetDb (const objectRegistry &db) noexcept
	Reset the associated objectRegistry.
const objectRegistry &	obr () const
	Return the object registry.
bool	isTime () const noexcept
	Return true if this function was created with the time database.
const Time &	time () const
	Return the time database.
template<class MeshType>
const MeshType &	mesh (const word &regionName=word::null) const
	Return the mesh database if this Function1 was created using a mesh.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Protected Member Functions
scalar	linearRamp (const scalar t) const
	Simple linear ramp function that forms the basis of many more complex ramp functions.
Protected Member Functions inherited from Function1< scalar >
void	operator= (const Function1< scalar > &)=delete
	No copy assignment.
Protected Member Functions inherited from function1Base
void	operator= (const function1Base &)=delete
	No copy assignment.

Protected Attributes
scalar	start_
	Start-time of the ramp function.
scalar	duration_
	Duration of the ramp function.
Protected Attributes inherited from function1Base
const word	name_
	Name of entry.
const objectRegistry *	obrPtr_
	Pointer to an object registry.

Additional Inherited Members
Public Types inherited from Function1< scalar >
typedef scalar	returnType
	The return type.
typedef autoPtr< Function1 >(*	dictionaryConstructorPtr) (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr)
	Declare runtime constructor selection table.
typedef ::Foam::HashTable< dictionaryConstructorPtr, ::Foam::word, ::Foam::Hash<::Foam::word > >	dictionaryConstructorTableType
typedef ::Foam::HashTable< std::pair<::Foam::word, int >, ::Foam::word, ::Foam::Hash<::Foam::word > >	dictionaryConstructorCompatTableType
Static Public Member Functions inherited from Function1< scalar >
static const char *	typeName_ ()
	Runtime type information.
static dictionaryConstructorCompatTableType &	dictionaryConstructorCompatTable ()
static void	dictionaryConstructorTablePtr_construct (bool load)
static dictionaryConstructorPtr	dictionaryConstructorTable (const ::Foam::word &k)
static tmp< Function1< scalar > >	Clone (const Derived &fun)
	Clone a Function1.
static autoPtr< Function1< scalar > >	New (const word &entryName, const dictionary &dict, const word &redirectType, const objectRegistry *obrPtr=nullptr, const bool mandatory=true)
	Selector, with fallback redirection.
static autoPtr< Function1< scalar > >	NewCompat (const word &entryName, std::initializer_list< std::pair< const char , int > > compat, const dictionary &dict, const word &redirectType=word::null, const objectRegistry obrPtr=nullptr, const bool mandatory=true)
	Compatibility selector, with fallback redirection.
static autoPtr< Function1< scalar > >	New (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr=nullptr, const bool mandatory=true)
	Selector, without fallback redirection.
static autoPtr< Function1< scalar > >	NewIfPresent (const word &entryName, const dictionary &dict, const word &redirectType, const objectRegistry *obrPtr=nullptr)
	An optional selector, with fallback redirection.
static autoPtr< Function1< scalar > >	NewIfPresent (const word &entryName, const dictionary &dict, const objectRegistry *obrPtr=nullptr)
	An optional selector, without fallback redirection.
static refPtr< Function1< scalar > >	New (HashPtrTable< Function1< scalar > > &cache, const word &entryName, const dictionary &dict, enum keyType::option matchOpt=keyType::LITERAL, const objectRegistry *obrPtr=nullptr, const bool mandatory=true)
	Selector with external storage of Function1. This also allows wildcard matches in a dictionary.
Static Public Attributes inherited from Function1< scalar >
static const ::Foam::word	typeName
static int	debug
static dictionaryConstructorTableType *	dictionaryConstructorTablePtr_
static std::unique_ptr< dictionaryConstructorCompatTableType >	dictionaryConstructorCompatTablePtr_

Detailed Description

Ramp function base class for the set of scalar functions starting from 0 and increasing monotonically to 1 from start over the duration and remaining at 1 thereafter.

Usage:

    <entryName> <rampFunction>;
    <entryName>Coeffs
    {
        start     10;
        duration  20;
    }

or

    <entryName>
    {
        type      <rampFunction>;
        start     10;
        duration  20;
    }

Where:

Property	Description	Required	Default value
`start`	Start time	no	0
`duration`	Duration	yes

See also: Foam::Function1

Source files

Definition at line 95 of file ramp.H.

Constructor & Destructor Documentation

◆ ramp()

ramp	(	const word &	entryName,
		const dictionary &	dict,
		const objectRegistry *	obrPtr = nullptr )

Construct from entry name, dictionary and optional registry.

Definition at line 33 of file ramp.C.

References dict, and Function1< scalar >::Function1().

Referenced by halfCosineRamp::halfCosineRamp(), linearRamp::linearRamp(), quadraticRamp::quadraticRamp(), quarterCosineRamp::quarterCosineRamp(), quarterSineRamp::quarterSineRamp(), reverseRamp::reverseRamp(), stepFunction::stepFunction(), and stepRamp::stepRamp().

Here is the call graph for this function:

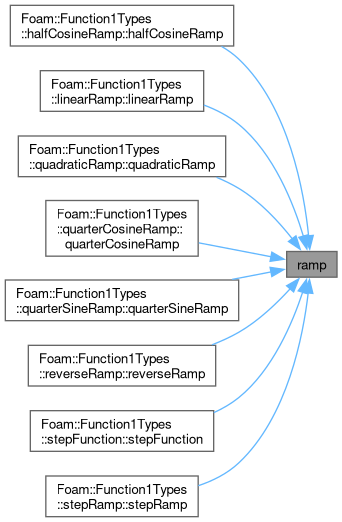

Here is the caller graph for this function:

◆ ~ramp()

virtual ~ramp ( )

virtualdefault

Destructor.

Member Function Documentation

◆ linearRamp()

scalar linearRamp ( const scalar t ) const

inlineprotected

Simple linear ramp function that forms the basis of many more complex ramp functions.

Definition at line 117 of file ramp.H.

References Foam::clamp(), duration_, and start_.

Referenced by halfCosineRamp::value(), linearRamp::value(), quadraticRamp::value(), quarterCosineRamp::value(), and quarterSineRamp::value().

Here is the call graph for this function:

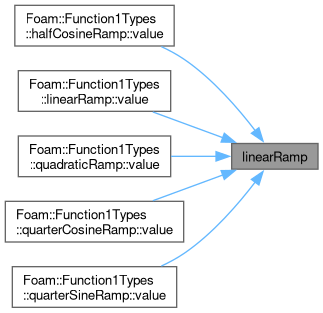

Here is the caller graph for this function:

◆ userTimeToTime()

void userTimeToTime ( const Time & t )

virtual

Convert time.

Reimplemented from function1Base.

Definition at line 55 of file ramp.C.

References duration_, start_, and TimeState::userTimeToTime().

Here is the call graph for this function:

◆ value()

virtual scalar value ( const scalar t ) const

pure virtual

Return value for time t.

Reimplemented from Function1< scalar >.

Implemented in halfCosineRamp, linearRamp, quadraticRamp, quarterCosineRamp, quarterSineRamp, reverseRamp, stepFunction, and stepRamp.

References os().

Here is the call graph for this function:

◆ writeData()

void writeData ( Ostream & os ) const

virtual

Write in dictionary format.

Reimplemented from Function1< scalar >.

Definition at line 62 of file ramp.C.

References name, os(), Function1< Type >::writeData(), and writeEntries().

Here is the call graph for this function:

◆ writeEntries()

void writeEntries ( Ostream & os ) const

virtual

Write coefficient entries in dictionary format.

Reimplemented from Function1< scalar >.

Definition at line 48 of file ramp.C.

References duration_, os(), and start_.

Referenced by writeData().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ start_

scalar start_

protected

Start-time of the ramp function.

Definition at line 106 of file ramp.H.

Referenced by linearRamp(), userTimeToTime(), reverseRamp::value(), stepFunction::value(), stepRamp::value(), and writeEntries().

◆ duration_

scalar duration_

protected

Duration of the ramp function.

Definition at line 111 of file ramp.H.

Referenced by linearRamp(), reverseRamp::reverseRamp(), stepRamp::stepRamp(), userTimeToTime(), stepFunction::value(), and writeEntries().

The documentation for this class was generated from the following files:

src/OpenFOAM/primitives/functions/Function1/ramp/ramp.H
src/OpenFOAM/primitives/functions/Function1/ramp/ramp.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ramp()

◆ ~ramp()

Member Function Documentation

◆ linearRamp()

◆ userTimeToTime()

◆ value()

◆ writeData()

◆ writeEntries()

Member Data Documentation

◆ start_

◆ duration_
