Class implementing a workaround for using the Globally converging wrapper of the MMA update method. Implemented as a lineSearch, even though the search direction changes within each inner iteration of GCMMA, due the existing framework for re-solving the primal equations and checking the convergence of a merit function. More...

#include <GCMMA.H>

Inheritance diagram for GCMMA:

[legend]

Collaboration diagram for GCMMA:

[legend]

Public Member Functions
	TypeName ("GCMMA")
	Runtime type information.
	GCMMA (const dictionary &dict, const Time &time, updateMethod &UpdatheMethod)
	Construct from components.
virtual	~GCMMA ()=default
virtual bool	converged ()
	Check whether linear search has converged.
virtual void	updateStep ()
	Actually computes a new direction entirely, targeting the satisfaction of the GCMMA condition.
virtual void	updateCorrection (scalarField &correction)
	Replace the correction with the one computed in updateStep.
Public Member Functions inherited from lineSearch
	TypeName ("lineSearch")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, lineSearch, dictionary,(const dictionary &dict, const Time &time, updateMethod &UpdateMethod),(dict, time, UpdateMethod))
	lineSearch (const dictionary &dict, const Time &time, updateMethod &UpdateMethod)
	Construct from components.
virtual	~lineSearch ()=default
	Destructor.
virtual void	setDeriv (const scalar deriv)
	Set directional derivative.
virtual void	setNewDeriv (const scalar deriv)
	Set new directional derivative.
void	setDirection (const scalarField &direction)
	Set direction.
void	setNewMeritValue (const scalar value)
	Set new objective value.
void	setOldMeritValue (const scalar value)
	Set old objective value.
virtual void	reset ()
	Reset step to initial value.
label	innerIter () const
	Get inner line search iteration.
label	maxIters () const
	Get max number of iterations.
scalar	step () const
	Get current step.
virtual void	updateStep (const scalar newStep)
	Update the step using the supplied value.
virtual bool	loop ()
	Return true if lineSearch should continue and if so increment inner.
virtual bool	computeGradient () const
	Does line search need to update the gradient?
virtual void	postUpdate ()
	Execute steps at the end of the line search iterations.
virtual lineSearch &	operator++ ()
	Increment iteration number and store merit value corresponding to the previous optimisation cycle.
virtual lineSearch &	operator++ (int)
	Postfix increment. Necessary for compilation.

Protected Member Functions
void	writeToFiles (bool isConverged)
	Write rho and objective/constraint values & approx to files.
Protected Member Functions inherited from lineSearch
const dictionary &	coeffsDict ()
	Optional coeffs dict.

Protected Attributes
MMA &	mma_
	Cast of the update method to MMA.
OFstream	GCMMAFile_
	File with rho values in each inner loop.
OFstream	costFile_
	File with CPU cost in each inner loop.
label	cost_
	Total cost, measured in Equivalent Flow Solutions, up to this cycle.
bool	writeHeader_
	Write the header of the output files.
Protected Attributes inherited from lineSearch
const dictionary	dict_
	Subdict within updateMethod.
IOdictionary	lineSearchDict_
	IOdictionary under time/uniform for continuation.
scalar	directionalDeriv_
	Directional derivative of the merit function.
scalarField	direction_
	Update direction.
scalar	oldMeritValue_
	Old merit value from this opt cycle.
scalar	newMeritValue_
	New merit value from this opt cycle.
scalar	prevMeritDeriv_
	Merit directional deriv from the previous opt cycle.
scalar	initialStep_
	Correction multiplier at the first step of line search.
scalar	minStep_
	Minimum allowed correction multiplier.
scalar	step_
	Correction multiplier.
label	iter_
	Optimisation cycle.
label	innerIter_
	Inner line search iteration.
label	maxIters_
	Maximum line search iterations.
bool	extrapolateInitialStep_
	Whether to extrapolate the correction multiplier for this optimisation cycle based on the previous ones.
autoPtr< stepUpdate >	stepUpdate_
	Mechanism to update method if line search conditions are not set.
updateMethod &	updateMethod_
	Reference to the update method related to the line search.

Additional Inherited Members
Static Public Member Functions inherited from lineSearch
static autoPtr< lineSearch >	New (const dictionary &dict, const Time &time, updateMethod &UpdateMethod)
	Return a reference to the selected turbulence model.

Detailed Description

Class implementing a workaround for using the Globally converging wrapper of the MMA update method. Implemented as a lineSearch, even though the search direction changes within each inner iteration of GCMMA, due the existing framework for re-solving the primal equations and checking the convergence of a merit function.

Reference:

    Svanberg, K. (2002)
    A class of globally convergent optimization methods based on
    conservative convex separable approximations.
    SIAM Journal of Optimization, 12), 555-573.
    https://doi.org/10.1137/S1052623499362822

Source files

Definition at line 62 of file GCMMA.H.

Constructor & Destructor Documentation

◆ GCMMA()

GCMMA	(	const dictionary &	dict,
		const Time &	time,
		updateMethod &	UpdatheMethod )

Construct from components.

Definition at line 120 of file GCMMA.C.

References cost_, costFile_, dict, GCMMAFile_, mma_, Foam::refCast(), timeName, and writeHeader_.

Here is the call graph for this function:

◆ ~GCMMA()

virtual ~GCMMA ( )

virtualdefault

References Foam::correction().

Here is the call graph for this function:

Member Function Documentation

◆ writeToFiles()

void writeToFiles ( bool isConverged )

protected

Write rho and objective/constraint values & approx to files.

Definition at line 42 of file GCMMA.C.

References cost_, costFile_, IOstream::defaultPrecision(), Foam::endl(), forAll, GCMMAFile_, lineSearch::innerIter_, lineSearch::iter_, UPstream::master(), mma_, Foam::setw(), UList< T >::size(), and writeHeader_.

Referenced by converged().

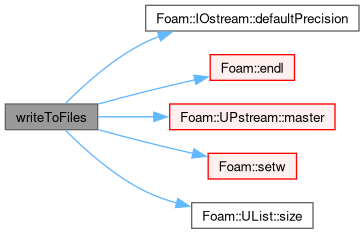

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "GCMMA" )

Runtime type information.

References dict.

◆ converged()

bool converged ( )

virtual

Check whether linear search has converged.

Implements lineSearch.

Definition at line 146 of file GCMMA.C.

References DebugInfo, Foam::endl(), mma_, and writeToFiles().

Here is the call graph for this function:

◆ updateStep()

void updateStep ( )

virtual

Actually computes a new direction entirely, targeting the satisfaction of the GCMMA condition.

Implements lineSearch.

Definition at line 159 of file GCMMA.C.

References DebugInfo, Foam::endl(), and mma_.

Here is the call graph for this function:

◆ updateCorrection()

void updateCorrection ( scalarField & correction )

virtual

Replace the correction with the one computed in updateStep.

Reimplemented from lineSearch.

Definition at line 172 of file GCMMA.C.

References Foam::correction(), and mma_.

Here is the call graph for this function:

Member Data Documentation

◆ mma_

MMA& mma_

protected

Cast of the update method to MMA.

Definition at line 73 of file GCMMA.H.

Referenced by converged(), GCMMA(), updateCorrection(), updateStep(), and writeToFiles().

◆ GCMMAFile_

OFstream GCMMAFile_

protected

File with rho values in each inner loop.

Definition at line 78 of file GCMMA.H.

Referenced by GCMMA(), and writeToFiles().

◆ costFile_

OFstream costFile_

protected

File with CPU cost in each inner loop.

Definition at line 83 of file GCMMA.H.

Referenced by GCMMA(), and writeToFiles().

◆ cost_

label cost_

protected

Total cost, measured in Equivalent Flow Solutions, up to this cycle.

Definition at line 88 of file GCMMA.H.

Referenced by GCMMA(), and writeToFiles().

◆ writeHeader_

bool writeHeader_

protected

Write the header of the output files.

Definition at line 93 of file GCMMA.H.

Referenced by GCMMA(), and writeToFiles().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/optimisation/lineSearch/GCMMA/GCMMA.H
src/optimisation/adjointOptimisation/adjoint/optimisation/lineSearch/GCMMA/GCMMA.C
