GeoMesh< MESH > Class Template Reference

Generic mesh wrapper used by volMesh, surfaceMesh, pointMesh etc. More...

#include <GeoMesh.H>

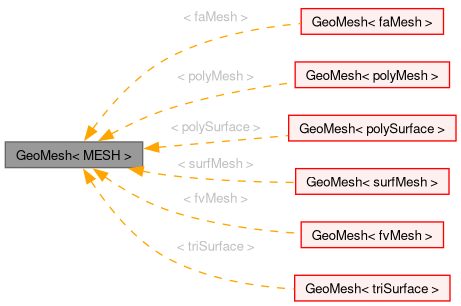

Inheritance diagram for GeoMesh< MESH >:

Public Types
typedef MESH	Mesh
typedef MESH::BoundaryMesh	BoundaryMesh

Public Member Functions
	GeoMesh (const MESH &mesh)
	Construct from mesh reference.
bool	hasDb () const
	Return true if thisDb() is a valid DB - here = false.
const objectRegistry &	thisDb () const
	Return the object registry.
const MESH &	operator() () const
	Return reference to the underlying mesh.

Protected Attributes
const MESH &	mesh_
	Reference to Mesh.

Detailed Description

template<class MESH>
class Foam::GeoMesh< MESH >

Generic mesh wrapper used by volMesh, surfaceMesh, pointMesh etc.

Derived classes are typically expected to implement the static methods size() and boundary_size().

Definition at line 45 of file GeoMesh.H.

Member Typedef Documentation

Mesh

template<class MESH>

typedef MESH Mesh

Definition at line 61 of file GeoMesh.H.

BoundaryMesh

template<class MESH>

typedef MESH::BoundaryMesh BoundaryMesh

Definition at line 62 of file GeoMesh.H.

Constructor & Destructor Documentation

GeoMesh()

template<class MESH>

GeoMesh ( const MESH & mesh )

inlineexplicit

Construct from mesh reference.

Definition at line 70 of file GeoMesh.H.

References mesh, and mesh_.

Member Function Documentation

hasDb()

template<class MESH>

bool hasDb ( ) const

inline

Return true if thisDb() is a valid DB - here = false.

Definition at line 81 of file GeoMesh.H.

thisDb()

template<class MESH>

const objectRegistry & thisDb ( ) const

inline

Return the object registry.

Definition at line 89 of file GeoMesh.H.

References mesh_.

operator()()

template<class MESH>

const MESH & operator() ( ) const

inline

Return reference to the underlying mesh.

Definition at line 100 of file GeoMesh.H.

References mesh_.

Member Data Documentation

mesh_

template<class MESH>

const MESH& mesh_

protected

Reference to Mesh.

Definition at line 54 of file GeoMesh.H.

Referenced by pointMesh::boundaryMesh(), GeoMesh(), pointMesh::globalData(), pointMesh::hasGlobalData(), pointMesh::movePoints(), operator()(), thisDb(), pointMesh::thisDb(), and pointMesh::time().

---

The documentation for this class was generated from the following file:

• src/OpenFOAM/meshes/GeoMesh/GeoMesh.H
