A regulatisation PDE based on a Helmholtz filter. More...

#include <Helmholtz.H>

Inheritance diagram for Helmholtz:

Collaboration diagram for Helmholtz:

Public Member Functions
	TypeName ("Helmholtz")
	Runtime type information.
	Helmholtz (const fvMesh &mesh, const dictionary &dict, const topOZones &zones)
	Construct from components.
virtual	~Helmholtz ()=default
	Destructor.
virtual void	regularise (const volScalarField &aTilda, const scalarField &source, scalarField &result, const bool isTopoField, const regularisationRadius &radius, const scalar minSetValue=Zero, const bool fixATildaValues=true)
	Regularise field (or sensitivities) using a Laplace PDE.
Public Member Functions inherited from regularisationPDE
	TypeName ("regularisationPDE")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, regularisationPDE, dictionary,(const fvMesh &mesh, const dictionary &dict, const topOZones &zones),(mesh, dict, zones))
	regularisationPDE (const fvMesh &mesh, const dictionary &dict, const topOZones &zones)
	Construct from components.
virtual	~regularisationPDE ()=default
	Destructor.

Protected Member Functions
void	solveEqn (const volScalarField &aTilda, const scalarField &source, scalarField &result, const bool isTopoField, const regularisationRadius &radius, const scalar minSetValue=Zero, const bool fixATildaValues=true)
	Solve the regulatisation equation.
Protected Member Functions inherited from regularisationPDE
void	setValues (fvScalarMatrix &bTildaEqn, const bool isTopoField, const scalar minSetValue=Zero)
	Set fixed bTilda values.
void	setValues (const fvMesh &mesh, DynamicList< label > &cells, DynamicList< scalar > &values, bool isTopoField, const scalar minSetValue=Zero)
	Gather the cells with constant values from all constrained zones.
scalar	computeRadius ()
	Compute smoothing radius, if not directly given.

Protected Attributes
bool	solveOnActiveCells_
	Solve the regularisationPDE only on a subset mesh made of the active cell zones.
scalar	wallValue_
	Fixed value at wall boundaries. Defaults to 1.
Protected Attributes inherited from regularisationPDE
const fvMesh &	mesh_
const dictionary	dict_
const topOZones &	zones_
	Cell zones related to topology optimisation.
bool	growFromWalls_
	Whether to apply a fixedValue BC or zeroGradient one to alphaTilda, when regularisation is performed.

Additional Inherited Members
Static Public Member Functions inherited from regularisationPDE
static autoPtr< regularisationPDE >	New (const fvMesh &mesh, const dictionary &dict, const topOZones &zones)
	Construct and return the selected regularisationPDE.

Detailed Description

A regulatisation PDE based on a Helmholtz filter.

Source files

Definition at line 49 of file Helmholtz.H.

Constructor & Destructor Documentation

◆ Helmholtz()

Helmholtz	(	const fvMesh &	mesh,
		const dictionary &	dict,
		const topOZones &	zones )

Construct from components.

Definition at line 150 of file Helmholtz.C.

References dict, mesh, solveOnActiveCells_, and wallValue_.

◆ ~Helmholtz()

virtual ~Helmholtz ( )

virtualdefault

Destructor.

References Foam::Zero.

Member Function Documentation

◆ solveEqn()

void solveEqn	(	const volScalarField &	aTilda,
		const scalarField &	source,
		scalarField &	result,
		const bool	isTopoField,
		const regularisationRadius &	radius,
		const scalar	minSetValue = Zero,
		const bool	fixATildaValues = true )

protected

Solve the regulatisation equation.

The mesh used is the one of aTilda

Definition at line 43 of file Helmholtz.C.

References regularisationRadius::addRegularisationTerm(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), regularisationPDE::dict_, Foam::dimless, forAll, regularisationPDE::growFromWalls_, Foam::Info, SolverPerformance< Type >::initialResidual(), GeometricField< Type, PatchField, GeoMesh >::internalField(), Foam::isA(), iters(), Foam::mag(), DimensionedField< Type, GeoMesh >::mesh(), mesh, IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, GeometricField< Type, PatchField, GeoMesh >::primitiveField(), regularisationPDE::setValues(), fvMatrix< Type >::solve(), Foam::fvm::Sp(), wallValue_, and Foam::Zero.

Referenced by regularise().

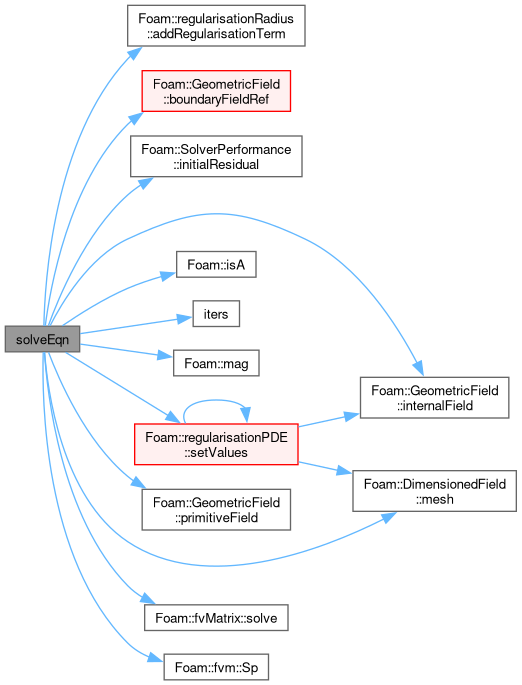

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "Helmholtz" )

Runtime type information.

References dict, and mesh.

◆ regularise()

void regularise	(	const volScalarField &	aTilda,
		const scalarField &	source,
		scalarField &	result,
		const bool	isTopoField,
		const regularisationRadius &	radius,
		const scalar	minSetValue = Zero,
		const bool	fixATildaValues = true )

virtual

Regularise field (or sensitivities) using a Laplace PDE.

Implements regularisationPDE.

Definition at line 165 of file Helmholtz.C.

References cells, regularisationPDE::mesh_, Field< Type >::rmap(), regularisationPDE::setValues(), and solveEqn().

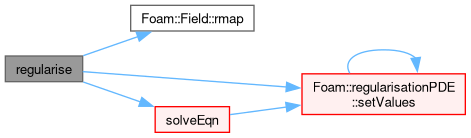

Here is the call graph for this function:

Member Data Documentation

◆ solveOnActiveCells_

bool solveOnActiveCells_

protected

Solve the regularisationPDE only on a subset mesh made of the active cell zones.

Definition at line 77 of file Helmholtz.H.

Referenced by Helmholtz().

◆ wallValue_

scalar wallValue_

protected

Fixed value at wall boundaries. Defaults to 1.

Definition at line 82 of file Helmholtz.H.

Referenced by Helmholtz(), and solveEqn().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/optimisation/designVariables/topODesignVariables/regularisation/regularisationPDE/Helmoltz/Helmholtz.H
src/optimisation/adjointOptimisation/adjoint/optimisation/designVariables/topODesignVariables/regularisation/regularisationPDE/Helmoltz/Helmholtz.C
