KinematicParcel< ParcelType >::trackingData Class Reference

#include <KinematicParcel.H>

Inheritance diagram for KinematicParcel< ParcelType >::trackingData:
Inheritance graph
[legend]
Collaboration diagram for KinematicParcel< ParcelType >::trackingData:
Collaboration graph
[legend]

Public Types

enum  trackPart { tpVelocityHalfStep , tpLinearTrack , tpRotationalTrack }

Public Member Functions

template<class TrackCloudType>
 trackingData (const TrackCloudType &cloud, trackPart part=tpLinearTrack)
 Construct from components.
const interpolation< scalar > & rhoInterp () const
 Return const access to the interpolator for continuous phase density field.
const interpolation< vector > & UInterp () const
 Return const access to the interpolator for continuous phase velocity field.
const interpolation< scalar > & muInterp () const
 Return const access to the interpolator for continuous phase dynamic viscosity field.
scalar rhoc () const
 Return the continuous phase density.
scalar & rhoc ()
 Access the continuous phase density.
const vector & Uc () const
 Return the continuous phase velocity.
vector & Uc ()
 Access the continuous phase velocity.
scalar muc () const
 Return the continuous phase viscosity.
scalar & muc ()
 Access the continuous phase viscosity.
const vector & g () const
trackPart part () const
 Return the part of the tracking operation taking place.
trackPart & part ()
 Return access to the part of the tracking operation taking place.
template<class TrackCloudType>
void updateAverages (const TrackCloudType &cloud)
 Update the MPPIC averages.

Detailed Description

template<class ParcelType>
class Foam::KinematicParcel< ParcelType >::trackingData

Definition at line 190 of file KinematicParcel.H.

Member Enumeration Documentation

◆ trackPart

template<class ParcelType>
enum trackPart
Enumerator
tpVelocityHalfStep
tpLinearTrack
tpRotationalTrack

Definition at line 196 of file KinematicParcel.H.

Constructor & Destructor Documentation

◆ trackingData()

template<class ParcelType>
template<class TrackCloudType>
trackingData ( const TrackCloudType & cloud,
trackPart part = tpLinearTrack )
inline

Construct from components.

Definition at line 28 of file KinematicParcelTrackingDataI.H.

References dict, g(), mesh, mu, Foam::name(), Foam::New(), part(), KinematicParcel< ParcelType >::rho(), timeName, trackingData(), KinematicParcel< ParcelType >::U(), and Foam::Zero.

Referenced by trackingData().

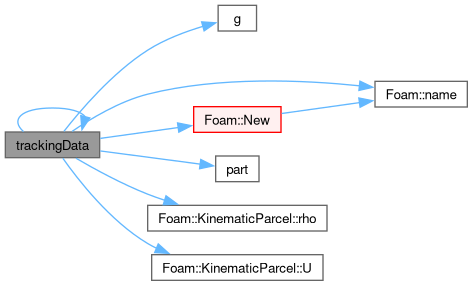

Here is the call graph for this function:
Here is the caller graph for this function:

Member Function Documentation

◆ rhoInterp()

template<class ParcelType>
const Foam::interpolation< Foam::scalar > & rhoInterp ( ) const
inline

Return const access to the interpolator for continuous phase density field.

Definition at line 169 of file KinematicParcelTrackingDataI.H.

◆ UInterp()

template<class ParcelType>
const Foam::interpolation< Foam::vector > & UInterp ( ) const
inline

Return const access to the interpolator for continuous phase velocity field.

Definition at line 177 of file KinematicParcelTrackingDataI.H.

◆ muInterp()

template<class ParcelType>
const Foam::interpolation< Foam::scalar > & muInterp ( ) const
inline

Return const access to the interpolator for continuous phase dynamic viscosity field.

Definition at line 185 of file KinematicParcelTrackingDataI.H.

◆ rhoc() [1/2]

template<class ParcelType>
Foam::scalar rhoc ( ) const
inline

Return the continuous phase density.

Definition at line 201 of file KinematicParcelTrackingDataI.H.

◆ rhoc() [2/2]

template<class ParcelType>
Foam::scalar & rhoc ( )
inline

Access the continuous phase density.

Definition at line 208 of file KinematicParcelTrackingDataI.H.

◆ Uc() [1/2]

template<class ParcelType>
const Foam::vector & Uc ( ) const
inline

Return the continuous phase velocity.

Definition at line 216 of file KinematicParcelTrackingDataI.H.

◆ Uc() [2/2]

template<class ParcelType>
Foam::vector & Uc ( )
inline

Access the continuous phase velocity.

Definition at line 223 of file KinematicParcelTrackingDataI.H.

◆ muc() [1/2]

template<class ParcelType>
Foam::scalar muc ( ) const
inline

Return the continuous phase viscosity.

Definition at line 230 of file KinematicParcelTrackingDataI.H.

◆ muc() [2/2]

template<class ParcelType>
Foam::scalar & muc ( )
inline

Access the continuous phase viscosity.

Definition at line 237 of file KinematicParcelTrackingDataI.H.

◆ g()

template<class ParcelType>
const Foam::vector & g ( ) const
inline

Definition at line 193 of file KinematicParcelTrackingDataI.H.

Referenced by trackingData().

Here is the caller graph for this function:

◆ part() [1/2]

template<class ParcelType>
Foam::KinematicParcel< ParcelType >::trackingData::trackPart part ( ) const
inline

Return the part of the tracking operation taking place.

Definition at line 245 of file KinematicParcelTrackingDataI.H.

Referenced by trackingData().

Here is the caller graph for this function:

◆ part() [2/2]

template<class ParcelType>
Foam::KinematicParcel< ParcelType >::trackingData::trackPart & part ( )
inline

Return access to the part of the tracking operation taking place.

Definition at line 253 of file KinematicParcelTrackingDataI.H.

◆ updateAverages()

template<class ParcelType>
template<class TrackCloudType>
void updateAverages ( const TrackCloudType & cloud)
inline

Update the MPPIC averages.

Definition at line 261 of file KinematicParcelTrackingDataI.H.

References IOobject::db(), IOobject::name(), AveragingMethod< Type >::New(), p, IOobject::scopedName(), objectRegistry::time(), Time::timeName(), and Foam::Zero.

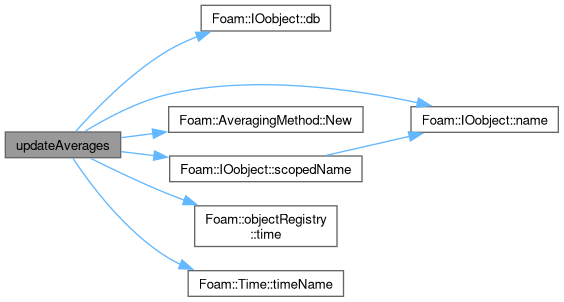

Here is the call graph for this function:
The documentation for this class was generated from the following files:
