Template class for non-intrusive linked lists. More...

#include <LList.H>

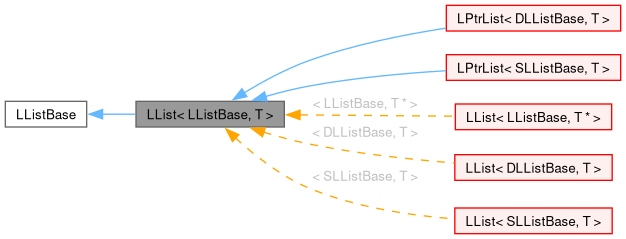

Inheritance diagram for LList< LListBase, T >:

[legend]

Collaboration diagram for LList< LListBase, T >:

Classes
struct	link
	The storage of T with linked nodes. More...
class	iterator
	An STL-conforming iterator. More...
class	const_iterator
	An STL-conforming const_iterator. More...
class	reverse_iterator
	A reverse_iterator, for LListBase classes that support reverse iteration. More...
class	const_reverse_iterator
	A const_reverse_iterator, for LListBase classes that support reverse iteration. More...

Public Types
typedef T	value_type
	Type of values stored.
typedef T *	pointer
	Pointer for value_type.
typedef const T *	const_pointer
	Const pointer for value_type.
typedef T &	reference
	Reference for value_type.
typedef const T &	const_reference
	Const reference for value_type.
typedef label	size_type
	The type that can represent the container size.
typedef label	difference_type
	The difference between iterators.
using	base_iterator = typename LListBase::iterator
using	const_base_iterator = typename LListBase::const_iterator

Public Member Functions
	LList ()=default
	Default construct.
	LList (const T &elem)
	Construct and copy add initial item.
	LList (T &&elem)
	Construct and move add initial item.
	LList (Istream &is)
	Construct from Istream.
	LList (const LList< LListBase, T > &lst)
	Copy construct.
	LList (LList< LListBase, T > &&lst)
	Move construct.
	LList (std::initializer_list< T > lst)
	Copy construct from an initializer list.
	~LList ()
	Destructor. Calls clear().
reference	front ()
	The first entry in the list.
const_reference	front () const
	The first entry in the list (const access).
reference	back ()
	The last entry in the list.
const_reference	back () const
	The last entry in the list (const access).
void	push_front (const T &elem)
	Add copy at front of list.
void	push_front (T &&elem)
	Move construct at front of list.
void	push_back (const T &elem)
	Add copy at back of list.
void	push_back (T &&elem)
	Move construct at back of list.
void	clear ()
	Delete contents of list.
void	pop_front (label n=1)
	Remove first element(s) from the list (deletes pointers).
T	removeHead ()
	Remove and return first entry.
T	remove (link *item)
	Remove and return element.
T	remove (iterator &iter)
	Remove and return element specified by iterator.
void	transfer (LList< LListBase, T > &lst)
	Transfer the contents of the argument into this List and annul the argument list.
void	operator= (const LList< LListBase, T > &lst)
	Copy assignment.
void	operator= (LList< LListBase, T > &&lst)
	Move assignment.
void	operator= (std::initializer_list< T > lst)
	Copy assignment from an initializer list.
Istream &	readList (Istream &is)
	Read list from Istream.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write LList with line-breaks when length exceeds shortLen.
iterator	begin ()
	Iterator to first item in list with non-const access.
const_iterator	cbegin () const
	Iterator to first item in list with const access.
reverse_iterator	rbegin ()
	Iterator to last item in list with non-const access.
const_reverse_iterator	crbegin () const
	Iterator to last item in list with const access.
const_iterator	begin () const
	Iterator to first item in list with const access.
const_reverse_iterator	rbegin () const
	Iterator to last item in list with const access.
const iterator &	end ()
	End of list for forward iterators.
const const_iterator &	cend () const
	End of list for forward iterators.
const reverse_iterator &	rend ()
	End of list for reverse iterators.
const const_reverse_iterator &	crend () const
	End of list for reverse iterators.
const const_iterator &	end () const
	End of list for forward iterators.
const const_reverse_iterator &	rend () const
	End of list for reverse iterators.
reference	first ()
	The first entry in the list.
const_reference	first () const
	The first entry in the list (const access).
reference	last ()
	The last entry in the list.
const_reference	last () const
	The last entry in the list (const access).
void	prepend (const T &elem)
	Add copy at front of list.
void	prepend (T &&elem)
	Move construct at front of list.
void	append (const T &elem)
	Add copy at back of list.
void	append (T &&elem)
	Move construct at back of list.
void	insert (const T &elem)
	Add copy at front of list. Same as push_front().
void	insert (T &&elem)
	Move construct at front of list. Same as push_front().

Friends
Istream &	operator>> (Istream &is, LList< LListBase, T > &lst)
	Read list from Istream.
Ostream &	operator (Ostream &os, const LList< LListBase, T > &lst)
	Write LList to Ostream with line breaks, as per writeList with shortLen=-1.

Detailed Description

template<class LListBase, class T>
class Foam::LList< LListBase, T >

Template class for non-intrusive linked lists.

Source files

Definition at line 68 of file LList.H.

Member Typedef Documentation

◆ value_type

template<class LListBase, class T>

typedef T value_type

Type of values stored.

Definition at line 79 of file LList.H.

◆ pointer

template<class LListBase, class T>

typedef T* pointer

Pointer for value_type.

Definition at line 84 of file LList.H.

◆ const_pointer

template<class LListBase, class T>

typedef const T* const_pointer

Const pointer for value_type.

Definition at line 89 of file LList.H.

◆ reference

template<class LListBase, class T>

typedef T& reference

Reference for value_type.

Definition at line 94 of file LList.H.

◆ const_reference

template<class LListBase, class T>

typedef const T& const_reference

Const reference for value_type.

Definition at line 99 of file LList.H.

◆ size_type

template<class LListBase, class T>

typedef label size_type

The type that can represent the container size.

Definition at line 104 of file LList.H.

◆ difference_type

template<class LListBase, class T>

typedef label difference_type

The difference between iterators.

Definition at line 109 of file LList.H.

◆ base_iterator

template<class LListBase, class T>

using base_iterator = typename LListBase::iterator

Definition at line 117 of file LList.H.

◆ const_base_iterator

template<class LListBase, class T>

using const_base_iterator = typename LListBase::const_iterator

Definition at line 118 of file LList.H.

Constructor & Destructor Documentation

◆ LList() [1/7]

template<class LListBase, class T>

LList ( )

default

Default construct.

Referenced by LList(), LList(), operator=(), operator=(), readList(), and transfer().

Here is the caller graph for this function:

◆ LList() [2/7]

template<class LListBase, class T>

LList ( const T & elem )

inlineexplicit

Construct and copy add initial item.

Definition at line 205 of file LList.H.

◆ LList() [3/7]

template<class LListBase, class T>

LList ( T && elem )

inlineexplicit

Construct and move add initial item.

Definition at line 213 of file LList.H.

◆ LList() [4/7]

template<class LListBase, class T>

LList ( Istream & is )

explicit

Construct from Istream.

Definition at line 29 of file LListIO.C.

References operator>>.

Here is the call graph for this function:

◆ LList() [5/7]

template<class LListBase, class T>

LList ( const LList< LListBase, T > & lst )

Copy construct.

Definition at line 27 of file LList.C.

References LList(), push_back(), and Foam::T().

Here is the call graph for this function:

◆ LList() [6/7]

template<class LListBase, class T>

LList ( LList< LListBase, T > && lst )

Move construct.

Definition at line 39 of file LList.C.

References LList().

Here is the call graph for this function:

◆ LList() [7/7]

template<class LListBase, class T>

LList ( std::initializer_list< T > lst )

Copy construct from an initializer list.

Definition at line 48 of file LList.C.

References push_back(), and Foam::T().

Here is the call graph for this function:

◆ ~LList()

template<class LListBase, class T>

~LList ( )

Destructor. Calls clear().

Definition at line 62 of file LList.C.

References clear().

Here is the call graph for this function:

Member Function Documentation

◆ front() [1/2]

template<class LListBase, class T>

reference front ( )

inline

The first entry in the list.

Definition at line 250 of file LList.H.

Referenced by LList< LListBase, T * >::first(), and LList< LListBase, T * >::first().

Here is the caller graph for this function:

◆ front() [2/2]

template<class LListBase, class T>

const_reference front ( ) const

inline

The first entry in the list (const access).

Definition at line 258 of file LList.H.

◆ back() [1/2]

template<class LListBase, class T>

reference back ( )

inline

The last entry in the list.

Definition at line 266 of file LList.H.

Referenced by LList< LListBase, T * >::last(), and LList< LListBase, T * >::last().

Here is the caller graph for this function:

◆ back() [2/2]

template<class LListBase, class T>

const_reference back ( ) const

inline

The last entry in the list (const access).

Definition at line 274 of file LList.H.

◆ push_front() [1/2]

template<class LListBase, class T>

void push_front ( const T & elem )

inline

Add copy at front of list.

Definition at line 283 of file LList.H.

Referenced by LList< LListBase, T * >::insert(), LList< LListBase, T * >::insert(), LList< LListBase, T * >::LList(), LList< LListBase, T * >::LList(), LList< LListBase, T * >::prepend(), and LList< LListBase, T * >::prepend().

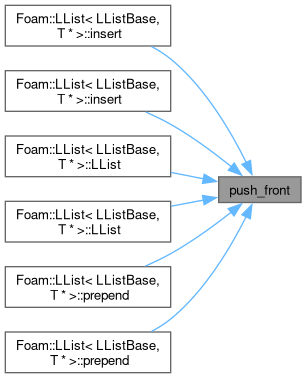

Here is the caller graph for this function:

◆ push_front() [2/2]

template<class LListBase, class T>

void push_front ( T && elem )

inline

Move construct at front of list.

Definition at line 291 of file LList.H.

◆ push_back() [1/2]

template<class LListBase, class T>

void push_back ( const T & elem )

inline

Add copy at back of list.

Definition at line 299 of file LList.H.

Referenced by LList< LListBase, T * >::append(), LList< LListBase, T * >::append(), LList(), LList(), operator=(), operator=(), and readList().

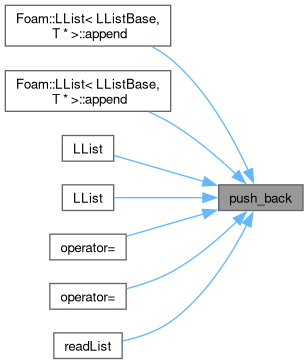

Here is the caller graph for this function:

◆ push_back() [2/2]

template<class LListBase, class T>

void push_back ( T && elem )

inline

Move construct at back of list.

Definition at line 307 of file LList.H.

◆ clear()

template<class LListBase, class T>

void clear ( )

Delete contents of list.

Definition at line 88 of file LList.C.

References pop_front().

Referenced by LPtrList< LListBase, T >::clear(), and readList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pop_front()

template<class LListBase, class T>

void pop_front ( label n = 1 )

Remove first element(s) from the list (deletes pointers).

Definition at line 71 of file LList.C.

References n, and p.

Referenced by clear().

Here is the caller graph for this function:

◆ removeHead()

template<class LListBase, class T>

T removeHead ( )

inline

Remove and return first entry.

Definition at line 325 of file LList.H.

◆ remove() [1/2]

template<class LListBase, class T>

T remove ( link * item )

inline

Remove and return element.

Definition at line 333 of file LList.H.

◆ remove() [2/2]

template<class LListBase, class T>

T remove ( iterator & iter )

inline

Remove and return element specified by iterator.

Definition at line 341 of file LList.H.

◆ transfer()

template<class LListBase, class T>

void transfer ( LList< LListBase, T > & lst )

Transfer the contents of the argument into this List and annul the argument list.

Definition at line 96 of file LList.C.

References clear(), and LList().

Referenced by LPtrList< LListBase, T >::transfer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [1/3]

template<class LListBase, class T>

void operator= ( const LList< LListBase, T > & lst )

Copy assignment.

Definition at line 106 of file LList.C.

References clear(), LList(), push_back(), and Foam::T().

Here is the call graph for this function:

◆ operator=() [2/3]

template<class LListBase, class T>

void operator= ( LList< LListBase, T > && lst )

Move assignment.

Definition at line 118 of file LList.C.

References clear(), and LList().

Here is the call graph for this function:

◆ operator=() [3/3]

template<class LListBase, class T>

void operator= ( std::initializer_list< T > lst )

Copy assignment from an initializer list.

Definition at line 127 of file LList.C.

References clear(), push_back(), and Foam::T().

Here is the call graph for this function:

◆ readList()

template<class LListBase, class T>

Foam::Istream & readList ( Istream & is )

Read list from Istream.

Definition at line 38 of file LListIO.C.

References token::BEGIN_LIST, clear(), token::END_LIST, Foam::exit(), IOstream::fatalCheck(), Foam::FatalIOError, FatalIOErrorInFunction, FUNCTION_NAME, token::info(), token::isLabel(), token::isPunctuation(), token::labelToken(), LList(), push_back(), Istream::putBack(), Istream::readBeginList(), Istream::readEndList(), and Foam::T().

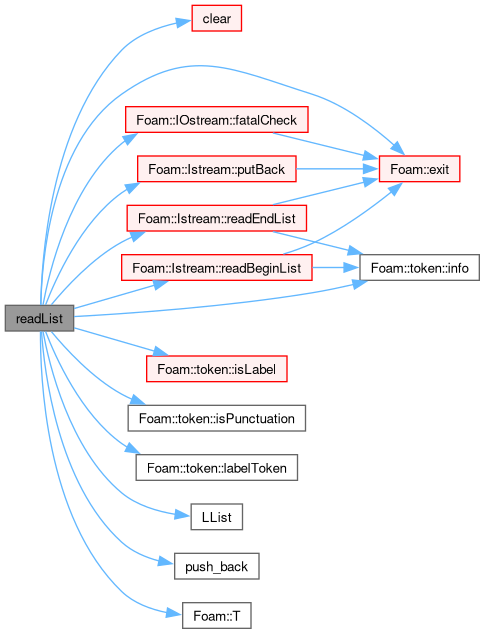

Here is the call graph for this function:

◆ writeList()

template<class LListBase, class T>

Foam::Ostream & writeList	(	Ostream &	os,
		const label	shortLen = 0 ) const

Write LList with line-breaks when length exceeds shortLen.

Using '0' suppresses line-breaks entirely.

Definition at line 117 of file LListIO.C.

References token::BEGIN_LIST, token::END_LIST, FUNCTION_NAME, Foam::nl, os(), token::SPACE, and Foam::T().

Here is the call graph for this function:

◆ begin() [1/2]

template<class LListBase, class T>

iterator begin ( )

inline

Iterator to first item in list with non-const access.

Definition at line 600 of file LList.H.

◆ cbegin()

template<class LListBase, class T>

const_iterator cbegin ( ) const

inline

Iterator to first item in list with const access.

Definition at line 608 of file LList.H.

Referenced by valueAverageBase::calc().

Here is the caller graph for this function:

◆ rbegin() [1/2]

template<class LListBase, class T>

reverse_iterator rbegin ( )

inline

Iterator to last item in list with non-const access.

Definition at line 616 of file LList.H.

◆ crbegin()

template<class LListBase, class T>

const_reverse_iterator crbegin ( ) const

inline

Iterator to last item in list with const access.

Definition at line 624 of file LList.H.

Referenced by LList< LListBase, T * >::rbegin().

Here is the caller graph for this function:

◆ begin() [2/2]

template<class LListBase, class T>

const_iterator begin ( ) const

inline

Iterator to first item in list with const access.

Definition at line 632 of file LList.H.

◆ rbegin() [2/2]

template<class LListBase, class T>

const_reverse_iterator rbegin ( ) const

inline

Iterator to last item in list with const access.

Definition at line 640 of file LList.H.

◆ end() [1/2]

template<class LListBase, class T>

const iterator & end ( )

inline

End of list for forward iterators.

Definition at line 649 of file LList.H.

◆ cend()

template<class LListBase, class T>

const const_iterator & cend ( ) const

inline

End of list for forward iterators.

Definition at line 657 of file LList.H.

Referenced by LList< LListBase, T * >::end().

Here is the caller graph for this function:

◆ rend() [1/2]

template<class LListBase, class T>

const reverse_iterator & rend ( )

inline

End of list for reverse iterators.

Definition at line 665 of file LList.H.

◆ crend()

template<class LListBase, class T>

const const_reverse_iterator & crend ( ) const

inline

End of list for reverse iterators.

Definition at line 673 of file LList.H.

Referenced by LList< LListBase, T * >::rend().

Here is the caller graph for this function:

◆ end() [2/2]

template<class LListBase, class T>

const const_iterator & end ( ) const

inline

End of list for forward iterators.

Definition at line 681 of file LList.H.

◆ rend() [2/2]

template<class LListBase, class T>

const const_reverse_iterator & rend ( ) const

inline

End of list for reverse iterators.

Definition at line 689 of file LList.H.

◆ first() [1/2]

template<class LListBase, class T>

reference first ( )

inline

The first entry in the list.

FOAM_DEPRECATED_FOR(2022-10, "front()")

Definition at line 702 of file LList.H.

Referenced by valueAverageBase::calc().

Here is the caller graph for this function:

◆ first() [2/2]

template<class LListBase, class T>

const_reference first ( ) const

inline

The first entry in the list (const access).

FOAM_DEPRECATED_FOR(2022-10, "front()")

Definition at line 709 of file LList.H.

◆ last() [1/2]

template<class LListBase, class T>

reference last ( )

inline

The last entry in the list.

FOAM_DEPRECATED_FOR(2022-10, "back()")

Definition at line 716 of file LList.H.

◆ last() [2/2]

template<class LListBase, class T>

const_reference last ( ) const

inline

The last entry in the list (const access).

FOAM_DEPRECATED_FOR(2022-10, "back()")

Definition at line 723 of file LList.H.

◆ prepend() [1/2]

template<class LListBase, class T>

void prepend ( const T & elem )

inline

Add copy at front of list.

FOAM_DEPRECATED_FOR(2022-10, "push_front()")

Definition at line 730 of file LList.H.

◆ prepend() [2/2]

template<class LListBase, class T>

void prepend ( T && elem )

inline

Move construct at front of list.

FOAM_DEPRECATED_FOR(2022-10, "push_front()")

Definition at line 737 of file LList.H.

◆ append() [1/2]

template<class LListBase, class T>

void append ( const T & elem )

inline

Add copy at back of list.

FOAM_DEPRECATED_FOR(2022-10, "push_back()")

Definition at line 744 of file LList.H.

◆ append() [2/2]

template<class LListBase, class T>

void append ( T && elem )

inline

Move construct at back of list.

FOAM_DEPRECATED_FOR(2022-10, "push_back()")

Definition at line 751 of file LList.H.

◆ insert() [1/2]

template<class LListBase, class T>

void insert ( const T & elem )

inline

Add copy at front of list. Same as push_front().

FOAM_DEPRECATED_FOR(2022-01, "push_front()")

Definition at line 758 of file LList.H.

◆ insert() [2/2]

template<class LListBase, class T>

void insert ( T && elem )

inline

Move construct at front of list. Same as push_front().

FOAM_DEPRECATED_FOR(2022-01, "push_front()")

Definition at line 765 of file LList.H.

◆ operator>>

template<class LListBase, class T>

Istream & operator>>	(	Istream &	is,
		LList< LListBase, T > &	lst )

friend

Read list from Istream.

Referenced by LList().

◆ operator

template<class LListBase, class T>

Ostream & operator	(	Ostream &	os,
		const LList< LListBase, T > &	lst )

friend

Write LList to Ostream with line breaks, as per writeList with shortLen=-1.

The documentation for this class was generated from the following files:

src/OpenFOAM/containers/LinkedLists/accessTypes/LList/LList.H
src/OpenFOAM/containers/LinkedLists/accessTypes/LList/LList.C
src/OpenFOAM/containers/LinkedLists/accessTypes/LList/LListIO.C

Classes

Public Types

Public Member Functions

Friends

Detailed Description

Member Typedef Documentation

◆ value_type

◆ pointer

◆ const_pointer

◆ reference

◆ const_reference

◆ size_type

◆ difference_type

◆ base_iterator

◆ const_base_iterator

Constructor & Destructor Documentation

◆ LList() [1/7]

◆ LList() [2/7]

◆ LList() [3/7]

◆ LList() [4/7]

◆ LList() [5/7]

◆ LList() [6/7]

◆ LList() [7/7]

◆ ~LList()

Member Function Documentation

◆ front() [1/2]

◆ front() [2/2]

◆ back() [1/2]

◆ back() [2/2]

◆ push_front() [1/2]

◆ push_front() [2/2]

◆ push_back() [1/2]

◆ push_back() [2/2]

◆ clear()

◆ pop_front()

◆ removeHead()

◆ remove() [1/2]

◆ remove() [2/2]

◆ transfer()

◆ operator=() [1/3]

◆ operator=() [2/3]

◆ operator=() [3/3]

◆ readList()

◆ writeList()

◆ begin() [1/2]

◆ cbegin()

◆ rbegin() [1/2]

◆ crbegin()

◆ begin() [2/2]

◆ rbegin() [2/2]

◆ end() [1/2]

◆ cend()

◆ rend() [1/2]

◆ crend()

◆ end() [2/2]

◆ rend() [2/2]

◆ first() [1/2]

◆ first() [2/2]

◆ last() [1/2]

◆ last() [2/2]

◆ prepend() [1/2]

◆ prepend() [2/2]

◆ append() [1/2]

◆ append() [2/2]

◆ insert() [1/2]

◆ insert() [2/2]

Friends And Related Symbol Documentation

◆ operator>>

◆ operator
