Templated matrix space. More...

#include <MatrixSpace.H>

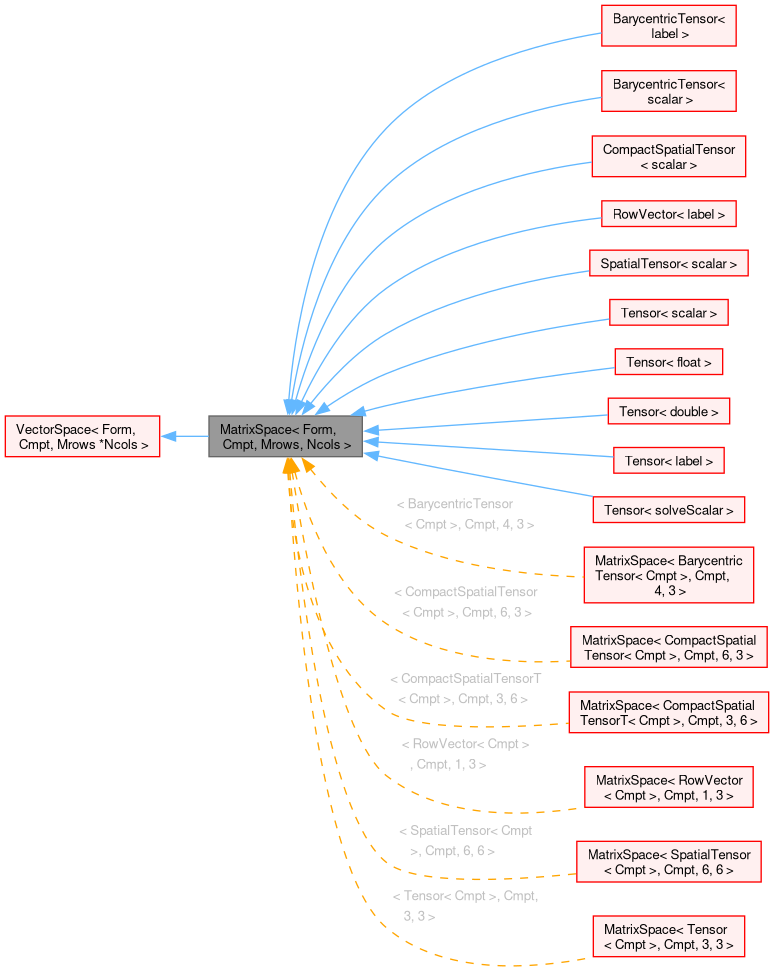

Inheritance diagram for MatrixSpace< Form, Cmpt, Mrows, Ncols >:

[legend]

Collaboration diagram for MatrixSpace< Form, Cmpt, Mrows, Ncols >:

Classes
class	ConstBlock
	Const sub-block type. More...
class	Block
	Sub-block type. More...

Public Types
typedef MatrixSpace< Form, Cmpt, Mrows, Ncols >	msType
	MatrixSpace type.
Public Types inherited from VectorSpace< Form, Cmpt, Mrows *Ncols >
typedef VectorSpace< Form, Cmpt, Ncmpts >	vsType
	VectorSpace type.
typedef Cmpt	cmptType
	Component type.
typedef Cmpt	magType
	Magnitude type.
typedef direction	size_type
	The type to represent the size of a VectorSpace.
typedef Cmpt *	iterator
	Random access iterator for traversing VectorSpace.
typedef const Cmpt *	const_iterator
	Random access iterator for traversing VectorSpace.

Public Member Functions
	MatrixSpace ()=default
	Default construct.
	MatrixSpace (Foam::zero)
	Construct initialized to zero.
template<class Form2, class Cmpt2>
	MatrixSpace (const VectorSpace< Form2, Cmpt2, Mrows *Ncols > &)
	Construct as copy of a VectorSpace with the same size.
template<template< class, direction, direction > class Block2, direction BRowStart, direction BColStart>
	MatrixSpace (const Block2< Form, BRowStart, BColStart > &block)
	Construct from a block of another matrix space.
	MatrixSpace (Istream &is)
	Construct from Istream.
template<direction Row, direction Col>
const Cmpt &	elmt () const noexcept
	Fast const element access using compile-time addressing.
template<direction Row, direction Col>
Cmpt &	elmt () noexcept
	Fast element access using compile-time addressing.
const Cmpt &	xx () const noexcept
const Cmpt &	xy () const noexcept
const Cmpt &	xz () const noexcept
const Cmpt &	yx () const noexcept
const Cmpt &	yy () const noexcept
const Cmpt &	yz () const noexcept
const Cmpt &	zx () const noexcept
const Cmpt &	zy () const noexcept
const Cmpt &	zz () const noexcept
Cmpt &	xx () noexcept
Cmpt &	xy () noexcept
Cmpt &	xz () noexcept
Cmpt &	yx () noexcept
Cmpt &	yy () noexcept
Cmpt &	yz () noexcept
Cmpt &	zx () noexcept
Cmpt &	zy () noexcept
Cmpt &	zz () noexcept
typeOfTranspose< Cmpt, Form >::type	T () const
	Return the transpose of the matrix.
template<class SubTensor, direction BRowStart, direction BColStart>
ConstBlock< SubTensor, BRowStart, BColStart >	block () const
	Return a const sub-block corresponding to the specified type.
template<class SubTensor, direction BRowStart, direction BColStart>
Block< SubTensor, BRowStart, BColStart >	block ()
	Return a sub-block corresponding to the specified type.
const Cmpt &	operator() (const direction i, const direction j) const
	(i, j) const element access operator
Cmpt &	operator() (const direction i, const direction j)
	(i, j) element access operator
void	operator= (Foam::zero)
	Assignment to zero.
template<template< class, direction, direction > class Block2, direction BRowStart, direction BColStart>
void	operator= (const Block2< Form, BRowStart, BColStart > &block)
	Assignment to a block of another matrix space.
template<class Form2>
void	operator&= (const MatrixSpace< Form, Cmpt, Ncols, Ncols > &matrix)
	Inner product with a compatible square matrix.
template<class SubTensor, Foam::direction BRowStart, Foam::direction BColStart>
Foam::MatrixSpace< Form, Cmpt, Mrows, Ncols >::template ConstBlock< SubTensor, BRowStart, BColStart >	block () const
template<class SubTensor, Foam::direction BRowStart, Foam::direction BColStart>
Foam::MatrixSpace< Form, Cmpt, Mrows, Ncols >::template Block< SubTensor, BRowStart, BColStart >	block ()
Public Member Functions inherited from VectorSpace< Form, Cmpt, Mrows *Ncols >
const Foam::VectorSpace< Form, Cmpt, Ncmpts >::template ConstBlock< SubVector, BStart >	block () const
	VectorSpace ()=default
	Default construct.
const Cmpt &	component (const direction) const
void	replace (const direction, const Cmpt &)
const Cmpt *	cdata () const noexcept
	Return const pointer to the first data element.
Cmpt *	data () noexcept
	Return pointer to the first data element.
void	fill (const Cmpt &s)
	Assign all components to given value.
const Cmpt &	operator[] (const direction) const
void	operator= (const VectorSpace< Form, Cmpt, Ncmpts > &)
void	operator+= (const VectorSpace< Form, Cmpt, Ncmpts > &)
void	operator-= (const VectorSpace< Form, Cmpt, Ncmpts > &)
void	operator*= (const scalar)
void	operator/= (const scalar)
iterator	begin () noexcept
	Return an iterator (pointer) to begin of VectorSpace.
const_iterator	cbegin () const noexcept
	Return const_iterator (const pointer) to begin of VectorSpace.
iterator	end () noexcept
	Return an iterator (pointer) to end of VectorSpace.
const_iterator	cend () const noexcept
	Return const_iterator (const pointer) to end of VectorSpace.

Static Public Member Functions
static direction	m () noexcept
	The number of rows.
static direction	n () noexcept
	The number of columns.
static msType	identity ()
	An identity matrix for square matrix-spaces.
Static Public Member Functions inherited from VectorSpace< Form, Cmpt, Mrows *Ncols >
static constexpr direction	size () noexcept
	The number of elements in the VectorSpace = Ncmpts.
static Form	uniform (const Cmpt &s)
	Return a VectorSpace with all elements = s.

Static Public Attributes
static constexpr direction	mRows = Mrows
static constexpr direction	nCols = Ncols
Static Public Attributes inherited from VectorSpace< Form, Cmpt, Mrows *Ncols >
static constexpr direction	dim
	Dimensionality of space.
static constexpr direction	nComponents
	Number of components in this vector space.
static constexpr direction	mRows
static constexpr direction	nCols
static const char *const	typeName
static const char *const	componentNames []
static const Form	zero
static const Form	one
static const Form	max
static const Form	min
static const Form	rootMax
static const Form	rootMin

Additional Inherited Members
Public Attributes inherited from VectorSpace< Form, Cmpt, Mrows *Ncols >
Cmpt	v_ [Ncmpts]
	The components of this vector space.

Detailed Description

template<class Form, class Cmpt, direction Mrows, direction Ncols>
class Foam::MatrixSpace< Form, Cmpt, Mrows, Ncols >

Templated matrix space.

Template arguments are the Form the matrix space will be used to create, the type of the elements and the number of rows and columns of the matrix.

Source files

See also: Foam::VectorSpace

Definition at line 54 of file MatrixSpace.H.

Member Typedef Documentation

◆ msType

template<class Form, class Cmpt, direction Mrows, direction Ncols>

typedef MatrixSpace<Form, Cmpt, Mrows, Ncols> msType

MatrixSpace type.

Definition at line 65 of file MatrixSpace.H.

Constructor & Destructor Documentation

◆ MatrixSpace() [1/5]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

MatrixSpace ( )

default

Default construct.

References block(), elmt(), Foam::noexcept, and VectorSpace< Form, Cmpt, Mrows *Ncols >::VectorSpace().

Referenced by block(), MatrixSpace(), MatrixSpace(), MatrixSpace(), operator&=(), MatrixSpace< Form, Cmpt, Mrows, Ncols >::Block< SubTensor, BRowStart, BColStart >::operator=(), RowVector< label >::RowVector(), and Tensor< scalar >::Tensor().

Here is the call graph for this function:

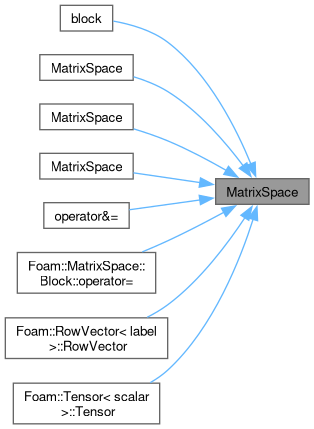

Here is the caller graph for this function:

◆ MatrixSpace() [2/5]

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

MatrixSpace ( Foam::zero )

inline

Construct initialized to zero.

Definition at line 26 of file MatrixSpaceI.H.

References MatrixSpace(), and VectorSpace< Form, Cmpt, Mrows *Ncols >::zero.

Here is the call graph for this function:

◆ MatrixSpace() [3/5]

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

template<class Form2, class Cmpt2>

MatrixSpace ( const VectorSpace< Form2, Cmpt2, Mrows *Ncols > & vs )

inlineexplicit

Construct as copy of a VectorSpace with the same size.

Definition at line 37 of file MatrixSpaceI.H.

References MatrixSpace(), and VectorSpace< Form, Cmpt, Mrows *Ncols >::VectorSpace().

Here is the call graph for this function:

◆ MatrixSpace() [4/5]

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

template<template< class, Foam::direction, Foam::direction > class Block2, Foam::direction BRowStart, Foam::direction BColStart>

MatrixSpace ( const Block2< Form, BRowStart, BColStart > & block )

inline

Construct from a block of another matrix space.

Definition at line 53 of file MatrixSpaceI.H.

References block(), and operator()().

Here is the call graph for this function:

◆ MatrixSpace() [5/5]

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

MatrixSpace ( Istream & is )

inlineexplicit

Construct from Istream.

Definition at line 69 of file MatrixSpaceI.H.

References MatrixSpace().

Here is the call graph for this function:

Member Function Documentation

◆ m()

template<class Form, class Cmpt, direction Mrows, direction Ncols>

direction m ( )

inlinestaticnoexcept

The number of rows.

Definition at line 79 of file MatrixSpace.H.

References Foam::noexcept.

◆ n()

template<class Form, class Cmpt, direction Mrows, direction Ncols>

direction n ( )

inlinestaticnoexcept

The number of columns.

Definition at line 84 of file MatrixSpace.H.

References Foam::noexcept.

◆ identity()

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

Foam::MatrixSpace< Form, Cmpt, Mrows, Ncols > identity ( )

inlinestatic

An identity matrix for square matrix-spaces.

Definition at line 141 of file MatrixSpaceI.H.

References Foam::Zero.

◆ elmt() [1/2]

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

template<Foam::direction Row, Foam::direction Col>

const Cmpt & elmt ( ) const

inlinenoexcept

Fast const element access using compile-time addressing.

Definition at line 121 of file MatrixSpaceI.H.

References Foam::noexcept.

Referenced by MatrixSpace(), xx(), xx(), xy(), xy(), xz(), xz(), yx(), yx(), yy(), yy(), yz(), yz(), zx(), zx(), zy(), zy(), zz(), and zz().

Here is the caller graph for this function:

◆ elmt() [2/2]

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

template<Foam::direction Row, Foam::direction Col>

Cmpt & elmt ( )

inlinenoexcept

Fast element access using compile-time addressing.

Definition at line 131 of file MatrixSpaceI.H.

References Foam::noexcept, and VectorSpace< Form, Cmpt, Mrows *Ncols >::v_.

◆ xx() [1/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

const Cmpt & xx ( ) const

inlinenoexcept

Definition at line 284 of file MatrixSpace.H.

References elmt(), Foam::noexcept, and xx().

Referenced by Rs::jcalc(), Rxyz::jcalc(), Ryxz::jcalc(), Rzyx::jcalc(), and xx().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xy() [1/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

const Cmpt & xy ( ) const

inlinenoexcept

Definition at line 285 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Referenced by Rxyz::jcalc(), and Ryxz::jcalc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xz() [1/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

const Cmpt & xz ( ) const

inlinenoexcept

Definition at line 286 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Referenced by Rzyx::jcalc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yx() [1/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

const Cmpt & yx ( ) const

inlinenoexcept

Definition at line 287 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Referenced by Rxyz::jcalc(), Ryxz::jcalc(), and Rzyx::jcalc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yy() [1/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

const Cmpt & yy ( ) const

inlinenoexcept

Definition at line 288 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Referenced by Rs::jcalc(), Rxyz::jcalc(), Ryxz::jcalc(), and Rzyx::jcalc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yz() [1/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

const Cmpt & yz ( ) const

inlinenoexcept

Definition at line 289 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Here is the call graph for this function:

◆ zx() [1/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

const Cmpt & zx ( ) const

inlinenoexcept

Definition at line 290 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Referenced by Rxyz::jcalc(), Ryxz::jcalc(), and Rzyx::jcalc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ zy() [1/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

const Cmpt & zy ( ) const

inlinenoexcept

Definition at line 291 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Referenced by Rzyx::jcalc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ zz() [1/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

const Cmpt & zz ( ) const

inlinenoexcept

Definition at line 292 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Referenced by Rs::jcalc(), Rxyz::jcalc(), and Ryxz::jcalc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ xx() [2/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

Cmpt & xx ( )

inlinenoexcept

Definition at line 298 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Here is the call graph for this function:

◆ xy() [2/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

Cmpt & xy ( )

inlinenoexcept

Definition at line 299 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Here is the call graph for this function:

◆ xz() [2/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

Cmpt & xz ( )

inlinenoexcept

Definition at line 300 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Here is the call graph for this function:

◆ yx() [2/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

Cmpt & yx ( )

inlinenoexcept

Definition at line 301 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Here is the call graph for this function:

◆ yy() [2/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

Cmpt & yy ( )

inlinenoexcept

Definition at line 302 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Here is the call graph for this function:

◆ yz() [2/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

Cmpt & yz ( )

inlinenoexcept

Definition at line 303 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Here is the call graph for this function:

◆ zx() [2/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

Cmpt & zx ( )

inlinenoexcept

Definition at line 304 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Here is the call graph for this function:

◆ zy() [2/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

Cmpt & zy ( )

inlinenoexcept

Definition at line 305 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Here is the call graph for this function:

◆ zz() [2/2]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

Cmpt & zz ( )

inlinenoexcept

Definition at line 306 of file MatrixSpace.H.

References elmt(), and Foam::noexcept.

Here is the call graph for this function:

◆ T()

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

Foam::typeOfTranspose< Cmpt, Form >::type T ( ) const

inline

Return the transpose of the matrix.

Definition at line 157 of file MatrixSpaceI.H.

References operator()().

Referenced by Foam::T().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ block() [1/4]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

template<class SubTensor, direction BRowStart, direction BColStart>

ConstBlock< SubTensor, BRowStart, BColStart > block ( ) const

inline

Return a const sub-block corresponding to the specified type.

starting at the specified row and column

Referenced by block(), MatrixSpace(), MatrixSpace(), operator=(), and Tensor< scalar >::Tensor().

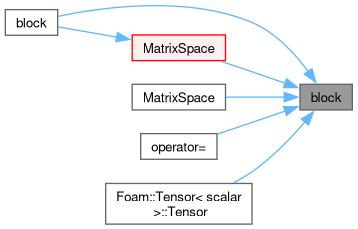

Here is the caller graph for this function:

◆ block() [2/4]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

template<class SubTensor, direction BRowStart, direction BColStart>

Block< SubTensor, BRowStart, BColStart > block ( )

inline

Return a sub-block corresponding to the specified type.

starting at the specified row and column

References block(), and MatrixSpace().

Here is the call graph for this function:

◆ operator()() [1/2]

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

const Cmpt & operator()	(	const direction	i,
		const direction	j ) const

inline

(i, j) const element access operator

Definition at line 207 of file MatrixSpaceI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and VectorSpace< Form, Cmpt, Mrows *Ncols >::v_.

Referenced by MatrixSpace< BarycentricTensor< Cmpt >, Cmpt, 4, 3 >::elmt(), MatrixSpace(), MatrixSpace< Form, Cmpt, Mrows, Ncols >::Block< SubTensor, BRowStart, BColStart >::operator=(), MatrixSpace< Form, Cmpt, Mrows, Ncols >::Block< SubTensor, BRowStart, BColStart >::operator=(), operator=(), and T().

Here is the call graph for this function:

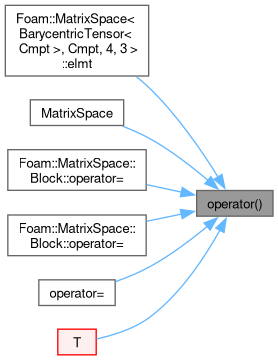

Here is the caller graph for this function:

◆ operator()() [2/2]

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

Cmpt & operator()	(	const direction	i,
		const direction	j )

inline

(i, j) element access operator

Definition at line 227 of file MatrixSpaceI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and VectorSpace< Form, Cmpt, Mrows *Ncols >::v_.

Here is the call graph for this function:

◆ operator=() [1/2]

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

void operator= ( Foam::zero )

inline

Assignment to zero.

Definition at line 312 of file MatrixSpaceI.H.

References VectorSpace< Form, Cmpt, Mrows *Ncols >::operator, and VectorSpace< Form, Cmpt, Ncmpts >::operator=().

Here is the call graph for this function:

◆ operator=() [2/2]

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

template<template< class, Foam::direction, Foam::direction > class Block2, Foam::direction BRowStart, Foam::direction BColStart>

void operator= ( const Block2< Form, BRowStart, BColStart > & block )

inline

Assignment to a block of another matrix space.

Definition at line 339 of file MatrixSpaceI.H.

References block(), VectorSpace< Form, Cmpt, Mrows *Ncols >::operator, and operator()().

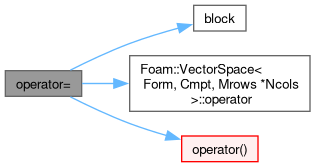

Here is the call graph for this function:

◆ operator&=()

template<class Form, class Cmpt, Foam::direction Mrows, Foam::direction Ncols>

template<class Form2>

void operator&= ( const MatrixSpace< Form, Cmpt, Ncols, Ncols > & matrix )

inline

Inner product with a compatible square matrix.

Definition at line 323 of file MatrixSpaceI.H.

References MatrixSpace(), and VectorSpace< Form, Cmpt, Mrows *Ncols >::operator.

Here is the call graph for this function:

◆ block() [3/4]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

template<class SubTensor, Foam::direction BRowStart, Foam::direction BColStart>

Foam::MatrixSpace< Form, Cmpt, Mrows, Ncols >::template ConstBlock< SubTensor, BRowStart, BColStart > block ( ) const

inline

Definition at line 182 of file MatrixSpaceI.H.

◆ block() [4/4]

template<class Form, class Cmpt, direction Mrows, direction Ncols>

template<class SubTensor, Foam::direction BRowStart, Foam::direction BColStart>

Foam::MatrixSpace< Form, Cmpt, Mrows, Ncols >::template Block< SubTensor, BRowStart, BColStart > block ( )

inline

Definition at line 198 of file MatrixSpaceI.H.

Member Data Documentation

◆ mRows

template<class Form, class Cmpt, direction Mrows, direction Ncols>

direction mRows = Mrows

staticconstexpr

Definition at line 70 of file MatrixSpace.H.

Referenced by MatrixSpace< Form, Cmpt, Mrows, Ncols >::Block< SubTensor, BRowStart, BColStart >::Block(), and MatrixSpace< Form, Cmpt, Mrows, Ncols >::ConstBlock< SubTensor, BRowStart, BColStart >::ConstBlock().

◆ nCols

template<class Form, class Cmpt, direction Mrows, direction Ncols>

direction nCols = Ncols

staticconstexpr

Definition at line 71 of file MatrixSpace.H.

Referenced by MatrixSpace< Form, Cmpt, Mrows, Ncols >::Block< SubTensor, BRowStart, BColStart >::Block(), and MatrixSpace< BarycentricTensor< Cmpt >, Cmpt, 4, 3 >::identity().

The documentation for this class was generated from the following files:

src/OpenFOAM/primitives/MatrixSpace/MatrixSpace.H
src/OpenFOAM/primitives/MatrixSpace/MatrixSpaceI.H

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ msType

Constructor & Destructor Documentation

◆ MatrixSpace() [1/5]

◆ MatrixSpace() [2/5]

◆ MatrixSpace() [3/5]

◆ MatrixSpace() [4/5]

◆ MatrixSpace() [5/5]

Member Function Documentation

◆ m()

◆ n()

◆ identity()

◆ elmt() [1/2]

◆ elmt() [2/2]

◆ xx() [1/2]

◆ xy() [1/2]

◆ xz() [1/2]

◆ yx() [1/2]

◆ yy() [1/2]

◆ yz() [1/2]

◆ zx() [1/2]

◆ zy() [1/2]

◆ zz() [1/2]

◆ xx() [2/2]

◆ xy() [2/2]

◆ xz() [2/2]

◆ yx() [2/2]

◆ yy() [2/2]

◆ yz() [2/2]

◆ zx() [2/2]

◆ zy() [2/2]

◆ zz() [2/2]

◆ T()

◆ block() [1/4]

◆ block() [2/4]

◆ operator()() [1/2]

◆ operator()() [2/2]

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator&=()

◆ block() [3/4]

◆ block() [4/4]

Member Data Documentation

◆ mRows

◆ nCols
