MixedDiffuseSpecular< CloudType > Class Template Reference

Wall interaction setting microscopic velocity to a random one drawn from a Maxwellian distribution corresponding to a specified temperature for a specified fraction of collisions, and reversing the wall-normal component of the particle velocity for the remainder. More...

#include <MixedDiffuseSpecular.H>

Inheritance diagram for MixedDiffuseSpecular< CloudType >:

Collaboration diagram for MixedDiffuseSpecular< CloudType >:

Public Member Functions
	TypeName ("MixedDiffuseSpecular")
	Runtime type information.
	MixedDiffuseSpecular (const dictionary &dict, CloudType &cloud)
	Construct from dictionary.
virtual	~MixedDiffuseSpecular ()
	Destructor.
virtual void	correct (typename CloudType::parcelType &p)
	Apply wall correction.
Public Member Functions inherited from WallInteractionModel< CloudType >
	TypeName ("WallInteractionModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, WallInteractionModel, dictionary,(const dictionary &dict, CloudType &owner),(dict, owner))
	Declare runtime constructor selection table.
	WallInteractionModel (CloudType &owner)
	Construct null from owner.
	WallInteractionModel (const dictionary &dict, CloudType &owner, const word &type)
	Construct from components.
virtual	~WallInteractionModel ()
	Destructor.
const CloudType &	owner () const
	Return the owner cloud object.
CloudType &	owner ()
	Return non-const access to the owner cloud object.
const dictionary &	dict () const
	Return the dictionary.
const dictionary &	coeffDict () const
	Return the coefficients dictionary.

Additional Inherited Members
Static Public Member Functions inherited from WallInteractionModel< CloudType >
static autoPtr< WallInteractionModel< CloudType > >	New (const dictionary &dict, CloudType &owner)
	Selector.

Detailed Description

template<class CloudType>
class Foam::MixedDiffuseSpecular< CloudType >

Wall interaction setting microscopic velocity to a random one drawn from a Maxwellian distribution corresponding to a specified temperature for a specified fraction of collisions, and reversing the wall-normal component of the particle velocity for the remainder.

Definition at line 45 of file MixedDiffuseSpecular.H.

Constructor & Destructor Documentation

MixedDiffuseSpecular()

template<class CloudType>

MixedDiffuseSpecular	(	const dictionary &	dict,
		CloudType &	cloud )

Construct from dictionary.

Definition at line 26 of file MixedDiffuseSpecular.C.

References WallInteractionModel< CloudType >::coeffDict(), WallInteractionModel< CloudType >::dict(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, and WallInteractionModel< CloudType >::WallInteractionModel().

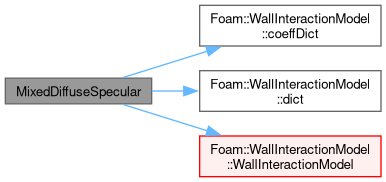

Here is the call graph for this function:

~MixedDiffuseSpecular()

template<class CloudType>

~MixedDiffuseSpecular ( )

virtual

Destructor.

Definition at line 40 of file MixedDiffuseSpecular.C.

Member Function Documentation

TypeName()

template<class CloudType>

TypeName

(

"MixedDiffuseSpecular< CloudType >"

)

Runtime type information.

References WallInteractionModel< CloudType >::dict(), and p.

Here is the call graph for this function:

correct()

template<class CloudType>

void correct ( typename CloudType::parcelType & p )

virtual

Apply wall correction.

Implements WallInteractionModel< CloudType >.

Definition at line 47 of file MixedDiffuseSpecular.C.

References Foam::log(), Foam::mag(), Foam::max(), WallInteractionModel< CloudType >::owner(), p, rndGen, Foam::sqrt(), Foam::T(), U, and polyPatch::whichFace().

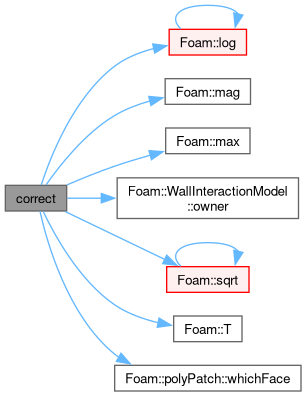

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/lagrangian/DSMC/submodels/WallInteractionModel/MixedDiffuseSpecular/MixedDiffuseSpecular.H
• src/lagrangian/DSMC/submodels/WallInteractionModel/MixedDiffuseSpecular/MixedDiffuseSpecular.C
