PhiLimiter Class Reference

Class with limiter function which returns the limiter for the Phi differencing scheme. More...

#include <Phi.H>

Inheritance diagram for PhiLimiter:

Public Member Functions
	PhiLimiter (Istream &is)
scalar	limiter (const scalar cdWeight, const scalar faceFlux, const vector &PhiP, const vector &PhiN, const vector &Sf, const scalar &) const

Detailed Description

Class with limiter function which returns the limiter for the Phi differencing scheme.

Used in conjunction with the template class PhiScheme.

Source files

• Phi.H
• Phi.C

Definition at line 52 of file Phi.H.

Constructor & Destructor Documentation

PhiLimiter()

PhiLimiter ( Istream & is )

inline

Definition at line 58 of file Phi.H.

References Foam::exit(), Foam::FatalIOError, and FatalIOErrorInFunction.

Referenced by PhiScheme< vector, PhiLimiter >::PhiScheme(), PhiScheme< vector, PhiLimiter >::PhiScheme(), and PhiScheme< vector, PhiLimiter >::PhiScheme().

Here is the call graph for this function:

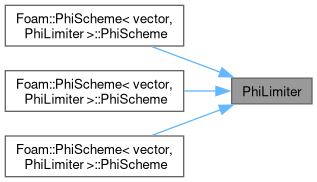

Here is the caller graph for this function:

Member Function Documentation

limiter()

scalar limiter ( const scalar cdWeight, const scalar faceFlux, const vector & PhiP, const vector & PhiN, const vector & Sf, const scalar &  ) const

inline

Definition at line 71 of file Phi.H.

References Foam::clamp(), and Foam::stabilise().

Referenced by PhiScheme< Type, PhiLimiter >::limiter().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/finiteVolume/interpolation/surfaceInterpolation/limitedSchemes/Phi/Phi.H
