Describes the interaction of a object and a (templated) point. It carries the info of a successful hit and (if successful) the interaction point. More...

#include <pointHit.H>

Inheritance diagram for PointHit< PointType >:

[legend]

Public Types
typedef PointType	point_type
	The point type.

Public Member Functions
	PointHit ()
	Default construct. A zero point with a large distance, no hit, no eligible misses.
	PointHit (const point_type &p)
	Construct from point with a large distance, no hit, no eligible misses.
	PointHit (bool hit, const point_type &p, scalar dist, bool eligibleMiss=false)
	Construct from components.
bool	hit () const noexcept
	Is there a hit.
bool	eligibleMiss () const noexcept
	Is this an eligible miss.
const point_type &	point () const noexcept
	Return the point, no checks.
scalar	distance () const noexcept
	Return distance to hit.
const point_type &	hitPoint () const
	Return the hit point. Fatal if not hit.
const point_type &	missPoint () const
	Return the miss point. Fatal if hit.
const point_type &	rawPoint () const noexcept
	The point, no checks.
void	setHit () noexcept
	Set the hit status on.
void	setMiss (const bool eligible) noexcept
	Set the hit status off and set the eligible miss status.
void	setPoint (const point_type &p)
	Set the point.
void	setDistance (const scalar d) noexcept
	Set the distance.
void	hitPoint (const point_type &p)
	Set the point as hit.
template<class AnyPointType>
bool	operator< (const PointHit< AnyPointType > &rhs) const noexcept
	Distance comparision operator, for sorting.

Detailed Description

template<class PointType>
class Foam::PointHit< PointType >

Describes the interaction of a object and a (templated) point. It carries the info of a successful hit and (if successful) the interaction point.

Definition at line 59 of file pointHit.H.

Member Typedef Documentation

◆ point_type

template<class PointType>

typedef PointType point_type

The point type.

Definition at line 91 of file pointHit.H.

Constructor & Destructor Documentation

◆ PointHit() [1/3]

template<class PointType>

PointHit ( )

inline

Default construct. A zero point with a large distance, no hit, no eligible misses.

Definition at line 100 of file pointHit.H.

◆ PointHit() [2/3]

template<class PointType>

PointHit ( const point_type & p )

inlineexplicit

Construct from point with a large distance, no hit, no eligible misses.

Definition at line 112 of file pointHit.H.

◆ PointHit() [3/3]

template<class PointType>

PointHit	(	bool	hit,
		const point_type &	p,
		scalar	dist,
		bool	eligibleMiss = false )

inline

Construct from components.

Definition at line 123 of file pointHit.H.

Member Function Documentation

◆ hit()

template<class PointType>

bool hit ( ) const

inlinenoexcept

Is there a hit.

Definition at line 145 of file pointHit.H.

Referenced by triSurfaceTools::calcInterpolationWeights(), mappedPatchBase::facePoint(), treeDataPrimitivePatch< PatchType >::findIntersection(), treeDataFace::getVolumeType(), triangleFuncs::intersectBb(), face::intersection(), slidingInterface::modifyMotionPoints(), triangle< Point, PointRef >::nearestPoint(), face::nearestPointClassify(), treeDataCell::findIntersectOp::operator()(), treeDataFace::findIntersectOp::operator()(), Foam::operator<<(), searchableRotatedBox::overlaps(), PrimitivePatch< List< face >, const pointField >::projectFaceCentres(), PrimitivePatch< List< face >, const pointField >::projectPoints(), face::ray(), triangle< Point, PointRef >::ray(), AMIInterpolation::srcPointFace(), and AMIInterpolation::tgtPointFace().

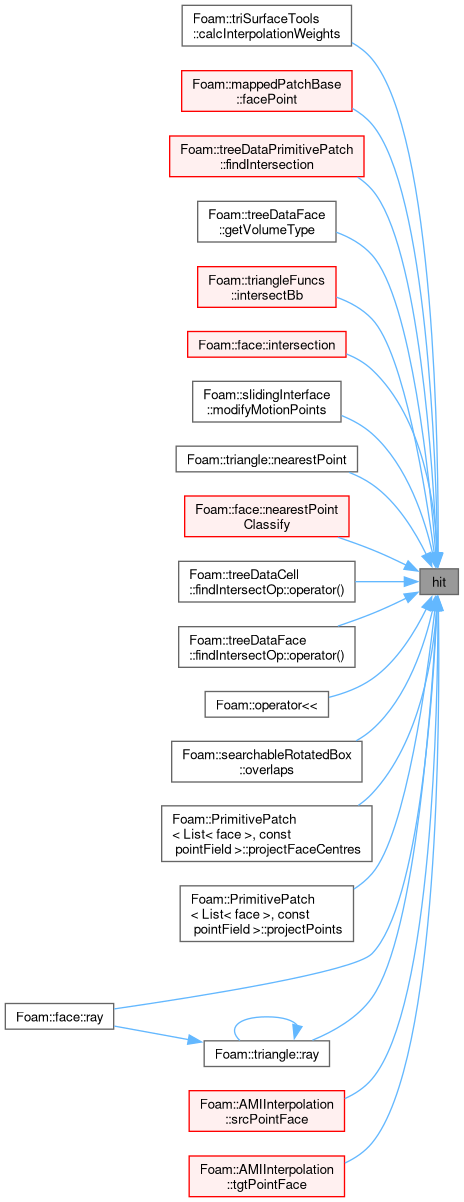

Here is the caller graph for this function:

◆ eligibleMiss()

template<class PointType>

bool eligibleMiss ( ) const

inlinenoexcept

Is this an eligible miss.

Definition at line 153 of file pointHit.H.

Referenced by Foam::operator<<(), PrimitivePatch< List< face >, const pointField >::projectFaceCentres(), PrimitivePatch< List< face >, const pointField >::projectPoints(), face::ray(), AMIInterpolation::srcPointFace(), and AMIInterpolation::tgtPointFace().

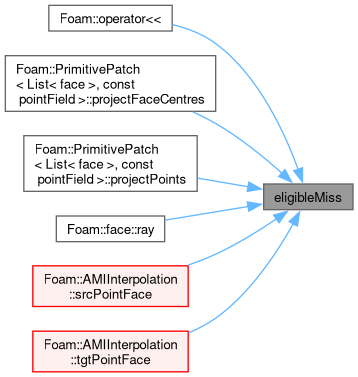

Here is the caller graph for this function:

◆ point()

template<class PointType>

const point_type & point ( ) const

inlinenoexcept

Return the point, no checks.

Definition at line 161 of file pointHit.H.

Referenced by booleanSurface::booleanSurface(), triSurfaceTools::calcInterpolationWeights(), tetrahedron< Point, PointRef >::containmentSphere(), mappedPatchBase::facePoint(), treeDataPrimitivePatch< PatchType >::findIntersection(), dynamicTreeDataPoint::findNearest(), treeDataEdge::findNearest(), treeDataFace::findNearest(), treeDataPrimitivePatch< PatchType >::findNearest(), wallBoundedStreamLine::findNearestTet(), sampledSet::findNearFace(), treeDataFace::getVolumeType(), face::intersection(), slidingInterface::modifyMotionPoints(), line< Point, PointRef >::nearestDist(), tetrahedron< Point, PointRef >::nearestPoint(), triangle< Point, PointRef >::nearestPoint(), face::nearestPointClassify(), findNearestMaskedOp< PatchType >::operator()(), treeDataCell::findIntersectOp::operator()(), treeDataFace::findIntersectOp::operator()(), treeDataPoint::findNearestOp::operator()(), Foam::operator<<(), orientedSurface::orient(), PrimitivePatch< List< face >, const pointField >::projectFaceCentres(), PrimitivePatch< List< face >, const pointField >::projectPoints(), face::ray(), triangle< Point, PointRef >::ray(), faceCollapser::setRefinement(), AMIInterpolation::srcPointFace(), triSurfaceTools::surfaceSide(), and AMIInterpolation::tgtPointFace().

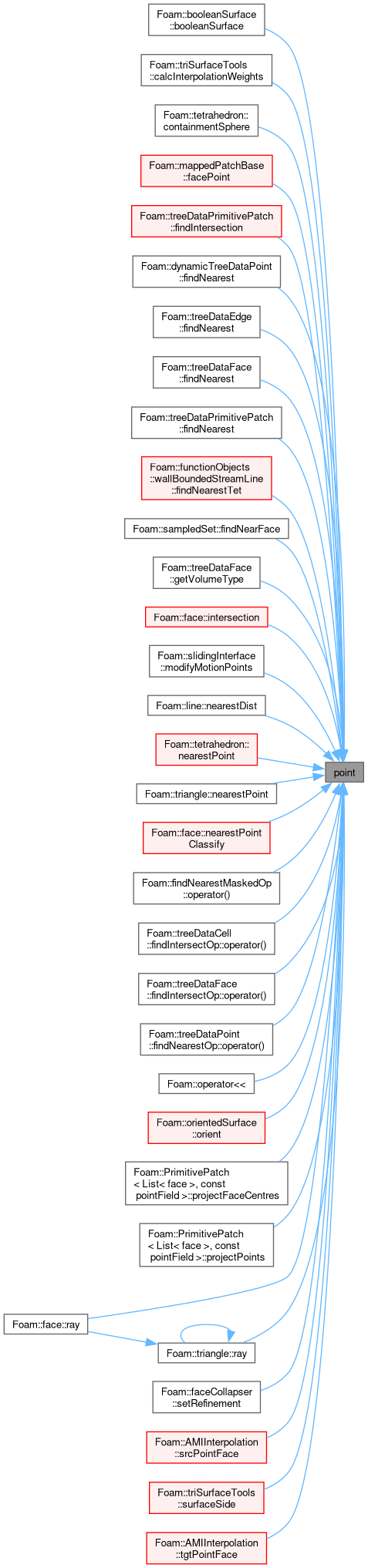

Here is the caller graph for this function:

◆ distance()

template<class PointType>

scalar distance ( ) const

inlinenoexcept

Return distance to hit.

Definition at line 169 of file pointHit.H.

Referenced by booleanSurface::booleanSurface(), triSurfaceTools::calcInterpolationWeights(), mappedPatchBase::facePoint(), treeDataPrimitivePatch< PatchType >::findIntersection(), dynamicTreeDataPoint::findNearest(), treeDataEdge::findNearest(), treeDataFace::findNearest(), treeDataPrimitivePatch< PatchType >::findNearest(), meshSearch::findNearestBoundaryFace(), wallBoundedStreamLine::findNearestTet(), cellPointWeight::findTetrahedron(), cellPointWeight::findTriangle(), triangleFuncs::intersectBb(), face::intersection(), slidingInterface::modifyMotionPoints(), line< Point, PointRef >::nearestDist(), tetrahedron< Point, PointRef >::nearestPoint(), triangle< Point, PointRef >::nearestPoint(), face::nearestPointClassify(), findNearestMaskedOp< PatchType >::operator()(), treeDataCell::findIntersectOp::operator()(), treeDataFace::findIntersectOp::operator()(), treeDataPoint::findNearestOp::operator()(), Foam::operator<<(), orientedSurface::orient(), searchableRotatedBox::overlaps(), treeDataEdge::overlaps(), treeDataFace::overlaps(), treeDataPrimitivePatch< PatchType >::overlaps(), PrimitivePatch< List< face >, const pointField >::projectFaceCentres(), PrimitivePatch< List< face >, const pointField >::projectPoints(), face::ray(), cellDistFuncs::smallestDist(), AMIInterpolation::srcPointFace(), and AMIInterpolation::tgtPointFace().

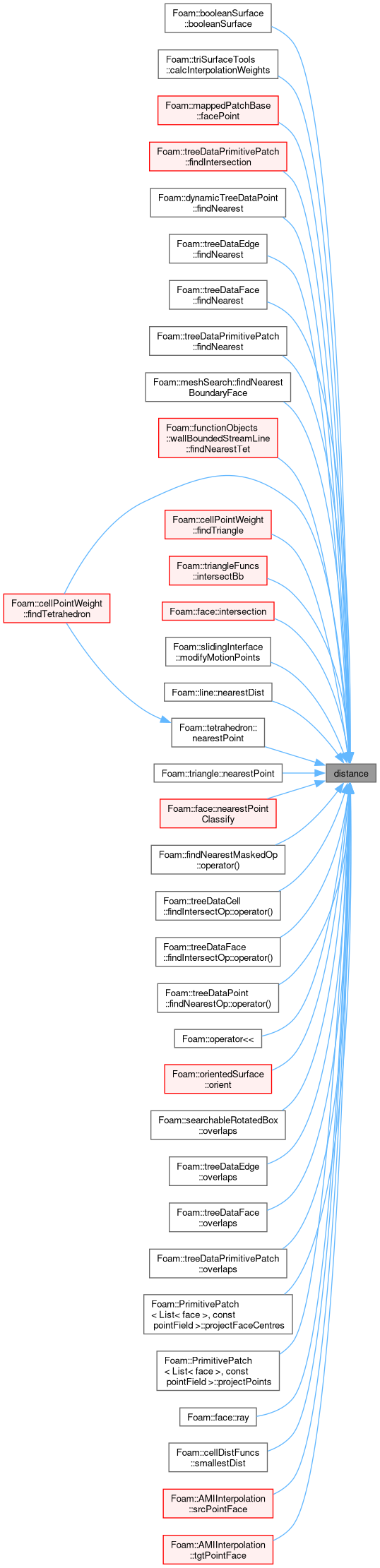

Here is the caller graph for this function:

◆ hitPoint() [1/2]

template<class PointType>

const point_type & hitPoint ( ) const

inline

Return the hit point. Fatal if not hit.

Definition at line 177 of file pointHit.H.

Referenced by face::intersection(), triangle< Point, PointRef >::nearestPoint(), face::nearestPointClassify(), face::ray(), and triangle< Point, PointRef >::ray().

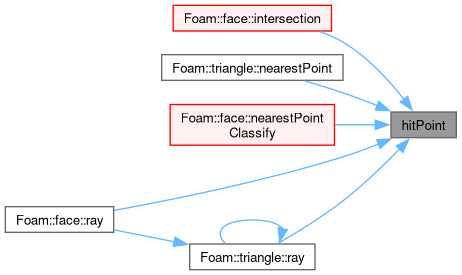

Here is the caller graph for this function:

◆ missPoint()

template<class PointType>

const point_type & missPoint ( ) const

inline

Return the miss point. Fatal if hit.

Definition at line 192 of file pointHit.H.

◆ rawPoint()

template<class PointType>

const point_type & rawPoint ( ) const

inlinenoexcept

The point, no checks.

Deprecated: (2020-10) use point()

Definition at line 209 of file pointHit.H.

◆ setHit()

template<class PointType>

void setHit ( )

inlinenoexcept

Set the hit status on.

Definition at line 217 of file pointHit.H.

Referenced by tetrahedron< Point, PointRef >::containmentSphere().

Here is the caller graph for this function:

◆ setMiss()

template<class PointType>

void setMiss ( const bool eligible )

inlinenoexcept

Set the hit status off and set the eligible miss status.

Definition at line 226 of file pointHit.H.

Referenced by tetrahedron< Point, PointRef >::containmentSphere(), triangle< Point, PointRef >::nearestPoint(), face::nearestPointClassify(), face::ray(), and triangle< Point, PointRef >::ray().

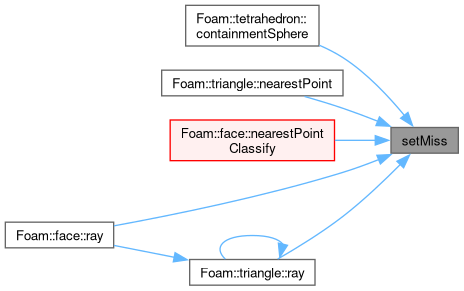

Here is the caller graph for this function:

◆ setPoint()

template<class PointType>

void setPoint ( const point_type & p )

inline

Set the point.

Definition at line 235 of file pointHit.H.

Referenced by tetrahedron< Point, PointRef >::containmentSphere(), triangle< Point, PointRef >::nearestPoint(), face::nearestPointClassify(), face::ray(), triangle< Point, PointRef >::ray(), and faceCollapser::setRefinement().

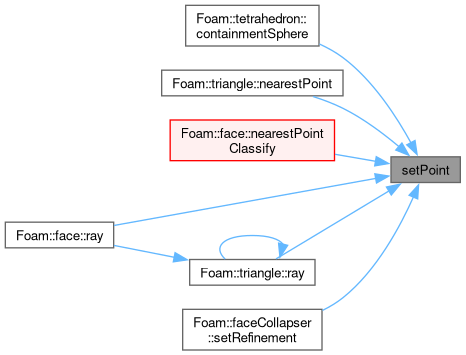

Here is the caller graph for this function:

◆ setDistance()

template<class PointType>

void setDistance ( const scalar d )

inlinenoexcept

Set the distance.

Definition at line 243 of file pointHit.H.

Referenced by tetrahedron< Point, PointRef >::containmentSphere(), face::intersection(), triangle< Point, PointRef >::nearestPoint(), face::nearestPointClassify(), face::ray(), triangle< Point, PointRef >::ray(), AMIInterpolation::srcPointFace(), and AMIInterpolation::tgtPointFace().

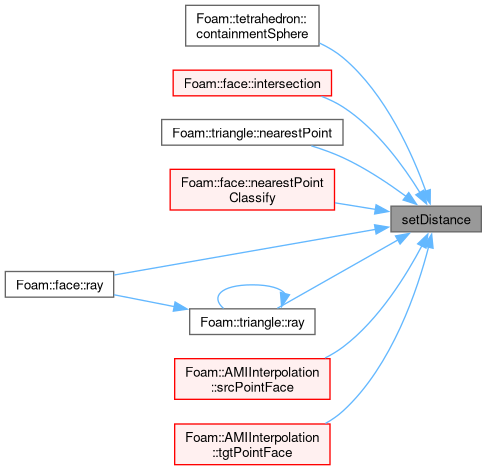

Here is the caller graph for this function:

◆ hitPoint() [2/2]

template<class PointType>

void hitPoint ( const point_type & p )

inline

Set the point as hit.

Definition at line 251 of file pointHit.H.

◆ operator<()

template<class PointType>

template<class AnyPointType>

bool operator< ( const PointHit< AnyPointType > & rhs ) const

inlinenoexcept

Distance comparision operator, for sorting.

Definition at line 265 of file pointHit.H.

The documentation for this class was generated from the following file:

src/OpenFOAM/meshes/primitiveShapes/objectHit/pointHit.H
