Polynomial templated on size (order): More...

#include <Polynomial.H>

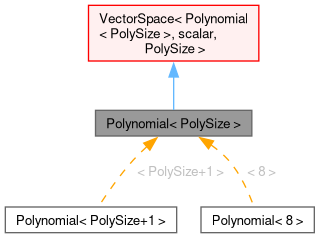

Inheritance diagram for Polynomial< PolySize >:

[legend]

Collaboration diagram for Polynomial< PolySize >:

Public Types
typedef Polynomial< PolySize >	polyType
typedef Polynomial< PolySize+1 >	intPolyType
Public Types inherited from VectorSpace< Polynomial< PolySize >, scalar, PolySize >
typedef VectorSpace< Polynomial< PolySize >, scalar, Ncmpts >	vsType
	VectorSpace type.
typedef scalar	cmptType
	Component type.
typedef scalar	magType
	Magnitude type.
typedef direction	size_type
	The type to represent the size of a VectorSpace.
typedef scalar *	iterator
	Random access iterator for traversing VectorSpace.
typedef const scalar *	const_iterator
	Random access iterator for traversing VectorSpace.

Public Member Functions
	Polynomial ()
	Default construct, with all coefficients = 0.
	Polynomial (std::initializer_list< scalar > coeffs)
	Construct from an initializer list of coefficients.
	Polynomial (const scalar coeffs[PolySize])
	Construct from C-array of coefficients.
	Polynomial (const UList< scalar > &coeffs)
	Construct from a list of coefficients.
	Polynomial (Istream &is)
	Construct from Istream.
	Polynomial (const word &name, Istream &is)
	Construct from name and Istream.
bool	logActive () const noexcept
	Return true if the log term is active.
scalar	logCoeff () const noexcept
	Return the log coefficient.
scalar	value (const scalar x) const
	Return polynomial value.
scalar	derivative (const scalar x) const
	Return derivative of the polynomial at the given x.
scalar	integral (const scalar x1, const scalar x2) const
	Return integral between two values.
intPolyType	integral (const scalar intConstant=0.0) const
	Return integral coefficients.
polyType	integralMinus1 (const scalar intConstant=0.0) const
	Return integral coefficients when lowest order is -1.
Public Member Functions inherited from VectorSpace< Polynomial< PolySize >, scalar, PolySize >
const Foam::VectorSpace< Polynomial< PolySize >, scalar, Ncmpts >::template ConstBlock< SubVector, BStart >	block () const
	VectorSpace ()=default
	Default construct.
const scalar &	component (const direction) const
void	replace (const direction, const scalar &)
const scalar *	cdata () const noexcept
	Return const pointer to the first data element.
scalar *	data () noexcept
	Return pointer to the first data element.
void	fill (const scalar &s)
	Assign all components to given value.
const scalar &	operator[] (const direction) const
void	operator= (const VectorSpace< Polynomial< PolySize >, scalar, Ncmpts > &)
void	operator+= (const VectorSpace< Polynomial< PolySize >, scalar, Ncmpts > &)
void	operator-= (const VectorSpace< Polynomial< PolySize >, scalar, Ncmpts > &)
void	operator*= (const scalar)
void	operator/= (const scalar)
iterator	begin () noexcept
	Return an iterator (pointer) to begin of VectorSpace.
const_iterator	cbegin () const noexcept
	Return const_iterator (const pointer) to begin of VectorSpace.
iterator	end () noexcept
	Return an iterator (pointer) to end of VectorSpace.
const_iterator	cend () const noexcept
	Return const_iterator (const pointer) to end of VectorSpace.

Additional Inherited Members
Static Public Member Functions inherited from VectorSpace< Polynomial< PolySize >, scalar, PolySize >
static constexpr direction	size () noexcept
	The number of elements in the VectorSpace = Ncmpts.
static Polynomial< PolySize >	uniform (const scalar &s)
	Return a VectorSpace with all elements = s.
Public Attributes inherited from VectorSpace< Polynomial< PolySize >, scalar, PolySize >
scalar	v_ [Ncmpts]
	The components of this vector space.
Static Public Attributes inherited from VectorSpace< Polynomial< PolySize >, scalar, PolySize >
static constexpr direction	dim
	Dimensionality of space.
static constexpr direction	nComponents
	Number of components in this vector space.
static constexpr direction	mRows
static constexpr direction	nCols
static const char *const	typeName
static const char *const	componentNames []
static const Polynomial< PolySize >	zero
static const Polynomial< PolySize >	one
static const Polynomial< PolySize >	max
static const Polynomial< PolySize >	min
static const Polynomial< PolySize >	rootMax
static const Polynomial< PolySize >	rootMin

Detailed Description

template<int PolySize>
class Foam::Polynomial< PolySize >

Polynomial templated on size (order):

    poly = sum(coeffs[i]*x^i) + logCoeff*log(x)

where 0 <= i <= N

integer powers, starting at zero
value(x) to evaluate the poly for a given value
derivative(x) returns derivative at value
integral(x1, x2) returns integral between two scalar values
integral() to return a new, integral coeff polynomial
- increases the size (order)
integralMinus1() to return a new, integral coeff polynomial where the base poly starts at order -1
