Speziale, Sarkar and Gatski Reynolds-stress turbulence model for incompressible and compressible flows. More...

#include <SSG.H>

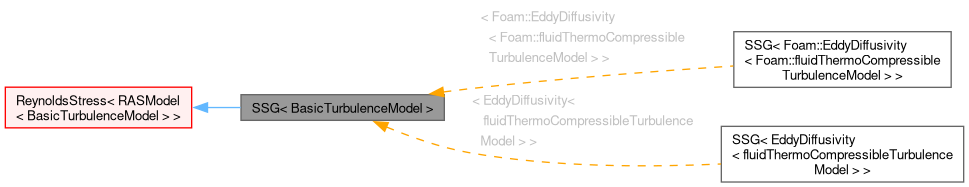

Inheritance diagram for SSG< BasicTurbulenceModel >:

[legend]

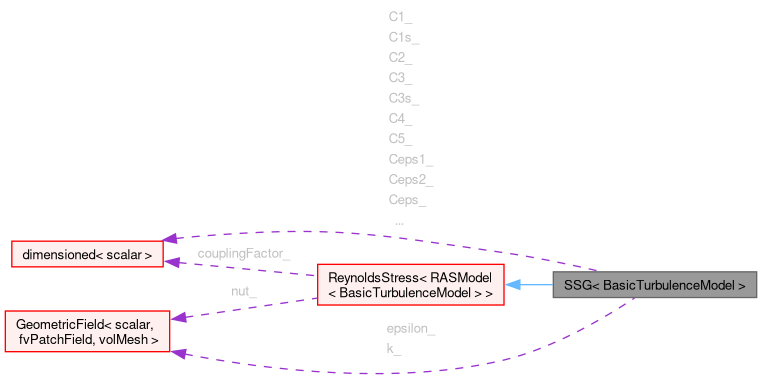

Collaboration diagram for SSG< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from ReynoldsStress< RASModel< BasicTurbulenceModel > >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("SSG")
	Runtime type information.
	SSG (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~SSG ()=default
	Destructor.
virtual bool	read ()
	Read model coefficients if they have changed.
virtual tmp< volScalarField >	k () const
	Return the turbulence kinetic energy.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate.
tmp< volSymmTensorField >	DREff () const
	Return the effective diffusivity for R.
tmp< volSymmTensorField >	DepsilonEff () const
	Return the effective diffusivity for epsilon.
virtual void	correct ()
	Solve the turbulence equations and correct eddy-Viscosity and.
Public Member Functions inherited from ReynoldsStress< RASModel< BasicTurbulenceModel > >
Foam::tmp< Foam::fvVectorMatrix >	DivDevRhoReff (const RhoFieldType &rho, volVectorField &U) const
	ReynoldsStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~ReynoldsStress ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
virtual void	validate ()
	Validate the turbulence fields after construction.

Protected Member Functions
virtual void	correctNut ()
	Update the eddy-viscosity.
Protected Member Functions inherited from ReynoldsStress< RASModel< BasicTurbulenceModel > >
void	boundNormalStress (volSymmTensorField &R) const
void	correctWallShearStress (volSymmTensorField &R) const
void	checkRealizabilityConditions (const volSymmTensorField &R) const

Protected Attributes
dimensionedScalar	Cmu_
dimensionedScalar	C1_
dimensionedScalar	C1s_
dimensionedScalar	C2_
dimensionedScalar	C3_
dimensionedScalar	C3s_
dimensionedScalar	C4_
dimensionedScalar	C5_
dimensionedScalar	Ceps1_
dimensionedScalar	Ceps2_
dimensionedScalar	Cs_
dimensionedScalar	Ceps_
volScalarField	k_
volScalarField	epsilon_
Protected Attributes inherited from ReynoldsStress< RASModel< BasicTurbulenceModel > >
dimensionedScalar	couplingFactor_
volSymmTensorField	R_
volScalarField	nut_

Detailed Description

template<class BasicTurbulenceModel>
class Foam::RASModels::SSG< BasicTurbulenceModel >

Speziale, Sarkar and Gatski Reynolds-stress turbulence model for incompressible and compressible flows.

Reference:

    Speziale, C. G., Sarkar, S., & Gatski, T. B. (1991).
    Modelling the pressure-strain correlation of turbulence:
    an invariant dynamical systems approach.
    Journal of Fluid Mechanics, 227, 245-272.

Including the generalized gradient diffusion model of Daly and Harlow:

    Daly, B. J., & Harlow, F. H. (1970).
    Transport equations in turbulence.
    Physics of Fluids (1958-1988), 13(11), 2634-2649.

The default model coefficients are:

    SSGCoeffs
    {
        Cmu             0.09;

        C1              3.4;
        C1s             1.8;
        C2              4.2;
        C3              0.8;
        C3s             1.3;
        C4              1.25;
        C5              0.4;

        Ceps1           1.44;
        Ceps2           1.92;
        Cs              0.25;
        Ceps            0.15;

        couplingFactor  0.0;
    }

Source files

SSG.H
SSG.C

Definition at line 94 of file SSG.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 148 of file SSG.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 149 of file SSG.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 150 of file SSG.H.

Constructor & Destructor Documentation

◆ SSG()

template<class BasicTurbulenceModel>

SSG	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )

Construct from components.

Definition at line 49 of file SSG.C.

References alpha, Foam::bound(), ReynoldsStress< RASModel< BasicTurbulenceModel > >::boundNormalStress(), C1_, C1s_, C2_, C3_, C3s_, C4_, C5_, Ceps1_, Ceps2_, Ceps_, Cmu_, Cs_, epsilon_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, k_, phi, ReynoldsStress< RASModel< BasicTurbulenceModel > >::R_, ReynoldsStress< RASModel< BasicTurbulenceModel > >::ReynoldsStress(), rho, timeName, Foam::tr(), and U.

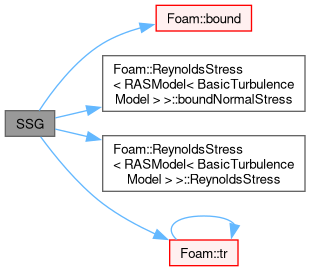

Here is the call graph for this function:

◆ ~SSG()

template<class BasicTurbulenceModel>

virtual ~SSG ( )

virtualdefault

Destructor.

Member Function Documentation

◆ correctNut()

template<class BasicTurbulenceModel>

void correctNut ( )

protectedvirtual

Update the eddy-viscosity.

Implements ReynoldsStress< RASModel< BasicTurbulenceModel > >.

Definition at line 36 of file SSG.C.

References Cmu_, optionList::correct(), epsilon_, k_, options::New(), ReynoldsStress< RASModel< BasicTurbulenceModel > >::nut_, and Foam::sqr().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "SSG< BasicTurbulenceModel >" )

Runtime type information.

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Read model coefficients if they have changed.

Implements ReynoldsStress< RASModel< BasicTurbulenceModel > >.

Definition at line 222 of file SSG.C.

References C1_, C1s_, C2_, C3_, C3s_, C4_, C5_, Ceps1_, Ceps2_, Ceps_, Cmu_, Cs_, read(), and ReynoldsStress< RASModel< BasicTurbulenceModel > >::ReynoldsStress().

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > k ( ) const

inlinevirtual

Return the turbulence kinetic energy.

Reimplemented from ReynoldsStress< RASModel< BasicTurbulenceModel > >.

Definition at line 193 of file SSG.H.

◆ epsilon()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > epsilon ( ) const

inlinevirtual

Return the turbulence kinetic energy dissipation rate.

Definition at line 201 of file SSG.H.

◆ DREff()

template<class BasicTurbulenceModel>

tmp< volSymmTensorField > DREff ( ) const

Return the effective diffusivity for R.

Definition at line 248 of file SSG.C.

References Cs_, epsilon_, Foam::I, k_, nu, and ReynoldsStress< RASModel< BasicTurbulenceModel > >::R_.

Referenced by correct().

Here is the caller graph for this function:

◆ DepsilonEff()

template<class BasicTurbulenceModel>

tmp< volSymmTensorField > DepsilonEff ( ) const

Return the effective diffusivity for epsilon.

Definition at line 262 of file SSG.C.

References Ceps_, epsilon_, Foam::I, k_, nu, and ReynoldsStress< RASModel< BasicTurbulenceModel > >::R_.

Referenced by correct().

Here is the caller graph for this function:

◆ correct()

template<class BasicTurbulenceModel>

void correct ( )

virtual

Solve the turbulence equations and correct eddy-Viscosity and.

related properties

Implements ReynoldsStress< RASModel< BasicTurbulenceModel > >.

Definition at line 276 of file SSG.C.

References alpha, b, Foam::bound(), ReynoldsStress< RASModel< BasicTurbulenceModel > >::boundNormalStress(), C1_, C1s_, C2_, C3_, C3s_, C4_, C5_, Ceps1_, Ceps2_, correct(), correctNut(), ReynoldsStress< RASModel< BasicTurbulenceModel > >::correctWallShearStress(), Foam::fvm::ddt(), DepsilonEff(), Foam::dev(), Foam::devTwoSymm(), Foam::fvm::div(), DREff(), epsilon_, fvPatch::faceCells(), forAll, fvOptions, Foam::fvc::grad(), Foam::I, Foam::innerSqr(), Foam::isA(), k_, Foam::fvm::laplacian(), Foam::mag(), Foam::min(), options::New(), patches, ReynoldsStress< RASModel< BasicTurbulenceModel > >::R(), ReynoldsStress< RASModel< BasicTurbulenceModel > >::R_, tmp< T >::ref(), ReynoldsStress< RASModel< BasicTurbulenceModel > >::ReynoldsStress(), rho, Foam::skew(), solve(), Foam::fvm::Sp(), Foam::symm(), Foam::tr(), Foam::twoSymm(), and U.

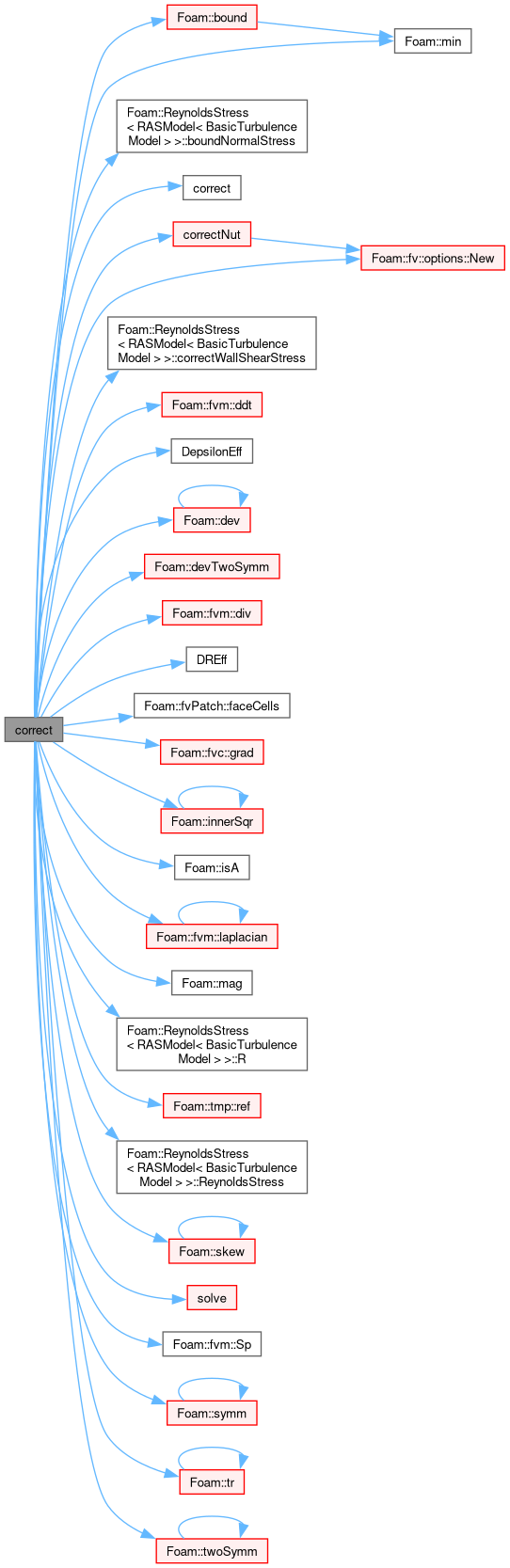

Here is the call graph for this function:

Member Data Documentation

◆ Cmu_

template<class BasicTurbulenceModel>

dimensionedScalar Cmu_

protected

Definition at line 117 of file SSG.H.

Referenced by correctNut(), read(), and SSG().

◆ C1_

template<class BasicTurbulenceModel>

dimensionedScalar C1_

protected

Definition at line 119 of file SSG.H.

Referenced by correct(), read(), and SSG().

◆ C1s_

template<class BasicTurbulenceModel>

dimensionedScalar C1s_

protected

Definition at line 120 of file SSG.H.

Referenced by correct(), read(), and SSG().

◆ C2_

template<class BasicTurbulenceModel>

dimensionedScalar C2_

protected

Definition at line 121 of file SSG.H.

Referenced by correct(), read(), and SSG().

◆ C3_

template<class BasicTurbulenceModel>

dimensionedScalar C3_

protected

Definition at line 122 of file SSG.H.

Referenced by correct(), read(), and SSG().

◆ C3s_

template<class BasicTurbulenceModel>

dimensionedScalar C3s_

protected

Definition at line 123 of file SSG.H.

Referenced by correct(), read(), and SSG().

◆ C4_

template<class BasicTurbulenceModel>

dimensionedScalar C4_

protected

Definition at line 124 of file SSG.H.

Referenced by correct(), read(), and SSG().

◆ C5_

template<class BasicTurbulenceModel>

dimensionedScalar C5_

protected

Definition at line 125 of file SSG.H.

Referenced by correct(), read(), and SSG().

◆ Ceps1_

template<class BasicTurbulenceModel>

dimensionedScalar Ceps1_

protected

Definition at line 127 of file SSG.H.

Referenced by correct(), read(), and SSG().

◆ Ceps2_

template<class BasicTurbulenceModel>

dimensionedScalar Ceps2_

protected

Definition at line 128 of file SSG.H.

Referenced by correct(), read(), and SSG().

◆ Cs_

template<class BasicTurbulenceModel>

dimensionedScalar Cs_

protected

Definition at line 129 of file SSG.H.

Referenced by DREff(), read(), and SSG().

◆ Ceps_

template<class BasicTurbulenceModel>

dimensionedScalar Ceps_

protected

Definition at line 130 of file SSG.H.

Referenced by DepsilonEff(), read(), and SSG().

◆ k_

template<class BasicTurbulenceModel>

volScalarField k_

protected

Definition at line 134 of file SSG.H.

Referenced by correct(), correctNut(), DepsilonEff(), DREff(), and SSG().

◆ epsilon_

template<class BasicTurbulenceModel>

volScalarField epsilon_

protected

Definition at line 135 of file SSG.H.

Referenced by correct(), correctNut(), DepsilonEff(), DREff(), and SSG().

The documentation for this class was generated from the following files:

src/TurbulenceModels/turbulenceModels/RAS/SSG/SSG.H
src/TurbulenceModels/turbulenceModels/RAS/SSG/SSG.C
