Simple extension of ReactionThermo to handle reaction kinetics in addition to the equilibrium thermodynamics already handled. More...

#include <Reaction.H>

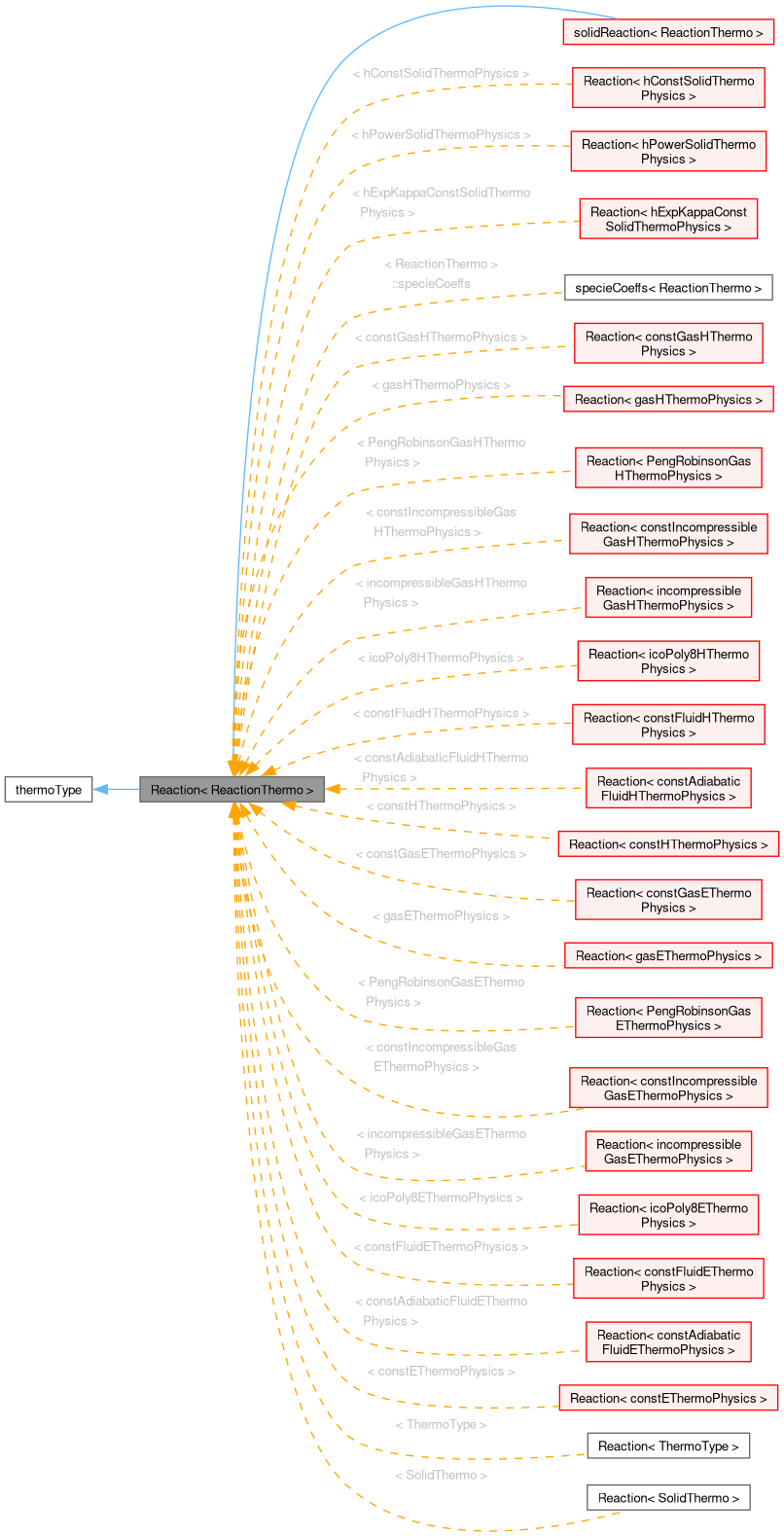

Inheritance diagram for Reaction< ReactionThermo >:

[legend]

Collaboration diagram for Reaction< ReactionThermo >:

[legend]

Classes
struct	specieCoeffs
	Hold specie index and its coefficients in the reaction rate expression. More...

Public Member Functions
	TypeName ("Reaction")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, Reaction, dictionary,(const speciesTable &species, const ReactionTable< ReactionThermo > &thermoDatabase, const dictionary &dict),(species, thermoDatabase, dict))
	Reaction (const speciesTable &species, const List< specieCoeffs > &lhs, const List< specieCoeffs > &rhs, const ReactionTable< ReactionThermo > &thermoDatabase, bool initReactionThermo=true)
	Construct from components.
	Reaction (const Reaction< ReactionThermo > &, const speciesTable &species)
	Construct as copy given new speciesTable.
	Reaction (const speciesTable &species, const ReactionTable< ReactionThermo > &thermoDatabase, const dictionary &dict, bool initReactionThermo=true, bool failUnknownSpecie=true)
	Construct from dictionary.
virtual autoPtr< Reaction< ReactionThermo > >	clone () const
	Construct and return a clone.
virtual autoPtr< Reaction< ReactionThermo > >	clone (const speciesTable &species) const
	Construct and return a clone with new speciesTable.
virtual	~Reaction ()=default
	Destructor.
const word &	name () const noexcept
	Name of reaction.
const speciesTable &	species () const noexcept
	Access to specie list.
const List< specieCoeffs > &	lhs () const noexcept
	Specie info for the left-hand-side of the reaction.
const List< specieCoeffs > &	rhs () const noexcept
	Specie info for the right-hand-side of the reaction.
virtual const speciesTable &	gasSpecies () const
	Access to gas specie list.
virtual const List< specieCoeffs > &	grhs () const
	Access to gas components of the reaction.
virtual const List< specieCoeffs > &	glhs () const
void	setLRhs (Istream &, const speciesTable &, List< specieCoeffs > &lhs, List< specieCoeffs > &rhs, bool failUnknownSpecie=true)
	Construct the left- and right-hand-side reaction coefficients.
virtual scalar	kf (const scalar p, const scalar T, const scalarField &c) const
	Forward rate constant.
virtual scalar	kr (const scalar kfwd, const scalar p, const scalar T, const scalarField &c) const
	Reverse rate constant from the given forward rate constant.
virtual scalar	kr (const scalar p, const scalar T, const scalarField &c) const
	Reverse rate constant.
virtual void	write (Ostream &os) const
	Write.

Static Public Member Functions
static autoPtr< Reaction< ReactionThermo > >	New (const speciesTable &species, const ReactionTable< ReactionThermo > &thermoDatabase, const dictionary &dict)
	Return a pointer to new patchField created on freestore from dict.

Static Public Attributes
static label	nUnNamedReactions = 0
	Number of un-named reactions.

Protected Member Functions
void	reactionStrLeft (OStringStream &reaction) const
	Add string representation of the left of the reaction.
void	reactionStrRight (OStringStream &reaction) const
	Add string representation of the right of the reaction.

Static Protected Member Functions
static void	reactionStr (OStringStream &reaction, const speciesTable &species, const List< specieCoeffs > &reactCoeffs)
	Add string representation for given species reaction coeffs.

Friends
Ostream &	operator<< (Ostream &, const Reaction< ReactionThermo > &)

Detailed Description

template<class ReactionThermo>
class Foam::Reaction< ReactionThermo >

Simple extension of ReactionThermo to handle reaction kinetics in addition to the equilibrium thermodynamics already handled.

Source files

Definition at line 66 of file Reaction.H.

Constructor & Destructor Documentation

◆ Reaction() [1/3]

template<class ReactionThermo>

Reaction	(	const speciesTable &	species,
		const List< specieCoeffs > &	lhs,
		const List< specieCoeffs > &	rhs,
		const ReactionTable< ReactionThermo > &	thermoDatabase,
		bool	initReactionThermo = true )

Construct from components.

Definition at line 149 of file Reaction.C.

References lhs(), name(), rhs(), and species().

Referenced by Reaction(), solidReaction< ReactionThermo >::solidReaction(), solidReaction< ReactionThermo >::solidReaction(), and solidReaction< ReactionThermo >::solidReaction().

Here is the call graph for this function:

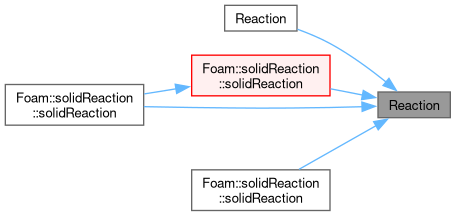

Here is the caller graph for this function:

◆ Reaction() [2/3]

template<class ReactionThermo>

Reaction	(	const Reaction< ReactionThermo > &	r,
		const speciesTable &	species )

Construct as copy given new speciesTable.

Definition at line 172 of file Reaction.C.

References name(), Reaction(), and species().

Here is the call graph for this function:

◆ Reaction() [3/3]

template<class ReactionThermo>

Reaction	(	const speciesTable &	species,
		const ReactionTable< ReactionThermo > &	thermoDatabase,
		const dictionary &	dict,
		bool	initReactionThermo = true,
		bool	failUnknownSpecie = true )

Construct from dictionary.

NOTE: initReactionThermo is used by solidReaction where there is no need of setting a lhs - rhs thermo type for each reaction. This is needed for mechanism with reversible reactions

Definition at line 315 of file Reaction.C.

References dict, dictName(), and species().

Here is the call graph for this function:

◆ ~Reaction()

template<class ReactionThermo>

virtual ~Reaction ( )

virtualdefault

Destructor.

Member Function Documentation

◆ reactionStr()

template<class ReactionThermo>

void reactionStr	(	OStringStream &	reaction,
		const speciesTable &	species,
		const List< specieCoeffs > &	reactCoeffs )

staticprotected

Add string representation for given species reaction coeffs.

Definition at line 34 of file Reaction.C.

References Reaction< ReactionThermo >::specieCoeffs::exponent, Reaction< ReactionThermo >::specieCoeffs::index, Foam::mag(), reaction, UList< T >::size(), species(), and Reaction< ReactionThermo >::specieCoeffs::stoichCoeff.

Here is the call graph for this function:

◆ reactionStrLeft()

template<class ReactionThermo>

void reactionStrLeft ( OStringStream & reaction ) const

protected

Add string representation of the left of the reaction.

Definition at line 63 of file Reaction.C.

References reaction.

◆ reactionStrRight()

template<class ReactionThermo>

void reactionStrRight ( OStringStream & reaction ) const

protected

Add string representation of the right of the reaction.

Definition at line 73 of file Reaction.C.

References reaction.

◆ TypeName()

template<class ReactionThermo>

TypeName ( "Reaction< ReactionThermo >" )

Runtime type information.

◆ declareRunTimeSelectionTable()

template<class ReactionThermo>

declareRunTimeSelectionTable	(	autoPtr	,
		Reaction< ReactionThermo >	,
		dictionary	,
		(const speciesTable &species, const ReactionTable< ReactionThermo > &thermoDatabase, const dictionary &dict)	,
		(species, thermoDatabase, dict)	)

◆ clone() [1/2]

template<class ReactionThermo>

virtual autoPtr< Reaction< ReactionThermo > > clone ( ) const

inlinevirtual

Construct and return a clone.

Definition at line 265 of file Reaction.H.

◆ clone() [2/2]

template<class ReactionThermo>

virtual autoPtr< Reaction< ReactionThermo > > clone ( const speciesTable & species ) const

inlinevirtual

Construct and return a clone with new speciesTable.

Definition at line 273 of file Reaction.H.

◆ New()

template<class ReactionThermo>

Foam::autoPtr< Foam::Reaction< ReactionThermo > > New	(	const speciesTable &	species,
		const ReactionTable< ReactionThermo > &	thermoDatabase,
		const dictionary &	dict )

static

Return a pointer to new patchField created on freestore from dict.

Definition at line 350 of file Reaction.C.

References dict, and species().

Referenced by Reaction< hConstSolidThermoPhysics >::clone(), Reaction< hConstSolidThermoPhysics >::clone(), and ReactionList< ThermoType >::readReactionDict().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ name()

template<class ReactionThermo>

const word & name ( ) const

inlinenoexcept

Name of reaction.

Definition at line 308 of file Reaction.H.

Referenced by Reaction(), Reaction(), and ReactionList< ThermoType >::write().

Here is the caller graph for this function:

◆ species()

template<class ReactionThermo>

const speciesTable & species ( ) const

inlinenoexcept

Access to specie list.

Definition at line 313 of file Reaction.H.

Referenced by New(), Reaction(), Reaction(), Reaction(), reactionStr(), setLRhs(), solidReaction< ReactionThermo >::solidReaction(), and Reaction< ReactionThermo >::specieCoeffs::specieCoeffs().

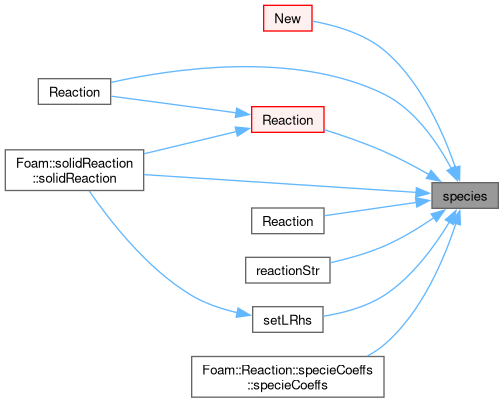

Here is the caller graph for this function:

◆ lhs()

template<class ReactionThermo>

const List< specieCoeffs > & lhs ( ) const

inlinenoexcept

Specie info for the left-hand-side of the reaction.

Definition at line 318 of file Reaction.H.

Referenced by Reaction(), and setLRhs().

Here is the caller graph for this function:

◆ rhs()

template<class ReactionThermo>

const List< specieCoeffs > & rhs ( ) const

inlinenoexcept

Specie info for the right-hand-side of the reaction.

Definition at line 323 of file Reaction.H.

Referenced by Reaction(), and setLRhs().

Here is the caller graph for this function:

◆ gasSpecies()

template<class ReactionThermo>

const Foam::speciesTable & gasSpecies ( ) const

virtual

Access to gas specie list.

Reimplemented in solidReaction< ReactionThermo >, solidReaction< hConstSolidThermoPhysics >, solidReaction< hExpKappaConstSolidThermoPhysics >, and solidReaction< hPowerSolidThermoPhysics >.

Definition at line 427 of file Reaction.C.

References NotImplemented, and Foam::NullObjectRef().

Here is the call graph for this function:

◆ grhs()

template<class ReactionThermo>

const Foam::List< typename Foam::Reaction< ReactionThermo >::specieCoeffs > & grhs ( ) const

virtual

Access to gas components of the reaction.

Reimplemented in solidReaction< ReactionThermo >, solidReaction< hConstSolidThermoPhysics >, solidReaction< hExpKappaConstSolidThermoPhysics >, and solidReaction< hPowerSolidThermoPhysics >.

Definition at line 445 of file Reaction.C.

References NotImplemented, and List< T >::null().

Here is the call graph for this function:

◆ glhs()

template<class ReactionThermo>

const Foam::List< typename Foam::Reaction< ReactionThermo >::specieCoeffs > & glhs ( ) const

virtual

Reimplemented in solidReaction< ReactionThermo >, solidReaction< hConstSolidThermoPhysics >, solidReaction< hExpKappaConstSolidThermoPhysics >, and solidReaction< hPowerSolidThermoPhysics >.

Definition at line 436 of file Reaction.C.

References NotImplemented, and List< T >::null().

Here is the call graph for this function:

◆ setLRhs()

template<class ReactionThermo>

void setLRhs	(	Istream &	is,
		const speciesTable &	species,
		List< specieCoeffs > &	lhs,
		List< specieCoeffs > &	rhs,
		bool	failUnknownSpecie = true )

Construct the left- and right-hand-side reaction coefficients.

Definition at line 240 of file Reaction.C.

References token::ADD, token::ASSIGN, UList< T >::back(), DynamicList< T, SizeMin >::clear(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, IOstream::good(), token::isPunctuation(), lhs(), DynamicList< T, SizeMin >::pop_back(), DynamicList< T, SizeMin >::push_back(), rhs(), and species().

Referenced by solidReaction< ReactionThermo >::solidReaction().

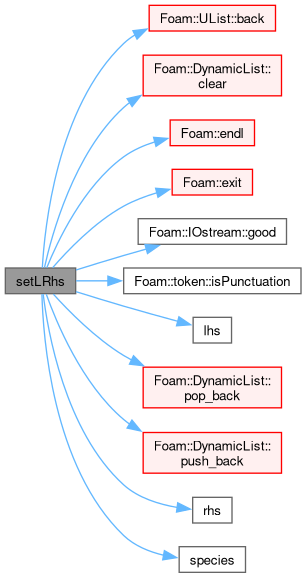

Here is the call graph for this function:

Here is the caller graph for this function:

◆ kf()

template<class ReactionThermo>

Foam::scalar kf	(	const scalar	p,
		const scalar	T,
		const scalarField &	c ) const

virtual

Forward rate constant.

Definition at line 390 of file Reaction.C.

◆ kr() [1/2]

template<class ReactionThermo>

Foam::scalar kr	(	const scalar	kfwd,
		const scalar	p,
		const scalar	T,
		const scalarField &	c ) const

virtual

Reverse rate constant from the given forward rate constant.

Definition at line 402 of file Reaction.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ kr() [2/2]

template<class ReactionThermo>

Foam::scalar kr	(	const scalar	p,
		const scalar	T,
		const scalarField &	c ) const

virtual

Reverse rate constant.

Note this evaluates the forward rate constant and divides by the equilibrium constant

Definition at line 415 of file Reaction.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ write()

template<class ReactionThermo>

void write ( Ostream & os ) const

virtual

Write.

Definition at line 382 of file Reaction.C.

References os(), and reaction.

Referenced by ReactionList< ThermoType >::write(), and ReversibleReaction< ReactionType, ReactionThermo, ReactionRate >::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator<<

template<class ReactionThermo>

Ostream & operator<<	(	Ostream &	,
		const Reaction< ReactionThermo > &	)

friend

Member Data Documentation

◆ nUnNamedReactions

template<class ReactionThermo>

Foam::label nUnNamedReactions = 0

static

Number of un-named reactions.

Definition at line 77 of file Reaction.H.

The documentation for this class was generated from the following files:

src/thermophysicalModels/specie/reaction/Reactions/Reaction/Reaction.H
src/thermophysicalModels/specie/reaction/Reactions/Reaction/Reaction.C

Classes

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Reaction() [1/3]

◆ Reaction() [2/3]

◆ Reaction() [3/3]

◆ ~Reaction()

Member Function Documentation

◆ reactionStr()

◆ reactionStrLeft()

◆ reactionStrRight()

◆ TypeName()

◆ declareRunTimeSelectionTable()

◆ clone() [1/2]

◆ clone() [2/2]

◆ New()

◆ name()

◆ species()

◆ lhs()

◆ rhs()

◆ gasSpecies()

◆ grhs()

◆ glhs()

◆ setLRhs()

◆ kf()

◆ kr() [1/2]

◆ kr() [2/2]

◆ write()

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ nUnNamedReactions
