SIBS Class Reference

A semi-implicit mid-point solver for stiff systems of ordinary differential equations. More...

#include <SIBS.H>

Inheritance diagram for SIBS:

Collaboration diagram for SIBS:

Public Member Functions
	TypeName ("SIBS")
	Runtime type information.
	SIBS (const ODESystem &ode, const dictionary &dict)
	Construct from ODE system.
virtual	~SIBS ()=default
	Destructor.
virtual bool	resize ()
	Resize the ODE solver.
virtual void	solve (scalar &x, scalarField &y, scalar &dxTry) const
	Solve the ODE system as far as possible up to dxTry.
Public Member Functions inherited from ODESolver
	TypeName ("ODESolver")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, ODESolver, dictionary,(const ODESystem &ode, const dictionary &dict),(ode, dict))
	ODESolver (const ODESystem &ode, const dictionary &dict)
	Construct for given ODESystem.
	ODESolver (const ODESystem &ode, const scalarField &absTol, const scalarField &relTol)
	Construct for given ODESystem specifying tolerances.
virtual	~ODESolver ()=default
	Destructor.
label	nEqns () const noexcept
	The number of equations to solve.
scalarField &	absTol () noexcept
	Access to the absolute tolerance field.
scalarField &	relTol () noexcept
	Access to the relative tolerance field.
template<class Type>
void	resizeField (UList< Type > &f) const
void	resizeMatrix (scalarSquareMatrix &m) const
virtual void	solve (scalar &x, scalarField &y, stepState &step) const
	Solve the ODE system as far as possible up to dxTry.
virtual void	solve (const scalar xStart, const scalar xEnd, scalarField &y, scalar &dxEst) const
	Solve the ODE system from xStart to xEnd, update the state.

Additional Inherited Members
Static Public Member Functions inherited from ODESolver
static autoPtr< ODESolver >	New (const ODESystem &ode, const dictionary &dict)
	Select null constructed.
template<class Type>
static void	resizeField (UList< Type > &f, const label n)
Protected Member Functions inherited from ODESolver
scalar	normalizeError (const scalarField &y0, const scalarField &y, const scalarField &err) const
	Return the nomalized scalar error.
	ODESolver (const ODESolver &)=delete
	No copy construct.
void	operator= (const ODESolver &)=delete
	No copy assignment.
Protected Attributes inherited from ODESolver
const ODESystem &	odes_
	Reference to ODESystem.
const label	maxN_
	Maximum size of the ODESystem.
label	n_
	Size of the ODESystem (adjustable).
scalarField	absTol_
	Absolute convergence tolerance per step.
scalarField	relTol_
	Relative convergence tolerance per step.
label	maxSteps_
	The maximum number of sub-steps allowed for the integration step.

Detailed Description

A semi-implicit mid-point solver for stiff systems of ordinary differential equations.

Reference:

    Bader, G., & Deuflhard, P. (1983).
    A semi-implicit mid-point rule for stiff systems
    of ordinary differential equations.
    Numerische Mathematik, 41(3), 373-398.

Source files

• SIBS.H
• SIMPR.C
• polyExtrapolate.C

Definition at line 60 of file SIBS.H.

Constructor & Destructor Documentation

SIBS()

SIBS	(	const ODESystem &	ode,
		const dictionary &	dict )

Construct from ODE system.

Definition at line 45 of file SIBS.C.

References dict, ODESolver::n_, ODESolver::ODESolver(), ODESolver::ODESystem, and Foam::Zero.

Here is the call graph for this function:

~SIBS()

virtual ~SIBS ( )

virtualdefault

Destructor.

References x, and y.

Member Function Documentation

TypeName()

TypeName

(

"SIBS"

)

Runtime type information.

References dict, and ODESolver::ODESystem.

Here is the call graph for this function:

resize()

bool resize ( )

virtual

Resize the ODE solver.

Implements ODESolver.

Definition at line 67 of file SIBS.C.

References ODESolver::resize(), ODESolver::resizeField(), and ODESolver::resizeMatrix().

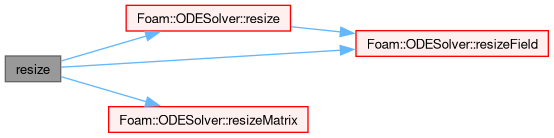

Here is the call graph for this function:

solve()

void solve ( scalar & x, scalarField & y, scalar & dxTry ) const

virtual

Solve the ODE system as far as possible up to dxTry.

adjusting the step as necessary to provide a solution within the specified tolerance. Update the state and return an estimate for the next step in dxTry

Reimplemented from ODESolver.

Definition at line 85 of file SIBS.C.

References ODESolver::absTol_, Foam::exit(), Foam::FatalError, FatalErrorInFunction, h, k, Foam::mag(), Foam::max(), Foam::min(), ODESolver::n_, ODESolver::odes_, Foam::pow(), ODESolver::relTol_, Foam::sqr(), x, and y.

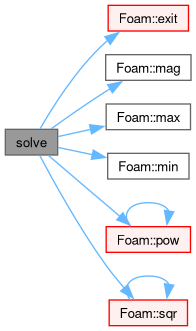

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/ODE/ODESolvers/SIBS/SIBS.H
• src/ODE/ODESolvers/SIBS/polyExtrapolate.C
• src/ODE/ODESolvers/SIBS/SIBS.C
• src/ODE/ODESolvers/SIBS/SIMPR.C
