SQPBase Class Reference

Base class for Sequantial Quadratic Programming (SQP) methods. More...

#include <SQPBase.H>

Inheritance diagram for SQPBase:

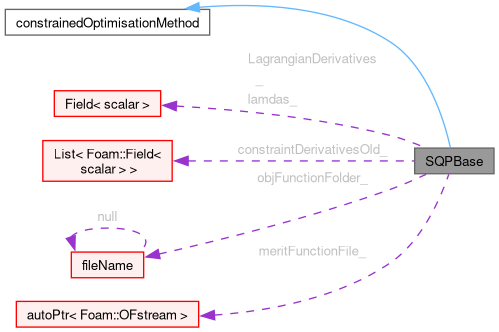

Collaboration diagram for SQPBase:

Public Member Functions
	TypeName ("SQPBase")
	Runtime type information.
	SQPBase (const fvMesh &mesh, const dictionary &dict, autoPtr< designVariables > &designVars, const updateMethod &UpdateMethod, const word &type)
	Construct from components.
virtual	~SQPBase ()=default
	Destructor.
virtual bool	addToFile (Ostream &os) const
	Write continuation info.
virtual bool	writeMeritFunction (const updateMethod &UpdateMethod)
	Write info about the merit function.
Public Member Functions inherited from constrainedOptimisationMethod
	TypeName ("constrainedOptimisationMethod")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, constrainedOptimisationMethod, dictionary,(const fvMesh &mesh, const dictionary &dict, autoPtr< designVariables > &designVars, const label nConstraints, const word &type),(mesh, dict, designVars, nConstraints, type))
	constrainedOptimisationMethod (const fvMesh &mesh, const dictionary &dict, autoPtr< designVariables > &designVars, const label nConstraints, const word &type)
	Construct from components.
virtual	~constrainedOptimisationMethod ()=default
	Destructor.

Protected Member Functions
virtual scalar	meritFunctionConstraintPart () const =0
	Get the part the merit function that depends on the constraints.

Protected Attributes
scalarField	LagrangianDerivatives_
	Derivatives of the Lagrangian function.
List< scalarField >	constraintDerivativesOld_
	The previous constraint derivatives.
scalarField	lamdas_
	Lagrange multipliers.
fileName	objFunctionFolder_
	Name of the objective folder.
autoPtr< OFstream >	meritFunctionFile_
	File including the l1 merit function.
scalar	mu_
	Penalty value for the merit function.
scalar	delta_
	Safety factor.

Detailed Description

Base class for Sequantial Quadratic Programming (SQP) methods.

Source files

• SQPBase.H
• SQPBase.C

Definition at line 50 of file SQPBase.H.

Constructor & Destructor Documentation

SQPBase()

SQPBase	(	const fvMesh &	mesh,
		const dictionary &	dict,
		autoPtr< designVariables > &	designVars,
		const updateMethod &	UpdateMethod,
		const word &	type )

Construct from components.

Definition at line 37 of file SQPBase.C.

References constraintDerivativesOld_, delta_, dict, forAll, dictionary::found(), found, LagrangianDerivatives_, lamdas_, UPstream::master(), meritFunctionFile_, mesh, Foam::mkDir(), mu_, Foam::name(), objFunctionFolder_, timeName, and Foam::Zero.

Here is the call graph for this function:

~SQPBase()

virtual ~SQPBase ( )

virtualdefault

Destructor.

References os().

Here is the call graph for this function:

Member Function Documentation

meritFunctionConstraintPart()

virtual scalar meritFunctionConstraintPart ( ) const

protectedpure virtual

Get the part the merit function that depends on the constraints.

Implemented in ISQP.

Referenced by writeMeritFunction().

Here is the caller graph for this function:

TypeName()

TypeName

(

"SQPBase"

)

Runtime type information.

References dict, and mesh.

addToFile()

bool addToFile ( Ostream & os ) const

virtual

Write continuation info.

Definition at line 102 of file SQPBase.C.

References constraintDerivativesOld_, forAll, lamdas_, Foam::name(), and os().

Referenced by ISQP::writeData(), and SQP::writeData().

Here is the call graph for this function:

Here is the caller graph for this function:

writeMeritFunction()

bool writeMeritFunction ( const updateMethod & UpdateMethod )

virtual

Write info about the merit function.

Definition at line 115 of file SQPBase.C.

References IOstream::defaultPrecision(), Foam::endl(), forAll, updateMethod::getConstraintValues(), updateMethod::getCycle(), updateMethod::getObjectiveValue(), lamdas_, UPstream::master(), meritFunctionConstraintPart(), meritFunctionFile_, mu_, objFunctionFolder_, and Foam::setw().

Referenced by ISQP::writeAuxiliaryData(), and SQP::writeAuxiliaryData().

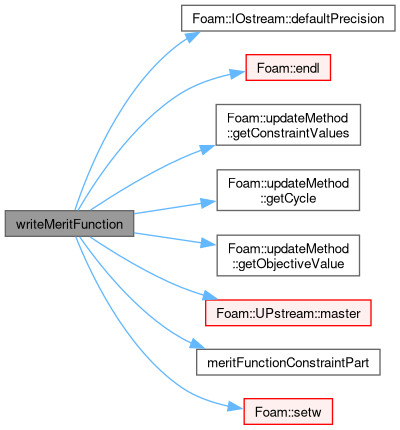

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

LagrangianDerivatives_

scalarField LagrangianDerivatives_

protected

Derivatives of the Lagrangian function.

Definition at line 61 of file SQPBase.H.

Referenced by ISQP::computeCorrection(), SQP::computeCorrection(), SQPBase(), and ISQP::updateYS().

constraintDerivativesOld_

List<scalarField> constraintDerivativesOld_

protected

The previous constraint derivatives.

Definition at line 66 of file SQPBase.H.

Referenced by addToFile(), SQPBase(), ISQP::storeOldFields(), and ISQP::updateYS().

lamdas_

scalarField lamdas_

protected

Lagrange multipliers.

Definition at line 71 of file SQPBase.H.

Referenced by addToFile(), ISQP::computeMeritFunction(), SQP::computeMeritFunction(), ISQP::computeNewtonDirection(), ISQP::computeRHSForDeltaX(), ISQP::diagPreconditioner(), ISQP::initialize(), ISQP::invHFL(), ISQP::lineSearch(), ISQP::matrixVectorProduct(), ISQP::resFExtraVars(), ISQP::resFL(), ISQP::resFlamda(), ISQP::ShermanMorrisonPrecon(), ISQP::solveDeltaPEqn(), ISQP::solveSubproblem(), SQPBase(), ISQP::updateSolution(), ISQP::updateYS(), and writeMeritFunction().

objFunctionFolder_

fileName objFunctionFolder_

protected

Name of the objective folder.

Definition at line 76 of file SQPBase.H.

Referenced by SQPBase(), and writeMeritFunction().

meritFunctionFile_

autoPtr<OFstream> meritFunctionFile_

protected

File including the l1 merit function.

Definition at line 81 of file SQPBase.H.

Referenced by SQPBase(), and writeMeritFunction().

mu_

scalar mu_

protected

Penalty value for the merit function.

Definition at line 86 of file SQPBase.H.

Referenced by ISQP::computeMeritFunction(), SQP::computeMeritFunction(), ISQP::meritFunctionDirectionalDerivative(), SQP::meritFunctionDirectionalDerivative(), SQPBase(), and writeMeritFunction().

delta_

scalar delta_

protected

Safety factor.

Definition at line 91 of file SQPBase.H.

Referenced by ISQP::computeMeritFunction(), SQP::computeMeritFunction(), and SQPBase().

---

The documentation for this class was generated from the following files:

• src/optimisation/adjointOptimisation/adjoint/optimisation/updateMethod/SQPBase/SQPBase.H
• src/optimisation/adjointOptimisation/adjoint/optimisation/updateMethod/SQPBase/SQPBase.C
