SVD Class Reference

Singular value decomposition of a rectangular matrix. More...

#include <SVD.H>

Public Member Functions
	SVD (const SVD &)=delete
	No copy construct.
void	operator= (const SVD &)=delete
	No copy assignment.
	SVD (const scalarRectangularMatrix &A, const scalar minCondition=0)
	Construct from a rectangular Matrix.
const scalarRectangularMatrix &	U () const noexcept
	Return U.
const scalarRectangularMatrix &	V () const noexcept
	Return the square matrix V.
const scalarDiagonalMatrix &	S () const noexcept
	Return the singular values.
bool	converged () const noexcept
	Return the minimum non-zero singular value.
label	nZeros () const noexcept
	Return the number of zero singular values.
scalar	minNonZeroS () const
	Return the minimum non-zero singular value.
scalarRectangularMatrix	VSinvUt () const
	Return the matrix product V S^(-1) U^T (the pseudo inverse).

Static Public Member Functions
static scalarRectangularMatrix	pinv (const scalarRectangularMatrix &A, const scalar minCondition=0)
	Return the pseudo inverse of the given matrix.
static Tensor< scalar >	pinv (const Tensor< scalar > &A, const scalar minCondition=0)
	Return the pseudo inverse of the given tensor.

Detailed Description

Singular value decomposition of a rectangular matrix.

Source files

• SVD.H
• SVD.C

Definition at line 50 of file SVD.H.

Constructor & Destructor Documentation

SVD() [1/2]

SVD ( const SVD & )

delete

No copy construct.

References SVD().

Referenced by operator=(), pinv(), and SVD().

Here is the call graph for this function:

Here is the caller graph for this function:

SVD() [2/2]

SVD ( const scalarRectangularMatrix & A, const scalar minCondition = 0 )

explicit

Construct from a rectangular Matrix.

Definition at line 446 of file SVD.C.

References A, n, and Foam::SVDcomp().

Here is the call graph for this function:

Member Function Documentation

operator=()

void operator= ( const SVD & )

delete

No copy assignment.

References A, and SVD().

Here is the call graph for this function:

U()

const scalarRectangularMatrix & U ( ) const

inlinenoexcept

Return U.

Definition at line 112 of file SVD.H.

References Foam::noexcept.

Referenced by chemPointISAT< CompType, ThermoType >::chemPointISAT().

Here is the caller graph for this function:

V()

const scalarRectangularMatrix & V ( ) const

inlinenoexcept

Return the square matrix V.

Definition at line 117 of file SVD.H.

References Foam::noexcept.

Referenced by chemPointISAT< CompType, ThermoType >::chemPointISAT().

Here is the caller graph for this function:

S()

const scalarDiagonalMatrix & S ( ) const

inlinenoexcept

Return the singular values.

Definition at line 122 of file SVD.H.

References Foam::noexcept.

Referenced by CentredFitSnGradData< Polynomial >::calcFit(), and chemPointISAT< CompType, ThermoType >::chemPointISAT().

Here is the caller graph for this function:

converged()

bool converged ( ) const

inlinenoexcept

Return the minimum non-zero singular value.

Definition at line 127 of file SVD.H.

References Foam::noexcept.

nZeros()

label nZeros ( ) const

inlinenoexcept

Return the number of zero singular values.

Definition at line 132 of file SVD.H.

References Foam::noexcept.

minNonZeroS()

Foam::scalar minNonZeroS

(

)

const

Return the minimum non-zero singular value.

Definition at line 467 of file SVD.C.

References s().

Here is the call graph for this function:

VSinvUt()

Foam::scalarRectangularMatrix VSinvUt

(

)

const

Return the matrix product V S^(-1) U^T (the pseudo inverse).

Definition at line 479 of file SVD.C.

References Foam::inv(), Foam::multiply(), and VSinvUt().

Referenced by CentredFitSnGradData< Polynomial >::calcFit(), pinv(), leastSquares::stencilWeights(), and VSinvUt().

Here is the call graph for this function:

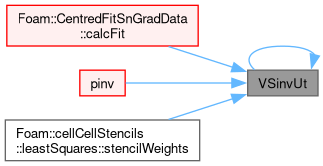

Here is the caller graph for this function:

pinv() [1/2]

Foam::scalarRectangularMatrix pinv ( const scalarRectangularMatrix & A, const scalar minCondition = 0 )

static

Return the pseudo inverse of the given matrix.

Definition at line 489 of file SVD.C.

References A, SVD(), and VSinvUt().

Referenced by Foam::SVDinv().

Here is the call graph for this function:

Here is the caller graph for this function:

pinv() [2/2]

Foam::Tensor< Foam::scalar > pinv ( const Tensor< scalar > & A, const scalar minCondition = 0 )

static

Return the pseudo inverse of the given tensor.

Definition at line 501 of file SVD.C.

References A, Foam::do_multiply(), Foam::inv(), and Foam::SVDcomp().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/matrices/scalarMatrices/SVD/SVD.H
• src/OpenFOAM/matrices/scalarMatrices/SVD/SVD.C
