SubField is a Field obtained as a section of another Field, without its own allocation. SubField is derived from a SubList rather than a List. More...

#include <SubField.H>

Inheritance diagram for SubField< Type >:

[legend]

Collaboration diagram for SubField< Type >:

[legend]

Public Types
typedef pTraits< Type >::cmptType	cmptType
	Component type.
Public Types inherited from UList< Type >
typedef Type	value_type
	The value type the list contains.
typedef Type *	pointer
	The pointer type for non-const access to value_type items.
typedef const Type *	const_pointer
	The pointer type for const access to value_type items.
typedef Type &	reference
	The type used for storing into value_type objects.
typedef const Type &	const_reference
	The type used for reading from constant value_type objects.
typedef Type *	iterator
	Random access iterator for traversing a UList.
typedef const Type *	const_iterator
	Random access iterator for traversing a UList.
typedef label	size_type
	The type to represent the size of a UList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
using	is_List
	Have unique tag.

Public Member Functions
	SubField () noexcept=default
	Default construct, zero-sized and nullptr.
	SubField (const SubField< Type > &fld)
	Copy construct (shallow copy).
	SubField (const SubList< Type > &list)
	Copy construct from SubList.
	SubField (const UList< Type > &list) noexcept
	Construct from UList, the entire size.
	SubField (const UList< Type > &list, const label len)
	Construct from UList with a given sub-list size, start at 0.
	SubField (const UList< Type > &list, const label len, const label start)
	Construct from UList, sub-list size and start index.
	SubField (const UList< Type > &list, const labelRange &range)
	Construct from UList and a (start,size) range.
	SubField (const labelRange &range, const UList< Type > &list)
	Construct from UList and a (start,size) range, but bypassing run-time range checking.
tmp< Field< cmptType > >	component (const direction) const
	Return a component field of the field.
tmp< Field< Type > >	T () const
	Return the field transpose (only defined for second rank tensors).
	operator const Foam::Field< Type > & () const
	Allow cast to a const Field<Type>&.
void	operator= (const SubField< Type > &)
	Copy assign via UList operator. Takes linear time.
void	operator= (const Field< Type > &)
	Copy assign via UList operator. Takes linear time.
void	operator= (const Type &val)
	Assign all entries to the given value.
void	operator= (Foam::zero)
	Assign all entries to zero.
template<class Form, direction Ncmpts>
void	operator= (const VectorSpace< Form, Type, Ncmpts > &rhs)
	Copy assign via UList operator. Takes linear time.
void	operator+= (const Type &val)
	Add value to each entry.
void	operator-= (const Type &val)
	Subtract value from each entry.
void	operator*= (const scalar &s)
	Multiply each entry by value.
void	operator/= (const scalar &s)
	Divide each entry by value.
Public Member Functions inherited from FieldBase
constexpr	FieldBase () noexcept
	Default construct.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.
Public Member Functions inherited from SubList< Type >
	SubList () noexcept=default
	Default construct, zero-sized and nullptr.
UList< Type > &	reset (std::nullptr_t) noexcept
	Reset to zero-sized and nullptr.
	operator const Foam::List< Type > & () const
	Allow cast to a const List<T>&.
void	operator= (const SubList< Type > &list)
	Copy assign entries (deep copy) from given sub-list. Sizes must match!
Public Member Functions inherited from UList< Type >
	UList (const UList< Type > &) noexcept=default
	Copy construct, shallow copy.
UList< Type > &	operator= (const UList< Type > &)=delete
	No copy assignment (default: shallow copy).
label	fcIndex (const label i) const noexcept
	The forward circular index. The next index in the list which returns to the first at the end of the list.
label	rcIndex (const label i) const noexcept
	The reverse circular index. The previous index in the list which returns to the last at the beginning of the list.
const Type &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
const Type &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
const Type *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
Type *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
Type &	front ()
	Access first element of the list, position [0].
Type &	back ()
	Access last element of the list, position [size()-1].
std::streamsize	size_bytes () const noexcept
	Number of contiguous bytes for the List data.
std::streamsize	byteSize () const
	Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous.
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is within valid range [0,size].
void	checkRange (const label start, const label len) const
	Check that start and length define a valid range.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const Type &val) const
	True if the value is contained in the list.
label	find (const Type &val) const
	Find index of the first occurrence of the value.
label	rfind (const Type &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element. Fatal on an empty list.
void	swapLast (const label i)
	Swap element with the last element. Fatal on an empty list.
void	shallowCopy (Type *__restrict__ ptr, const label len) noexcept
	Copy the pointer and size.
void	deepCopy (const UList< Type > &list)
	Copy elements of the given UList. Sizes must match!
SubList< Type >	slice (const label pos, label len=-1)
	Return SubList slice (non-const access) - no range checking.
Type &	operator[] (const label i)
	Return element of UList.
	operator const Foam::List< Type > & () const
	Allow cast to a const List<T>&.
iterator	begin () noexcept
	Return an iterator to begin traversing the UList.
iterator	end () noexcept
	Return an iterator to end traversing the UList.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant UList.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the UList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing the UList.
bool	empty () const noexcept
	True if List is empty (ie, size() is zero).
label	capacity () const noexcept
	Size of the underlying storage.
void	swap (UList< Type > &list) noexcept
	Swap content with another UList of the same type in constant time.
bool	operator== (const UList< Type > &list) const
	Equality operation on ULists of the same type.
bool	operator!= (const UList< Type > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const UList< Type > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator> (const UList< Type > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator<= (const UList< Type > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const UList< Type > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read List contents from Istream.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
bool	all () const
	True if all entries are 'true' or if the list is empty.
bool	any () const
	True if any entries are 'true'.
bool	none () const
	True if no entries are 'true'.
bool	test (const label i) const
	Test `bool` value at specified position, always false for out-of-range access.
bool	get (const label i) const
	Return `bool` value at specified position, always false for out-of-range access.
bool	unset (const label i)
	Unset the `bool` entry at specified position, always false for out-of-range access.
std::string_view	view () const
	Return a string_view of the charList. Content is non-modifiable.
Type &	first ()
	Access first element of the list, position [0].
Type &	last ()
	Access last element of the list, position [size()-1].
bool	found (const Type &val, label pos=0) const
	Same as contains().
auto	expr () const
	Wrap value as expression.

Static Public Member Functions
static const SubField< Type > &	null () noexcept
	Return a null SubField (reference to a nullObject). Behaves like an empty SubField.
Static Public Member Functions inherited from FieldBase
static void	warnLocalBoundaryConsistencyCompat (const dictionary &)
	Warn about keyword changes for local boundary consistency checks.
static int	localBoundaryConsistency () noexcept
	Get flag for local boundary consistency checks.
static int	localBoundaryConsistency (int val) noexcept
	Set flag for local boundary consistency checks.
Static Public Member Functions inherited from SubList< Type >
static const SubList< Type > &	null () noexcept
	Return a null SubList (reference to a nullObject). Behaves like an empty SubList.
Static Public Member Functions inherited from UList< Type >
static const UList< Type > &	null () noexcept
	Return a null UList (reference to a nullObject). Behaves like an empty UList.
static constexpr label	max_size () noexcept
	The size of the largest possible UList.

Additional Inherited Members
Static Public Attributes inherited from FieldBase
static const char *const	typeName
	Typename for Field.
static bool	allowConstructFromLargerSize = false
	Permit read construct from a larger size.
static bool	unifiedGeometricField
	GeometricField with extra capacity for flattened boundary fields. Uses opt-switch "unifiedGeometricField".
static int	localBoundaryConsistency_
	Local boundary field consistency checks. Uses opt-switch "localBoundaryConsistency".
static scalar	localBoundaryTolerance_
	Tolerance for local boundary field consistency checks. Uses opt-switch "localBoundaryConsistency::tolerance".
Protected Member Functions inherited from UList< Type >
void	setAddressableSize (const label n) noexcept
	Set addressed size to be inconsistent with allocated storage.
void	size (const label n)
	Older name for setAddressableSize.
void	writeEntry (Ostream &os) const
	Write the UList with its compound type.
labelRange	validateRange (const labelRange &requestedRange) const
	Return a validated (start,size) subset range, which means that it always addresses a valid section of the list.
void	fill_uniform (const Type &val)
	Assign all entries to the given value.

Detailed Description

template<class Type>
class Foam::SubField< Type >

SubField is a Field obtained as a section of another Field, without its own allocation. SubField is derived from a SubList rather than a List.

Source files

Definition at line 54 of file SubField.H.

Member Typedef Documentation

◆ cmptType

template<class Type>

typedef pTraits<Type>::cmptType cmptType

Component type.

Definition at line 64 of file SubField.H.

Constructor & Destructor Documentation

◆ SubField() [1/8]

template<class Type>

SubField ( )

defaultnoexcept

Default construct, zero-sized and nullptr.

References component(), fld(), FOAM_DEPRECATED_STRICTER, Foam::noexcept, range, SubField(), SubList< Type >::SubList(), and T().

Referenced by null(), operator=(), SubField(), and SubField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SubField() [2/8]

template<class Type>

SubField ( const SubField< Type > & fld )

inline

Copy construct (shallow copy).

Definition at line 25 of file SubFieldI.H.

References fld(), SubField(), and SubList< Type >::SubList().

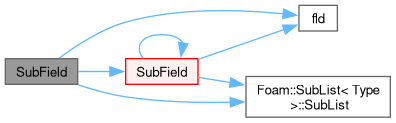

Here is the call graph for this function:

◆ SubField() [3/8]

template<class Type>

SubField ( const SubList< Type > & list )

inline

Copy construct from SubList.

Definition at line 35 of file SubFieldI.H.

References SubList< Type >::SubList().

Here is the call graph for this function:

◆ SubField() [4/8]

template<class Type>

SubField ( const UList< Type > & list )

inlineexplicitnoexcept

Construct from UList, the entire size.

Definition at line 45 of file SubFieldI.H.

References Foam::noexcept, and SubList< Type >::SubList().

Here is the call graph for this function:

◆ SubField() [5/8]

template<class Type>

SubField	(	const UList< Type > &	list,
		const label	len )

inline

Construct from UList with a given sub-list size, start at 0.

Definition at line 55 of file SubFieldI.H.

References SubList< Type >::SubList().

Here is the call graph for this function:

◆ SubField() [6/8]

template<class Type>

SubField	(	const UList< Type > &	list,
		const label	len,
		const label	start )

inline

Construct from UList, sub-list size and start index.

Definition at line 66 of file SubFieldI.H.

References SubList< Type >::SubList().

Here is the call graph for this function:

◆ SubField() [7/8]

template<class Type>

SubField	(	const UList< Type > &	list,
		const labelRange &	range )

inline

Construct from UList and a (start,size) range.

The range is subsetted with the list size itself to ensure that the result always addresses a valid section of the list.

Definition at line 78 of file SubFieldI.H.

References range, and SubList< Type >::SubList().

Here is the call graph for this function:

◆ SubField() [8/8]

template<class Type>

SubField	(	const labelRange &	range,
		const UList< Type > &	list )

inline

Construct from UList and a (start,size) range, but bypassing run-time range checking.

Definition at line 89 of file SubFieldI.H.

References range, and SubList< Type >::SubList().

Here is the call graph for this function:

Member Function Documentation

◆ null()

template<class Type>

const SubField< Type > & null ( )

inlinestaticnoexcept

Return a null SubField (reference to a nullObject). Behaves like an empty SubField.

Definition at line 73 of file SubField.H.

References Foam::noexcept, Foam::NullObjectRef(), and SubField().

Here is the call graph for this function:

◆ component()

template<class Type>

Foam::tmp< Foam::Field< typename Foam::SubField< Type >::cmptType > > component ( const direction d ) const

inline

Return a component field of the field.

Definition at line 103 of file SubFieldI.H.

Referenced by SubField().

Here is the caller graph for this function:

◆ T()

template<class Type>

Foam::tmp< Foam::Field< Type > > T ( ) const

inline

Return the field transpose (only defined for second rank tensors).

Definition at line 113 of file SubFieldI.H.

Referenced by SubField().

Here is the caller graph for this function:

◆ operator const Foam::Field< Type > &()

template<class Type>

operator const Foam::Field< Type > & ( ) const

inline

Allow cast to a const Field<Type>&.

Note: Marked as "strictly" deprecated. Currently (2025-04) code still depends on this cast.

Definition at line 165 of file SubField.H.

◆ operator=() [1/5]

template<class Type>

void operator= ( const SubField< Type > & rhs )

inline

Copy assign via UList operator. Takes linear time.

Definition at line 122 of file SubFieldI.H.

References SubList< T >::operator=(), Foam::rhs(), and SubField().

Here is the call graph for this function:

◆ operator=() [2/5]

template<class Type>

void operator= ( const Field< Type > & rhs )

inline

Copy assign via UList operator. Takes linear time.

Definition at line 129 of file SubFieldI.H.

References SubList< T >::operator=(), and Foam::rhs().

Here is the call graph for this function:

◆ operator=() [3/5]

template<class Type>

void operator= ( const Type & val )

inline

Assign all entries to the given value.

Definition at line 136 of file SubFieldI.H.

References SubList< T >::operator=().

Here is the call graph for this function:

◆ operator=() [4/5]

template<class Type>

void operator= ( Foam::zero )

inline

Assign all entries to zero.

Definition at line 143 of file SubFieldI.H.

References SubList< T >::operator=().

Here is the call graph for this function:

◆ operator=() [5/5]

template<class Type>

template<class Form, Foam::direction Ncmpts>

void operator= ( const VectorSpace< Form, Type, Ncmpts > & rhs )

inline

Copy assign via UList operator. Takes linear time.

Definition at line 151 of file SubFieldI.H.

◆ operator+=()

template<class Type>

void operator+= ( const Type & val )

inline

Add value to each entry.

Definition at line 164 of file SubFieldI.H.

◆ operator-=()

template<class Type>

void operator-= ( const Type & val )

inline

Subtract value from each entry.

Definition at line 174 of file SubFieldI.H.

◆ operator*=()

template<class Type>

void operator*= ( const scalar & s )

inline

Multiply each entry by value.

Definition at line 184 of file SubFieldI.H.

References s().

Here is the call graph for this function:

◆ operator/=()

template<class Type>

void operator/= ( const scalar & s )

inline

Divide each entry by value.

Definition at line 194 of file SubFieldI.H.

References s().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/fields/Fields/Field/Field.H
src/OpenFOAM/fields/Fields/Field/SubField.H
src/OpenFOAM/fields/Fields/Field/SubFieldI.H

Public Types

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ cmptType

Constructor & Destructor Documentation

◆ SubField() [1/8]

◆ SubField() [2/8]

◆ SubField() [3/8]

◆ SubField() [4/8]

◆ SubField() [5/8]

◆ SubField() [6/8]

◆ SubField() [7/8]

◆ SubField() [8/8]

Member Function Documentation

◆ null()

◆ component()

◆ T()

◆ operator const Foam::Field< Type > &()

◆ operator=() [1/5]

◆ operator=() [2/5]

◆ operator=() [3/5]

◆ operator=() [4/5]

◆ operator=() [5/5]

◆ operator+=()

◆ operator-=()

◆ operator*=()

◆ operator/=()
