Template class for intrusive linked lists. More...

#include <UILList.H>

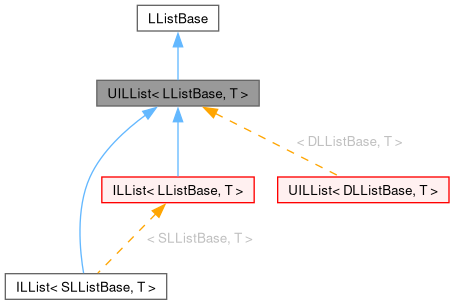

Inheritance diagram for UILList< LListBase, T >:

[legend]

Collaboration diagram for UILList< LListBase, T >:

Classes
class	iterator
	A non-const iterator. More...
class	const_iterator
	A const_iterator. More...
class	reverse_iterator
	A reverse_iterator, for LListBase classes that support reverse iteration. More...
class	const_reverse_iterator
	A const_reverse_iterator, for LListBase classes that support reverse iteration. More...

Public Types
typedef T	value_type
	Type of values stored.
typedef T *	pointer
	Pointer for value_type.
typedef const T *	const_pointer
	Const pointer for value_type.
typedef T &	reference
	Reference for value_type.
typedef const T &	const_reference
	Const reference for value_type.
typedef label	size_type
	The type that can represent the container size.
typedef label	difference_type
	The difference between iterator objects.
using	base_iterator = typename LListBase::iterator
using	const_base_iterator = typename LListBase::const_iterator

Public Member Functions
	UILList ()=default
	Default construct.
	UILList (T *item)
	Construct and add initial item pointer.
	UILList (const UILList< LListBase, T > &list)
	Construct as copy.
T *	front ()
	The first entry in the list.
const T *	front () const
	The first entry in the list (const access).
T *	back ()
	The last entry in the list.
const T *	back () const
	The last entry in the list (const access).
T *	removeHead ()
	Remove and return head.
T *	remove (T *item)
	Remove and return element.
T *	remove (iterator &iter)
	Remove and return item specified by iterator.
void	operator= (const UILList< LListBase, T > &lst)
	Copy assignment.
bool	operator== (const UILList< LListBase, T > &lst) const
	Equality. True both lists are element-wise equal.
bool	operator!= (const UILList< LListBase, T > &lst) const
	The opposite of the equality operation. Takes linear time.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write UILList with line-breaks when length exceeds shortLen.
iterator	begin ()
	Iterator to first item in list with non-const access.
const_iterator	cbegin () const
	Iterator to first item in list with const access.
reverse_iterator	rbegin ()
	Iterator to last item in list with non-const access.
const_reverse_iterator	crbegin () const
	Iterator to last item in list with const access.
const_iterator	begin () const
	Iterator to first item in list with const access.
const_reverse_iterator	rbegin () const
	Iterator to last item in list with const access.
const iterator &	end ()
	End of list for forward iterators.
const const_iterator &	cend () const
	End of list for forward iterators.
const reverse_iterator &	rend ()
	End of list for reverse iterators.
const const_reverse_iterator &	crend () const
	End of list for reverse iterators.
const const_iterator &	end () const
	End of list for forward iterators.
const const_reverse_iterator &	rend () const
	End of list for reverse iterators.
T *	first ()
	The first entry in the list.
const T *	first () const
	The first entry in the list (const access).
T *	last ()
	The last entry in the list.
const T *	last () const
	The last entry in the list (const access).

Friends
Ostream &	operator (Ostream &os, const UILList< LListBase, T > &lst)
	Write UILList to Ostream with line breaks, as per writeList() with shortLen=-1.

Detailed Description

template<class LListBase, class T>
class Foam::UILList< LListBase, T >

Template class for intrusive linked lists.

Source files

Definition at line 62 of file UILList.H.

Member Typedef Documentation

◆ value_type

template<class LListBase, class T>

typedef T value_type

Type of values stored.

Definition at line 73 of file UILList.H.

◆ pointer

template<class LListBase, class T>

typedef T* pointer

Pointer for value_type.

Definition at line 78 of file UILList.H.

◆ const_pointer

template<class LListBase, class T>

typedef const T* const_pointer

Const pointer for value_type.

Definition at line 83 of file UILList.H.

◆ reference

template<class LListBase, class T>

typedef T& reference

Reference for value_type.

Definition at line 88 of file UILList.H.

◆ const_reference

template<class LListBase, class T>

typedef const T& const_reference

Const reference for value_type.

Definition at line 93 of file UILList.H.

◆ size_type

template<class LListBase, class T>

typedef label size_type

The type that can represent the container size.

Definition at line 98 of file UILList.H.

◆ difference_type

template<class LListBase, class T>

typedef label difference_type

The difference between iterator objects.

Definition at line 103 of file UILList.H.

◆ base_iterator

template<class LListBase, class T>

using base_iterator = typename LListBase::iterator

Definition at line 111 of file UILList.H.

◆ const_base_iterator

template<class LListBase, class T>

using const_base_iterator = typename LListBase::const_iterator

Definition at line 112 of file UILList.H.

Constructor & Destructor Documentation

◆ UILList() [1/3]

template<class LListBase, class T>

UILList ( )

default

Default construct.

Referenced by ILList< LListBase, T >::ILList(), ILList< LListBase, T >::ILList(), ILList< LListBase, T >::ILList(), operator!=(), operator=(), operator==(), and UILList().

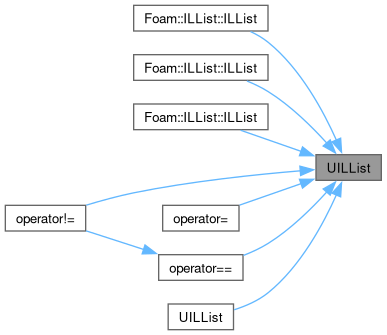

Here is the caller graph for this function:

◆ UILList() [2/3]

template<class LListBase, class T>

UILList ( T * item )

inlineexplicit

Construct and add initial item pointer.

Definition at line 125 of file UILList.H.

◆ UILList() [3/3]

template<class LListBase, class T>

UILList ( const UILList< LListBase, T > & list )

Construct as copy.

Definition at line 27 of file UILList.C.

References cbegin(), cend(), and UILList().

Here is the call graph for this function:

Member Function Documentation

◆ front() [1/2]

template<class LListBase, class T>

T * front ( )

inline

The first entry in the list.

Definition at line 141 of file UILList.H.

Referenced by UILList< DLListBase, T >::first(), and UILList< DLListBase, T >::first().

Here is the caller graph for this function:

◆ front() [2/2]

template<class LListBase, class T>

const T * front ( ) const

inline

The first entry in the list (const access).

Definition at line 149 of file UILList.H.

◆ back() [1/2]

template<class LListBase, class T>

T * back ( )

inline

The last entry in the list.

Definition at line 157 of file UILList.H.

Referenced by UILList< DLListBase, T >::last(), and UILList< DLListBase, T >::last().

Here is the caller graph for this function:

◆ back() [2/2]

template<class LListBase, class T>

const T * back ( ) const

inline

The last entry in the list (const access).

Definition at line 165 of file UILList.H.

◆ removeHead()

template<class LListBase, class T>

T * removeHead ( )

inline

Remove and return head.

Definition at line 174 of file UILList.H.

Referenced by ILList< LListBase, T >::pop_front().

Here is the caller graph for this function:

◆ remove() [1/2]

template<class LListBase, class T>

T * remove ( T * item )

inline

Remove and return element.

Definition at line 182 of file UILList.H.

Referenced by ILList< LListBase, T >::erase().

Here is the caller graph for this function:

◆ remove() [2/2]

template<class LListBase, class T>

T * remove ( iterator & iter )

inline

Remove and return item specified by iterator.

Definition at line 190 of file UILList.H.

◆ operator=()

template<class LListBase, class T>

void operator= ( const UILList< LListBase, T > & lst )

Copy assignment.

Definition at line 39 of file UILList.C.

References cbegin(), cend(), and UILList().

Here is the call graph for this function:

◆ operator==()

template<class LListBase, class T>

bool operator== ( const UILList< LListBase, T > & lst ) const

Equality. True both lists are element-wise equal.

(using value_type::operator==). Takes linear time.

Definition at line 51 of file UILList.C.

References cbegin(), cend(), operator, Foam::rhs(), and UILList().

Referenced by operator!=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator!=()

template<class LListBase, class T>

bool operator!= ( const UILList< LListBase, T > & lst ) const

The opposite of the equality operation. Takes linear time.

Definition at line 76 of file UILList.C.

References operator, operator==(), Foam::rhs(), and UILList().

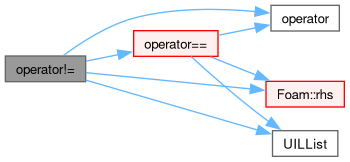

Here is the call graph for this function:

◆ writeList()

template<class LListBase, class T>

Foam::Ostream & writeList	(	Ostream &	os,
		const label	shortLen = 0 ) const

Write UILList with line-breaks when length exceeds shortLen.

Using '0' suppresses line-breaks entirely.

Definition at line 29 of file UILListIO.C.

References token::BEGIN_LIST, token::END_LIST, FUNCTION_NAME, Foam::nl, os(), token::SPACE, and Foam::T().

Here is the call graph for this function:

◆ begin() [1/2]

template<class LListBase, class T>

iterator begin ( )

inline

Iterator to first item in list with non-const access.

Definition at line 440 of file UILList.H.

◆ cbegin()

template<class LListBase, class T>

const_iterator cbegin ( ) const

inline

Iterator to first item in list with const access.

Definition at line 448 of file UILList.H.

Referenced by operator=(), operator==(), and UILList().

Here is the caller graph for this function:

◆ rbegin() [1/2]

template<class LListBase, class T>

reverse_iterator rbegin ( )

inline

Iterator to last item in list with non-const access.

Definition at line 456 of file UILList.H.

◆ crbegin()

template<class LListBase, class T>

const_reverse_iterator crbegin ( ) const

inline

Iterator to last item in list with const access.

Definition at line 464 of file UILList.H.

Referenced by UILList< DLListBase, T >::rbegin().

Here is the caller graph for this function:

◆ begin() [2/2]

template<class LListBase, class T>

const_iterator begin ( ) const

inline

Iterator to first item in list with const access.

Definition at line 472 of file UILList.H.

◆ rbegin() [2/2]

template<class LListBase, class T>

const_reverse_iterator rbegin ( ) const

inline

Iterator to last item in list with const access.

Definition at line 480 of file UILList.H.

◆ end() [1/2]

template<class LListBase, class T>

const iterator & end ( )

inline

End of list for forward iterators.

Definition at line 489 of file UILList.H.

◆ cend()

template<class LListBase, class T>

const const_iterator & cend ( ) const

inline

End of list for forward iterators.

Definition at line 497 of file UILList.H.

Referenced by UILList< DLListBase, T >::end(), operator=(), operator==(), and UILList().

Here is the caller graph for this function:

◆ rend() [1/2]

template<class LListBase, class T>

const reverse_iterator & rend ( )

inline

End of list for reverse iterators.

Definition at line 505 of file UILList.H.

◆ crend()

template<class LListBase, class T>

const const_reverse_iterator & crend ( ) const

inline

End of list for reverse iterators.

Definition at line 513 of file UILList.H.

Referenced by UILList< DLListBase, T >::rend().

Here is the caller graph for this function:

◆ end() [2/2]

template<class LListBase, class T>

const const_iterator & end ( ) const

inline

End of list for forward iterators.

Definition at line 521 of file UILList.H.

◆ rend() [2/2]

template<class LListBase, class T>

const const_reverse_iterator & rend ( ) const

inline

End of list for reverse iterators.

Definition at line 529 of file UILList.H.

◆ first() [1/2]

template<class LListBase, class T>

T * first ( )

inline

The first entry in the list.

FOAM_DEPRECATED_FOR(2022-10, "front()")

Definition at line 542 of file UILList.H.

◆ first() [2/2]

template<class LListBase, class T>

const T * first ( ) const

inline

The first entry in the list (const access).

FOAM_DEPRECATED_FOR(2022-10, "front()")

Definition at line 549 of file UILList.H.

◆ last() [1/2]

template<class LListBase, class T>

T * last ( )

inline

The last entry in the list.

FOAM_DEPRECATED_FOR(2022-10, "back()")

Definition at line 556 of file UILList.H.

◆ last() [2/2]

template<class LListBase, class T>

const T * last ( ) const

inline

The last entry in the list (const access).

FOAM_DEPRECATED_FOR(2022-10, "back()")

Definition at line 563 of file UILList.H.

◆ operator

template<class LListBase, class T>

Ostream & operator	(	Ostream &	os,
		const UILList< LListBase, T > &	lst )

friend

Write UILList to Ostream with line breaks, as per writeList() with shortLen=-1.

Referenced by operator!=(), and operator==().

The documentation for this class was generated from the following files:

src/OpenFOAM/containers/LinkedLists/accessTypes/UILList/UILList.H
src/OpenFOAM/containers/LinkedLists/accessTypes/UILList/UILList.C
src/OpenFOAM/containers/LinkedLists/accessTypes/UILList/UILListIO.C

Classes

Public Types

Public Member Functions

Friends

Detailed Description

Member Typedef Documentation

◆ value_type

◆ pointer

◆ const_pointer

◆ reference

◆ const_reference

◆ size_type

◆ difference_type

◆ base_iterator

◆ const_base_iterator

Constructor & Destructor Documentation

◆ UILList() [1/3]

◆ UILList() [2/3]

◆ UILList() [3/3]

Member Function Documentation

◆ front() [1/2]

◆ front() [2/2]

◆ back() [1/2]

◆ back() [2/2]

◆ removeHead()

◆ remove() [1/2]

◆ remove() [2/2]

◆ operator=()

◆ operator==()

◆ operator!=()

◆ writeList()

◆ begin() [1/2]

◆ cbegin()

◆ rbegin() [1/2]

◆ crbegin()

◆ begin() [2/2]

◆ rbegin() [2/2]

◆ end() [1/2]

◆ cend()

◆ rend() [1/2]

◆ crend()

◆ end() [2/2]

◆ rend() [2/2]

◆ first() [1/2]

◆ first() [2/2]

◆ last() [1/2]

◆ last() [2/2]

Friends And Related Symbol Documentation

◆ operator
