Adiabatic perfect fluid equation of state. More...

#include <adiabaticPerfectFluid.H>

Inheritance diagram for adiabaticPerfectFluid< Specie >:

Collaboration diagram for adiabaticPerfectFluid< Specie >:

Public Member Functions
	adiabaticPerfectFluid (const Specie &sp, const scalar p0, const scalar rho0, const scalar gamma, const scalar B)
	Construct from components.
	adiabaticPerfectFluid (const dictionary &dict)
	Construct from dictionary.
	adiabaticPerfectFluid (const word &name, const adiabaticPerfectFluid &)
	Construct as named copy.
autoPtr< adiabaticPerfectFluid >	clone () const
	Construct and return a clone.
scalar	rho (scalar p, scalar T) const
	Return density [kg/m^3].
scalar	H (const scalar p, const scalar T) const
	Return enthalpy departure [J/kg].
scalar	Cp (scalar p, scalar T) const
	Return Cp departure [J/(kg K].
scalar	E (const scalar p, const scalar T) const
	Return internal energy departure [J/kg].
scalar	Cv (scalar p, scalar T) const
	Return Cv departure [J/(kg K].
scalar	S (const scalar p, const scalar T) const
	Return entropy [J/(kg K)].
scalar	psi (scalar p, scalar T) const
	Return compressibility rho/p [s^2/m^2].
scalar	Z (scalar p, scalar T) const
	Return compression factor [].
scalar	CpMCv (scalar p, scalar T) const
	Return (Cp - Cv) [J/(kg K].
void	write (Ostream &os) const
	Write to Ostream.
void	operator+= (const adiabaticPerfectFluid &)
void	operator*= (const scalar)

Static Public Member Functions
static autoPtr< adiabaticPerfectFluid >	New (const dictionary &dict)
static word	typeName ()
	Return the instantiated type name.

Static Public Attributes
static const bool	incompressible = false
	Is the equation of state is incompressible i.e. rho != f(p).
static const bool	isochoric = false
	Is the equation of state is isochoric i.e. rho = const.

Friends
adiabaticPerfectFluid	operator+ (const adiabaticPerfectFluid &, const adiabaticPerfectFluid &)
adiabaticPerfectFluid	operator* (const scalar s, const adiabaticPerfectFluid &)
adiabaticPerfectFluid	operator== (const adiabaticPerfectFluid &, const adiabaticPerfectFluid &)
Ostream &	operator<< (Ostream &, const adiabaticPerfectFluid &)

Detailed Description

template<class Specie>
class Foam::adiabaticPerfectFluid< Specie >

Adiabatic perfect fluid equation of state.

Source files

Definition at line 84 of file adiabaticPerfectFluid.H.

Constructor & Destructor Documentation

◆ adiabaticPerfectFluid() [1/3]

template<class Specie>

adiabaticPerfectFluid	(	const Specie &	sp,
		const scalar	p0,
		const scalar	rho0,
		const scalar	gamma,
		const scalar	B )

inline

Construct from components.

Definition at line 26 of file adiabaticPerfectFluidI.H.

References B, gamma, p0, and rho0.

Referenced by adiabaticPerfectFluid(), operator*, operator+, operator+=(), operator<<, and operator==.

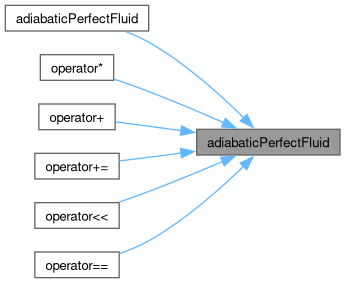

Here is the caller graph for this function:

◆ adiabaticPerfectFluid() [2/3]

template<class Specie>

adiabaticPerfectFluid ( const dictionary & dict )

Construct from dictionary.

Definition at line 27 of file adiabaticPerfectFluid.C.

References dict.

◆ adiabaticPerfectFluid() [3/3]

template<class Specie>

adiabaticPerfectFluid	(	const word &	name,
		const adiabaticPerfectFluid< Specie > &	)

inline

Construct as named copy.

References adiabaticPerfectFluid(), dict, and Foam::name().

Here is the call graph for this function:

Member Function Documentation

◆ clone()

template<class Specie>

Foam::autoPtr< Foam::adiabaticPerfectFluid< Specie > > clone ( ) const

inline

Construct and return a clone.

Definition at line 62 of file adiabaticPerfectFluidI.H.

References Foam::New().

Here is the call graph for this function:

◆ New()

template<class Specie>

Foam::autoPtr< Foam::adiabaticPerfectFluid< Specie > > New ( const dictionary & dict )

inlinestatic

Definition at line 70 of file adiabaticPerfectFluidI.H.

References dict, and Foam::New().

Here is the call graph for this function:

◆ typeName()

template<class Specie>

word typeName ( )

inlinestatic

Return the instantiated type name.

Definition at line 158 of file adiabaticPerfectFluid.H.

◆ rho()

template<class Specie>

Foam::scalar rho	(	scalar	p,
		scalar	T ) const

inline

Return density [kg/m^3].

Definition at line 82 of file adiabaticPerfectFluidI.H.

References p, Foam::pow(), and Foam::T().

Here is the call graph for this function:

◆ H()

template<class Specie>

Foam::scalar H	(	const scalar	p,
		const scalar	T ) const

inline

Return enthalpy departure [J/kg].

Definition at line 93 of file adiabaticPerfectFluidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ Cp()

template<class Specie>

Foam::scalar Cp	(	scalar	p,
		scalar	T ) const

inline

Return Cp departure [J/(kg K].

Definition at line 104 of file adiabaticPerfectFluidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ E()

template<class Specie>

Foam::scalar E	(	const scalar	p,
		const scalar	T ) const

inline

Return internal energy departure [J/kg].

Definition at line 115 of file adiabaticPerfectFluidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ Cv()

template<class Specie>

Foam::scalar Cv	(	scalar	p,
		scalar	T ) const

inline

Return Cv departure [J/(kg K].

Definition at line 126 of file adiabaticPerfectFluidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ S()

template<class Specie>

Foam::scalar S	(	const scalar	p,
		const scalar	T ) const

inline

Return entropy [J/(kg K)].

Definition at line 137 of file adiabaticPerfectFluidI.H.

References n, p, Foam::pow(), and Foam::T().

Here is the call graph for this function:

◆ psi()

template<class Specie>

Foam::scalar psi	(	scalar	p,
		scalar	T ) const

inline

Return compressibility rho/p [s^2/m^2].

Definition at line 151 of file adiabaticPerfectFluidI.H.

References p, Foam::pow(), and Foam::T().

Here is the call graph for this function:

◆ Z()

template<class Specie>

Foam::scalar Z	(	scalar	p,
		scalar	T ) const

inline

Return compression factor [].

Definition at line 164 of file adiabaticPerfectFluidI.H.

◆ CpMCv()

template<class Specie>

Foam::scalar CpMCv	(	scalar	p,
		scalar	T ) const

inline

Return (Cp - Cv) [J/(kg K].

Definition at line 171 of file adiabaticPerfectFluidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ write()

template<class Specie>

void write ( Ostream & os ) const

Write to Ostream.

Definition at line 43 of file adiabaticPerfectFluid.C.

References os().

Here is the call graph for this function:

◆ operator+=()

template<class Specie>

void operator+= ( const adiabaticPerfectFluid< Specie > & )

inline

Definition at line 184 of file adiabaticPerfectFluidI.H.

References adiabaticPerfectFluid(), Foam::mag(), and Y.

Here is the call graph for this function:

◆ operator*=()

template<class Specie>

void operator*= ( const scalar s )

inline

Definition at line 206 of file adiabaticPerfectFluidI.H.

References s().

Here is the call graph for this function:

◆ operator+

template<class Specie>

adiabaticPerfectFluid operator+	(	const adiabaticPerfectFluid< Specie > &	,
		const adiabaticPerfectFluid< Specie > &	)

friend

References adiabaticPerfectFluid().

◆ operator*

template<class Specie>

adiabaticPerfectFluid operator*	(	const scalar	s,
		const adiabaticPerfectFluid< Specie > &	)

friend

References adiabaticPerfectFluid(), and s().

◆ operator==

template<class Specie>

adiabaticPerfectFluid operator==	(	const adiabaticPerfectFluid< Specie > &	,
		const adiabaticPerfectFluid< Specie > &	)

friend

References adiabaticPerfectFluid().

◆ operator<<

template<class Specie>

Ostream & operator<<	(	Ostream &	,
		const adiabaticPerfectFluid< Specie > &	)

friend

References adiabaticPerfectFluid().

Member Data Documentation

◆ incompressible

template<class Specie>

const bool incompressible = false

static

Is the equation of state is incompressible i.e. rho != f(p).

Definition at line 169 of file adiabaticPerfectFluid.H.

◆ isochoric

template<class Specie>

const bool isochoric = false

static

Is the equation of state is isochoric i.e. rho = const.

Definition at line 174 of file adiabaticPerfectFluid.H.

The documentation for this class was generated from the following files:

src/thermophysicalModels/specie/equationOfState/adiabaticPerfectFluid/adiabaticPerfectFluid.H
src/thermophysicalModels/specie/equationOfState/adiabaticPerfectFluid/adiabaticPerfectFluid.C
src/thermophysicalModels/specie/equationOfState/adiabaticPerfectFluid/adiabaticPerfectFluidI.H
