anisotropicFilter Class Reference

anisotropic filter More...

#include <anisotropicFilter.H>

Inheritance diagram for anisotropicFilter:

Collaboration diagram for anisotropicFilter:

Public Member Functions
	TypeName ("anisotropic")
	Runtime type information.
	anisotropicFilter (const fvMesh &mesh, scalar widthCoeff)
	Construct from components.
	anisotropicFilter (const fvMesh &mesh, const dictionary &)
	Construct from IOdictionary.
virtual	~anisotropicFilter ()=default
	Destructor.
virtual void	read (const dictionary &)
	Read the LESfilter dictionary.
virtual tmp< volScalarField >	operator() (const tmp< volScalarField > &) const
virtual tmp< volVectorField >	operator() (const tmp< volVectorField > &) const
virtual tmp< volSymmTensorField >	operator() (const tmp< volSymmTensorField > &) const
virtual tmp< volTensorField >	operator() (const tmp< volTensorField > &) const
Public Member Functions inherited from LESfilter
	TypeName ("LESfilter")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, LESfilter, dictionary,(const fvMesh &mesh, const dictionary &LESfilterDict),(mesh, LESfilterDict))
	LESfilter (const fvMesh &mesh)
	Construct from components.
virtual	~LESfilter ()=default
	Destructor.
const fvMesh &	mesh () const
	Return mesh reference.

Additional Inherited Members
Static Public Member Functions inherited from LESfilter
static autoPtr< LESfilter >	New (const fvMesh &, const dictionary &, const word &filterDictName="filter")
	Return a reference to the selected LES filter.
Protected Member Functions inherited from LESfilter
template<class GeoFieldType>
void	correctBoundaryConditions (const tmp< GeoFieldType > &tgf) const
	Temporary function to ensure the coupled boundary conditions of the.

Detailed Description

anisotropic filter

Kernel                 as filter          as Test filter with ratio 2
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Box filter:            g = delta2/24  ->  g = delta2/6
Spherical box filter:  g = delta2/64  ->  g = delta2/16
Gaussian filter:       g = delta2/24  ->  g = delta2/6

Source files

• anisotropicFilter.H
• anisotropicFilter.C

Definition at line 55 of file anisotropicFilter.H.

Constructor & Destructor Documentation

anisotropicFilter() [1/2]

anisotropicFilter	(	const fvMesh &	mesh,
		scalar	widthCoeff )

Construct from components.

Definition at line 38 of file anisotropicFilter.C.

References Foam::dimLength, Foam::mag(), LESfilter::mesh(), VectorSpace< Form, Cmpt, Ncmpts >::nComponents, Foam::sqr(), Foam::fvc::surfaceSum(), timeName, and Foam::Zero.

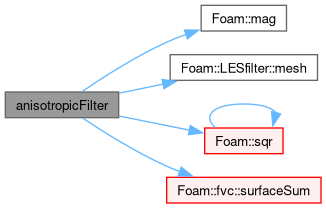

Here is the call graph for this function:

anisotropicFilter() [2/2]

anisotropicFilter	(	const fvMesh &	mesh,
		const dictionary &	bd )

Construct from IOdictionary.

Definition at line 74 of file anisotropicFilter.C.

References Foam::dimLength, Foam::mag(), LESfilter::mesh(), VectorSpace< Form, Cmpt, Ncmpts >::nComponents, Foam::sqr(), Foam::fvc::surfaceSum(), timeName, and Foam::Zero.

Here is the call graph for this function:

~anisotropicFilter()

virtual ~anisotropicFilter ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"anisotropic"

)

Runtime type information.

References LESfilter::mesh().

Here is the call graph for this function:

read()

void read ( const dictionary & bd )

virtual

Read the LESfilter dictionary.

Implements LESfilter.

Definition at line 115 of file anisotropicFilter.C.

References dictionary::optionalSubDict(), dictionary::readEntry(), and Foam::type().

Here is the call graph for this function:

operator()() [1/4]

Foam::tmp< Foam::volScalarField > operator() ( const tmp< volScalarField > & unFilteredField ) const

virtual

Implements LESfilter.

Definition at line 123 of file anisotropicFilter.C.

References tmp< T >::clear(), correctBoundaryConditions(), mesh, Foam::fvc::snGrad(), and Foam::fvc::surfaceIntegrate().

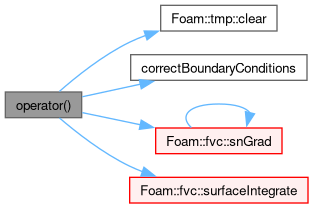

Here is the call graph for this function:

operator()() [2/4]

Foam::tmp< Foam::volSymmTensorField > operator() ( const tmp< volVectorField > & unFilteredField ) const

virtual

Implements LESfilter.

Definition at line 147 of file anisotropicFilter.C.

References tmp< T >::clear(), correctBoundaryConditions(), mesh, Foam::fvc::snGrad(), and Foam::fvc::surfaceIntegrate().

Here is the call graph for this function:

operator()() [3/4]

virtual tmp< volSymmTensorField > operator() ( const tmp< volSymmTensorField > & ) const

virtual

Implements LESfilter.

operator()() [4/4]

Foam::tmp< Foam::volTensorField > operator() ( const tmp< volTensorField > & unFilteredField ) const

virtual

Implements LESfilter.

Definition at line 200 of file anisotropicFilter.C.

References Foam::component(), correctBoundaryConditions(), mesh, VectorSpace< Form, Cmpt, Mrows *Ncols >::nComponents, GeometricField< tensor, fvPatchField, volMesh >::New(), and IOobjectOption::NO_REGISTER.

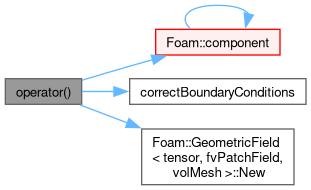

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/TurbulenceModels/turbulenceModels/LES/LESfilters/anisotropicFilter/anisotropicFilter.H
• src/TurbulenceModels/turbulenceModels/LES/LESfilters/anisotropicFilter/anisotropicFilter.C
