Extract command arguments and options from the supplied argc and argv parameters. More...

#include <argList.H>

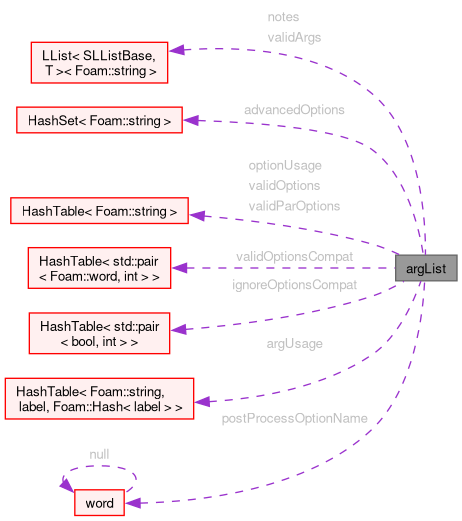

Collaboration diagram for argList:

[legend]

Public Member Functions

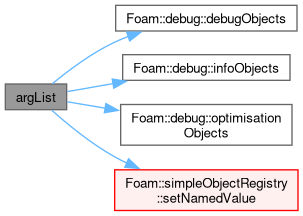

	argList (int &argc, char **&argv, bool checkArgs=argList::argsMandatory(), bool checkOpts=true, bool initialise=true)
	Construct from argc and argv checking the arguments and options as requested.
	argList (const argList &args, const HashTable< string > &options, bool checkArgs=true, bool checkOpts=true, bool initialise=true)
	Construct copy with new options.
virtual	~argList ()
	Destructor.
void	parse (bool checkArgs, bool checkOpts, bool initialise)
	Scan for -help, -doc options etc prior to checking the validity of other args/opts and finally initialising.
const word &	executable () const noexcept
	Name of executable without the path.
const string &	commandLine () const noexcept
	The command line options and arguments concatenated as a string.
const fileName &	rootPath () const noexcept
	Return root path.
const fileName &	caseName () const noexcept
	Return case name (parallel run) or global case (serial run).
const fileName &	globalCaseName () const noexcept
	Return global case name.
fileName	path () const
	Return the full path to the (processor local) case.
fileName	globalPath () const
	Return the full path to the global case.
fileName	relativePath (const fileName &input, const bool caseTag=false) const
	Return the input relative to the globalPath by stripping off a leading value of the globalPath.
const ParRunControl &	runControl () const noexcept
	Return the run control (parallel, dry-run etc).
bool	distributed () const noexcept
	Return distributed flag (i.e. are rootPaths different on different machines).
int	dryRun () const noexcept
	Return the dry-run flag.
int	dryRun (const int level) noexcept
	Modify the dry-run flag.
int	verbose () const noexcept
	Return the verbose flag.
int	verbose (const int level) noexcept
	Modify the verbose flag.
bool	allowFunctionObjects () const
	The controlDict 'functions' entry is allowed to be used.
bool	allowLibs () const
	The controlDict 'libs' entry is allowed to be used. (eg, has not been disabled by the -no-libs option).
dlLibraryTable &	libs () const noexcept
	Mutable access to the loaded dynamic libraries.
label	size () const noexcept
	The number of arguments.
const stringList &	args () const noexcept
	Return arguments.
stringList &	args () noexcept
	Non-const access to the command arguments (non-options).
const HashTable< string > &	options () const noexcept
	Return options.
HashTable< string > &	options () noexcept
	Return non-const access to the command options.
bool	found (const word &optName) const
	Return true if the named option is found.
label	count (const UList< word > &optionNames) const
	Return how many of the specified options were used.
label	count (std::initializer_list< word > optionNames) const
	Return how many of the specified options were used.
ITstream	lookup (const word &optName) const
	Return an input stream from the named option.
template<class T>
T	get (const label index) const
	Get a value from the argument at index.
template<class T>
List< T >	getList (const label index) const
	Get a List of values from the argument at index.
template<class T = string>
T	get (const word &optName) const
	Get a value from the named option.
template<class T>
T	getOrDefault (const word &optName, const T &deflt) const
	Get a value from the named option if present, or return default.
template<class T>
List< T >	getList (const word &optName, bool mandatory=true) const
	Get a List of values from the named option, treating a single entry like a list of size 1.
template<class T>
bool	readIfPresent (const word &optName, T &val) const
	Read a value from the named option if present.
template<class T>
bool	readIfPresent (const word &optName, T &val, const T &deflt) const
	Read a value from the named option if present.
template<class T>
bool	readListIfPresent (const word &optName, List< T > &list) const
	If named option is present, get a List of values treating a single entry like a list of size 1.
template<class T, class Predicate>
bool	readCheck (const word &optName, T &val, const Predicate &pred, bool mandatory=true) const
	Read the named option and check its validity.
template<class T, class Predicate>
bool	readCheckIfPresent (const word &optName, T &val, const Predicate &pred) const
	Read the named option if present and check its validity.
template<class T, class Predicate>
T	getCheck (const word &optName, const Predicate &pred) const
	Get a value from the named option with additional checking.
template<class T, class Predicate>
T	getCheckOrDefault (const word &optName, const T &deflt, const Predicate &pred) const
	Get a value from the named option with additional checking (if present), or return default.
bool	setOption (const word &optName, const string &param="")
	Set option directly (use with caution).
bool	unsetOption (const word &optName)
	Unset option directly (use with caution).
void	printCompat () const
	Print option compatibility.
void	printNotes () const
	Print notes (if any).
void	printUsage (bool full=true) const
	Print usage.

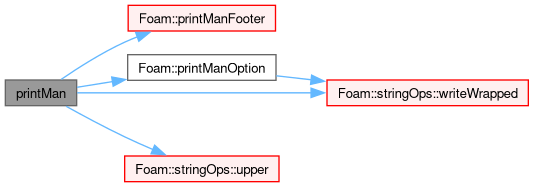

void	printMan () const
	Print usage as nroff-man format (Experimental).

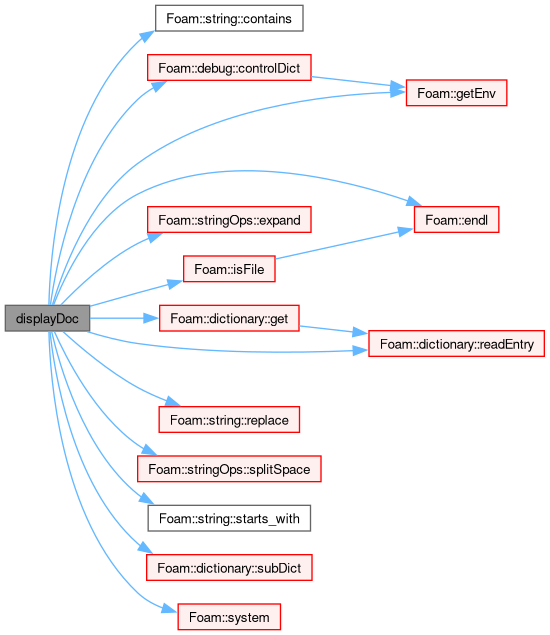

void	displayDoc (bool source=false) const
	Display documentation in browser.
bool	check (bool checkArgs=argList::argsMandatory(), bool checkOpts=true) const
	Check the parsed command-line for mandatory arguments and that all the options are correct.

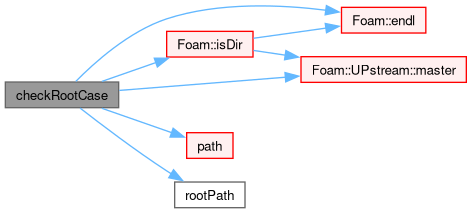

bool	checkRootCase () const
	Check root path and case path.
const string &	operator[] (const label index) const
	The string corresponding to the argument index.
const string &	operator[] (const word &optName) const
	The string associated with the named option.
template<class T = string>
T	opt (const word &optName) const
	Deprecated(2020-05) identical to get(const word& optName).
template<class T>
T	opt (const word &optName, const T &deflt) const
	Deprecated(2020-05) identical to getOrDefault(...).
template<class T>
T	get (const word &optName, const T &deflt) const
	Deprecated(2020-05) identical to getOrDefault(...).
template<class T>
T	lookupOrDefault (const word &optName, const T &deflt) const
	Deprecated(2020-05) identical to getOrDefault(...).
const ParRunControl &	parRunControl () const
	Same as runControl() - v2106 and earlier.
template<class T>
T	read (const label index) const
	Deprecated(2018-08) read a value from the argument at index.
template<class T>
T	argRead (const label index) const
	Deprecated(2018-01) read a value from the argument at index.
bool	optionFound (const word &optName) const
	Deprecated(2018-01) return true if the named option is found.
ITstream	optionLookup (const word &optName) const
	Deprecated(2018-01) return an input stream from the named option.
template<class T>
T	optionRead (const word &optName) const
	Deprecated(2018-01) read a value from the named option.
template<class T>

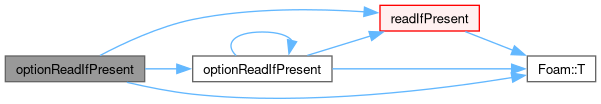

bool	optionReadIfPresent (const word &optName, T &val) const
	Deprecated(2018-01) read a value from the named option if present.
template<class T>
bool	optionReadIfPresent (const word &optName, T &val, const T &deflt) const
	Deprecated(2018-01) read a value from the named option if present.
template<class T>
T	optionLookupOrDefault (const word &optName, const T &deflt) const
	Deprecated(2018-01) read a value from the named option if present.
template<class T>
List< T >	optionReadList (const word &optName) const
	Deprecated(2018-01) read a List of values from the named option.
template<>
int32_t	get (const label index) const
template<>
int64_t	get (const label index) const
template<>
float	get (const label index) const
template<>
double	get (const label index) const
template<>
int32_t	get (const word &optName) const
template<>
int64_t	get (const word &optName) const
template<>
float	get (const word &optName) const
template<>
double	get (const word &optName) const
template<class T>
Foam::List< T >	getList (const label index) const
template<class T>
Foam::List< T >	getList (const word &optName, bool mandatory) const

Static Public Member Functions
static word	envExecutable ()
	Name of the executable from environment variable.

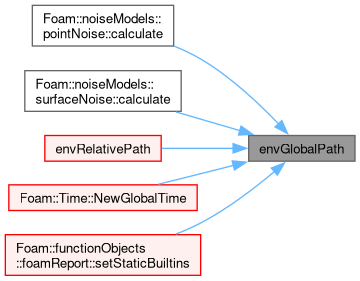

static fileName	envGlobalPath ()
	Global case (directory) from environment variable.
static fileName	envRelativePath (const fileName &input, const bool caseTag=false)
	Return the input relative to the globalPath by stripping off a leading value of the envGlobalPath.
static void	addArgument (const string &argName, const string &usage="")
	Append a (mandatory) argument to validArgs.
static void	addBoolOption (const word &optName, const string &usage="", bool advanced=false)
	Add a bool option to validOptions with usage information.

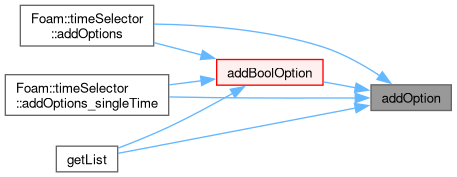

static void	addOption (const word &optName, const string &param="", const string &usage="", bool advanced=false)
	Add an option to validOptions with usage information.
static void	setAdvanced (const word &optName, bool advanced=true)
	Set an existing option as being 'advanced' or normal.
static void	addOptionCompat (const word &optName, std::pair< const char *, int > compat)
	Specify an alias for the option name.
static void	ignoreOptionCompat (std::pair< const char *, int > compat, bool expectArg)
	Specify an option to be ignored.
static void	addUsage (const word &optName, const string &usage)
	Add option usage information to optionUsage.
static void	addNote (const string &note)
	Add extra notes for the usage information.
static void	removeOption (const word &optName)
	Remove option from validOptions and from optionUsage.
static void	noMandatoryArgs ()
	Flag command arguments as being optional (non-mandatory).
static bool	argsMandatory ()
	Command arguments type (optional/mandatory).
static void	noBanner ()
	Disable emitting the banner information.
static bool	bannerEnabled ()
	Banner status (enabled/disabled).
static void	addDryRunOption (const string &usage, bool advanced=false)
	Enable a 'dry-run' bool option, with usage information.
static void	addVerboseOption (const string &usage="", bool advanced=false)
	Enable a 'verbose' bool option, with usage information.
static void	noFunctionObjects (bool addWithOption=false)
	Remove '-noFunctionObjects' option and ignore any occurrences.
static void	noJobInfo ()
	Suppress JobInfo, overriding controlDict setting.
static void	noLibs ()
	Add the '-no-libs' command line option.
static void	noParallel ()
	Remove the parallel options.
static void	noCheckProcessorDirectories ()
	Disable checking of processor directories.
static void	parallelThreads_on ()
	MPI threads are desired for the application.
static bool	postProcess (int argc, char *argv[])
	True if the post-processing option is found in the `argv` list.
static int	verbose (int argc, char *argv[])
	The number of times -verbose is found in the `argv` list.

Static Public Attributes
static SLList< string >	validArgs
	A list of valid (mandatory) arguments.
static HashSet< string >	advancedOptions
	The "advanced" options are shown with -help-full (not with –help).
static HashTable< string >	validOptions
	A list of valid options.
static HashTable< string >	validParOptions
	A list of valid parallel options.
static HashTable< std::pair< word, int > >	validOptionsCompat
	A list of aliases for options.
static HashTable< std::pair< bool, int > >	ignoreOptionsCompat
	A list of options to ignore.
static HashTable< string, label, Hash< label > >	argUsage
	Short description for program arguments.
static HashTable< string >	optionUsage
	Short description for validOptions.
static SLList< string >	notes
	General usage notes.
static std::string::size_type	usageMin = 20
	Min indentation when displaying usage (default: 20).
static std::string::size_type	usageMax = 80
	Max screen width when displaying usage (default: 80).
static word	postProcessOptionName
	Standard name for the post-processing option.

Detailed Description

Extract command arguments and options from the supplied argc and argv parameters.

Sequences with "(" ... ")" are transformed into a stringList. For example,

    program -listFiles \‍( *.txt \‍)

would create a stringList:

    ( "file1.txt" "file2.txt" ... "fileN.txt" )

The backslash-escaping is required to avoid interpretation by the shell.

Default command-line options:

-case <dir>
Select a case directory instead of the current working directory
-decomposeParDict <file>
Read decomposePar dictionary from specified location
-parallel
Specify case as a parallel job
-doc
Display the documentation in browser
-srcDoc
Display the source documentation in browser
-help
Print the usage
Additionally, the -noFunctionObjects and -postProcess options may be present for some solvers or utilities.

Environment variables set by argList or by Time:

FOAM_API
The value of foamVersion::api
FOAM_CASE
The path of the global case. It is the same for serial and parallel jobs.
FOAM_CASENAME
The name of the global case.
FOAM_EXECUTABLE
If not already present in the calling environment, it is set to the name portion of the calling executable.
FOAM_APPLICATION
If not already present in the calling environment, it is set to the value of the application entry (from controlDict) if that entry is present.
The value of the FOAM_APPLICATION may be inconsistent if the value of the application entry is adjusted during runtime.

Note

The document browser used is defined by the FOAM_DOC_BROWSER environment variable or the Documentation/docBrowser entry in the <etc>/controlDict file. The %f token is used as a placeholder for the file name.
The valid (mandatory) arguments can be adjusted via the addArgument static method instead of directly manipulating the argList::validArgs static member.
The valid options can be adjusted via the addOption/removeOption static methods instead of directly manipulating the argList::validOptions static member.

Source files

Definition at line 118 of file argList.H.

Constructor & Destructor Documentation

◆ argList() [1/2]

argList	(	int &	argc,
		char **&	argv,
		bool	checkArgs = argList::argsMandatory(),
		bool	checkOpts = true,
		bool	initialise = true )

Construct from argc and argv checking the arguments and options as requested.

By default, the argument check respects the value of argsMandatory() to decide if the arguments should be checked (when they are mandatory) or not (when they are optional)

Definition at line 912 of file argList.C.

References Foam::debug::debugObjects(), Foam::Info, Foam::debug::infoObjects(), Foam::nl, Foam::debug::optimisationObjects(), simpleObjectRegistry::setNamedValue(), and validParOptions.

Referenced by argList(), and getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ argList() [2/2]

argList	(	const argList &	args,
		const HashTable< string > &	options,
		bool	checkArgs = true,
		bool	checkOpts = true,
		bool	initialise = true )

Construct copy with new options.

Definition at line 1218 of file argList.C.

References argList(), args(), options(), and parse().

Here is the call graph for this function:

◆ ~argList()

~argList ( )

virtual

Destructor.

Definition at line 2243 of file argList.C.

References fileOperation::fileHandler(), and Foam::jobInfo.

Here is the call graph for this function:

Member Function Documentation

◆ envExecutable()

Foam::word envExecutable ( )

static

Name of the executable from environment variable.

Returns the contents of the FOAM_EXECUTABLE variable, which has previously been set by argList.

This will normally be identical to the value of executable(), but obtained from the environment.

Definition at line 662 of file argList.C.

References Foam::getEnv().

Referenced by foamReport::setStaticBuiltins().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ envGlobalPath()

Foam::fileName envGlobalPath ( )

static

Global case (directory) from environment variable.

Returns the contents of the FOAM_CASE variable, which has previously been set by argList or by Time.

This will normally be identical to the value of globalPath(), but obtained via the environment.

Definition at line 668 of file argList.C.

References Foam::getEnv().

Referenced by pointNoise::calculate(), surfaceNoise::calculate(), envRelativePath(), Time::NewGlobalTime(), and foamReport::setStaticBuiltins().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ envRelativePath()

Foam::fileName envRelativePath	(	const fileName &	input,
		const bool	caseTag = false )

static

Return the input relative to the globalPath by stripping off a leading value of the envGlobalPath.

Parameters

input	the directory or filename to make case-relative
caseTag	replace globalPath with <case> for later use with expand(), or prefix <case> if the file name was not an absolute location

Definition at line 674 of file argList.C.

References envGlobalPath(), fileName::isAbsolute(), and fileName::relative().

Referenced by dictionary::relativeName(), and IOstream::relativeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parse()

void parse	(	bool	checkArgs,
		bool	checkOpts,
		bool	initialise )

Scan for -help, -doc options etc prior to checking the validity of other args/opts and finally initialising.

Definition at line 1241 of file argList.C.

References PstreamBuffers::algorithm, dynamicCode::allowSystemOperations, UPstream::allWorlds(), Foam::foamVersion::api, bannerEnabled(), UPstream::broadcast, Foam::foamVersion::build, Foam::foamVersion::buildArch, fileOperation::cacheLevel(), Foam::check(), fileName::clean(), List< T >::clear(), clock::clockTime(), UPstream::commsTypeNames, UList< T >::contains(), MemoryPool::create(), Foam::cwd(), clock::date(), UPstream::defaultCommsType, fileOperation::defaultFileHandler, DetailInfo, displayDoc(), UList< T >::empty(), Foam::endl(), executable(), Foam::exit(), UPstream::exit(), Foam::FatalError, FatalErrorIn, FatalErrorInFunction, IOobject::fileCheckTypesNames, Foam::fileHandler, fileOperation::fileHandler(), fileOperation::fileHandlerPtr_, IOobject::fileModificationChecking, IOobject::fileModificationSkew, Foam::flatOutput(), UPstream::floatTransfer, forAll, UPstream::gatherList, Foam::getEnv(), dictionary::getOrDefault(), Foam::hostName(), Foam::Info, Foam::debug::infoSwitch(), fileName::isAbsolute(), Foam::isDir(), Foam::jobInfo, libs(), keyType::LITERAL, lookup(), UPstream::master(), UPstream::masterNo(), wordRes::matching(), UPstream::maxCommsSize, IOobject::maxFileModificationPolls, IOobjectOption::MUST_READ, UPstream::myProcNo(), UPstream::myWorld(), Foam::name(), name, fileOperation::New(), Foam::nl, UPstream::nPollProcInterfaces, UPstream::nProcs(), fileOperation::nProcsFilter(), UPstream::nProcsNonblockingExchange, UPstream::nProcsSimpleSum, fileName::null, Foam::debug::optimisationSwitches(), UPstream::parRun(), Foam::foamVersion::patch, Foam::foamVersion::patched(), Foam::pgid(), Foam::pid(), Foam::Pout, Foam::ppid(), Foam::foamVersion::printBuildInfo(), printCompat(), Foam::printHostsSubscription(), printMan(), UPstream::printNodeCommsControl(), printNotes(), Foam::printRootsSubscription(), UPstream::printTopoControl(), printUsage(), List< T >::push_back(), IOobjectOption::READ_IF_PRESENT, dictionary::readEntry(), readIfPresent(), readListIfPresent(), IPBstream::recv(), IPstream::recv(), relativePath(), List< T >::resize(), Foam::returnReduceOr(), UPstream::scheduled, OPBstream::send(), UOPstream::send(), sigFpe::set(), sigInt::set(), sigQuit::set(), sigSegv::set(), size(), UList< T >::size(), string::starts_with(), UPstream::subProcs(), IOobject::timeStamp, IOobject::timeStampMaster, UPstream::tuning_NBX_, Foam::userName(), Foam::foamVersion::version, Foam::Warning, FieldBase::warnLocalBoundaryConsistencyCompat(), UPstream::worldComm, IOobject::writeBanner(), and IOobject::writeDivider().

Referenced by argList().

Here is the caller graph for this function:

◆ executable()

const Foam::word & executable ( ) const

inlinenoexcept

Name of executable without the path.

Definition at line 44 of file argListI.H.

References Foam::noexcept.

Referenced by parse(), and readCheck().

Here is the caller graph for this function:

◆ commandLine()

const Foam::string & commandLine ( ) const

inlinenoexcept

The command line options and arguments concatenated as a string.

Definition at line 50 of file argListI.H.

References Foam::noexcept.

◆ rootPath()

const Foam::fileName & rootPath ( ) const

inlinenoexcept

Return root path.

Definition at line 56 of file argListI.H.

References Foam::noexcept.

Referenced by checkRootCase(), globalPath(), and path().

Here is the caller graph for this function:

◆ caseName()

const Foam::fileName & caseName ( ) const

inlinenoexcept

Return case name (parallel run) or global case (serial run).

Definition at line 62 of file argListI.H.

References Foam::noexcept.

Referenced by path().

Here is the caller graph for this function:

◆ globalCaseName()

const Foam::fileName & globalCaseName ( ) const

inlinenoexcept

Return global case name.

Definition at line 68 of file argListI.H.

References Foam::noexcept.

Referenced by globalPath().

Here is the caller graph for this function:

◆ path()

Foam::fileName path ( ) const

inline

Return the full path to the (processor local) case.

Note: This is guaranteed to be an absolute path

Definition at line 74 of file argListI.H.

References caseName(), and rootPath().

Here is the call graph for this function:

◆ globalPath()

Foam::fileName globalPath ( ) const

inline

Return the full path to the global case.

Note: This is guaranteed to be an absolute path

Definition at line 80 of file argListI.H.

References globalCaseName(), and rootPath().

Referenced by relativePath().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ relativePath()

Foam::fileName relativePath	(	const fileName &	input,
		const bool	caseTag = false ) const

inline

Return the input relative to the globalPath by stripping off a leading value of the globalPath.

Parameters

input	the directory or filename to make case-relative
caseTag	replace globalPath with <case> for later use with expand(), or prefix <case> if the file name was not an absolute location

Definition at line 86 of file argListI.H.

References globalPath(), and fileName::relative().

Referenced by parse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ runControl()

const Foam::ParRunControl & runControl ( ) const

inlinenoexcept

Return the run control (parallel, dry-run etc).

Definition at line 97 of file argListI.H.

References Foam::noexcept.

◆ distributed()

bool distributed ( ) const

inlinenoexcept

Return distributed flag (i.e. are rootPaths different on different machines).

Definition at line 103 of file argListI.H.

References Foam::noexcept.

◆ dryRun() [1/2]

int dryRun ( ) const

inlinenoexcept

Return the dry-run flag.

Definition at line 109 of file argListI.H.

References Foam::noexcept.

◆ dryRun() [2/2]

int dryRun ( const int level )

inlinenoexcept

Modify the dry-run flag.

Definition at line 115 of file argListI.H.

◆ verbose() [1/3]

int verbose ( ) const

inlinenoexcept

Return the verbose flag.

Definition at line 121 of file argListI.H.

References Foam::noexcept.

Referenced by getList().

Here is the caller graph for this function:

◆ verbose() [2/3]

int verbose ( const int level )

inlinenoexcept

Modify the verbose flag.

Definition at line 127 of file argListI.H.

◆ allowFunctionObjects()

bool allowFunctionObjects ( ) const

The controlDict 'functions' entry is allowed to be used.

There must be a command-line option to enable/disable (-withFunctionObjects, -noFunctionObjects) and has not been explicitly disabled

Definition at line 2254 of file argList.C.

References validOptions.

◆ allowLibs()

bool allowLibs ( ) const

The controlDict 'libs' entry is allowed to be used. (eg, has not been disabled by the -no-libs option).

Definition at line 2272 of file argList.C.

◆ libs()

Foam::dlLibraryTable & libs ( ) const

inlinenoexcept

Mutable access to the loaded dynamic libraries.

Definition at line 133 of file argListI.H.

References Foam::noexcept.

Referenced by parse().

Here is the caller graph for this function:

◆ size()

Foam::label size ( ) const

inlinenoexcept

The number of arguments.

Definition at line 139 of file argListI.H.

References Foam::noexcept.

Referenced by parse(), printCompat(), and printUsage().

Here is the caller graph for this function:

◆ args() [1/2]

const Foam::stringList & args ( ) const

inlinenoexcept

Return arguments.

Definition at line 145 of file argListI.H.

References Foam::noexcept.

Referenced by argList().

Here is the caller graph for this function:

◆ args() [2/2]

Foam::stringList & args ( )

inlinenoexcept

Non-const access to the command arguments (non-options).

Definition at line 151 of file argListI.H.

References Foam::noexcept.

◆ options() [1/2]

const Foam::HashTable< Foam::string > & options ( ) const

inlinenoexcept

Return options.

Definition at line 158 of file argListI.H.

References Foam::noexcept.

Referenced by argList().

Here is the caller graph for this function:

◆ options() [2/2]

Foam::HashTable< Foam::string > & options ( )

inlinenoexcept

Return non-const access to the command options.

Definition at line 165 of file argListI.H.

References Foam::noexcept.

◆ found()

bool found ( const word & optName ) const

inline

Return true if the named option is found.

Definition at line 171 of file argListI.H.

◆ count() [1/2]

Foam::label count ( const UList< word > & optionNames ) const

Return how many of the specified options were used.

Definition at line 2280 of file argList.C.

◆ count() [2/2]

Foam::label count ( std::initializer_list< word > optionNames ) const

Return how many of the specified options were used.

Definition at line 2294 of file argList.C.

◆ lookup()

Foam::ITstream lookup ( const word & optName ) const

inline

Return an input stream from the named option.

Definition at line 177 of file argListI.H.

Referenced by optionLookup(), and parse().

Here is the caller graph for this function:

◆ get() [1/11]

template<class T>

T get ( const label index ) const

inline

Get a value from the argument at index.

Index 1 is the first (non-option) argument. For fileName type, invokes fileName::validate()

Definition at line 271 of file argListI.H.

References Foam::T().

Referenced by Foam::argList::get< Foam::fileName >(), Foam::argList::get< Foam::fileName >(), Foam::argList::get< Foam::string >(), Foam::argList::get< Foam::string >(), Foam::argList::get< Foam::word >(), Foam::argList::get< Foam::word >(), argRead(), get(), getList(), getOrDefault(), opt(), optionRead(), read(), and readIfPresent().

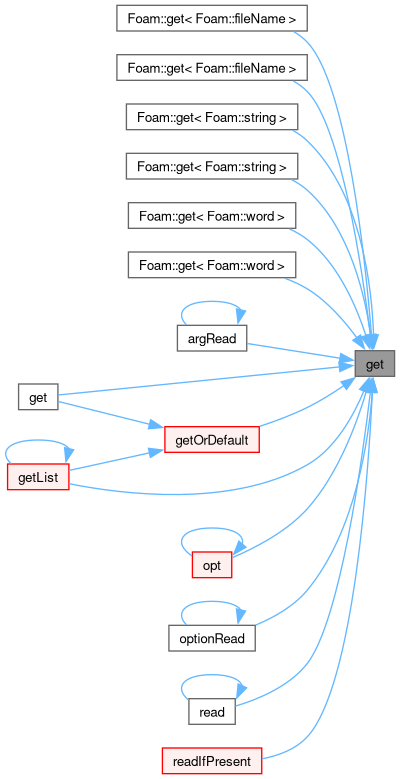

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getList() [1/4]

template<class T>

List< T > getList ( const label index ) const

inline

Get a List of values from the argument at index.

Index 1 is the first (non-option) argument.

References get(), getList(), getOrDefault(), and Foam::T().

Referenced by getList(), getList(), and optionReadList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get() [2/11]

template<class T>

T get ( const word & optName ) const

inline

Get a value from the named option.

The default template parameter is string (ie, no conversion). For fileName type, invokes fileName::validate()

Definition at line 285 of file argListI.H.

References Foam::T().

Here is the call graph for this function:

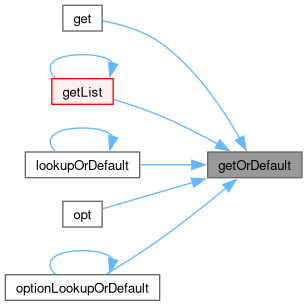

◆ getOrDefault()

template<class T>

T getOrDefault	(	const word &	optName,
		const T &	deflt ) const

inline

Get a value from the named option if present, or return default.

Definition at line 299 of file argListI.H.

References get(), and Foam::T().

Referenced by get(), getList(), lookupOrDefault(), opt(), and optionLookupOrDefault().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getList() [2/4]

template<class T>

List< T > getList	(	const word &	optName,
		bool	mandatory = true ) const

inline

Get a List of values from the named option, treating a single entry like a list of size 1.

Parameters

optName	the option name to read from
mandatory	if the option is non-mandatory, the behaviour is similar to readListIfPresent().

References addArgument(), addBoolOption(), addDryRunOption(), addNote(), addOption(), addOptionCompat(), addUsage(), addVerboseOption(), argList(), argsMandatory(), bannerEnabled(), check(), checkRootCase(), displayDoc(), FOAM_DEPRECATED_STRICT, getCheck(), getCheckOrDefault(), getList(), ignoreOptionCompat(), noBanner(), noCheckProcessorDirectories(), noFunctionObjects(), noJobInfo(), noLibs(), noMandatoryArgs(), noParallel(), parallelThreads_on(), postProcess(), printCompat(), printMan(), printNotes(), printUsage(), readCheck(), readCheckIfPresent(), readIfPresent(), readListIfPresent(), removeOption(), setAdvanced(), setOption(), Foam::T(), unsetOption(), and verbose().

Here is the call graph for this function:

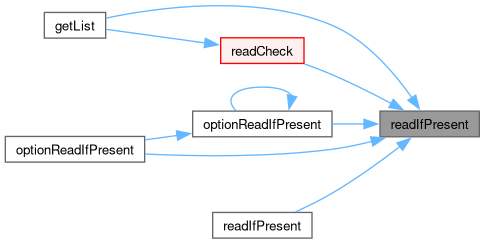

◆ readIfPresent() [1/2]

template<class T>

bool readIfPresent	(	const word &	optName,
		T &	val ) const

inline

Read a value from the named option if present.

Returns: true if the named option was found.

Definition at line 315 of file argListI.H.

References get(), and Foam::T().

Referenced by getList(), optionReadIfPresent(), optionReadIfPresent(), readCheck(), and readIfPresent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readIfPresent() [2/2]

template<class T>

bool readIfPresent	(	const word &	optName,
		T &	val,
		const T &	deflt ) const

inline

Read a value from the named option if present.

Returns: true if the named option was found, otherwise use the supplied default and return false.

Definition at line 332 of file argListI.H.

References readIfPresent(), and Foam::T().

Here is the call graph for this function:

◆ readListIfPresent()

template<class T>

bool readListIfPresent	(	const word &	optName,
		List< T > &	list ) const

inline

If named option is present, get a List of values treating a single entry like a list of size 1.

Returns: true if the named option was found.

Definition at line 386 of file argListI.H.

Referenced by getList(), and parse().

Here is the caller graph for this function:

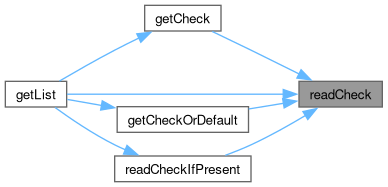

◆ readCheck()

template<class T, class Predicate>

bool readCheck	(	const word &	optName,
		T &	val,
		const Predicate &	pred,
		bool	mandatory = true ) const

inline

Read the named option and check its validity.

FatalError if mandatory and not found, or if the predicate check failed.

Parameters

optName	the option name
val	the value to read into
pred	the value check predicate

Returns: true if the entry was found.

Definition at line 408 of file argListI.H.

References executable(), Foam::exit(), Foam::FatalError, Foam::nl, readIfPresent(), and Foam::T().

Referenced by getCheck(), getCheckOrDefault(), getList(), and readCheckIfPresent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readCheckIfPresent()

template<class T, class Predicate>

bool readCheckIfPresent	(	const word &	optName,
		T &	val,
		const Predicate &	pred ) const

inline

Read the named option if present and check its validity.

FatalError if found and the predicate check failed.

Parameters

optName	the option name
val	the value to read into
pred	the value check predicate

Returns: true if the entry was found.

Definition at line 437 of file argListI.H.

References readCheck(), and Foam::T().

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCheck()

template<class T, class Predicate>

T getCheck	(	const word &	optName,
		const Predicate &	pred ) const

inline

Get a value from the named option with additional checking.

FatalError if the predicate check failed.

Parameters

optName	the option name
pred	the value check predicate

Definition at line 449 of file argListI.H.

References readCheck(), and Foam::T().

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCheckOrDefault()

template<class T, class Predicate>

T getCheckOrDefault	(	const word &	optName,
		const T &	deflt,
		const Predicate &	pred ) const

inline

Get a value from the named option with additional checking (if present), or return default.

FatalError if the predicate check on the retrieved value failed.

Parameters

optName	the option name
deflt	the default return value
pred	the value check predicate

Definition at line 462 of file argListI.H.

References readCheck(), and Foam::T().

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addArgument()

addArgument	(	const string &	argName,
		const string &	usage = "" )

static

Append a (mandatory) argument to validArgs.

Definition at line 365 of file argList.C.

References argUsage, and validArgs.

Referenced by getList().

Here is the caller graph for this function:

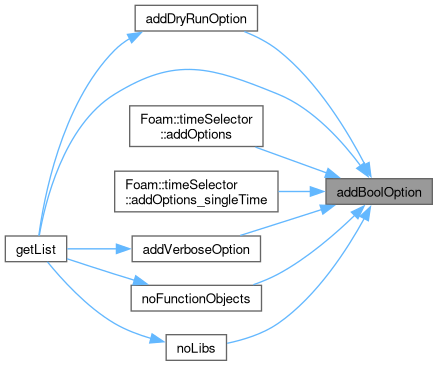

◆ addBoolOption()

addBoolOption	(	const word &	optName,
		const string &	usage = "",
		bool	advanced = false )

static

Add a bool option to validOptions with usage information.

Definition at line 388 of file argList.C.

References addOption().

Referenced by addDryRunOption(), timeSelector::addOptions(), timeSelector::addOptions_singleTime(), addVerboseOption(), getList(), noFunctionObjects(), and noLibs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addOption()

addOption	(	const word &	optName,
		const string &	param = "",
		const string &	usage = "",
		bool	advanced = false )

static

Add an option to validOptions with usage information.

An option with an empty param is a bool option

Definition at line 399 of file argList.C.

References advancedOptions, optionUsage, and validOptions.

Referenced by addBoolOption(), timeSelector::addOptions(), timeSelector::addOptions_singleTime(), and getList().

Here is the caller graph for this function:

◆ setAdvanced()

void setAdvanced	(	const word &	optName,
		bool	advanced = true )

static

Set an existing option as being 'advanced' or normal.

Definition at line 419 of file argList.C.

References advancedOptions, and validOptions.

Referenced by getList().

Here is the caller graph for this function:

◆ addOptionCompat()

addOptionCompat	(	const word &	optName,
		std::pair< const char *, int >	compat )

static

Initial value:

{
    Foam::argList::addBoolOption
    (
        "allAreas",
        "Use all regions in finite-area regionProperties"
    )

Specify an alias for the option name.

Parameters

optName	the currently used option name
compat	alias name and the last OpenFOAM version (YYMM) when the alias was not needed. Setting a zero or negative version suppresses warnings about the alias.

Definition at line 432 of file argList.C.

References validOptionsCompat.

Referenced by getList().

Here is the caller graph for this function:

◆ ignoreOptionCompat()

void ignoreOptionCompat	(	std::pair< const char *, int >	compat,
		bool	expectArg )

static

Specify an option to be ignored.

Parameters

compat	optName and the last OpenFOAM version (YYMM) when the option was directly supported. Setting a zero or negative version suppresses warnings about the alias.
expectArg	the option is non-bool

Definition at line 446 of file argList.C.

References ignoreOptionsCompat.

Referenced by getList(), and noFunctionObjects().

Here is the caller graph for this function:

◆ addUsage()

void addUsage	(	const word &	optName,
		const string &	usage )

static

Add option usage information to optionUsage.

Definition at line 460 of file argList.C.

References optionUsage.

Referenced by getList().

Here is the caller graph for this function:

◆ addNote()

addNote ( const string & note )

static

Add extra notes for the usage information.

This string is used "as-is" without additional formatting

Definition at line 477 of file argList.C.

References notes.

Referenced by getList().

Here is the caller graph for this function:

◆ removeOption()

void removeOption ( const word & optName )

static

Remove option from validOptions and from optionUsage.

Definition at line 486 of file argList.C.

References advancedOptions, optionUsage, and validOptions.

Referenced by getList(), noFunctionObjects(), and noParallel().

Here is the caller graph for this function:

◆ noMandatoryArgs()

void noMandatoryArgs ( )

static

Flag command arguments as being optional (non-mandatory).

Definition at line 494 of file argList.C.

Referenced by getList().

Here is the caller graph for this function:

◆ argsMandatory()

bool argsMandatory ( )

static

Command arguments type (optional/mandatory).

Definition at line 500 of file argList.C.

Referenced by getList().

Here is the caller graph for this function:

◆ noBanner()

void noBanner ( )

static

Disable emitting the banner information.

Adjusts the Foam::infoDetailLevel flag.

Definition at line 506 of file argList.C.

References Foam::infoDetailLevel.

Referenced by getList().

Here is the caller graph for this function:

◆ bannerEnabled()

bool bannerEnabled ( )

static

Banner status (enabled/disabled).

Queries the Foam::infoDetailLevel flag.

Definition at line 512 of file argList.C.

References Foam::infoDetailLevel.

Referenced by getList(), and parse().

Here is the caller graph for this function:

◆ addDryRunOption()

addDryRunOption	(	const string &	usage,
		bool	advanced = false )

static

Enable a 'dry-run' bool option, with usage information.

Parameters

advanced usage information (expected)

Definition at line 518 of file argList.C.

References addBoolOption(), and advancedOptions.

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addVerboseOption()

void addVerboseOption	(	const string &	usage = "",
		bool	advanced = false )

static

Enable a 'verbose' bool option, with usage information.

Parameters

advanced usage information (optional)

Definition at line 534 of file argList.C.

References addBoolOption(), and advancedOptions.

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ noFunctionObjects()

void noFunctionObjects ( bool addWithOption = false )

static

Remove '-noFunctionObjects' option and ignore any occurrences.

Optionally add a '-withFunctionObjects' option instead

Definition at line 562 of file argList.C.

References addBoolOption(), ignoreOptionCompat(), and removeOption().

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ noJobInfo()

void noJobInfo ( )

static

Suppress JobInfo, overriding controlDict setting.

Definition at line 582 of file argList.C.

References JobInfo::disable().

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ noLibs()

void noLibs ( )

static

Add the '-no-libs' command line option.

Definition at line 588 of file argList.C.

References addBoolOption().

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ noParallel()

void noParallel ( )

static

Remove the parallel options.

Definition at line 599 of file argList.C.

References removeOption(), and validParOptions.

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ noCheckProcessorDirectories()

void noCheckProcessorDirectories ( )

static

Disable checking of processor directories.

Definition at line 619 of file argList.C.

Referenced by getList().

Here is the caller graph for this function:

◆ parallelThreads_on()

void parallelThreads_on ( )

static

MPI threads are desired for the application.

Definition at line 613 of file argList.C.

Referenced by getList().

Here is the caller graph for this function:

◆ setOption()

bool setOption	(	const word &	optName,
		const string &	param = "" )

Set option directly (use with caution).

An option with an empty param is a bool option. Not all valid options can also be set: eg, -case, -roots, ... Return true if the existing option value needed changing, or if the option did not previously exist.

Definition at line 2308 of file argList.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, and Foam::nl.

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unsetOption()

bool unsetOption ( const word & optName )

Unset option directly (use with caution).

Not all valid options can also be unset: eg, -case, -roots ... Return true if the option existed before being unset.

Definition at line 2336 of file argList.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, and Foam::nl.

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ postProcess()

bool postProcess	(	int	argc,
		char *	argv[] )

static

True if the post-processing option is found in the argv list.

Definition at line 625 of file argList.C.

References postProcessOptionName.

Referenced by getList().

Here is the caller graph for this function:

◆ verbose() [3/3]

int verbose	(	int	argc,
		char *	argv[] )

static

The number of times -verbose is found in the argv list.

Definition at line 646 of file argList.C.

◆ printCompat()

void printCompat ( ) const

Print option compatibility.

Definition at line 533 of file argListHelp.C.

References ignoreOptionsCompat, Foam::Info, k, Foam::nl, Foam::setf(), Foam::setfill(), Foam::setw(), size(), token::SPACE, and validOptionsCompat.

Referenced by getList(), and parse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printNotes()

void printNotes ( ) const

Print notes (if any).

Definition at line 455 of file argListHelp.C.

References Foam::Info, Foam::nl, notes, usageMax, and Foam::stringOps::writeWrapped().

Referenced by getList(), parse(), and printUsage().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printUsage()

void printUsage ( bool full = true ) const

Print usage.

Definition at line 359 of file argListHelp.C.

References advancedOptions, argUsage, Foam::endl(), ignoreOptionsCompat, Foam::Info, Foam::nl, string::null, Foam::foamVersion::printBuildInfo(), printNotes(), Foam::printOption(), Foam::printOptionUsage(), size(), validArgs, validOptions, and validOptionsCompat.

Referenced by getList(), and parse().

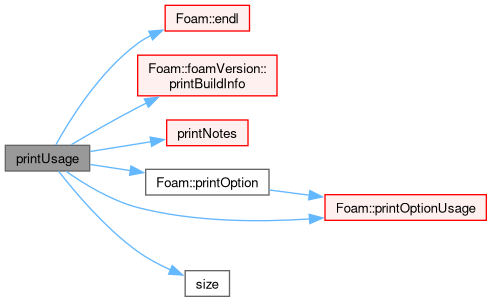

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printMan()

void printMan ( ) const

Print usage as nroff-man format (Experimental).

Definition at line 193 of file argListHelp.C.

References advancedOptions, Foam::foamVersion::api, argUsage, token::DQUOTE, ignoreOptionsCompat, Foam::Info, Foam::nl, notes, string::null, Foam::printManFooter(), Foam::printManOption(), token::SPACE, Foam::stringOps::upper(), usageMax, validArgs, validOptions, validOptionsCompat, and Foam::stringOps::writeWrapped().

Referenced by getList(), and parse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ displayDoc()

void displayDoc ( bool source = false ) const

Display documentation in browser.

Optionally display the application source code

Definition at line 2357 of file argList.C.

References Foam::foamVersion::api, string::contains(), Foam::debug::controlDict(), Foam::endl(), Foam::stringOps::expand(), dictionary::get(), Foam::getEnv(), Foam::Info, Foam::isFile(), Foam::nl, dictionary::readEntry(), string::replace(), Foam::stringOps::splitSpace(), string::starts_with(), dictionary::subDict(), and Foam::system().

Referenced by getList(), and parse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check()

bool check	(	bool	checkArgs = argList::argsMandatory(),
		bool	checkOpts = true ) const

Check the parsed command-line for mandatory arguments and that all the options are correct.

By default, the argument check respects the value of argsMandatory() to decide if the arguments should be checked (when they are mandatory) or not (when they are optional)

Definition at line 2431 of file argList.C.

References Foam::endl(), Foam::FatalError, forAllConstIters, UPstream::master(), Foam::nl, validArgs, validOptions, and validParOptions.

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkRootCase()

bool checkRootCase ( ) const

Check root path and case path.

Definition at line 2479 of file argList.C.

References Foam::endl(), Foam::FatalError, Foam::fileHandler, Foam::isDir(), UPstream::master(), path(), and rootPath().

Referenced by getList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator[]() [1/2]

const Foam::string & operator[] ( const label index ) const

inline

The string corresponding to the argument index.

Index 0 is the executable. Index 1 is the first (non-option) argument.

Definition at line 483 of file argListI.H.

◆ operator[]() [2/2]

const Foam::string & operator[] ( const word & optName ) const

inline

The string associated with the named option.

Definition at line 489 of file argListI.H.

◆ opt() [1/2]

template<class T = string>

T opt ( const word & optName ) const

inline

Deprecated(2020-05) identical to get(const word& optName).

Deprecated: (2020-05) - use get() method

Definition at line 985 of file argList.H.

References get(), opt(), and Foam::T().

Referenced by opt(), and opt().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ opt() [2/2]

template<class T>

T opt	(	const word &	optName,
		const T &	deflt ) const

inline

Deprecated(2020-05) identical to getOrDefault(...).

Deprecated: (2020-05) - use getOrDefault() method

Definition at line 997 of file argList.H.

References getOrDefault(), opt(), and Foam::T().

Here is the call graph for this function:

◆ get() [3/11]

template<class T>

T get	(	const word &	optName,
		const T &	deflt ) const

inline

Deprecated(2020-05) identical to getOrDefault(...).

Deprecated: (2020-05) - use getOrDefault() method

Definition at line 1009 of file argList.H.

References get(), getOrDefault(), and Foam::T().

Here is the call graph for this function:

◆ lookupOrDefault()

template<class T>

T lookupOrDefault	(	const word &	optName,
		const T &	deflt ) const

inline

Deprecated(2020-05) identical to getOrDefault(...).

Deprecated: (2020-05) - use getOrDefault() method

Definition at line 1021 of file argList.H.

References getOrDefault(), lookupOrDefault(), and Foam::T().

Referenced by lookupOrDefault().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ parRunControl()

const ParRunControl & parRunControl ( ) const

inline

Same as runControl() - v2106 and earlier.

Definition at line 1029 of file argList.H.

◆ read()

template<class T>

T read ( const label index ) const

inline

Deprecated(2018-08) read a value from the argument at index.

Index 1 is the first (non-option) argument.

Deprecated: (2018-08) - use get() method

Definition at line 1044 of file argList.H.

References get(), read(), and Foam::T().

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ argRead()

template<class T>

T argRead ( const label index ) const

inline

Deprecated(2018-01) read a value from the argument at index.

Index 1 is the first (non-option) argument.

Deprecated: (2018-01) - use get() method

Definition at line 1057 of file argList.H.

References argRead(), get(), and Foam::T().

Referenced by argRead().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ optionFound()

bool optionFound ( const word & optName ) const

inline

Deprecated(2018-01) return true if the named option is found.

Deprecated: (2018-01) - use found() method

Definition at line 1068 of file argList.H.

References found, and optionFound().

Referenced by optionFound().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ optionLookup()

ITstream optionLookup ( const word & optName ) const

inline

Deprecated(2018-01) return an input stream from the named option.

Deprecated: (2018-01) - use lookup() method

Definition at line 1079 of file argList.H.

References lookup(), and optionLookup().

Referenced by optionLookup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ optionRead()

template<class T>

T optionRead ( const word & optName ) const

inline

Deprecated(2018-01) read a value from the named option.

Deprecated: (2018-01) - use get() method

Definition at line 1091 of file argList.H.

References get(), optionRead(), and Foam::T().

Referenced by optionRead().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ optionReadIfPresent() [1/2]

template<class T>

bool optionReadIfPresent	(	const word &	optName,
		T &	val ) const

inline

Deprecated(2018-01) read a value from the named option if present.

Return true if the named option was found.

Deprecated: (2018-01) - use readIfPresent() method

Definition at line 1104 of file argList.H.

References optionReadIfPresent(), readIfPresent(), and Foam::T().

Referenced by optionReadIfPresent(), and optionReadIfPresent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ optionReadIfPresent() [2/2]

template<class T>

bool optionReadIfPresent	(	const word &	optName,
		T &	val,
		const T &	deflt ) const

inline

Deprecated(2018-01) read a value from the named option if present.

Return true if the named option was found, otherwise use the supplied default and return false.

Deprecated: (2018-01) - use readIfPresent() method

Definition at line 1122 of file argList.H.

References optionReadIfPresent(), readIfPresent(), and Foam::T().

Here is the call graph for this function:

◆ optionLookupOrDefault()

template<class T>

T optionLookupOrDefault	(	const word &	optName,
		const T &	deflt ) const

inline

Deprecated(2018-01) read a value from the named option if present.

Return supplied default otherwise.

Deprecated: (2018-01) - use getOrDefault() method

Definition at line 1140 of file argList.H.

References getOrDefault(), optionLookupOrDefault(), and Foam::T().

Referenced by optionLookupOrDefault().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ optionReadList()

template<class T>

List< T > optionReadList ( const word & optName ) const

inline

Deprecated(2018-01) read a List of values from the named option.

Deprecated: (2018-01) - use getList() method

Definition at line 1156 of file argList.H.

References getList(), optionReadList(), and Foam::T().

Referenced by optionReadList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get() [4/11]

template<>

int32_t get ( const label index ) const

inline

Definition at line 187 of file argListI.H.

References Foam::readInt32().

Here is the call graph for this function:

◆ get() [5/11]

template<>

int64_t get ( const label index ) const

inline

Definition at line 192 of file argListI.H.

References Foam::readInt64().

Here is the call graph for this function:

◆ get() [6/11]

template<>

float get ( const label index ) const

inline

Definition at line 197 of file argListI.H.

◆ get() [7/11]

template<>

double get ( const label index ) const

inline

Definition at line 202 of file argListI.H.

◆ get() [8/11]

template<>

int32_t get ( const word & optName ) const

inline

Definition at line 208 of file argListI.H.

References Foam::readInt32().

Here is the call graph for this function:

◆ get() [9/11]

template<>

int64_t get ( const word & optName ) const

inline

Definition at line 213 of file argListI.H.

References Foam::readInt64().

Here is the call graph for this function:

◆ get() [10/11]

template<>

float get ( const word & optName ) const

inline

Definition at line 218 of file argListI.H.

◆ get() [11/11]

template<>

double get ( const word & optName ) const

inline

Definition at line 223 of file argListI.H.

◆ getList() [3/4]

template<class T>

Foam::List< T > getList ( const label index ) const

inline

Definition at line 350 of file argListI.H.

◆ getList() [4/4]

template<class T>

Foam::List< T > getList	(	const word &	optName,
		bool	mandatory ) const

inline

Definition at line 364 of file argListI.H.

Member Data Documentation

◆ validArgs

Foam::SLList< Foam::string > validArgs

static

A list of valid (mandatory) arguments.

Definition at line 245 of file argList.H.

Referenced by addArgument(), check(), printMan(), and printUsage().

◆ advancedOptions

Foam::HashSet< Foam::string > advancedOptions

static

The "advanced" options are shown with -help-full (not with –help).

Definition at line 250 of file argList.H.

Referenced by addDryRunOption(), addOption(), addVerboseOption(), printMan(), printUsage(), removeOption(), and setAdvanced().

◆ validOptions

Foam::HashTable< Foam::string > validOptions

static

A list of valid options.

Definition at line 255 of file argList.H.

Referenced by addOption(), allowFunctionObjects(), check(), printMan(), Foam::printManOption(), Foam::printOption(), printUsage(), removeOption(), timeSelector::select(), setAdvanced(), and timeSelector::setTimeIfPresent().

◆ validParOptions

Foam::HashTable< Foam::string > validParOptions

static

A list of valid parallel options.

Definition at line 260 of file argList.H.

Referenced by argList(), check(), noParallel(), and Foam::printManOption().

◆ validOptionsCompat

Foam::HashTable< std::pair< Foam::word, int > > validOptionsCompat

static

A list of aliases for options.

Stored as (alias = canonical, version)

Definition at line 267 of file argList.H.

Referenced by addOptionCompat(), printCompat(), printMan(), and printUsage().

◆ ignoreOptionsCompat

Foam::HashTable< std::pair< bool, int > > ignoreOptionsCompat

static

A list of options to ignore.

Stored as (option = bool, version)

Definition at line 274 of file argList.H.

Referenced by ignoreOptionCompat(), printCompat(), printMan(), and printUsage().

◆ argUsage

Foam::HashTable< Foam::string, Foam::label, Foam::Hash< Foam::label > > argUsage

static

Short description for program arguments.

Definition at line 279 of file argList.H.

Referenced by addArgument(), printMan(), and printUsage().

◆ optionUsage

Foam::HashTable< Foam::string > optionUsage

static

Short description for validOptions.

Definition at line 284 of file argList.H.

Referenced by addOption(), addUsage(), Foam::printManOption(), Foam::printOption(), and removeOption().

◆ notes

Foam::SLList< Foam::string > notes

static

General usage notes.

Definition at line 289 of file argList.H.

Referenced by addNote(), printMan(), and printNotes().

◆ usageMin

std::string::size_type usageMin = 20

static

Min indentation when displaying usage (default: 20).

Definition at line 294 of file argList.H.

Referenced by Foam::printOptionUsage().

◆ usageMax

std::string::size_type usageMax = 80

static

Max screen width when displaying usage (default: 80).

Definition at line 299 of file argList.H.

Referenced by printMan(), Foam::printManOption(), printNotes(), and Foam::printOptionUsage().

◆ postProcessOptionName

Foam::word postProcessOptionName

static

Standard name for the post-processing option.

Definition at line 304 of file argList.H.

Referenced by postProcess().

The documentation for this class was generated from the following files:

src/OpenFOAM/global/argList/argList.H
src/finiteArea/include/addAllFaRegionOptions.H
src/OpenFOAM/db/functionObjects/functionObjectList/postProcess.H
src/OpenFOAM/global/argList/argList.C
src/OpenFOAM/global/argList/argListHelp.C
src/OpenFOAM/global/argList/argListI.H
src/OpenFOAM/include/addAllRegionOptions.H
src/OpenFOAM/include/addCheckCaseOptions.H
src/OpenFOAM/include/addDictOption.H
src/OpenFOAM/include/addFunctionObjectOptions.H
src/OpenFOAM/include/addOverwriteOption.H
src/OpenFOAM/include/addProfilingOption.H
src/OpenFOAM/include/addTimeOptions.H
src/OpenFOAM/include/setRootCaseListOptions.H
applications/utilities/miscellaneous/foamHelp/addToolOption.H

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ argList() [1/2]

◆ argList() [2/2]

◆ ~argList()

Member Function Documentation

◆ envExecutable()

◆ envGlobalPath()

◆ envRelativePath()

◆ parse()

◆ executable()

◆ commandLine()

◆ rootPath()

◆ caseName()

◆ globalCaseName()

◆ path()

◆ globalPath()

◆ relativePath()

◆ runControl()

◆ distributed()

◆ dryRun() [1/2]

◆ dryRun() [2/2]

◆ verbose() [1/3]

◆ verbose() [2/3]

◆ allowFunctionObjects()

◆ allowLibs()

◆ libs()

◆ size()

◆ args() [1/2]

◆ args() [2/2]

◆ options() [1/2]

◆ options() [2/2]

◆ found()

◆ count() [1/2]

◆ count() [2/2]

◆ lookup()

◆ get() [1/11]

◆ getList() [1/4]

◆ get() [2/11]

◆ getOrDefault()

◆ getList() [2/4]

◆ readIfPresent() [1/2]

◆ readIfPresent() [2/2]

◆ readListIfPresent()

◆ readCheck()

◆ readCheckIfPresent()

◆ getCheck()

◆ getCheckOrDefault()

◆ addArgument()

◆ addBoolOption()

◆ addOption()

◆ setAdvanced()

◆ addOptionCompat()

◆ ignoreOptionCompat()

◆ addUsage()

◆ addNote()

◆ removeOption()

◆ noMandatoryArgs()

◆ argsMandatory()

◆ noBanner()

◆ bannerEnabled()

◆ addDryRunOption()

◆ addVerboseOption()

◆ noFunctionObjects()

◆ noJobInfo()

◆ noLibs()

◆ noParallel()

◆ noCheckProcessorDirectories()

◆ parallelThreads_on()

◆ setOption()

◆ unsetOption()

◆ postProcess()

◆ verbose() [3/3]

◆ printCompat()

◆ printNotes()

◆ printUsage()

◆ printMan()
