A boundaryData format surface reader. However, the "surface" represented by boundaryData is actually only point data! More...

#include <boundaryDataSurfaceReader.H>

Inheritance diagram for boundaryDataSurfaceReader:

[legend]

Collaboration diagram for boundaryDataSurfaceReader:

[legend]

Public Member Functions
	TypeName ("boundaryData")
	Runtime type information.
	boundaryDataSurfaceReader (const fileName &fName, const word &pointsName="points")
	Construct from fileName.
	boundaryDataSurfaceReader (const fileName &fName, const dictionary &options, const word &pointsName="points")
	Construct from fileName with reader options.
virtual	~boundaryDataSurfaceReader ()=default
	Destructor.
virtual const meshedSurface &	geometry (const label timeIndex)
	Return a reference to the surface geometry.
virtual instantList	times () const
	Return a list of the available times.
virtual wordList	fieldNames (const label timeIndex) const
	Return a list of the available fields at a given time.
virtual tmp< Field< scalar > >	field (const label timeIndex, const label fieldIndex, const scalar &refValue=pTraits< scalar >::zero) const
	Return a scalar field at a given time.
virtual tmp< Field< vector > >	field (const label timeIndex, const label fieldIndex, const vector &refValue=pTraits< vector >::zero) const
	Return a vector field at a given time.
virtual tmp< Field< sphericalTensor > >	field (const label timeIndex, const label fieldIndex, const sphericalTensor &refValue=pTraits< sphericalTensor >::zero) const
	Return a sphericalTensor field at a given time.
virtual tmp< Field< symmTensor > >	field (const label timeIndex, const label fieldIndex, const symmTensor &refValue=pTraits< symmTensor >::zero) const
	Return a symmTensor field at a given time.
virtual tmp< Field< tensor > >	field (const label timeIndex, const label fieldIndex, const tensor &refValue=pTraits< tensor >::zero) const
	Return a tensor field at a given time.
template<class Type>
Foam::tmp< Foam::Field< Type > >	readFieldTemplate (const label timeIndex, const label fieldIndex) const
Public Member Functions inherited from surfaceReader
	TypeName ("surfaceReader")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, surfaceReader, fileName,(const fileName &fName, const dictionary &options),(fName, options))
	surfaceReader (const fileName &fName)
	Construct from fileName.
	surfaceReader (const fileName &fName, const dictionary &options)
	Construct from fileName and specified options.
virtual	~surfaceReader ()=default
	Destructor.

Static Public Member Functions
static pointField	readPoints (const Time &runTime, const fileName &baseDir, const word &pointsName="points")
	Read points file.
static pointField	readPoints (const fileName &baseDir, const word &pointsName="points")
	Read points file.
template<class Type>
static tmp< Field< Type > >	readField (const Time &runTime, const fileName &baseDir, const instant &timeDir, const word &fieldName, Type &avg)
	Read and return given field.
template<class Type>
static tmp< Field< Type > >	readField (const fileName &baseDir, const instant &timeDir, const word &fieldName, Type &avg)
	Read and return given field.
Static Public Member Functions inherited from surfaceReader
static dictionary	formatOptions (const dictionary &dict, const word &formatName, const word &entryName="formatOptions")
	Same as fileFormats::getFormatOptions.
static autoPtr< surfaceReader >	New (const word &readType, const fileName &fName, const dictionary &options=dictionary())
	Return a reference to the selected surfaceReader.

Additional Inherited Members
Protected Attributes inherited from surfaceReader
fileName	fileName_
	File name.

Detailed Description

A boundaryData format surface reader. However, the "surface" represented by boundaryData is actually only point data!

Points <case>/constant/region0/"boundaryData"/patchName/points

Values <case>/constant/region0/"boundaryData"/patchName/TIME/field

readOptions
{
    boundaryData
    {
        points      points;
    }
}

Format options for boundaryData:

Property	Description	Required	Default
`points`	Name of the "points" file	no	points

Source files

Definition at line 84 of file boundaryDataSurfaceReader.H.

Constructor & Destructor Documentation

◆ boundaryDataSurfaceReader() [1/2]

boundaryDataSurfaceReader	(	const fileName &	fName,
		const word &	pointsName = "points" )

explicit

Construct from fileName.

Definition at line 139 of file boundaryDataSurfaceReader.C.

References boundaryDataSurfaceReader().

Referenced by boundaryDataSurfaceReader().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ boundaryDataSurfaceReader() [2/2]

boundaryDataSurfaceReader	(	const fileName &	fName,
		const dictionary &	options,
		const word &	pointsName = "points" )

Construct from fileName with reader options.

Definition at line 149 of file boundaryDataSurfaceReader.C.

References DebugInFunction, Foam::endl(), Foam::Info, path(), dictionary::readIfPresent(), and surfaceReader::surfaceReader().

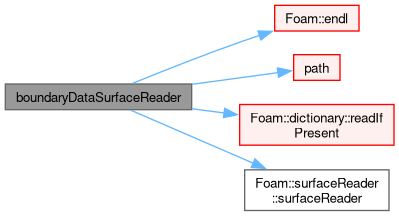

Here is the call graph for this function:

◆ ~boundaryDataSurfaceReader()

virtual ~boundaryDataSurfaceReader ( )

virtualdefault

Destructor.

References runTime.

Member Function Documentation

◆ TypeName()

TypeName ( "boundaryData" )

Runtime type information.

◆ readPoints() [1/2]

Foam::pointField readPoints	(	const Time &	runTime,
		const fileName &	baseDir,
		const word &	pointsName = "points" )

static

Read points file.

Definition at line 42 of file boundaryDataSurfaceReader.C.

References DebugInfo, Foam::endl(), rawIOField< Type >::field(), io, IOobjectOption::MUST_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, points, runTime, and fileName::toAbsolute().

Referenced by readPoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readPoints() [2/2]

Foam::pointField readPoints	(	const fileName &	baseDir,
		const word &	pointsName = "points" )

static

Read points file.

Definition at line 81 of file boundaryDataSurfaceReader.C.

References Time::NewGlobalTime(), and readPoints().

Here is the call graph for this function:

◆ readField() [1/2]

template<class Type>

tmp< Field< Type > > readField	(	const Time &	runTime,
		const fileName &	baseDir,
		const instant &	timeDir,
		const word &	fieldName,
		Type &	avg )

static

Read and return given field.

References runTime.

Referenced by readFieldTemplate().

Here is the caller graph for this function:

◆ readField() [2/2]

template<class Type>

tmp< Field< Type > > readField	(	const fileName &	baseDir,
		const instant &	timeDir,
		const word &	fieldName,
		Type &	avg )

static

Read and return given field.

References timeIndex.

◆ geometry()

const Foam::meshedSurface & geometry ( const label timeIndex )

virtual

Return a reference to the surface geometry.

Implements surfaceReader.

Definition at line 176 of file boundaryDataSurfaceReader.C.

References DebugInFunction, Foam::endl(), and timeIndex.

Here is the call graph for this function:

◆ times()

Foam::instantList times ( ) const

virtual

Return a list of the available times.

Implements surfaceReader.

Definition at line 193 of file boundaryDataSurfaceReader.C.

◆ fieldNames()

Foam::wordList fieldNames ( const label timeIndex ) const

virtual

Return a list of the available fields at a given time.

Implements surfaceReader.

Definition at line 199 of file boundaryDataSurfaceReader.C.

References UList< T >::begin(), UList< T >::end(), f(), Foam::fileHandler, name, UList< T >::size(), Foam::sort(), and timeIndex.

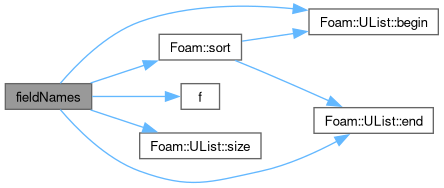

Here is the call graph for this function:

◆ field() [1/5]

Foam::tmp< Foam::Field< Foam::scalar > > field	(	const label	timeIndex,
		const label	fieldIndex,
		const scalar &	refValue = pTraits<scalar>::zero ) const

virtual

Return a scalar field at a given time.

Implements surfaceReader.

Definition at line 229 of file boundaryDataSurfaceReader.C.

References timeIndex.

◆ field() [2/5]

Foam::tmp< Foam::Field< Foam::vector > > field	(	const label	timeIndex,
		const label	fieldIndex,
		const vector &	refValue = pTraits<vector>::zero ) const

virtual

Return a vector field at a given time.

Implements surfaceReader.

Definition at line 240 of file boundaryDataSurfaceReader.C.

References timeIndex.

◆ field() [3/5]

Foam::tmp< Foam::Field< Foam::sphericalTensor > > field	(	const label	timeIndex,
		const label	fieldIndex,
		const sphericalTensor &	refValue = pTraits<sphericalTensor>::zero ) const

virtual

Return a sphericalTensor field at a given time.

Implements surfaceReader.

Definition at line 252 of file boundaryDataSurfaceReader.C.

References timeIndex.

◆ field() [4/5]

Foam::tmp< Foam::Field< Foam::symmTensor > > field	(	const label	timeIndex,
		const label	fieldIndex,
		const symmTensor &	refValue = pTraits<symmTensor>::zero ) const

virtual

Return a symmTensor field at a given time.

Implements surfaceReader.

Definition at line 263 of file boundaryDataSurfaceReader.C.

References timeIndex.

◆ field() [5/5]

Foam::tmp< Foam::Field< Foam::tensor > > field	(	const label	timeIndex,
		const label	fieldIndex,
		const tensor &	refValue = pTraits<tensor>::zero ) const

virtual

Return a tensor field at a given time.

Implements surfaceReader.

Definition at line 274 of file boundaryDataSurfaceReader.C.

References timeIndex.

◆ readFieldTemplate()

template<class Type>

Foam::tmp< Foam::Field< Type > > readFieldTemplate	(	const label	timeIndex,
		const label	fieldIndex ) const

Definition at line 119 of file boundaryDataSurfaceReader.C.

References readField(), and timeIndex.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/surfMesh/readers/boundary/boundaryDataSurfaceReader.H
src/surfMesh/readers/boundary/boundaryDataSurfaceReader.C
