chemkinReader Class Reference

Foam::chemkinReader. More...

#include <chemkinReader.H>

Inheritance diagram for chemkinReader:

Collaboration diagram for chemkinReader:

Public Types
enum	phase { solid , liquid , gas }
Public Types inherited from chemistryReader< gasHThermoPhysics >
typedef gasHThermoPhysics	thermoType
	The type of thermo package the reader was instantiated for.

Public Member Functions
	TypeName ("chemkinReader")
	Runtime type information.
	chemkinReader (speciesTable &species, const fileName &CHEMKINFileName, const fileName &transportFileName, const fileName &thermoFileName=fileName::null, const bool newFormat=false)
	Construct from CHEMKIN III file name.
	chemkinReader (const dictionary &thermoDict, speciesTable &species)
	Construct by getting the CHEMKIN III file name from dictionary.
virtual	~chemkinReader ()=default
	Destructor.
const wordList &	elementNames () const
	List of elements.
const HashTable< label > &	elementIndices () const
	Element indices.
const HashTable< scalar > &	isotopeAtomicWts () const
	Isotope molecular weights.
const speciesTable &	species () const
	Table of species.
const speciesCompositionTable &	specieComposition () const
	Table of species composition.
const HashTable< phase > &	speciePhase () const
	Specie phase.
const ReactionTable< gasHThermoPhysics > &	speciesThermo () const
	Table of the thermodynamic data given in the CHEMKIN file.
const ReactionList< gasHThermoPhysics > &	reactions () const
	List of the reactions.
Public Member Functions inherited from chemistryReader< gasHThermoPhysics >
	TypeName ("chemistryReader")
	Runtime type information.
	chemistryReader ()
	Default construct.
	declareRunTimeSelectionTable (autoPtr, chemistryReader, dictionary,(const dictionary &thermoDict, speciesTable &species),(thermoDict, species))
virtual	~chemistryReader ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from chemistryReader< gasHThermoPhysics >
static autoPtr< chemistryReader >	New (const dictionary &thermoDict, speciesTable &species)
	Select constructed from dictionary.

Detailed Description

Foam::chemkinReader.

Source files

• chemkinReader.H
• chemkinReader.C
• chemkinLexer.C

Definition at line 60 of file chemkinReader.H.

Member Enumeration Documentation

phase

enum phase

Enumerator
solid
liquid
gas

Definition at line 69 of file chemkinReader.H.

Constructor & Destructor Documentation

chemkinReader() [1/2]

chemkinReader	(	speciesTable &	species,
		const fileName &	CHEMKINFileName,
		const fileName &	transportFileName,
		const fileName &	thermoFileName = fileName::null,
		const bool	newFormat = false )

Construct from CHEMKIN III file name.

Definition at line 823 of file chemkinReader.C.

References species().

Here is the call graph for this function:

chemkinReader() [2/2]

chemkinReader	(	const dictionary &	thermoDict,
		speciesTable &	species )

Construct by getting the CHEMKIN III file name from dictionary.

Definition at line 843 of file chemkinReader.C.

References Foam::endl(), string::expand(), Foam::Info, fileName::isAbsolute(), species(), and thermoDict.

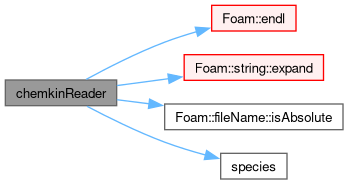

Here is the call graph for this function:

~chemkinReader()

virtual ~chemkinReader ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"chemkinReader"

)

Runtime type information.

References fileName::null, species(), and thermoDict.

Here is the call graph for this function:

elementNames()

const wordList & elementNames ( ) const

inline

List of elements.

Definition at line 363 of file chemkinReader.H.

elementIndices()

const HashTable< label > & elementIndices ( ) const

inline

Element indices.

Definition at line 371 of file chemkinReader.H.

isotopeAtomicWts()

const HashTable< scalar > & isotopeAtomicWts ( ) const

inline

Isotope molecular weights.

Definition at line 379 of file chemkinReader.H.

species()

const speciesTable & species ( ) const

inlinevirtual

Table of species.

Implements chemistryReader< gasHThermoPhysics >.

Definition at line 387 of file chemkinReader.H.

Referenced by chemkinReader(), chemkinReader(), and TypeName().

Here is the caller graph for this function:

specieComposition()

const speciesCompositionTable & specieComposition ( ) const

inlinevirtual

Table of species composition.

Implements chemistryReader< gasHThermoPhysics >.

Definition at line 395 of file chemkinReader.H.

speciePhase()

const HashTable< phase > & speciePhase ( ) const

inline

Specie phase.

Definition at line 403 of file chemkinReader.H.

speciesThermo()

const ReactionTable< gasHThermoPhysics > & speciesThermo ( ) const

inlinevirtual

Table of the thermodynamic data given in the CHEMKIN file.

Implements chemistryReader< gasHThermoPhysics >.

Definition at line 411 of file chemkinReader.H.

reactions()

const ReactionList< gasHThermoPhysics > & reactions ( ) const

inlinevirtual

List of the reactions.

Implements chemistryReader< gasHThermoPhysics >.

Definition at line 419 of file chemkinReader.H.

---

The documentation for this class was generated from the following files:

• src/thermophysicalModels/reactionThermo/chemistryReaders/chemkinReader/chemkinReader.H
• src/thermophysicalModels/reactionThermo/chemistryReaders/chemkinReader/chemkinReader.C
