Determines the order in which a set of processors should communicate with one another. More...

#include <commSchedule.H>

Public Member Functions
	ClassName ("commSchedule")
	Runtime type information.
	commSchedule (const label nProcs, const List< labelPair > &comms)
	Construct from wanted communication. Wanted communication is between two processors. Can be a one-way communication or two-way communication, that is up to the caller.
const labelList &	schedule () const noexcept
	Order in which comms is scheduled.
const labelListList &	procSchedule () const noexcept
	Per processor the order in which communication has been scheduled.

Detailed Description

Determines the order in which a set of processors should communicate with one another.

The communication order should

have maximum overlap
allow blocking communication without deadlock

Does a very simple scheduling which assumes same time for all operations.

After construction:

schedule() gives the order in which the input communication should occur
procSchedule()[proci] gives per proci

Does not care whether 'talking' is first send, second receive or maybe full swap. This is all responsibility of caller. See Foam::rocessorTopology for use in scheduling processor boundary swaps.

Source files

Definition at line 63 of file commSchedule.H.

Constructor & Destructor Documentation

◆ commSchedule()

commSchedule	(	const label	nProcs,
		const List< labelPair > &	comms )

Construct from wanted communication. Wanted communication is between two processors. Can be a one-way communication or two-way communication, that is up to the caller.

This class just determines an order for it such that any processor is only talking to one other at a time. After construction:

schedule is the order in which comms is done.
procSchedule[proci] is for proci the order in which comms is done.

Definition at line 65 of file commSchedule.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, Pair< T >::first(), UList< T >::first(), forAll, Foam::labelMin, UPstream::master(), os(), Foam::outstandingComms(), Foam::Pout, List< T >::push_back(), Pair< T >::second(), Foam::setw(), UList< T >::size(), Foam::sortedOrder(), and Foam::Zero.

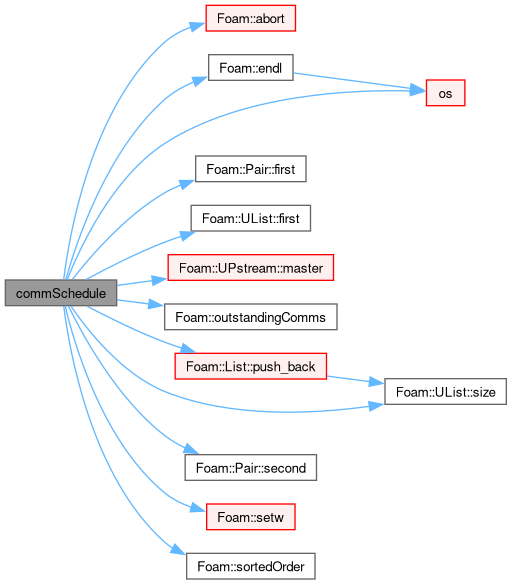

Here is the call graph for this function:

Member Function Documentation

◆ ClassName()

ClassName ( "commSchedule" )

Runtime type information.

◆ schedule()

const labelList & schedule ( ) const

inlinenoexcept

Order in which comms is scheduled.

Definition at line 108 of file commSchedule.H.

References Foam::noexcept.

◆ procSchedule()

const labelListList & procSchedule ( ) const

inlinenoexcept

Per processor the order in which communication has been scheduled.

Definition at line 116 of file commSchedule.H.
