controlPointsDefinition Class Reference

Abstract base for selecting how to construct the control points of a volumetric B-Splines morpher. More...

#include <controlPointsDefinition.H>

Inheritance diagram for controlPointsDefinition:

Collaboration diagram for controlPointsDefinition:

Public Member Functions
	TypeName ("controlPointsDefinition")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, controlPointsDefinition, dictionary,(NURBS3DVolume &box),(box))
	controlPointsDefinition (NURBS3DVolume &box)
	Construct from underlaying NURBS box.
virtual	~controlPointsDefinition ()=default
	Destructor.

Static Public Member Functions
static autoPtr< controlPointsDefinition >	New (NURBS3DVolume &box)
	Return a reference to the selected controlPointsDefinition model.

Protected Member Functions
virtual void	computeControlPoints ()=0
	Compute control points.
void	transformControlPoints (const vector &geometryMin, const vector &geometryMax)
	Transform control points using the equivalent position, rotation and scale values from the Paraview clip filter.

Protected Attributes
NURBS3DVolume &	box_
	The volumetric B-Splines box.
vectorField &	cps_
	The volumetric B-Splines control points.

Detailed Description

Abstract base for selecting how to construct the control points of a volumetric B-Splines morpher.

Source files

• controlPointsDefinition.H
• controlPointsDefinition.C

Definition at line 48 of file controlPointsDefinition.H.

Constructor & Destructor Documentation

controlPointsDefinition()

controlPointsDefinition

(

NURBS3DVolume &

box

)

Construct from underlaying NURBS box.

Definition at line 93 of file controlPointsDefinition.C.

References box_, and cps_.

~controlPointsDefinition()

virtual ~controlPointsDefinition ( )

virtualdefault

Destructor.

Member Function Documentation

computeControlPoints()

virtual void computeControlPoints ( )

protectedpure virtual

Compute control points.

Implemented in axisAligned, fromFile, and transformBox.

transformControlPoints()

void transformControlPoints ( const vector & geometryMin, const vector & geometryMax )

protected

Transform control points using the equivalent position, rotation and scale values from the Paraview clip filter.

Definition at line 39 of file controlPointsDefinition.C.

References box_, Foam::cmptMultiply(), Foam::cos(), cps_, dict, Foam::constant::mathematical::pi(), R, Foam::Rx(), Foam::Ry(), Foam::Rz(), Foam::sin(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Referenced by transformBox::computeControlPoints().

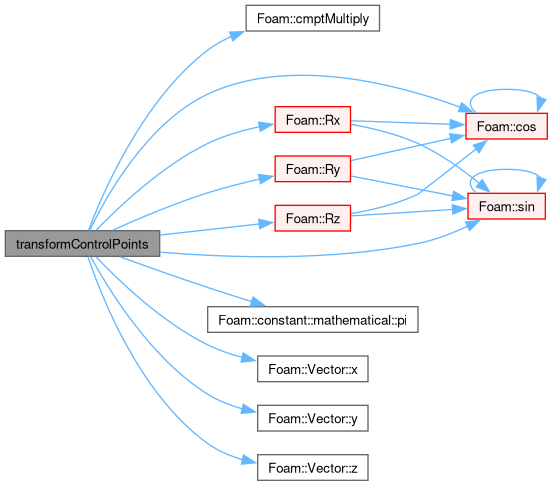

Here is the call graph for this function:

Here is the caller graph for this function:

TypeName()

TypeName

(

"controlPointsDefinition"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		controlPointsDefinition	,
		dictionary	,
		(NURBS3DVolume &box)	,
		(box)	)

New()

Foam::autoPtr< Foam::controlPointsDefinition > New ( NURBS3DVolume & box )

static

Return a reference to the selected controlPointsDefinition model.

Definition at line 105 of file controlPointsDefinition.C.

References dict, NURBS3DVolume::dict(), Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, Foam::Info, and Foam::type().

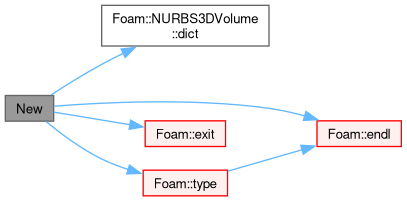

Here is the call graph for this function:

Member Data Documentation

box_

NURBS3DVolume& box_

protected

The volumetric B-Splines box.

Definition at line 57 of file controlPointsDefinition.H.

Referenced by axisAligned::computeControlPoints(), fromFile::computeControlPoints(), transformBox::computeControlPoints(), controlPointsDefinition(), and transformControlPoints().

cps_

vectorField& cps_

protected

The volumetric B-Splines control points.

Definition at line 62 of file controlPointsDefinition.H.

Referenced by axisAligned::computeControlPoints(), fromFile::computeControlPoints(), transformBox::computeControlPoints(), controlPointsDefinition(), and transformControlPoints().

---

The documentation for this class was generated from the following files:

• src/optimisation/adjointOptimisation/adjoint/parameterization/NURBS/NURBS3DVolume/controlPointsDefinition/controlPointsDefinition/controlPointsDefinition.H
• src/optimisation/adjointOptimisation/adjoint/parameterization/NURBS/NURBS3DVolume/controlPointsDefinition/controlPointsDefinition/controlPointsDefinition.C
