A coordinateRotation specified using global axes. More...

#include <axesRotation.H>

Inheritance diagram for axes:

[legend]

Collaboration diagram for axes:

[legend]

Public Types
enum	axisOrder { E1_E2 , E2_E3 , E3_E1 , E3_E1_COMPAT }
	The order/combination of local axes for the axes-rotation definition. More...

Public Member Functions
	TypeNameNoDebug ("axes")
	Runtime type information.
	axes ()
	Default construct - an identity transform.
	axes (const axes &crot)
	Copy construct.
	axes (const vector &axis1, const vector &axis2, axisOrder order=E3_E1)
	Construct from two axes.
	axes (const vector &axis)
	Construct from a single axis (as e3) using a best-guess for the second axis.
	axes (const dictionary &dict)
	Construct from dictionary.
autoPtr< coordinateRotation >	clone () const
	Return clone.
virtual	~axes ()=default
	Destructor.
virtual void	clear ()
	Reset specification.
virtual tensor	R () const
	The rotation tensor calculated from the specified axes and order.
virtual void	write (Ostream &os) const
	Write information.
virtual void	writeEntry (const word &keyword, Ostream &os) const
	Write dictionary entry.
Public Member Functions inherited from coordinateRotation
	TypeNameNoDebug ("coordinateRotation")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, coordinateRotation, dictionary,(const dictionary &dict),(dict))
virtual	~coordinateRotation ()=default
	Destructor.

Static Public Member Functions
static tensor	rotation (const vector &axis1, const vector &axis2, axisOrder order=E3_E1)
	The rotation tensor calculated from two axes and their order.
Static Public Member Functions inherited from coordinateRotation
template<class Derived>
static autoPtr< coordinateRotation >	Clone (const Derived &crot)
	Clone a coordinate rotation.
static autoPtr< coordinateRotation >	New (const word &modelType, const dictionary &dict)
	Select construct the specified coordinate rotation type.
static autoPtr< coordinateRotation >	New (const dictionary &dict)
	Select construct from dictionary (requires the "type" entry).

Protected Member Functions
void	read (const dictionary &dict)
	Read from dictionary.

Protected Attributes
vector	axis1_
	The primary axis.
vector	axis2_
	The secondary axis.
axisOrder	order_
	The axis order.

Additional Inherited Members
Static Protected Member Functions inherited from coordinateRotation
static vector	findOrthogonal (const vector &axis)
	Determine best-guess for an orthogonal axis.

Detailed Description

A coordinateRotation specified using global axes.

The rotation is defined by a combination of vectors (e1/e2), (e2/e3) or (e3/e1). Any nonorthogonality is absorbed into the second vector.

rotation
{
    type        axes;
    e1          (1 0 0);
    e2          (0 1 0);
}

Dictionary entries

Property	Description	Reqd
`type`	Type name: axes	yes
`e1`	local x-axis	partly
`e2`	local y-axis	partly
`e3`	local z-axis	partly

Note: It is also possible to specify in terms of axis and direction. For cylindrical coordinates, the axis would correspond to the z-axis and the direction to the r-axis. Also accepts "axesRotation" (OpenFOAM-v1806) for the type.

Source files

Definition at line 101 of file axesRotation.H.

Member Enumeration Documentation

◆ axisOrder

enum axisOrder

The order/combination of local axes for the axes-rotation definition.

Note that these follow the right-hand rule.

Enumerator
E1_E2	The axis1 (dominant) is local X, axis2 is local Y.
E2_E3	The axis1 (dominant) is local Y, axis2 is local Z.
E3_E1	The axis1 (dominant) is local Z, axis2 is local X.
E3_E1_COMPAT	E3_E1 specified as axis/direction.

Definition at line 112 of file axesRotation.H.

Constructor & Destructor Documentation

◆ axes() [1/5]

axes ( )

Default construct - an identity transform.

Definition at line 198 of file axesRotation.C.

References axis1_, axis2_, E3_E1, and order_.

Referenced by axes(), axes(), axes(), cylindrical::cylindrical(), cylindrical::cylindrical(), and TypeNameNoDebug().

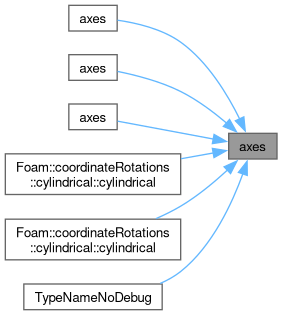

Here is the caller graph for this function:

◆ axes() [2/5]

axes ( const axes & crot )

Copy construct.

Definition at line 207 of file axesRotation.C.

References axes(), axis1_, axis2_, and order_.

Here is the call graph for this function:

◆ axes() [3/5]

axes	(	const vector &	axis1,
		const vector &	axis2,
		axisOrder	order = E3_E1 )

Construct from two axes.

Definition at line 216 of file axesRotation.C.

References axis1_, axis2_, and order_.

◆ axes() [4/5]

axes ( const vector & axis )

explicit

Construct from a single axis (as e3) using a best-guess for the second axis.

The largest component and its sign are used when guessing an appropriate orientation (direction).

Definition at line 230 of file axesRotation.C.

References axes(), E3_E1_COMPAT, and Foam::Zero.

Here is the call graph for this function:

◆ axes() [5/5]

axes ( const dictionary & dict )

explicit

Construct from dictionary.

Definition at line 236 of file axesRotation.C.

References axes(), dict, and read().

Here is the call graph for this function:

◆ ~axes()

virtual ~axes ( )

virtualdefault

Destructor.

References E3_E1, and os().

Here is the call graph for this function:

Member Function Documentation

◆ read()

void read ( const dictionary & dict )

protected

Read from dictionary.

Definition at line 153 of file axesRotation.C.

References axis1_, axis2_, dict, E1_E2, E2_E3, E3_E1, E3_E1_COMPAT, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, and order_.

Referenced by axes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeNameNoDebug()

TypeNameNoDebug ( "axes" )

Runtime type information.

References axes(), dict, and E3_E1.

Here is the call graph for this function:

◆ clone()

autoPtr< coordinateRotation > clone ( ) const

inlinevirtual

Return clone.

Implements coordinateRotation.

Reimplemented in cylindrical.

Definition at line 191 of file axesRotation.H.

References coordinateRotation::Clone().

Here is the call graph for this function:

◆ rotation()

Foam::tensor rotation	(	const vector &	axis1,
		const vector &	axis2,
		axisOrder	order = E3_E1 )

static

The rotation tensor calculated from two axes and their order.

The input axes will be normalised. If axis2 is zero, an axis orthogonal to axis1 will be guessed. The largest component and its sign are used when guessing an appropriate orientation (direction).

Definition at line 61 of file axesRotation.C.

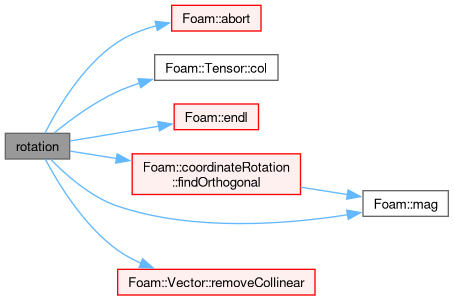

References Foam::abort(), Tensor< Cmpt >::col(), E1_E2, E2_E3, E3_E1, E3_E1_COMPAT, Foam::endl(), Foam::FatalError, FatalErrorInFunction, coordinateRotation::findOrthogonal(), Foam::mag(), Foam::nl, Vector< Cmpt >::removeCollinear(), and WarningInFunction.
