Abstract base class for cyclic ACMI coupled interfaces. More...

#include <cyclicACMILduInterfaceField.H>

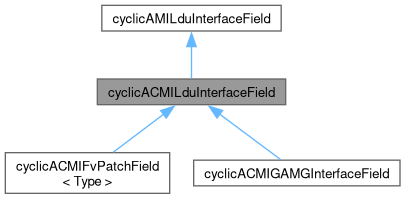

Inheritance diagram for cyclicACMILduInterfaceField:

[legend]

Collaboration diagram for cyclicACMILduInterfaceField:

Public Member Functions
	TypeName ("cyclicACMILduInterfaceField")
	Runtime type information.
	cyclicACMILduInterfaceField ()
	Construct null.
virtual	~cyclicACMILduInterfaceField ()
	Destructor.
template<class Type>
void	transformCoupleField (Field< Type > &f) const
	Transform given patch field.
void	transformCoupleField (solveScalarField &psiInternal, const direction cmpt) const
	Transform given patch internal field.
Public Member Functions inherited from cyclicAMILduInterfaceField
	TypeName ("cyclicAMILduInterfaceField")
	Runtime type information.
	cyclicAMILduInterfaceField ()
	Construct null.
virtual	~cyclicAMILduInterfaceField ()
	Destructor.
virtual bool	doTransform () const =0
	Is the transform required.
virtual const tensorField &	forwardT () const =0
	Return face transformation tensor.
virtual const tensorField &	reverseT () const =0
	Return neighbour-cell transformation tensor.
virtual int	rank () const =0
	Return rank of component for transform.
template<class Type>
void	transformCoupleField (Field< Type > &f) const
	Transform given patch field.
void	transformCoupleField (solveScalarField &psiInternal, const direction cmpt) const
	Transform given patch internal field.

Detailed Description

Abstract base class for cyclic ACMI coupled interfaces.

Source files

Definition at line 47 of file cyclicACMILduInterfaceField.H.

Constructor & Destructor Documentation

◆ cyclicACMILduInterfaceField()

cyclicACMILduInterfaceField ( )

inline

Construct null.

Definition at line 65 of file cyclicACMILduInterfaceField.H.

Referenced by cyclicACMIFvPatchField< Type >::cyclicACMIFvPatchField(), cyclicACMIFvPatchField< Type >::cyclicACMIFvPatchField(), cyclicACMIFvPatchField< Type >::cyclicACMIFvPatchField(), cyclicACMIFvPatchField< Type >::cyclicACMIFvPatchField(), and cyclicACMIFvPatchField< Type >::cyclicACMIFvPatchField().

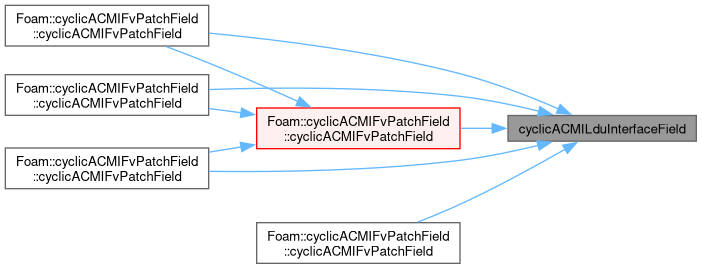

Here is the caller graph for this function:

◆ ~cyclicACMILduInterfaceField()

~cyclicACMILduInterfaceField ( )

virtual

Destructor.

Definition at line 35 of file cyclicACMILduInterfaceField.C.

Member Function Documentation

◆ TypeName()

TypeName ( "cyclicACMILduInterfaceField" )

Runtime type information.

◆ transformCoupleField() [1/2]

template<class Type>

void transformCoupleField ( Field< Type > & f ) const

Transform given patch field.

Definition at line 103 of file cyclicACMILduInterfaceField.H.

References f(), and cyclicAMILduInterfaceField::transformCoupleField().

Referenced by cyclicACMIFvPatchField< Type >::initInterfaceMatrixUpdate(), cyclicACMIFvPatchField< Type >::initInterfaceMatrixUpdate(), cyclicACMIGAMGInterfaceField::initInterfaceMatrixUpdate(), cyclicACMIFvPatchField< Type >::updateInterfaceMatrix(), cyclicACMIFvPatchField< Type >::updateInterfaceMatrix(), and cyclicACMIGAMGInterfaceField::updateInterfaceMatrix().

Here is the call graph for this function:

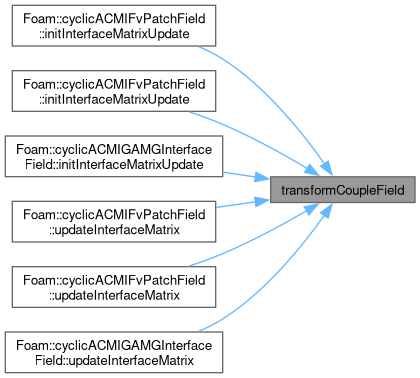

Here is the caller graph for this function:

◆ transformCoupleField() [2/2]

void transformCoupleField	(	solveScalarField &	psiInternal,
		const direction	cmpt ) const

Transform given patch internal field.

Definition at line 41 of file cyclicACMILduInterfaceField.C.
