cyclicLduInterfaceField Class Reference

Abstract base class for cyclic coupled interfaces. More...

#include <cyclicLduInterfaceField.H>

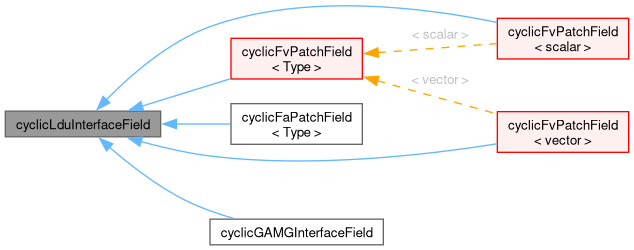

Inheritance diagram for cyclicLduInterfaceField:

Public Member Functions
	TypeName ("cyclicLduInterfaceField")
	Runtime type information.
	cyclicLduInterfaceField ()=default
	Construct null.
virtual	~cyclicLduInterfaceField ()=default
	Destructor.
virtual bool	doTransform () const =0
	Is the transform required.
virtual const tensorField &	forwardT () const =0
	Return face transformation tensor.
virtual const tensorField &	reverseT () const =0
	Return neighbour-cell transformation tensor.
virtual int	rank () const =0
	Return rank of component for transform.
template<class Type>
void	transformCoupleField (Field< Type > &f) const
	Transform given patch field.
void	transformCoupleField (solveScalarField &f, const direction cmpt) const
	Transform given patch component field.

Detailed Description

Abstract base class for cyclic coupled interfaces.

Source files

• cyclicLduInterfaceField.H
• cyclicLduInterfaceField.C

Definition at line 48 of file cyclicLduInterfaceField.H.

Constructor & Destructor Documentation

cyclicLduInterfaceField()

cyclicLduInterfaceField ( )

default

Construct null.

Referenced by cyclicFaPatchField< Type >::cyclicFaPatchField(), cyclicFvPatchField< Type >::cyclicFvPatchField(), and cyclicGAMGInterfaceField::cyclicGAMGInterfaceField().

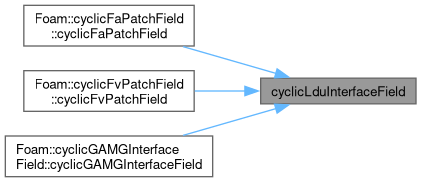

Here is the caller graph for this function:

~cyclicLduInterfaceField()

virtual ~cyclicLduInterfaceField ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"cyclicLduInterfaceField"

)

Runtime type information.

doTransform()

virtual bool doTransform ( ) const

pure virtual

Is the transform required.

Implemented in cyclicFaPatchField< Type >, cyclicFvPatchField< Type >, cyclicFvPatchField< scalar >, cyclicFvPatchField< vector >, and cyclicGAMGInterfaceField.

Referenced by transformCoupleField(), and transformCoupleField().

Here is the caller graph for this function:

forwardT()

virtual const tensorField & forwardT ( ) const

pure virtual

Return face transformation tensor.

Implemented in cyclicFaPatchField< Type >, cyclicFvPatchField< Type >, cyclicFvPatchField< scalar >, cyclicFvPatchField< vector >, and cyclicGAMGInterfaceField.

Referenced by transformCoupleField(), and transformCoupleField().

Here is the caller graph for this function:

reverseT()

virtual const tensorField & reverseT ( ) const

pure virtual

Return neighbour-cell transformation tensor.

Implemented in cyclicFaPatchField< Type >, cyclicFvPatchField< Type >, cyclicFvPatchField< scalar >, cyclicFvPatchField< vector >, and cyclicGAMGInterfaceField.

rank()

virtual int rank ( ) const

pure virtual

Return rank of component for transform.

Implemented in cyclicFaPatchField< Type >, cyclicFvPatchField< Type >, cyclicFvPatchField< scalar >, cyclicFvPatchField< vector >, and cyclicGAMGInterfaceField.

References f().

Referenced by transformCoupleField().

Here is the call graph for this function:

Here is the caller graph for this function:

transformCoupleField() [1/2]

template<class Type>

void transformCoupleField

(

Field< Type > &

f

)

const

Transform given patch field.

Definition at line 124 of file cyclicLduInterfaceField.H.

References doTransform(), f(), forwardT(), and Foam::transform().

Referenced by cyclicFvPatchField< scalar >::manipulateMatrix(), cyclicFaPatchField< Type >::updateInterfaceMatrix(), cyclicFaPatchField< Type >::updateInterfaceMatrix(), cyclicFvPatchField< scalar >::updateInterfaceMatrix(), cyclicGAMGInterfaceField::updateInterfaceMatrix(), jumpCyclicFvPatchField< Type >::updateInterfaceMatrix(), and jumpCyclicFvPatchField< scalar >::updateInterfaceMatrix().

Here is the call graph for this function:

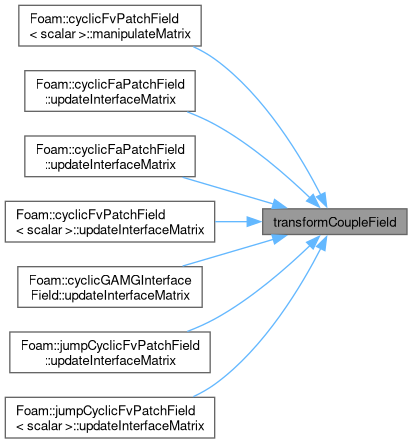

Here is the caller graph for this function:

transformCoupleField() [2/2]

void transformCoupleField	(	solveScalarField &	f,
		const direction	cmpt ) const

Transform given patch component field.

Definition at line 35 of file cyclicLduInterfaceField.C.

References Foam::component(), Foam::diag(), doTransform(), f(), forwardT(), Foam::pow(), and rank().

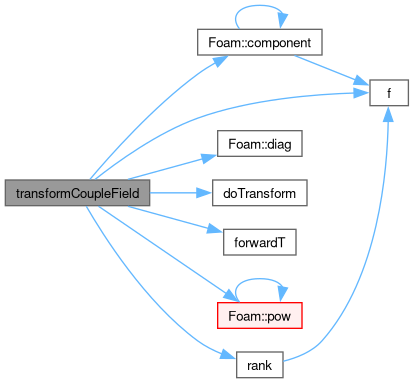

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/matrices/lduMatrix/lduAddressing/lduInterfaceFields/cyclicLduInterfaceField/cyclicLduInterfaceField.H
• src/OpenFOAM/matrices/lduMatrix/lduAddressing/lduInterfaceFields/cyclicLduInterfaceField/cyclicLduInterfaceField.C
