A class encapsulating functionality neccessary to perform an optimisation loop, such as updating the design variables, checking the sufficient reduction/adhetion of objective and constraint values in each optimisation cycle by performing a line-search and checking the overall convergence of the optimisation loop, if the corresponding criteria are provided. More...

#include <designVariablesUpdate.H>

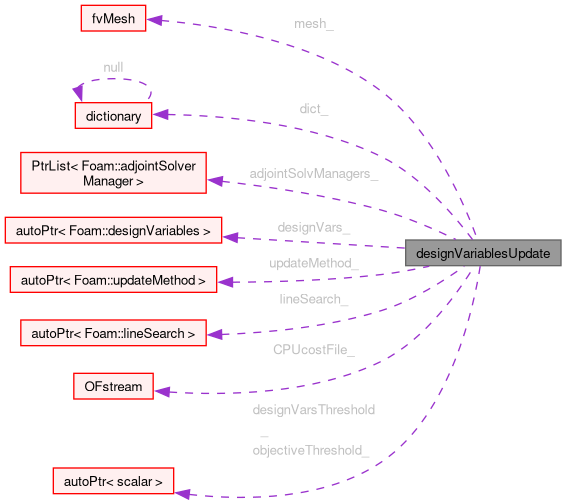

Collaboration diagram for designVariablesUpdate:

[legend]

Public Member Functions
	TypeName ("designVariablesUpdate")
	Runtime type information.
	designVariablesUpdate (fvMesh &mesh, const dictionary &dict, PtrList< adjointSolverManager > &adjointSolverManagers, autoPtr< designVariables > &designVars)
	Construct from components.
virtual	~designVariablesUpdate ()=default
	Destructor.
void	update ()
	Update design variables.
void	update (const scalarField &correction)
	Update design variables based on a given correction.
tmp< scalarField >	computeDirection ()
	Compute update direction.
void	updateGradientsAndValues ()
	Compute cumulative objective and constraint gradients.
scalar	computeObjectiveValue ()
	Sum objective values from all adjointSolverManagers.
void	setOldObjectiveValue ()
	Set the old objective value known by the updateMethod.
scalar	computeMeritFunction ()
	Compute the merit function of the optimisation problem.
scalar	meritFunctionDirectionalDerivative ()
	Derivative of the merit function.
void	updateOldCorrection (const scalarField &)
	Update old correction. Needed for quasi-Newton Methods.
void	write ()
	Write useful quantities to files.
void	postUpdate (const scalarField &oldCorrection)
	Steps to be executed after the susccessfull update of the design varibles, i.e. the last step of line search or the simple update in the fixedStep approach.
void	checkConvergence ()
	Check if the optimisation loop has converged based on the provided criteria.
autoPtr< designVariables > &	getDesignVariables ()
	Get access to design variables.
autoPtr< lineSearch > &	getLineSearch ()
	Get a reference to the line search object.

Protected Member Functions
label	nConstraints (PtrList< adjointSolverManager > &adjointSolverManagers) const
	Get the number of adjoint solvers that correspond to constraints.
label	nAdjointSolvers () const
	Get total number of adjoint solvers.
void	writeCPUcostHeader ()
	Write CPU cost header.
void	writeToCostFile (bool zeroAdjointSolns=false)
	Write to cost file.

Protected Attributes
fvMesh &	mesh_
const dictionary	dict_
PtrList< adjointSolverManager > &	adjointSolvManagers_
autoPtr< designVariables > &	designVars_
autoPtr< updateMethod >	updateMethod_
	Method to update the design variables based on the provided sensitivity derivatives.
autoPtr< lineSearch >	lineSearch_
	Line search mechanism to approximate the update step length.
OFstream	CPUcostFile_
	Output file.
label	nPrimalsPerCycle_
	Primal solutions per optimisation cycle.
label	nAdjointsPerCycle_
	Adjoint solutions per optimisation cycle.
label	nPrimalSolutions_
	Primal evaluations performed so far.
label	nAdjointSolutions_
	Adjoint evaluations performed so far.
scalar	CPUcost_
	CPU cost (in seconds).
autoPtr< scalar >	designVarsThreshold_
	The maximum of the correction/designVariables values must be lower that this threshold to consider the run converged.
autoPtr< scalar >	objectiveThreshold_
	The relative update of the objective value w.r.t. to its last value should be smaller than this value to considered the run converged.
bool	convergenceCriteriaDefined_
	Is at least a single convergence criterion defined.
scalar	feasibilityThreshold_
	In case of a constrained optimisation, the sum of positive constraints should be lower than this value to consider the run converged (i.e. this tolerates some deviation from satisfying all constraints).

Detailed Description

A class encapsulating functionality neccessary to perform an optimisation loop, such as updating the design variables, checking the sufficient reduction/adhetion of objective and constraint values in each optimisation cycle by performing a line-search and checking the overall convergence of the optimisation loop, if the corresponding criteria are provided.

Kept separate from optimisationManager to isolate functionality required only when the update of the design variables is performed.

Source files

Definition at line 60 of file designVariablesUpdate.H.

Constructor & Destructor Documentation

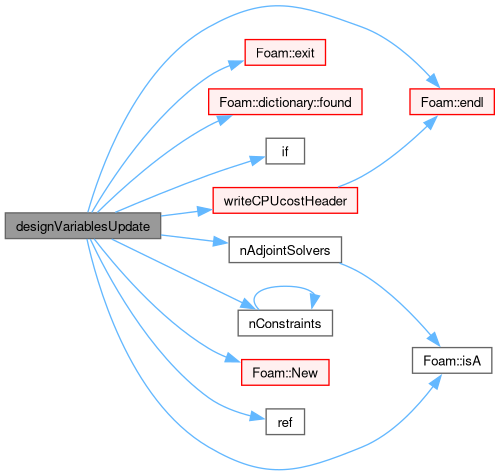

◆ designVariablesUpdate()

designVariablesUpdate	(	fvMesh &	mesh,
		const dictionary &	dict,
		PtrList< adjointSolverManager > &	adjointSolverManagers,
		autoPtr< designVariables > &	designVars )

Construct from components.

Definition at line 134 of file designVariablesUpdate.C.

References adjointSolverManagers, adjointSolvManagers_, convergenceCriteriaDefined_, CPUcost_, CPUcostFile_, designVars_, designVarsThreshold_, dict, dict_, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, feasibilityThreshold_, dictionary::found(), if(), Foam::Info, Foam::isA(), lineSearch_, mesh, mesh_, nAdjointSolutions_, nAdjointSolvers(), nAdjointsPerCycle_, nConstraints(), Foam::New(), Foam::nl, nPrimalSolutions_, nPrimalsPerCycle_, objectiveThreshold_, ref(), updateMethod_, WarningInFunction, and writeCPUcostHeader().

Here is the call graph for this function:

◆ ~designVariablesUpdate()

virtual ~designVariablesUpdate ( )

virtualdefault

Destructor.

References Foam::correction().

Here is the call graph for this function:

Member Function Documentation

◆ nConstraints()

Foam::label nConstraints ( PtrList< adjointSolverManager > & adjointSolverManagers ) const

protected

Get the number of adjoint solvers that correspond to constraints.

Definition at line 40 of file designVariablesUpdate.C.

References adjointSolverManagers, adjointSolvManagers_, designVars_, and nConstraints().

Referenced by designVariablesUpdate(), and nConstraints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nAdjointSolvers()

Foam::label nAdjointSolvers ( ) const

protected

Get total number of adjoint solvers.

Definition at line 62 of file designVariablesUpdate.C.

References adjointSolvManagers_, Foam::isA(), and n.

Referenced by designVariablesUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeCPUcostHeader()

void writeCPUcostHeader ( )

protected

Write CPU cost header.

Definition at line 79 of file designVariablesUpdate.C.

References CPUcostFile_, IOstream::defaultPrecision(), Foam::endl(), and Foam::setw().

Referenced by designVariablesUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeToCostFile()

void writeToCostFile ( bool zeroAdjointSolns = false )

protected

Write to cost file.

Definition at line 94 of file designVariablesUpdate.C.

References CPUcost_, CPUcostFile_, IOstream::defaultPrecision(), Foam::endl(), lineSearch_, mesh_, nAdjointSolutions_, nAdjointsPerCycle_, nPrimalSolutions_, nPrimalsPerCycle_, and Foam::setw().

Referenced by checkConvergence(), and write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "designVariablesUpdate" )

Runtime type information.

References adjointSolverManagers, dict, and mesh.

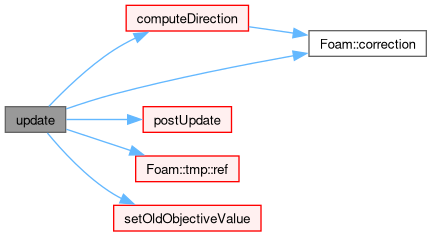

◆ update() [1/2]

void update ( )

Update design variables.

Definition at line 270 of file designVariablesUpdate.C.

References computeDirection(), Foam::correction(), designVars_, postUpdate(), tmp< T >::ref(), and setOldObjectiveValue().

Here is the call graph for this function:

◆ update() [2/2]

void update ( const scalarField & correction )

Update design variables based on a given correction.

Definition at line 288 of file designVariablesUpdate.C.

References Foam::correction(), designVars_, and lineSearch_.

Here is the call graph for this function:

◆ computeDirection()

Foam::tmp< Foam::scalarField > computeDirection ( )

Compute update direction.

Definition at line 302 of file designVariablesUpdate.C.

References Foam::correction(), designVars_, tmp< T >::New(), updateGradientsAndValues(), and updateMethod_.

Referenced by update().

Here is the call graph for this function:

Here is the caller graph for this function:

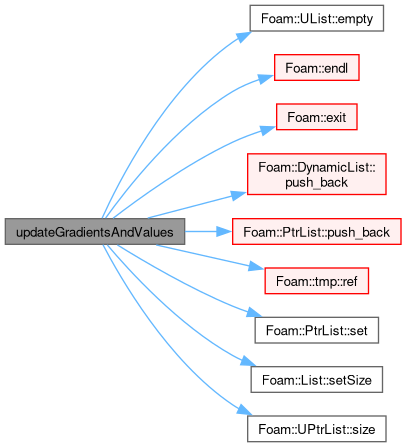

◆ updateGradientsAndValues()

void updateGradientsAndValues ( )

Compute cumulative objective and constraint gradients.

Definition at line 321 of file designVariablesUpdate.C.

References adjointSolvManagers_, designVars_, UList< T >::empty(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, DynamicList< T, SizeMin >::push_back(), PtrList< T >::push_back(), tmp< T >::ref(), PtrList< T >::set(), List< T >::setSize(), UPtrList< T >::size(), updateMethod_, and Foam::Zero.

Referenced by computeDirection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeObjectiveValue()

Foam::scalar computeObjectiveValue ( )

Sum objective values from all adjointSolverManagers.

Definition at line 396 of file designVariablesUpdate.C.

References adjointSolvManagers_, and Foam::Zero.

Referenced by checkConvergence(), and setOldObjectiveValue().

Here is the caller graph for this function:

◆ setOldObjectiveValue()

void setOldObjectiveValue ( )

Set the old objective value known by the updateMethod.

Used to check convergence of the optimisation loop

Definition at line 408 of file designVariablesUpdate.C.

References computeObjectiveValue(), and updateMethod_.

Referenced by update().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeMeritFunction()

Foam::scalar computeMeritFunction ( )

Compute the merit function of the optimisation problem.

Could be different than the objective function in case of constraint optimisation

Definition at line 414 of file designVariablesUpdate.C.

References adjointSolvManagers_, designVars_, DynamicList< T, SizeMin >::push_back(), updateMethod_, and Foam::Zero.

Here is the call graph for this function:

◆ meritFunctionDirectionalDerivative()

Foam::scalar meritFunctionDirectionalDerivative ( )

Derivative of the merit function.

Definition at line 443 of file designVariablesUpdate.C.

References updateMethod_.

◆ updateOldCorrection()

void updateOldCorrection ( const scalarField & oldCorrection )

Update old correction. Needed for quasi-Newton Methods.

Definition at line 449 of file designVariablesUpdate.C.

References updateMethod_.

Referenced by postUpdate().

Here is the caller graph for this function:

◆ write()

void write ( )

Write useful quantities to files.

Definition at line 458 of file designVariablesUpdate.C.

References designVars_, updateMethod_, and writeToCostFile().

Here is the call graph for this function:

◆ postUpdate()

void postUpdate ( const scalarField & oldCorrection )

Steps to be executed after the susccessfull update of the design varibles, i.e. the last step of line search or the simple update in the fixedStep approach.

Definition at line 466 of file designVariablesUpdate.C.

References adjointSolvManagers_, checkConvergence(), designVars_, lineSearch_, updateOldCorrection(), and write().

Referenced by update().

Here is the call graph for this function:

Here is the caller graph for this function:

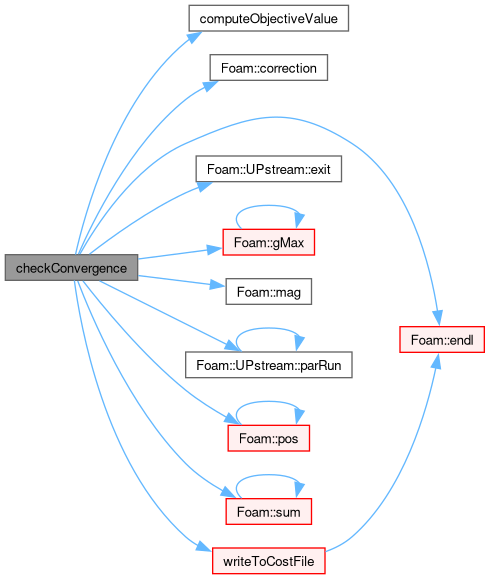

◆ checkConvergence()

void checkConvergence ( )

Check if the optimisation loop has converged based on the provided criteria.

May terminate the program

Definition at line 495 of file designVariablesUpdate.C.

References adjointSolvManagers_, computeObjectiveValue(), convergenceCriteriaDefined_, Foam::correction(), DebugInfo, designVars_, designVarsThreshold_, Foam::endl(), UPstream::exit(), feasibilityThreshold_, Foam::gMax(), Foam::Info, Foam::mag(), Foam::nl, objectiveThreshold_, UPstream::parRun(), Foam::pos(), Foam::sum(), Foam::tab, updateMethod_, and writeToCostFile().

Referenced by postUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getDesignVariables()

autoPtr< designVariables > & getDesignVariables ( )

inline

Get access to design variables.

Definition at line 286 of file designVariablesUpdate.H.

References designVars_.

◆ getLineSearch()

autoPtr< lineSearch > & getLineSearch ( )

inline

Get a reference to the line search object.

Definition at line 294 of file designVariablesUpdate.H.

References lineSearch_.

Member Data Documentation

◆ mesh_

fvMesh& mesh_

protected

Definition at line 66 of file designVariablesUpdate.H.

Referenced by designVariablesUpdate(), and writeToCostFile().

◆ dict_

const dictionary dict_

protected

Definition at line 67 of file designVariablesUpdate.H.

Referenced by designVariablesUpdate().

◆ adjointSolvManagers_

PtrList<adjointSolverManager>& adjointSolvManagers_

protected

Definition at line 68 of file designVariablesUpdate.H.

Referenced by checkConvergence(), computeMeritFunction(), computeObjectiveValue(), designVariablesUpdate(), nAdjointSolvers(), nConstraints(), postUpdate(), and updateGradientsAndValues().

◆ designVars_

autoPtr<designVariables>& designVars_

protected

Definition at line 69 of file designVariablesUpdate.H.

Referenced by checkConvergence(), computeDirection(), computeMeritFunction(), designVariablesUpdate(), getDesignVariables(), nConstraints(), postUpdate(), update(), update(), updateGradientsAndValues(), and write().

◆ updateMethod_

autoPtr<updateMethod> updateMethod_

protected

Method to update the design variables based on the provided sensitivity derivatives.

Definition at line 75 of file designVariablesUpdate.H.

Referenced by checkConvergence(), computeDirection(), computeMeritFunction(), designVariablesUpdate(), meritFunctionDirectionalDerivative(), setOldObjectiveValue(), updateGradientsAndValues(), updateOldCorrection(), and write().

◆ lineSearch_

autoPtr<lineSearch> lineSearch_

protected

Line search mechanism to approximate the update step length.

Definition at line 80 of file designVariablesUpdate.H.

Referenced by designVariablesUpdate(), getLineSearch(), postUpdate(), update(), and writeToCostFile().

◆ CPUcostFile_

OFstream CPUcostFile_

protected

Output file.

Definition at line 87 of file designVariablesUpdate.H.

Referenced by designVariablesUpdate(), writeCPUcostHeader(), and writeToCostFile().

◆ nPrimalsPerCycle_

label nPrimalsPerCycle_

protected

Primal solutions per optimisation cycle.

Definition at line 92 of file designVariablesUpdate.H.

Referenced by designVariablesUpdate(), and writeToCostFile().

◆ nAdjointsPerCycle_

label nAdjointsPerCycle_

protected

Adjoint solutions per optimisation cycle.

Definition at line 97 of file designVariablesUpdate.H.

Referenced by designVariablesUpdate(), and writeToCostFile().

◆ nPrimalSolutions_

label nPrimalSolutions_

protected

Primal evaluations performed so far.

Definition at line 102 of file designVariablesUpdate.H.

Referenced by designVariablesUpdate(), and writeToCostFile().

◆ nAdjointSolutions_

label nAdjointSolutions_

protected

Adjoint evaluations performed so far.

Definition at line 107 of file designVariablesUpdate.H.

Referenced by designVariablesUpdate(), and writeToCostFile().

◆ CPUcost_

scalar CPUcost_

protected

CPU cost (in seconds).

Definition at line 112 of file designVariablesUpdate.H.

Referenced by designVariablesUpdate(), and writeToCostFile().

◆ designVarsThreshold_

autoPtr<scalar> designVarsThreshold_

protected

The maximum of the correction/designVariables values must be lower that this threshold to consider the run converged.

Definition at line 120 of file designVariablesUpdate.H.

Referenced by checkConvergence(), and designVariablesUpdate().

◆ objectiveThreshold_

autoPtr<scalar> objectiveThreshold_

protected

The relative update of the objective value w.r.t. to its last value should be smaller than this value to considered the run converged.

Definition at line 127 of file designVariablesUpdate.H.

Referenced by checkConvergence(), and designVariablesUpdate().

◆ convergenceCriteriaDefined_

bool convergenceCriteriaDefined_

protected

Is at least a single convergence criterion defined.

Definition at line 132 of file designVariablesUpdate.H.

Referenced by checkConvergence(), and designVariablesUpdate().

◆ feasibilityThreshold_

scalar feasibilityThreshold_

protected

In case of a constrained optimisation, the sum of positive constraints should be lower than this value to consider the run converged (i.e. this tolerates some deviation from satisfying all constraints).

Definition at line 140 of file designVariablesUpdate.H.

Referenced by checkConvergence(), and designVariablesUpdate().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/optimisation/optimisationManager/optimisationManager/designVariablesUpdate/designVariablesUpdate.H
src/optimisation/adjointOptimisation/adjoint/optimisation/optimisationManager/optimisationManager/designVariablesUpdate/designVariablesUpdate.C

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ designVariablesUpdate()

◆ ~designVariablesUpdate()

Member Function Documentation

◆ nConstraints()

◆ nAdjointSolvers()

◆ writeCPUcostHeader()

◆ writeToCostFile()

◆ TypeName()

◆ update() [1/2]

◆ update() [2/2]

◆ computeDirection()

◆ updateGradientsAndValues()

◆ computeObjectiveValue()

◆ setOldObjectiveValue()

◆ computeMeritFunction()

◆ meritFunctionDirectionalDerivative()

◆ updateOldCorrection()

◆ write()

◆ postUpdate()

◆ checkConvergence()

◆ getDesignVariables()

◆ getLineSearch()

Member Data Documentation

◆ mesh_

◆ dict_

◆ adjointSolvManagers_

◆ designVars_

◆ updateMethod_

◆ lineSearch_

◆ CPUcostFile_

◆ nPrimalsPerCycle_

◆ nAdjointsPerCycle_

◆ nPrimalSolutions_

◆ nAdjointSolutions_

◆ CPUcost_

◆ designVarsThreshold_

◆ objectiveThreshold_

◆ convergenceCriteriaDefined_

◆ feasibilityThreshold_
