binaryBreakupModel Class Reference

Base class for binary breakup models which give the breakup rate between a sizeGroup pair directly, without an explicit expression for the daughter size distribution. More...

#include <binaryBreakupModel.H>

Inheritance diagram for binaryBreakupModel:

Collaboration diagram for binaryBreakupModel:

Classes
class	iNew
	Class used for the read-construction of. More...

Public Member Functions
	TypeName ("binaryBreakupModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, binaryBreakupModel, dictionary,(const populationBalanceModel &popBal, const dictionary &dict),(popBal, dict))
	binaryBreakupModel (const populationBalanceModel &popBal, const dictionary &dict)
autoPtr< binaryBreakupModel >	clone () const
virtual	~binaryBreakupModel ()=default
	Destructor.
virtual void	correct ()
	Correct diameter independent expressions.
virtual void	addToBinaryBreakupRate (volScalarField &binaryBreakupRate, const label i, const label j)=0
	Add to binary breakupRate.

Static Public Member Functions
static autoPtr< binaryBreakupModel >	New (const word &type, const populationBalanceModel &popBal, const dictionary &dict)

Protected Attributes
const populationBalanceModel &	popBal_
	Reference to the populationBalanceModel.

Detailed Description

Base class for binary breakup models which give the breakup rate between a sizeGroup pair directly, without an explicit expression for the daughter size distribution.

Source files

• binaryBreakupModel.H
• binaryBreakupModel.C

Definition at line 50 of file binaryBreakupModel.H.

Constructor & Destructor Documentation

binaryBreakupModel()

binaryBreakupModel	(	const populationBalanceModel &	popBal,
		const dictionary &	dict )

Definition at line 65 of file binaryBreakupModel.C.

References dict, and popBal_.

Referenced by declareRunTimeSelectionTable(), LehrMilliesMewes::LehrMilliesMewes(), LuoSvendsen::LuoSvendsen(), and powerLawUniformBinary::powerLawUniformBinary().

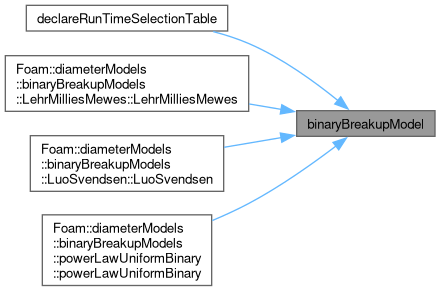

Here is the caller graph for this function:

~binaryBreakupModel()

virtual ~binaryBreakupModel ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"binaryBreakupModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		binaryBreakupModel	,
		dictionary	,
		(const populationBalanceModel &popBal, const dictionary &dict)	,
		(popBal, dict)	)

References binaryBreakupModel(), and dict.

Here is the call graph for this function:

clone()

autoPtr< binaryBreakupModel > clone ( ) const

inline

Definition at line 118 of file binaryBreakupModel.H.

References NotImplemented.

New()

Foam::autoPtr< Foam::diameterModels::binaryBreakupModel > New ( const word & type, const populationBalanceModel & popBal, const dictionary & dict )

static

Definition at line 39 of file binaryBreakupModel.C.

References Foam::abort(), dict, Foam::FatalIOError, and FatalIOErrorInLookup.

Referenced by binaryBreakupModel::iNew::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

correct()

void correct ( )

virtual

Correct diameter independent expressions.

Reimplemented in LuoSvendsen.

Definition at line 77 of file binaryBreakupModel.C.

addToBinaryBreakupRate()

virtual void addToBinaryBreakupRate ( volScalarField & binaryBreakupRate, const label i, const label j )

pure virtual

Add to binary breakupRate.

Implemented in LehrMilliesMewes, LuoSvendsen, and powerLawUniformBinary.

Member Data Documentation

popBal_

const populationBalanceModel& popBal_

protected

Reference to the populationBalanceModel.

Definition at line 59 of file binaryBreakupModel.H.

Referenced by LehrMilliesMewes::addToBinaryBreakupRate(), LuoSvendsen::addToBinaryBreakupRate(), powerLawUniformBinary::addToBinaryBreakupRate(), binaryBreakupModel(), LuoSvendsen::correct(), and LuoSvendsen::LuoSvendsen().

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/populationBalanceModel/binaryBreakupModels/binaryBreakupModel/binaryBreakupModel.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/populationBalanceModel/binaryBreakupModels/binaryBreakupModel/binaryBreakupModel.C
