breakupModel Class Reference

Base class for breakup models which give a total breakup rate and a separate daughter size distribution function. More...

#include <breakupModel.H>

Inheritance diagram for breakupModel:

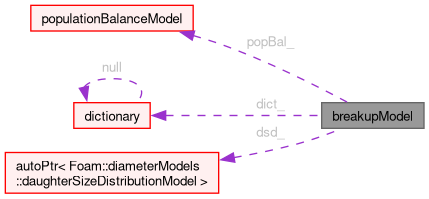

Collaboration diagram for breakupModel:

Classes
class	iNew
	Class used for the read-construction of. More...

Public Member Functions
	TypeName ("breakupModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, breakupModel, dictionary,(const populationBalanceModel &popBal, const dictionary &dict),(popBal, dict))
	breakupModel (const populationBalanceModel &popBal, const dictionary &dict)
autoPtr< breakupModel >	clone () const
virtual	~breakupModel ()=default
	Destructor.
const populationBalanceModel &	popBal () const
	Return reference to the populationBalanceModel.
const autoPtr< daughterSizeDistributionModel > &	dsdPtr () const
	Return const-reference to daughter size distribution pointer.
autoPtr< daughterSizeDistributionModel > &	dsdPtr ()
	Return reference to daughter size distribution pointer.
virtual void	correct ()
	Correct diameter independent expressions.
virtual void	setBreakupRate (volScalarField &breakupRate, const label i)=0
	Set total breakupRate.

Static Public Member Functions
static autoPtr< breakupModel >	New (const word &modelType, const populationBalanceModel &popBal, const dictionary &dict)

Protected Attributes
const populationBalanceModel &	popBal_
	Reference to the populationBalanceModel.
dictionary	dict_
	Dictionary.
autoPtr< daughterSizeDistributionModel >	dsd_
	Daughter size distribution model.

Detailed Description

Base class for breakup models which give a total breakup rate and a separate daughter size distribution function.

Source files

• breakupModel.H
• breakupModel.C

Definition at line 51 of file breakupModel.H.

Constructor & Destructor Documentation

breakupModel()

breakupModel	(	const populationBalanceModel &	popBal,
		const dictionary &	dict )

Definition at line 65 of file breakupModel.C.

References dict, dict_, dsd_, daughterSizeDistributionModel::New(), popBal(), and popBal_.

Referenced by declareRunTimeSelectionTable(), exponential::exponential(), LaakkonenAlopaeusAittamaa::LaakkonenAlopaeusAittamaa(), and powerLaw::powerLaw().

Here is the call graph for this function:

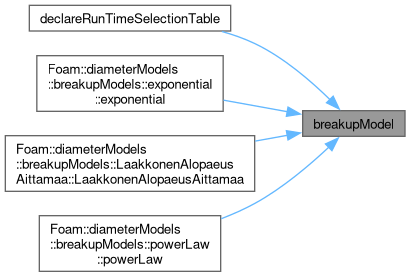

Here is the caller graph for this function:

~breakupModel()

virtual ~breakupModel ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"breakupModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		breakupModel	,
		dictionary	,
		(const populationBalanceModel &popBal, const dictionary &dict)	,
		(popBal, dict)	)

References breakupModel(), dict, and popBal().

Here is the call graph for this function:

clone()

autoPtr< breakupModel > clone ( ) const

inline

Definition at line 129 of file breakupModel.H.

References NotImplemented.

New()

Foam::autoPtr< Foam::diameterModels::breakupModel > New ( const word & modelType, const populationBalanceModel & popBal, const dictionary & dict )

static

Definition at line 39 of file breakupModel.C.

References Foam::abort(), dict, Foam::FatalIOError, FatalIOErrorInLookup, and popBal().

Referenced by breakupModel::iNew::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

popBal()

const populationBalanceModel & popBal ( ) const

inline

Return reference to the populationBalanceModel.

Definition at line 157 of file breakupModel.H.

References popBal_.

Referenced by breakupModel(), declareRunTimeSelectionTable(), exponential::exponential(), breakupModel::iNew::iNew(), LaakkonenAlopaeusAittamaa::LaakkonenAlopaeusAittamaa(), New(), powerLaw::powerLaw(), exponential::TypeName(), LaakkonenAlopaeusAittamaa::TypeName(), and powerLaw::TypeName().

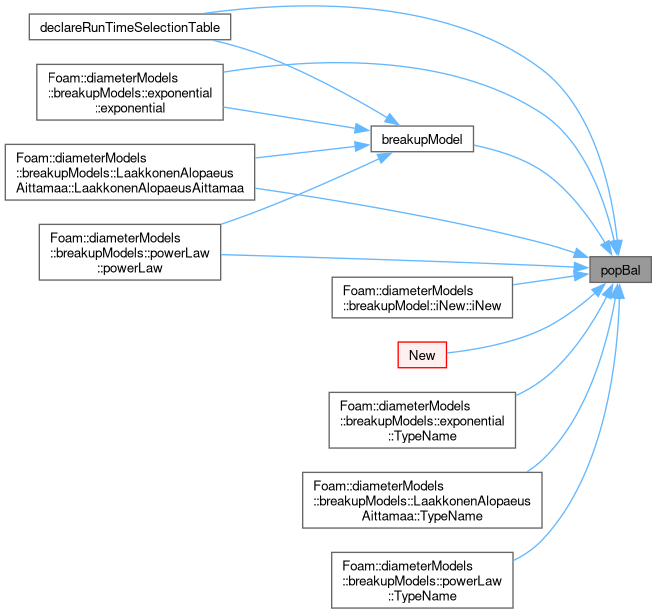

Here is the caller graph for this function:

dsdPtr() [1/2]

const autoPtr< daughterSizeDistributionModel > & dsdPtr ( ) const

inline

Return const-reference to daughter size distribution pointer.

Definition at line 165 of file breakupModel.H.

References dsd_.

dsdPtr() [2/2]

autoPtr< daughterSizeDistributionModel > & dsdPtr ( )

inline

Return reference to daughter size distribution pointer.

Definition at line 173 of file breakupModel.H.

References dsd_.

correct()

void correct ( )

virtual

Correct diameter independent expressions.

Definition at line 80 of file breakupModel.C.

setBreakupRate()

virtual void setBreakupRate ( volScalarField & breakupRate, const label i )

pure virtual

Set total breakupRate.

Implemented in exponential, LaakkonenAlopaeusAittamaa, and powerLaw.

Member Data Documentation

popBal_

const populationBalanceModel& popBal_

protected

Reference to the populationBalanceModel.

Definition at line 60 of file breakupModel.H.

Referenced by breakupModel(), popBal(), exponential::setBreakupRate(), LaakkonenAlopaeusAittamaa::setBreakupRate(), and powerLaw::setBreakupRate().

dict_

dictionary dict_

protected

Dictionary.

Definition at line 65 of file breakupModel.H.

Referenced by breakupModel().

dsd_

autoPtr<daughterSizeDistributionModel> dsd_

protected

Daughter size distribution model.

Definition at line 70 of file breakupModel.H.

Referenced by breakupModel(), dsdPtr(), and dsdPtr().

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/populationBalanceModel/breakupModels/breakupModel/breakupModel.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/populationBalanceModel/breakupModels/breakupModel/breakupModel.C
