wallBoiling Class Reference

Wall-boiling model which requires a velocityGroup (i.e. phase) to be specified in which the nucleation occurs. This setting must be consistent with the specifications in the alphatWallBoilingWallFunction. If the departure-diameter lies outside the diameter-range given by the sizeGroups of the corresponding velocityGroup, the solver will give a warning and the nucleation rate will be set to zero. More...

#include <wallBoiling.H>

Inheritance diagram for wallBoiling:

Collaboration diagram for wallBoiling:

Public Member Functions
	TypeName ("wallBoiling")
	Runtime type information.
	wallBoiling (const populationBalanceModel &popBal, const dictionary &dict)
virtual	~wallBoiling ()=default
	Destructor.
virtual void	correct ()
	Correct diameter independent expressions.
virtual void	addToNucleationRate (volScalarField &nucleationRate, const label i)
	Add to nucleationRate.
Public Member Functions inherited from nucleationModel
	TypeName ("nucleationModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, nucleationModel, dictionary,(const populationBalanceModel &popBal, const dictionary &dict),(popBal, dict))
	nucleationModel (const populationBalanceModel &popBal, const dictionary &dict)
autoPtr< nucleationModel >	clone () const
virtual	~nucleationModel ()=default
	Destructor.
const populationBalanceModel &	popBal () const
	Return reference to the populationBalanceModel.

Additional Inherited Members
Static Public Member Functions inherited from nucleationModel
static autoPtr< nucleationModel >	New (const word &type, const populationBalanceModel &popBal, const dictionary &dict)
Protected Attributes inherited from nucleationModel
const populationBalanceModel &	popBal_
	Reference to the populationBalanceModel.

Detailed Description

Wall-boiling model which requires a velocityGroup (i.e. phase) to be specified in which the nucleation occurs. This setting must be consistent with the specifications in the alphatWallBoilingWallFunction. If the departure-diameter lies outside the diameter-range given by the sizeGroups of the corresponding velocityGroup, the solver will give a warning and the nucleation rate will be set to zero.

Source files

• wallBoiling.H
• wallBoiling.C

Definition at line 56 of file wallBoiling.H.

Constructor & Destructor Documentation

wallBoiling()

wallBoiling	(	const populationBalanceModel &	popBal,
		const dictionary &	dict )

Definition at line 48 of file wallBoiling.C.

References dict, mesh, Foam::name(), nucleationModel::nucleationModel(), nucleationModel::popBal(), nucleationModel::popBal_, and Foam::refCast().

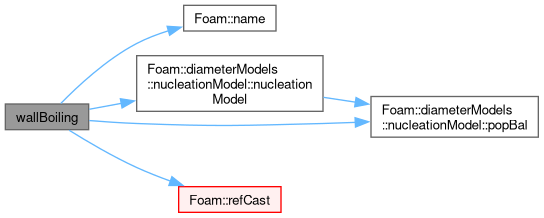

Here is the call graph for this function:

~wallBoiling()

virtual ~wallBoiling ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"wallBoiling"

)

Runtime type information.

References dict, and nucleationModel::popBal().

Here is the call graph for this function:

correct()

void correct ( )

virtual

Correct diameter independent expressions.

Reimplemented from nucleationModel.

Definition at line 86 of file wallBoiling.C.

References Foam::endl(), forAll, Foam::isA(), Foam::max(), Foam::min(), nucleationModel::popBal_, Foam::refCast(), and Foam::Warning.

Here is the call graph for this function:

addToNucleationRate()

void addToNucleationRate ( volScalarField & nucleationRate, const label i )

virtual

Add to nucleationRate.

Implements nucleationModel.

Definition at line 142 of file wallBoiling.C.

References Foam::dimLength, forAll, Foam::isA(), sizeGroup::phase(), nucleationModel::popBal_, Foam::pow3(), Foam::refCast(), phase::rho(), rho, trho, dimensioned< Type >::value(), and sizeGroup::x().

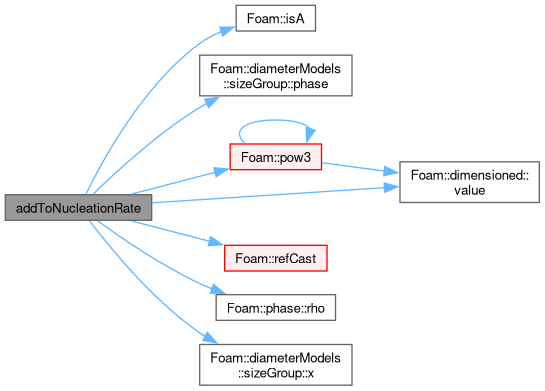

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/populationBalanceModel/nucleationModels/wallBoiling/wallBoiling.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/populationBalanceModel/nucleationModels/wallBoiling/wallBoiling.C
