Dimension set for the base types, which can be used to implement rigorous dimension checking for algebraic manipulation. More...

#include <dimensionSet.H>

Public Types
enum	dimensionType { MASS , LENGTH , TIME , TEMPERATURE , MOLES , CURRENT , LUMINOUS_INTENSITY }
	Enumeration for the dimension exponents. More...
typedef FixedList< scalar, 7 >	list_type
	The array of dimension exponents.

Public Member Functions
	ClassName ("dimensionSet")
	dimensionSet ()
	Default construct (dimensionless).
	dimensionSet (const scalar mass, const scalar length, const scalar time, const scalar temperature, const scalar moles, const scalar current=0, const scalar luminousIntensity=0)
	Construct from exponents for the first five or all seven dimensions.
	dimensionSet (const FixedList< scalar, 7 > &dimensions)
	Construct from exponents for all seven dimensions.
	dimensionSet (const dimensionSet &ds)
	Copy construct.
	dimensionSet (const word &entryName, const dictionary &dict, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ)
	Construct from dictionary entry (usually "dimensions").
autoPtr< dimensionSet >	clone () const
	Construct and return a clone.
	dimensionSet (Istream &is)
	Construct from Istream.
bool	dimensionless () const
	Return true if it is dimensionless.
const FixedList< scalar, 7 > &	values () const noexcept
	Const access to the exponents as a list.
FixedList< scalar, 7 > &	values () noexcept
	Non-const access to the exponents as a list.
void	clear ()
	Clear exponents - resets to be dimensionless.
void	reset (const dimensionSet &ds)
	Copy assign the exponents from the dimensionSet.
bool	readEntry (const word &entryName, const dictionary &dict, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ)
	Update the dimensions from dictionary entry. FatalIOError if it is found and the number of tokens is incorrect, or it is mandatory and not found.
bool	readIfPresent (const word &entryName, const dictionary &dict)
	Update the dimensions from dictionary entry. FatalIOError if it is found and the number of tokens is incorrect, or it is mandatory and not found.
Istream &	read (Istream &is, scalar &multiplier, const dictionary &)
	Read using provided units, return scaling in multiplier. Used only in initial parsing.
Istream &	read (Istream &is, scalar &multiplier, const HashTable< dimensionedScalar > &)
	Read using provided units, return scaling in multiplier.
Istream &	read (Istream &is, scalar &multiplier)
	Read using system units, return scaling in multiplier.
Ostream &	write (Ostream &os, scalar &multiplier, const dimensionSets &writeUnits) const
	Write using provided write units, return scaling in multiplier.
Ostream &	write (Ostream &os, scalar &multiplier) const
	Write using system units, return scaling in multiplier.
scalar	operator[] (const dimensionType) const
scalar &	operator[] (const dimensionType)
scalar	operator[] (const int) const
scalar &	operator[] (const int)
bool	operator== (const dimensionSet &) const
bool	operator!= (const dimensionSet &) const
bool	operator= (const dimensionSet &) const
	Assignment operation, checks for identical dimensions. Use reset() to change the dimensions.
bool	operator+= (const dimensionSet &) const
	Addition operation, checks for identical dimensions.
bool	operator-= (const dimensionSet &) const
	Subtraction operation, checks for identical dimensions.
bool	operator*= (const dimensionSet &)
	Multiplication, modifies the exponents.
bool	operator/= (const dimensionSet &)
	Division, modifies the exponents.

Static Public Member Functions
static bool	checking (bool on) noexcept
	Turn dimension checking on/off.
static bool	checking () noexcept
	True if dimension checking is enabled (the usual default).

Static Public Attributes
static constexpr int	nDimensions = 7
	There are 7 base dimensions.
static const scalar	smallExponent = SMALL
	Tolerance for 'small' exponents, for near-zero rounding.

Detailed Description

Dimension set for the base types, which can be used to implement rigorous dimension checking for algebraic manipulation.

The dimensions are specified in the following order (SI units for reference only):

Property	SI Description	SI unit
`MASS`	kilogram	`kg`
`LENGTH`	metre	`m`
`TIME`	second	`s`
`TEMPERATURE`	Kelvin	`K`
`MOLES`	mole	`mol`
`CURRENT`	Ampere	`A`
`LUMINOUS_INTENSITY`	Candela	`cd`

Source files

Definition at line 105 of file dimensionSet.H.

Member Typedef Documentation

◆ list_type

typedef FixedList<scalar,7> list_type

The array of dimension exponents.

Definition at line 112 of file dimensionSet.H.

Member Enumeration Documentation

◆ dimensionType

enum dimensionType

Enumeration for the dimension exponents.

Enumerator
MASS	kilogram `kg`
LENGTH	metre `m`
TIME	second `s`
TEMPERATURE	Kelvin `K`.
MOLES	mole `mol`
CURRENT	Ampere `A`.
LUMINOUS_INTENSITY	Candela `cd`.

Definition at line 125 of file dimensionSet.H.

Constructor & Destructor Documentation

◆ dimensionSet() [1/6]

dimensionSet ( )

Default construct (dimensionless).

Definition at line 64 of file dimensionSet.C.

Referenced by dimensionSet(), operator!=(), operator*=(), operator+=(), operator-=(), operator/=(), operator=(), operator==(), read(), and reset().

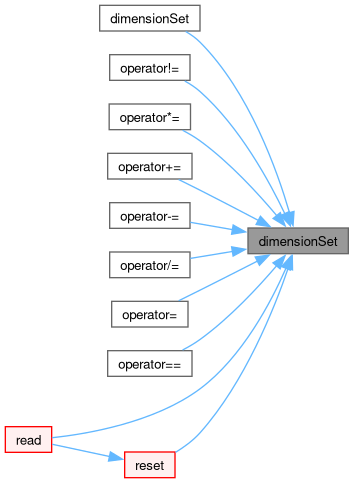

Here is the caller graph for this function:

◆ dimensionSet() [2/6]

dimensionSet	(	const scalar	mass,
		const scalar	length,
		const scalar	time,
		const scalar	temperature,
		const scalar	moles,
		const scalar	current = 0,
		const scalar	luminousIntensity = 0 )

Construct from exponents for the first five or all seven dimensions.

Definition at line 70 of file dimensionSet.C.

References CURRENT, LENGTH, LUMINOUS_INTENSITY, MASS, MOLES, TEMPERATURE, and TIME.

◆ dimensionSet() [3/6]

dimensionSet ( const FixedList< scalar, 7 > & dimensions )

Construct from exponents for all seven dimensions.

Definition at line 93 of file dimensionSet.C.

◆ dimensionSet() [4/6]

dimensionSet ( const dimensionSet & ds )

Copy construct.

Definition at line 99 of file dimensionSet.C.

References dimensionSet().

Here is the call graph for this function:

◆ dimensionSet() [5/6]

dimensionSet	(	const word &	entryName,
		const dictionary &	dict,
		IOobjectOption::readOption	readOpt = IOobjectOption::MUST_READ )

Construct from dictionary entry (usually "dimensions").

Dimensionless if non-mandatory and not found.

Parameters

entryName Lookup key. LITERAL (not REGEX)

Definition at line 30 of file dimensionSetIO.C.

References dict, readEntry(), and Foam::Zero.

Here is the call graph for this function:

◆ dimensionSet() [6/6]

dimensionSet ( Istream & is )

explicit

Construct from Istream.

Definition at line 43 of file dimensionSetIO.C.

Member Function Documentation

◆ ClassName()

ClassName ( "dimensionSet" )

◆ checking() [1/2]

bool checking ( bool on )

inlinestaticnoexcept

Turn dimension checking on/off.

Returns: the previous value

Definition at line 231 of file dimensionSet.H.

Here is the caller graph for this function:

◆ checking() [2/2]

bool checking ( )

inlinestaticnoexcept

True if dimension checking is enabled (the usual default).

Definition at line 241 of file dimensionSet.H.

References Foam::noexcept.

Referenced by SemiImplicitSource< Type >::addSup(), and fvExprDriver::getOrReadFieldImpl().

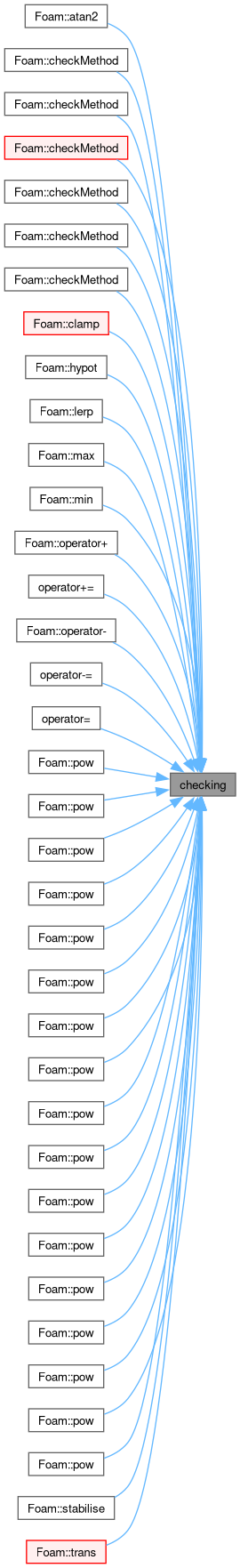

Here is the caller graph for this function:

◆ clone()

autoPtr< dimensionSet > clone ( ) const

inline

Construct and return a clone.

Definition at line 293 of file dimensionSet.H.

References autoPtr< T >::New().

Here is the call graph for this function:

◆ dimensionless()

bool dimensionless ( ) const

Return true if it is dimensionless.

Definition at line 107 of file dimensionSet.C.

References smallExponent.

Referenced by Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), and Foam::trans().

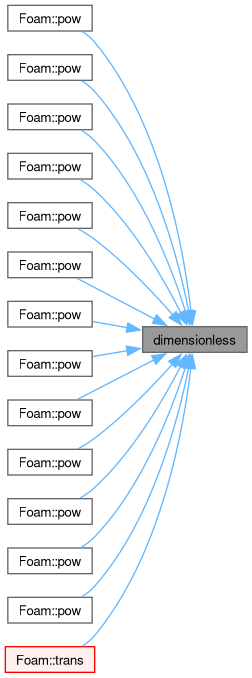

Here is the caller graph for this function:

◆ values() [1/2]

const Foam::FixedList< Foam::scalar, 7 > & values ( ) const

noexcept

Const access to the exponents as a list.

Definition at line 123 of file dimensionSet.C.

References Foam::noexcept.

Referenced by Foam::operator*(), Foam::operator/(), and read().

Here is the caller graph for this function:

◆ values() [2/2]

Foam::FixedList< Foam::scalar, 7 > & values ( )

noexcept

Non-const access to the exponents as a list.

Definition at line 130 of file dimensionSet.C.

References Foam::noexcept.

◆ clear()

void clear ( )

Clear exponents - resets to be dimensionless.

Definition at line 136 of file dimensionSet.C.

◆ reset()

void reset ( const dimensionSet & ds )

Copy assign the exponents from the dimensionSet.

Definition at line 142 of file dimensionSet.C.

References dimensionSet().

Referenced by wallShearStress::calcShearStress(), Foam::Expression::fvmLaplacianUncorrected(), read(), parseDriver::setResult(), parseDriver::setResult(), and parseDriver::setResult().

Here is the call graph for this function:

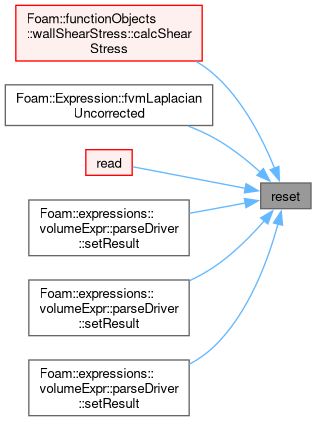

Here is the caller graph for this function:

◆ readEntry()

bool readEntry	(	const word &	entryName,
		const dictionary &	dict,
		IOobjectOption::readOption	readOpt = IOobjectOption::MUST_READ )

Update the dimensions from dictionary entry. FatalIOError if it is found and the number of tokens is incorrect, or it is mandatory and not found.

Returns: true if the entry was found.

Parameters

entryName	Lookup key. LITERAL (not REGEX)
dict	The dictionary
readOpt	The read option

Definition at line 408 of file dimensionSetIO.C.

References dict, e, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, IOobjectOption::isReadRequired(), keyType::LITERAL, Foam::nl, and IOobjectOption::NO_READ.

Referenced by dimensionSet(), and readIfPresent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readIfPresent()

bool readIfPresent	(	const word &	entryName,
		const dictionary &	dict )

inline

Update the dimensions from dictionary entry. FatalIOError if it is found and the number of tokens is incorrect, or it is mandatory and not found.

Returns: true if the entry was found.

Parameters

entryName	Lookup key. LITERAL (not REGEX)
dict	The dictionary

Definition at line 358 of file dimensionSet.H.

References dict, IOobjectOption::READ_IF_PRESENT, readEntry(), and readIfPresent().

Referenced by readIfPresent().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read() [1/3]

Foam::Istream & read	(	Istream &	is,
		scalar &	multiplier,
		const dictionary &	readSet )

Read using provided units, return scaling in multiplier. Used only in initial parsing.

Definition at line 532 of file dimensionSetIO.C.

References token::BEGIN_SQR, IOstream::check(), CURRENT, dimensionSet(), token::END_SQR, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, FUNCTION_NAME, IOstream::info(), token::isNumber(), token::isWord(), keyType::LITERAL, dictionary::lookup(), LUMINOUS_INTENSITY, MASS, nDimensions, Foam::nl, token::number(), Foam::pow(), reset(), s(), smallExponent, and token::wordToken().

Referenced by Foam::operator>>().

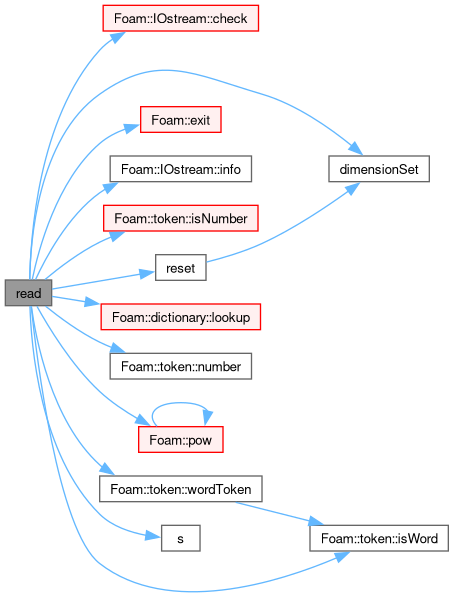

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read() [2/3]

Foam::Istream & read	(	Istream &	is,
		scalar &	multiplier,
		const HashTable< dimensionedScalar > &	readSet )

Read using provided units, return scaling in multiplier.

Definition at line 445 of file dimensionSetIO.C.

References token::BEGIN_SQR, IOstream::check(), CURRENT, dimensioned< Type >::dimensions(), token::END_SQR, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, FUNCTION_NAME, IOstream::info(), token::isNumber(), LUMINOUS_INTENSITY, MASS, Foam::nl, token::number(), Istream::putBack(), dimensioned< Type >::value(), and values().

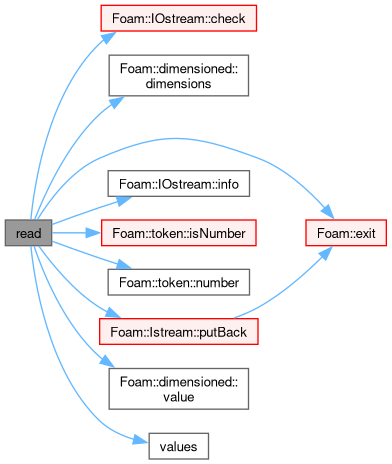

Here is the call graph for this function:

◆ read() [3/3]

Foam::Istream & read	(	Istream &	is,
		scalar &	multiplier )

Read using system units, return scaling in multiplier.

Definition at line 522 of file dimensionSetIO.C.

References Foam::read(), and Foam::unitSet().

Here is the call graph for this function:

◆ write() [1/2]

Foam::Ostream & write	(	Ostream &	os,
		scalar &	multiplier,
		const dimensionSets &	writeUnits ) const

Write using provided write units, return scaling in multiplier.

Definition at line 656 of file dimensionSetIO.C.

References IOstreamOption::ASCII, token::BEGIN_SQR, dimensionSets::coefficients(), token::END_SQR, forAll, FUNCTION_NAME, dimensionSets::good(), Foam::mag(), dimensioned< Type >::name(), nDimensions, os(), Foam::pow(), smallExponent, token::SPACE, dimensionSets::units(), and dimensioned< Type >::value().

Referenced by Foam::operator<<().

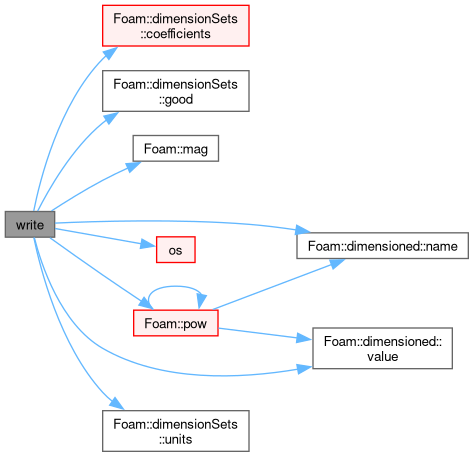

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write() [2/2]

Foam::Ostream & write	(	Ostream &	os,
		scalar &	multiplier ) const

Write using system units, return scaling in multiplier.

Definition at line 728 of file dimensionSetIO.C.

References os(), write(), and Foam::writeUnitSet().

Here is the call graph for this function:

◆ operator[]() [1/4]

Foam::scalar operator[] ( const dimensionType type ) const

Definition at line 150 of file dimensionSet.C.

◆ operator[]() [2/4]

Foam::scalar & operator[] ( const dimensionType type )

Definition at line 156 of file dimensionSet.C.

◆ operator[]() [3/4]

Foam::scalar operator[] ( const int type ) const

Definition at line 162 of file dimensionSet.C.

◆ operator[]() [4/4]

Foam::scalar & operator[] ( const int type )

Definition at line 168 of file dimensionSet.C.

◆ operator==()

bool operator== ( const dimensionSet & ds ) const

Definition at line 174 of file dimensionSet.C.

References dimensionSet(), Foam::mag(), nDimensions, and smallExponent.

Here is the call graph for this function:

◆ operator!=()

bool operator!= ( const dimensionSet & ds ) const

Definition at line 192 of file dimensionSet.C.

References dimensionSet(), and Foam::operator==().

Here is the call graph for this function:

◆ operator=()

bool operator= ( const dimensionSet & ds ) const

Assignment operation, checks for identical dimensions. Use reset() to change the dimensions.

Definition at line 198 of file dimensionSet.C.

References Foam::checkDims(), checking(), and dimensionSet().

Here is the call graph for this function:

◆ operator+=()

bool operator+= ( const dimensionSet & ds ) const

Addition operation, checks for identical dimensions.

Definition at line 209 of file dimensionSet.C.

References Foam::checkDims(), checking(), and dimensionSet().

Here is the call graph for this function:

◆ operator-=()

bool operator-= ( const dimensionSet & ds ) const

Subtraction operation, checks for identical dimensions.

Definition at line 220 of file dimensionSet.C.

References Foam::checkDims(), checking(), and dimensionSet().

Here is the call graph for this function:

◆ operator*=()

bool operator*= ( const dimensionSet & ds )

Multiplication, modifies the exponents.

Definition at line 231 of file dimensionSet.C.

References dimensionSet(), and reset().

Here is the call graph for this function:

◆ operator/=()

bool operator/= ( const dimensionSet & ds )

Division, modifies the exponents.

Definition at line 239 of file dimensionSet.C.

References dimensionSet(), and reset().

Here is the call graph for this function:

Member Data Documentation

◆ nDimensions

int nDimensions = 7

staticconstexpr

There are 7 base dimensions.

Definition at line 120 of file dimensionSet.H.

Referenced by operator==(), read(), and write().

◆ smallExponent

const Foam::scalar smallExponent = SMALL

static

Tolerance for 'small' exponents, for near-zero rounding.

Definition at line 142 of file dimensionSet.H.

Referenced by dimensionless(), operator==(), Foam::operator>>(), read(), and write().

The documentation for this class was generated from the following files:

src/OpenFOAM/dimensionSet/dimensionSet.H
src/OpenFOAM/dimensionSet/dimensionSet.C
src/OpenFOAM/dimensionSet/dimensionSetIO.C

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Member Typedef Documentation

◆ list_type

Member Enumeration Documentation

◆ dimensionType

Constructor & Destructor Documentation

◆ dimensionSet() [1/6]

◆ dimensionSet() [2/6]

◆ dimensionSet() [3/6]

◆ dimensionSet() [4/6]

◆ dimensionSet() [5/6]

◆ dimensionSet() [6/6]

Member Function Documentation

◆ ClassName()

◆ checking() [1/2]

◆ checking() [2/2]

◆ clone()

◆ dimensionless()

◆ values() [1/2]

◆ values() [2/2]

◆ clear()

◆ reset()

◆ readEntry()

◆ readIfPresent()

◆ read() [1/3]

◆ read() [2/3]

◆ read() [3/3]

◆ write() [1/2]

◆ write() [2/2]

◆ operator[]() [1/4]

◆ operator[]() [2/4]

◆ operator[]() [3/4]

◆ operator[]() [4/4]

◆ operator==()

◆ operator!=()

◆ operator=()

◆ operator+=()

◆ operator-=()

◆ operator*=()

◆ operator/=()

Member Data Documentation

◆ nDimensions

◆ smallExponent
