Exponential properties for solid heat transport Templated into a given thermodynamics package. More...

#include <exponentialSolidTransport.H>

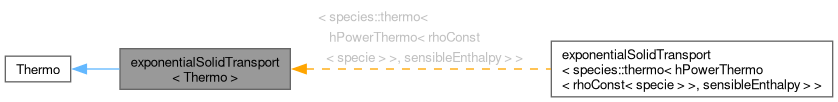

Inheritance diagram for exponentialSolidTransport< Thermo >:

[legend]

Collaboration diagram for exponentialSolidTransport< Thermo >:

Public Member Functions
	exponentialSolidTransport (const word &, const exponentialSolidTransport &)
	Construct as named copy.
	exponentialSolidTransport (const dictionary &)
	Construct from dictionary.
scalar	kappa (const scalar p, const scalar T) const
	Thermal conductivity [W/mK].
vector	Kappa (const scalar p, const scalar T) const
	Thermal conductivity [W/mK].
scalar	mu (const scalar p, const scalar T) const
	Dynamic viscosity [kg/ms].
scalar	alphah (const scalar p, const scalar T) const
	Thermal diffusivity of enthalpy [kg/ms].
void	write (Ostream &os) const
	Write to Ostream.
void	operator+= (const exponentialSolidTransport &)

Static Public Member Functions
static autoPtr< exponentialSolidTransport >	New (const dictionary &dict)
static word	typeName ()
	Return the instantiated type name.

Static Public Attributes
static const bool	isotropic = true
	Is the thermal conductivity isotropic.

Friends
exponentialSolidTransport	operator* (const scalar, const exponentialSolidTransport &)
Ostream &	operator<< (Ostream &, const exponentialSolidTransport &)

Detailed Description

template<class Thermo>
class Foam::exponentialSolidTransport< Thermo >

Exponential properties for solid heat transport Templated into a given thermodynamics package.

Source files

Definition at line 67 of file exponentialSolidTransport.H.

Constructor & Destructor Documentation

◆ exponentialSolidTransport() [1/2]

template<class Thermo>

exponentialSolidTransport	(	const word &	name,
		const exponentialSolidTransport< Thermo > &	ct )

inline

Construct as named copy.

Definition at line 40 of file exponentialSolidTransportI.H.

References Foam::name().

Here is the call graph for this function:

◆ exponentialSolidTransport() [2/2]

template<class Thermo>

exponentialSolidTransport ( const dictionary & dict )

explicit

Construct from dictionary.

Definition at line 27 of file exponentialSolidTransport.C.

References dict.

Member Function Documentation

◆ New()

template<class Thermo>

Foam::autoPtr< Foam::exponentialSolidTransport< Thermo > > New ( const dictionary & dict )

inlinestatic

Definition at line 55 of file exponentialSolidTransportI.H.

References dict, and Foam::New().

Here is the call graph for this function:

◆ typeName()

template<class Thermo>

word typeName ( )

inlinestatic

Return the instantiated type name.

Definition at line 136 of file exponentialSolidTransport.H.

◆ kappa()

template<class Thermo>

Foam::scalar kappa	(	const scalar	p,
		const scalar	T ) const

inline

Thermal conductivity [W/mK].

Definition at line 66 of file exponentialSolidTransportI.H.

References p, Foam::pow(), and Foam::T().

Referenced by alphah(), and Kappa().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Kappa()

template<class Thermo>

Foam::vector Kappa	(	const scalar	p,
		const scalar	T ) const

inline

Thermal conductivity [W/mK].

Definition at line 76 of file exponentialSolidTransportI.H.

References kappa(), p, Foam::pow(), and Foam::T().

Here is the call graph for this function:

◆ mu()

template<class Thermo>

Foam::scalar mu	(	const scalar	p,
		const scalar	T ) const

inline

Dynamic viscosity [kg/ms].

Definition at line 87 of file exponentialSolidTransportI.H.

References NotImplemented, p, and Foam::T().

Here is the call graph for this function:

◆ alphah()

template<class Thermo>

Foam::scalar alphah	(	const scalar	p,
		const scalar	T ) const

inline

Thermal diffusivity of enthalpy [kg/ms].

Definition at line 96 of file exponentialSolidTransportI.H.

References Cp, kappa(), p, and Foam::T().

Here is the call graph for this function:

◆ write()

template<class Thermo>

void write ( Ostream & os ) const

Write to Ostream.

◆ operator+=()

template<class Thermo>

void operator+= ( const exponentialSolidTransport< Thermo > & )

inline

Definition at line 105 of file exponentialSolidTransportI.H.

References Y.

◆ operator*

template<class Thermo>

exponentialSolidTransport operator*	(	const scalar	,
		const exponentialSolidTransport< Thermo > &	)

friend

◆ operator<<

template<class Thermo>

Ostream & operator<<	(	Ostream &	,
		const exponentialSolidTransport< Thermo > &	)

friend

Member Data Documentation

◆ isotropic

template<class Thermo>

const bool isotropic = true

static

Is the thermal conductivity isotropic.

Definition at line 144 of file exponentialSolidTransport.H.

The documentation for this class was generated from the following files:

src/thermophysicalModels/solidSpecie/transport/exponential/exponentialSolidTransport.H
src/thermophysicalModels/solidSpecie/transport/exponential/exponentialSolidTransport.C
src/thermophysicalModels/solidSpecie/transport/exponential/exponentialSolidTransportI.H
