An expressions::exprValue (polymorphic typed union) with an additional flag for tracking Field content as uniform etc. More...

#include <exprValueFieldTag.H>

Classes
struct	combineOp
	Binary combine operator, e.g. for global reduction. More...

Public Member Functions
	exprValueFieldTag ()=default
	Default construct. Uniformity = empty, type = none.
	exprValueFieldTag (const exprValueFieldTag &)=default
	Copy construct.
exprValueFieldTag &	operator= (const exprValueFieldTag &)=default
	Copy assignment.
template<class Type>
	exprValueFieldTag (const Type &val)
	Construct as uniform with the specified type/value.
template<class Type>
	exprValueFieldTag (const Type first, const Type last)
	Construct from a range of values.
bool	empty () const noexcept
	True if the uniformity is "empty".
bool	is_uniform () const noexcept
	True if the uniformity is "uniform".
bool	is_nonuniform () const noexcept
	True if the uniformity is "non-uniform".
const expressions::exprValue &	value () const noexcept
	Representative (uniform) value for the field.
int	compare (const exprValueFieldTag &rhs) const
	Compare (uniformity, type, value).
bool	equal (const exprValueFieldTag &rhs) const
	Test for equality of the values.
template<class Type>
void	set (const Type first, const Type last)
	Set value and uniformity from range of data.
template<class Type>
void	set_value (const Type &val)
	Set as uniform, with specified value.
template<class Type>
void	set_zero ()
	Set type and zero value (does not affect uniformity).
void	set_empty ()
	Set as empty with zero value, leave type unchanged.
void	set_nouniform ()
	Set as non-uniform with zero value, leave type unchanged.
void	reduce ()
	Inplace parallel reduction, uses worldComm.
void	combine (const exprValueFieldTag &b)
	Inplace combine - eg, for global uniformity.
void	read (Istream &is)
	Read uniformity label and the value as pair.
void	write (Ostream &os) const
	Write uniformity label and the value as pair.
void	print (Ostream &os) const
	Print description to Ostream.
void	operator= (Foam::zero)
	Assign from zero. Changes value but not type.
bool	operator== (const exprValueFieldTag &) const
	Compare (uniformity,value) for equality.
bool	operator!= (const exprValueFieldTag &rhs) const
	Compare (uniformity,value) for inequality.
bool	operator< (const exprValueFieldTag &) const
	Compare (uniformity,value).

Static Public Member Functions
template<class Type>
static exprValueFieldTag	make_empty ()
	Make an empty field tag with the specified type (zero-value).
static exprValueFieldTag	returnReduce (const exprValueFieldTag &tag)
	Perform a reduction on a copy and return the result.

Detailed Description

An expressions::exprValue (polymorphic typed union) with an additional flag for tracking Field content as uniform etc.

Source files

Definition at line 50 of file exprValueFieldTag.H.

Constructor & Destructor Documentation

◆ exprValueFieldTag() [1/4]

exprValueFieldTag ( )

default

Default construct. Uniformity = empty, type = none.

Referenced by combine(), compare(), equal(), exprValueFieldTag(), make_empty(), operator!=(), exprValueFieldTag::combineOp::operator()(), operator<(), operator=(), operator==(), and returnReduce().

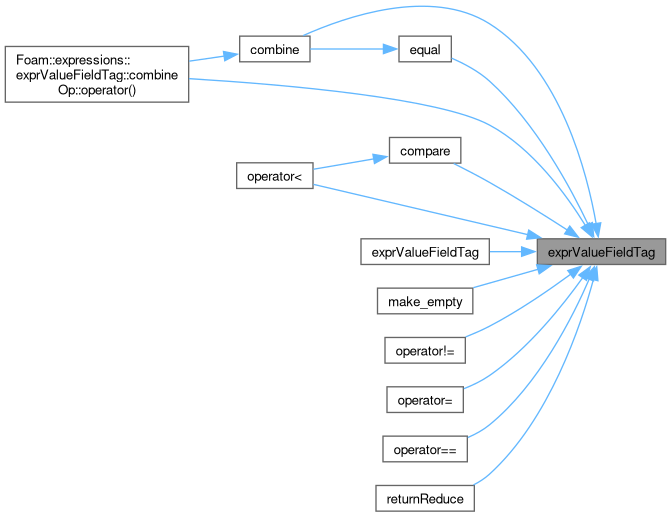

Here is the caller graph for this function:

◆ exprValueFieldTag() [2/4]

exprValueFieldTag ( const exprValueFieldTag & )

default

Copy construct.

References exprValueFieldTag().

Here is the call graph for this function:

◆ exprValueFieldTag() [3/4]

template<class Type>

exprValueFieldTag ( const Type & val )

inlineexplicit

Construct as uniform with the specified type/value.

Definition at line 93 of file exprValueFieldTag.H.

References set_value().

Here is the call graph for this function:

◆ exprValueFieldTag() [4/4]

template<class Type>

exprValueFieldTag	(	const Type *	first,
		const Type *	last )

inlineexplicit

Construct from a range of values.

Definition at line 102 of file exprValueFieldTag.H.

References set().

Here is the call graph for this function:

Member Function Documentation

◆ operator=() [1/2]

exprValueFieldTag & operator= ( const exprValueFieldTag & )

default

Copy assignment.

References exprValueFieldTag().

Here is the call graph for this function:

◆ make_empty()

template<class Type>

exprValueFieldTag make_empty ( )

inlinestatic

Make an empty field tag with the specified type (zero-value).

Definition at line 114 of file exprValueFieldTag.H.

References exprValueFieldTag(), and set_zero().

Here is the call graph for this function:

◆ empty()

bool empty ( ) const

noexcept

True if the uniformity is "empty".

Definition at line 26 of file exprValueFieldTag.C.

References Foam::ListPolicy::EMPTY, and Foam::noexcept.

Referenced by combine().

Here is the caller graph for this function:

◆ is_uniform()

bool is_uniform ( ) const

noexcept

True if the uniformity is "uniform".

Definition at line 35 of file exprValueFieldTag.C.

References Foam::noexcept, and Foam::ListPolicy::UNIFORM.

Referenced by combine().

Here is the caller graph for this function:

◆ is_nonuniform()

bool is_nonuniform ( ) const

noexcept

True if the uniformity is "non-uniform".

Definition at line 44 of file exprValueFieldTag.C.

References Foam::noexcept, and Foam::ListPolicy::NONUNIFORM.

◆ value()

const Foam::expressions::exprValue & value ( ) const

noexcept

Representative (uniform) value for the field.

Definition at line 56 of file exprValueFieldTag.C.

References Foam::noexcept.

◆ compare()

int compare ( const exprValueFieldTag & rhs ) const

Compare (uniformity, type, value).

Definition at line 76 of file exprValueFieldTag.C.

References exprValueFieldTag(), and Foam::rhs().

Referenced by operator<().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ equal()

bool equal ( const exprValueFieldTag & rhs ) const

Test for equality of the values.

Definition at line 96 of file exprValueFieldTag.C.

References exprValueFieldTag(), and Foam::rhs().

Referenced by combine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set()

template<class Type>

void set	(	const Type *	first,
		const Type *	last )

inline

Set value and uniformity from range of data.

Definition at line 161 of file exprValueFieldTag.H.

References Foam::ListPolicy::check_uniformity(), and set().

Referenced by exprValueFieldTag(), and set().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_value()

template<class Type>

void set_value ( const Type & val )

inline

Set as uniform, with specified value.

Definition at line 180 of file exprValueFieldTag.H.

References Foam::ListPolicy::UNIFORM.

Referenced by exprValueFieldTag().

Here is the caller graph for this function:

◆ set_zero()

template<class Type>

void set_zero ( )

inline

Set type and zero value (does not affect uniformity).

Definition at line 190 of file exprValueFieldTag.H.

Referenced by make_empty().

Here is the caller graph for this function:

◆ set_empty()

void set_empty ( )

Set as empty with zero value, leave type unchanged.

Definition at line 62 of file exprValueFieldTag.C.

References Foam::ListPolicy::EMPTY.

◆ set_nouniform()

void set_nouniform ( )

Set as non-uniform with zero value, leave type unchanged.

Definition at line 69 of file exprValueFieldTag.C.

References Foam::ListPolicy::NONUNIFORM.

Referenced by combine(), and reduce().

Here is the caller graph for this function:

◆ reduce()

void reduce ( )

Inplace parallel reduction, uses worldComm.

Definition at line 105 of file exprValueFieldTag.C.

References Foam::ListPolicy::EMPTY, UPstream::is_parallel(), UPstream::msgType(), Foam::reduce(), set_nouniform(), Foam::ListPolicy::UNIFORM, and UPstream::worldComm.

Referenced by returnReduce().

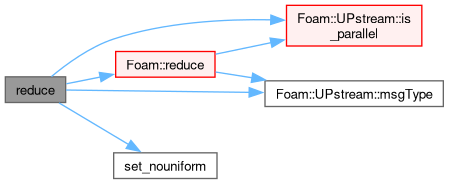

Here is the call graph for this function:

Here is the caller graph for this function:

◆ returnReduce()

Foam::expressions::exprValueFieldTag returnReduce ( const exprValueFieldTag & tag )

static

Perform a reduction on a copy and return the result.

Definition at line 174 of file exprValueFieldTag.C.

References exprValueFieldTag(), and reduce().

Here is the call graph for this function:

◆ combine()

void combine ( const exprValueFieldTag & b )

Inplace combine - eg, for global uniformity.

Definition at line 185 of file exprValueFieldTag.C.

References b, empty(), equal(), exprValueFieldTag(), is_uniform(), and set_nouniform().

Referenced by exprValueFieldTag::combineOp::operator()().

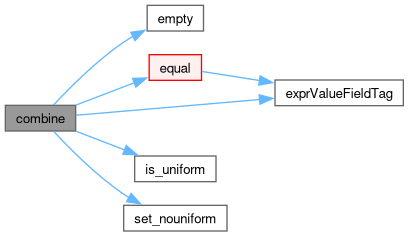

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read()

void read ( Istream & is )

Read uniformity label and the value as pair.

Definition at line 246 of file exprValueFieldTag.C.

References Istream::readBegin(), and Istream::readEnd().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

Write uniformity label and the value as pair.

Definition at line 260 of file exprValueFieldTag.C.

References token::BEGIN_LIST, token::END_LIST, os(), and token::SPACE.

Here is the call graph for this function:

◆ print()

void print ( Ostream & os ) const

Print description to Ostream.

Definition at line 269 of file exprValueFieldTag.C.

References os().

Here is the call graph for this function:

◆ operator=() [2/2]

void operator= ( Foam::zero )

inline

Assign from zero. Changes value but not type.

Definition at line 267 of file exprValueFieldTag.H.

◆ operator==()

bool operator== ( const exprValueFieldTag & rhs ) const

Compare (uniformity,value) for equality.

Definition at line 220 of file exprValueFieldTag.C.

References exprValueFieldTag(), and Foam::rhs().

Here is the call graph for this function:

◆ operator!=()

bool operator!= ( const exprValueFieldTag & rhs ) const

inline

Compare (uniformity,value) for inequality.

Definition at line 277 of file exprValueFieldTag.H.

References exprValueFieldTag(), and Foam::rhs().

Here is the call graph for this function:

◆ operator<()

bool operator< ( const exprValueFieldTag & rhs ) const

Compare (uniformity,value).

Definition at line 237 of file exprValueFieldTag.C.

References compare(), exprValueFieldTag(), and Foam::rhs().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/expressions/value/exprValueFieldTag.H
src/OpenFOAM/expressions/value/exprValueFieldTag.C
