faceSelection Class Reference

Face selection method for createBaffles. More...

#include <faceSelection.H>

Inheritance diagram for faceSelection:

Collaboration diagram for faceSelection:

Public Member Functions
	TypeName ("faceSelection")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, faceSelection, dictionary,(const word &name, const fvMesh &mesh, const dictionary &dict),(name, mesh, dict))
	faceSelection (const word &name, const fvMesh &mesh, const dictionary &dict)
	Construct from dictionary.
autoPtr< faceSelection >	clone () const
	Clone.
virtual	~faceSelection ()
	Destructor.
const word &	name () const
const dictionary &	dict () const
virtual void	select (const label, labelList &, boolList &) const =0

Static Public Member Functions
static autoPtr< faceSelection >	New (const word &name, const fvMesh &mesh, const dictionary &dict)
	Return a reference to the selected faceSelection.

Protected Attributes
const word	name_
	Name.
const fvMesh &	mesh_
	Reference to mesh.
const dictionary	dict_
	Input dictionary.
const bool	flip_
	Switch direction?

Detailed Description

Face selection method for createBaffles.

Source files

• faceSelection.H
• faceSelection.C

Definition at line 54 of file faceSelection.H.

Constructor & Destructor Documentation

faceSelection()

faceSelection	(	const word &	name,
		const fvMesh &	mesh,
		const dictionary &	dict )

Construct from dictionary.

References dict(), mesh, and name().

Referenced by declareRunTimeSelectionTable().

Here is the call graph for this function:

Here is the caller graph for this function:

~faceSelection()

virtual ~faceSelection ( )

virtual

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"faceSelection"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		faceSelection	,
		dictionary	,
		(const word &name, const fvMesh &mesh, const dictionary &dict)	,
		(name, mesh, dict)	)

References dict(), faceSelection(), mesh, and name().

Here is the call graph for this function:

clone()

autoPtr< faceSelection > clone ( ) const

inline

Clone.

Definition at line 119 of file faceSelection.H.

References NotImplemented.

New()

autoPtr< faceSelection > New ( const word & name, const fvMesh & mesh, const dictionary & dict )

static

Return a reference to the selected faceSelection.

References dict(), mesh, and name().

Here is the call graph for this function:

name()

const word & name ( ) const

inline

Definition at line 147 of file faceSelection.H.

References name_.

Referenced by declareRunTimeSelectionTable(), faceSelection(), faceZoneSelection::faceZoneSelection(), New(), and searchableSurfaceSelection::searchableSurfaceSelection().

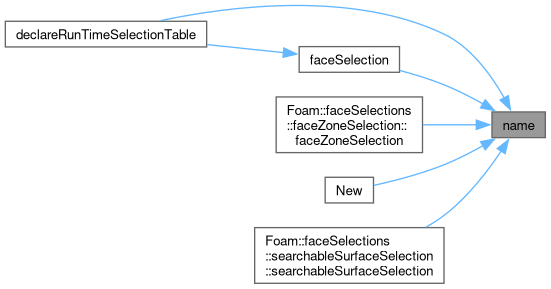

Here is the caller graph for this function:

dict()

const dictionary & dict ( ) const

inline

Definition at line 152 of file faceSelection.H.

References dict_.

Referenced by declareRunTimeSelectionTable(), faceSelection(), faceZoneSelection::faceZoneSelection(), New(), and searchableSurfaceSelection::searchableSurfaceSelection().

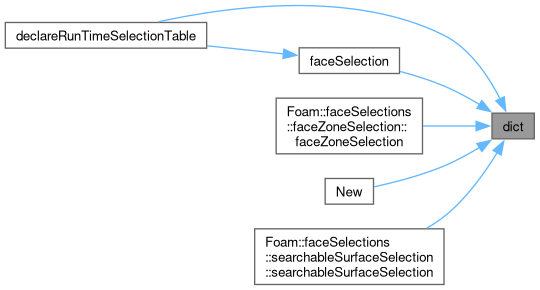

Here is the caller graph for this function:

select()

virtual void select ( const label , labelList & , boolList &  ) const

pure virtual

Implemented in faceZoneSelection, and searchableSurfaceSelection.

Member Data Documentation

name_

const word name_

protected

Name.

Definition at line 63 of file faceSelection.H.

Referenced by name().

mesh_

const fvMesh& mesh_

protected

Reference to mesh.

Definition at line 68 of file faceSelection.H.

dict_

const dictionary dict_

protected

Input dictionary.

Definition at line 73 of file faceSelection.H.

Referenced by dict().

flip_

const bool flip_

protected

Switch direction?

Definition at line 78 of file faceSelection.H.

---

The documentation for this class was generated from the following file:

• applications/utilities/mesh/manipulation/createBaffles/faceSelection/faceSelection.H
