Core routines used when reading/writing PROSTAR vrt/cel/bnd files. More...

#include <STARCDCore.H>

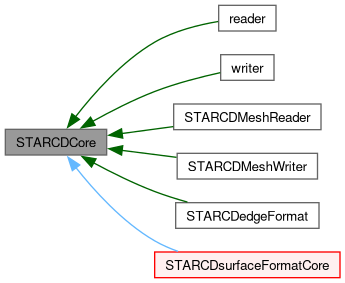

Inheritance diagram for STARCDCore:

[legend]

Collaboration diagram for STARCDCore:

Public Types
enum	fileHeader { HEADER_CEL , HEADER_VRT , HEADER_BND }
	Enumeration defining the file headers. More...
enum	fileExt { CEL_FILE , VRT_FILE , BND_FILE , INP_FILE }
	Enumeration defining the file extensions. More...
enum	matlType { starcdFluidType = 1 , starcdSolidType = 2 , starcdBaffleType = 3 , starcdShellType = 4 , starcdLineType = 5 , starcdPointType = 6 }
	Basic material type for STARCD/PROSTAR files. More...
enum	shapeType { starcdPoint = 1 , starcdLine = 2 , starcdShell = 3 , starcdHex = 11 , starcdPrism = 12 , starcdTet = 13 , starcdPyr = 14 , starcdPoly = 255 }
	Shape-Type for STARCD/PROSTAR files. More...

Static Public Member Functions
static fileName	starFileName (const fileName &baseName, const enum fileExt ext)
	Resolve base file-name for the given file-type.
static void	removeFiles (const fileName &baseName)
	Remove existing PROSTAR files for the given base file-name.
static label	readPoints (IFstream &is, List< point > &points, List< label > &ids)
	Read points from a (.vrt) file, return the max prostar id used.
static void	writePoints (Ostream &os, const UList< point > &points, const scalar scaleFactor=1.0)
	Write header and points to (.vrt) file, optionally with scaling.

Static Public Attributes
static const char *const	defaultBoundaryName
	The name for default (unassigned) boundaries.
static const char *const	defaultSolidBoundaryName
	The name we have chosen for default (unassigned) solid boundaries.

Protected Member Functions
	STARCDCore ()=default
	Construct null.

Static Protected Member Functions
static bool	readHeader (IFstream &is, const enum fileHeader header)
	Read header and check signature PROSTAR_(CELL\|VERTEX\|BOUNDARY).
static void	writeHeader (Ostream &os, const enum fileHeader header)
	Write header for fileType (CELL\|VERTEX\|BOUNDARY).

Static Protected Attributes
static const Map< FixedList< int, 6 > >	starToFoamFaceAddr
	Face addressing from PROSTAR faces to OpenFOAM faces.
static const Map< FixedList< int, 6 > >	foamToStarFaceAddr
	Face addressing from OpenFOAM faces to PROSTAR faces.

Detailed Description

Core routines used when reading/writing PROSTAR vrt/cel/bnd files.

Source files

Definition at line 55 of file STARCDCore.H.

Member Enumeration Documentation

◆ fileHeader

enum fileHeader

Enumeration defining the file headers.

Enumerator
HEADER_CEL
HEADER_VRT
HEADER_BND

Definition at line 64 of file STARCDCore.H.

◆ fileExt

enum fileExt

Enumeration defining the file extensions.

Enumerator
CEL_FILE
VRT_FILE
BND_FILE
INP_FILE

Definition at line 74 of file STARCDCore.H.

◆ matlType

enum matlType

Basic material type for STARCD/PROSTAR files.

Enumerator
starcdFluidType
starcdSolidType
starcdBaffleType
starcdShellType
starcdLineType
starcdPointType

Definition at line 85 of file STARCDCore.H.

◆ shapeType

enum shapeType

Shape-Type for STARCD/PROSTAR files.

Enumerator
starcdPoint
starcdLine
starcdShell
starcdHex
starcdPrism
starcdTet
starcdPyr
starcdPoly

Definition at line 98 of file STARCDCore.H.

Constructor & Destructor Documentation

◆ STARCDCore()

STARCDCore ( )

protecteddefault

Construct null.

References os(), and points.

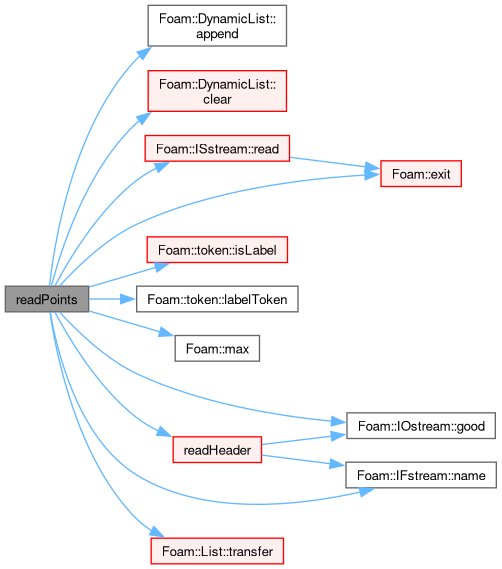

Here is the call graph for this function:

Member Function Documentation

◆ readHeader()

bool readHeader	(	IFstream &	is,
		const enum fileHeader	header )

staticprotected

Read header and check signature PROSTAR_(CELL|VERTEX|BOUNDARY).

Definition at line 114 of file STARCDCore.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, IOstream::good(), Foam::Info, IFstream::name(), Foam::nl, and Foam::readToNewline().

Referenced by STARCDedgeFormat::read(), STARCDsurfaceFormat< Face >::read(), STARCDMeshReader::readBoundary(), STARCDMeshReader::readCells(), readPoints(), and STARCDMeshReader::readPoints().

Here is the call graph for this function:

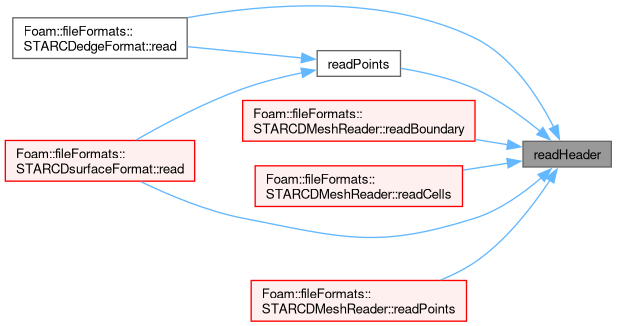

Here is the caller graph for this function:

◆ writeHeader()

void writeHeader	(	Ostream &	os,
		const enum fileHeader	header )

staticprotected

Write header for fileType (CELL|VERTEX|BOUNDARY).

Definition at line 148 of file STARCDCore.C.

References Foam::nl, and os().

Referenced by STARCDsurfaceFormat< Face >::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ starFileName()

Foam::fileName starFileName	(	const fileName &	baseName,
		const enum fileExt	ext )

static

Resolve base file-name for the given file-type.

Definition at line 169 of file STARCDCore.C.

Referenced by STARCDedgeFormat::read(), STARCDsurfaceFormat< Face >::read(), STARCDMeshReader::readGeometry(), removeFiles(), STARCDedgeFormat::write(), STARCDMeshWriter::write(), and STARCDsurfaceFormat< Face >::write().

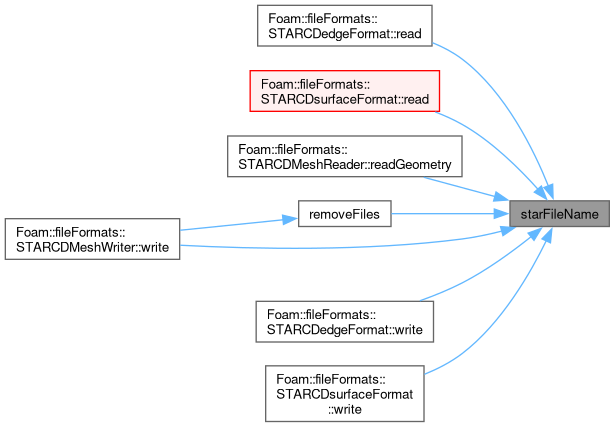

Here is the caller graph for this function:

◆ removeFiles()

void removeFiles ( const fileName & baseName )

static

Remove existing PROSTAR files for the given base file-name.

Definition at line 179 of file STARCDCore.C.

References BND_FILE, CEL_FILE, INP_FILE, Foam::rm(), starFileName(), and VRT_FILE.

Referenced by STARCDMeshWriter::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readPoints()

Foam::label readPoints	(	IFstream &	is,
		List< point > &	points,
		List< label > &	ids )

static

Read points from a (.vrt) file, return the max prostar id used.

The file format is as follows:

* Line 1:
* PROSTAR_VERTEX  newline
*
* Line 2:
* {version} 0 0 0 0 0 0 0  newline
*
* Body:
* {vertexId}  {x}  {y}  {z}  newline
*

Definition at line 188 of file STARCDCore.C.

References DynamicList< T, SizeMin >::append(), DynamicList< T, SizeMin >::clear(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, IOstream::good(), HEADER_VRT, token::isLabel(), token::labelToken(), Foam::max(), IFstream::name(), points, ISstream::read(), readHeader(), List< T >::transfer(), x, and y.

Referenced by STARCDedgeFormat::read(), and STARCDsurfaceFormat< Face >::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writePoints()

void writePoints	(	Ostream &	os,
		const UList< point > &	points,
		const scalar	scaleFactor = 1.0 )

static

Write header and points to (.vrt) file, optionally with scaling.

Definition at line 237 of file STARCDCore.C.

References HEADER_VRT, Foam::nl, os(), p, points, and Foam::writeHeader().

Referenced by STARCDedgeFormat::write(), STARCDMeshWriter::write(), and STARCDsurfaceFormat< Face >::write().

Here is the call graph for this function:

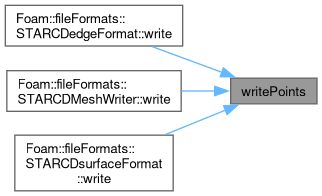

Here is the caller graph for this function:

Member Data Documentation

◆ defaultBoundaryName

const char *const defaultBoundaryName

static

Initial value:

=

"Default_Boundary_Region"

The name for default (unassigned) boundaries.

Definition at line 114 of file STARCDCore.H.

Referenced by STARCDMeshReader::readBoundary().

◆ defaultSolidBoundaryName

const char *const defaultSolidBoundaryName

static

Initial value:

=

"Default_Boundary_Solid"

The name we have chosen for default (unassigned) solid boundaries.

Slightly distinguished from the regular default name.

Definition at line 121 of file STARCDCore.H.

◆ starToFoamFaceAddr

const Foam::Map< Foam::FixedList< int, 6 > > starToFoamFaceAddr

staticprotected

Initial value:

                                                  =
{
    { starcdHex,   { 4, 5, 2, 3, 0, 1 } },
    { starcdPrism, { 0, 1, 4, -1, 2, 3 } },
    { starcdTet,   { 3, -1, 2, -1, 1, 0 } },
    { starcdPyr,   { 0, -1, 4, 2, 1, 3 } }
}

Face addressing from PROSTAR faces to OpenFOAM faces.

For hex, prism, tet, pyr primitive shapes.

Definition at line 71 of file STARCDCore.H.

Referenced by STARCDMeshReader::readBoundary().

◆ foamToStarFaceAddr

const Foam::Map< Foam::FixedList< int, 6 > > foamToStarFaceAddr

staticprotected

Initial value:

                                                  =
{
    { starcdHex,   { 4, 5, 2, 3, 0, 1 } },
    { starcdPrism, { 0, 1, 4, 5, 2, -1 } },
    { starcdTet,   { 5, 4, 2, 0, -1, -1 } },
    { starcdPyr,   { 0, 4, 3, 5, 2, -1 } }
}

Face addressing from OpenFOAM faces to PROSTAR faces.

For hex, prism, tet, pyr primitive shapes.

Definition at line 61 of file STARCDCore.H.

The documentation for this class was generated from the following files:

src/fileFormats/starcd/STARCDCore.H
src/fileFormats/starcd/STARCDCore.C
