filteredLinearLimiter< LimiterFunc > Class Template Reference

Class to generate weighting factors for the filteredLinear differencing scheme. More...

#include <filteredLinear.H>

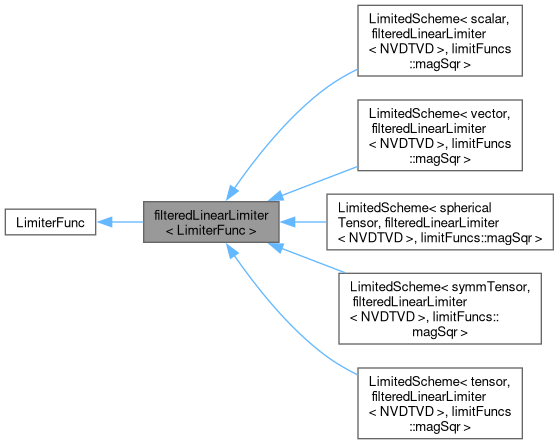

Inheritance diagram for filteredLinearLimiter< LimiterFunc >:

Collaboration diagram for filteredLinearLimiter< LimiterFunc >:

Public Member Functions
	filteredLinearLimiter (Istream &)
scalar	limiter (const scalar cdWeight, const scalar faceFlux, const typename LimiterFunc::phiType &phiP, const typename LimiterFunc::phiType &phiN, const typename LimiterFunc::gradPhiType &gradcP, const typename LimiterFunc::gradPhiType &gradcN, const vector &d) const

Detailed Description

template<class LimiterFunc>
class Foam::filteredLinearLimiter< LimiterFunc >

Class to generate weighting factors for the filteredLinear differencing scheme.

The aim is to remove high-frequency modes with "staggering" characteristics by comparing the face gradient relative to the background distribution represented by the neighbouring cell gradients with those gradients and introduce small amounts of upwind in order to damp these modes.

Used in conjunction with the template class LimitedScheme.

Source files

• filteredLinear.H
• filteredLinear.C

Definition at line 59 of file filteredLinear.H.

Constructor & Destructor Documentation

filteredLinearLimiter()

template<class LimiterFunc>

filteredLinearLimiter ( Istream & )

inline

Definition at line 66 of file filteredLinear.H.

Member Function Documentation

limiter()

template<class LimiterFunc>

scalar limiter ( const scalar cdWeight, const scalar faceFlux, const typename LimiterFunc::phiType & phiP, const typename LimiterFunc::phiType & phiN, const typename LimiterFunc::gradPhiType & gradcP, const typename LimiterFunc::gradPhiType & gradcN, const vector & d ) const

inline

Definition at line 69 of file filteredLinear.H.

References Foam::clamp(), limiter(), Foam::mag(), Foam::max(), and Foam::min().

Referenced by limiter().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/finiteVolume/interpolation/surfaceInterpolation/limitedSchemes/filteredLinear/filteredLinear.H
