Two-scheme fixed-blending differencing scheme. More...

#include <fixedBlended.H>

Inheritance diagram for fixedBlended< Type >:

Collaboration diagram for fixedBlended< Type >:

Public Member Functions
	TypeName ("fixedBlended")
	Runtime type information.
	fixedBlended (const fvMesh &mesh, Istream &is)
	Construct from mesh and Istream.
	fixedBlended (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &is)
	Construct from mesh, faceFlux and Istream.
tmp< surfaceScalarField >	weights (const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the interpolation weighting factors.
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the face-interpolate of the given cell field.
virtual bool	corrected () const
	Return true if this scheme uses an explicit correction.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	correction (const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the explicit correction to the face-interpolate.
Public Member Functions inherited from surfaceInterpolationScheme< Type >
	TypeName ("surfaceInterpolationScheme")
	Runtime type information.
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, Mesh,(const fvMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, MeshFlux,(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	surfaceInterpolationScheme (const fvMesh &mesh)
	Construct from mesh.
virtual	~surfaceInterpolationScheme ()=default
	Destructor.
const fvMesh &	mesh () const
	Return mesh reference.
virtual tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the face-interpolate of the given cell field.
tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
template<class SFType>
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< typename SFType::value_type, Type >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
tmp< GeometricField< typename innerProduct< vector, scalar >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< Foam::vector, Foam::scalar >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Static Public Member Functions inherited from surfaceInterpolationScheme< Type >
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.
template<class SFType>
static tmp< GeometricField< typename innerProduct< typename SFType::value_type, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.

Detailed Description

template<class Type>
class Foam::fixedBlended< Type >

Two-scheme fixed-blending differencing scheme.

Similar to localBlended but uses a single (global) constant blending factor. The factor applies to the first scheme and 1-factor to the second scheme.

Note: Although a blending factor of 0 and 1 is permitted, it is more efficient just to use the underlying scheme directly.

Source files

Definition at line 58 of file fixedBlended.H.

Constructor & Destructor Documentation

◆ fixedBlended() [1/2]

template<class Type>

fixedBlended	(	const fvMesh &	mesh,
		Istream &	is )

inline

Construct from mesh and Istream.

The name of the flux field is read from the Istream and looked-up from the mesh objectRegistry

Definition at line 106 of file fixedBlended.H.

References Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::Info, surfaceInterpolationScheme< Type >::mesh(), and surfaceInterpolationScheme< Type >::New().

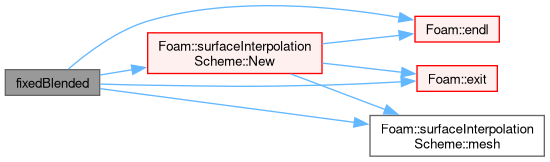

Here is the call graph for this function:

◆ fixedBlended() [2/2]

template<class Type>

fixedBlended	(	const fvMesh &	mesh,
		const surfaceScalarField &	faceFlux,
		Istream &	is )

inline

Construct from mesh, faceFlux and Istream.

Definition at line 144 of file fixedBlended.H.

References Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::Info, surfaceInterpolationScheme< Type >::mesh(), and surfaceInterpolationScheme< Type >::New().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

template<class Type>

TypeName ( "fixedBlended< Type >" )

Runtime type information.

◆ weights()

template<class Type>

tmp< surfaceScalarField > weights ( const GeometricField< Type, fvPatchField, volMesh > & vf ) const

inlinevirtual

Return the interpolation weighting factors.

Implements surfaceInterpolationScheme< Type >.

Definition at line 186 of file fixedBlended.H.

◆ interpolate()

template<class Type>

tmp< GeometricField< Type, fvsPatchField, surfaceMesh > > interpolate ( const GeometricField< Type, fvPatchField, volMesh > & vf ) const

inlinevirtual

Return the face-interpolate of the given cell field.

with explicit correction

Reimplemented from surfaceInterpolationScheme< Type >.

Definition at line 203 of file fixedBlended.H.

◆ corrected()

template<class Type>

virtual bool corrected ( ) const

inlinevirtual

Return true if this scheme uses an explicit correction.

Reimplemented from surfaceInterpolationScheme< Type >.

Definition at line 217 of file fixedBlended.H.

Referenced by correction().

Here is the caller graph for this function:

◆ correction()

template<class Type>

virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > > correction ( const GeometricField< Type, fvPatchField, volMesh > & vf ) const

inlinevirtual

Return the explicit correction to the face-interpolate.

for the given field

Reimplemented from surfaceInterpolationScheme< Type >.

Definition at line 229 of file fixedBlended.H.

References corrected(), and correction().

Referenced by correction().

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

src/finiteVolume/interpolation/surfaceInterpolation/schemes/fixedBlended/fixedBlended.H
