Helper class to describe what form of averaging to apply. A set will be applied to each base field in Foam::fieldAverage, of the following form. More...

#include <fieldAverageItem.H>

Collaboration diagram for fieldAverageItem:

[legend]

Public Types
enum class	baseType { ITER , TIME }
	Enumeration defining the averaging base type. More...
enum class	windowType { NONE , APPROXIMATE , EXACT }
	Enumeration defining the averaging window type. More...

Public Member Functions
	fieldAverageItem ()
	Construct null.
	fieldAverageItem (Istream &)
	Construct from Istream.
	fieldAverageItem (const fieldAverageItem &)
	Construct as copy.
	~fieldAverageItem ()
	Destructor.
bool	active () const
	Return const access to the active flag.
bool &	active ()
	Return non-const access to the active flag.
const word &	fieldName () const
	Return const access to the field name.
bool	mean () const
	Return const access to the mean flag.
bool &	mean ()
	Return non-const access to the mean flag.
const word &	meanFieldName () const
	Return const access to the mean field name.
void	setMeanFieldName (const word &name)
	Set the mean field name.
bool	prime2Mean () const
	Return const access to the prime-squared mean flag.
bool &	prime2Mean ()
	Return non-const access to the prime-squared mean flag.
const word &	prime2MeanFieldName () const
	Return const access to the prime-squared mean field name.
void	setPrime2MeanFieldName (const word &name)
	Set the prime-squared mean field name.
const word &	base () const
	Return averaging base type name.
label	totalIter () const
	Return the total number of iterations item has been evolved.
scalar	totalTime () const
	Return the total time item has been evolved.
scalar	window () const
	Return the window length (iterations or seconds).
const word &	windowName () const
	Return the (optional) window name.
const FIFOStack< scalar > &	windowTimes () const
	Return the list of window times (windowType = EXACT).
const FIFOStack< word > &	windowFieldNames () const
	Return the list of window field names (windowType = EXACT).
bool	allowRestart () const
	Return the allow restart flag.
scalar	dt (const scalar deltaT) const
	Return the current time interval.
scalar	Dt () const
	Return the total time interval.
word	windowFieldName (const word &prefix) const
	Helper function to construct a window field name.
bool	inWindow (const scalar t) const
	Return true if time is inside window (including boundaries).
bool	storeWindowFields () const
	Return true if we wish to store window fields.
bool	writeWindowFields () const
	Return true if we wish to write window fields.
void	addToWindow (const word &fieldName, const scalar deltaT)
	Add field to window.

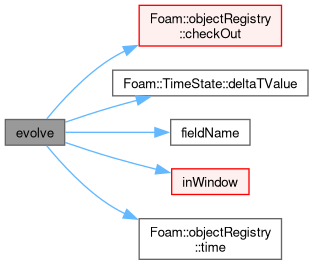

void	evolve (const objectRegistry &obr)
	Evolve and update.
void	clear (const objectRegistry &obr, const bool fullClean)
	Clear out all mean fields and (optionally) supporting data.
bool	readState (const dictionary &dict)
	Read state and re-initialise values.
void	writeState (dictionary &dict) const
	Write state for restart.
template<class Type>

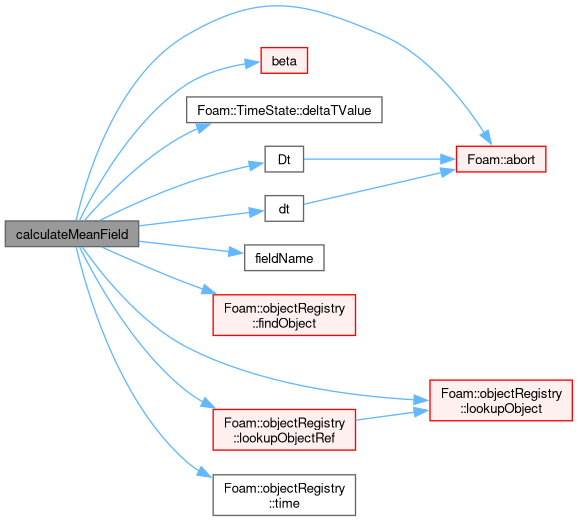

bool	calculateMeanField (const objectRegistry &obr) const
	Calculate the mean field value.
template<class Type1, class Type2>

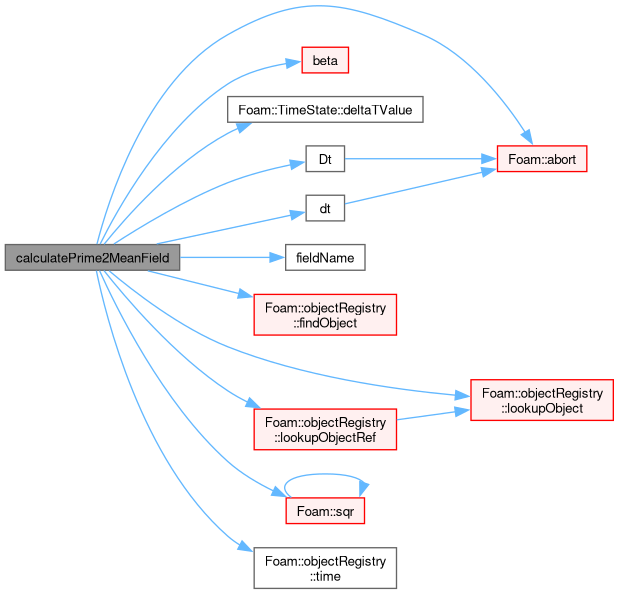

bool	calculatePrime2MeanField (const objectRegistry &obr) const
	Calculate prime-squared average fields.
void	operator= (const fieldAverageItem &)

Static Public Attributes
static const word	EXT_MEAN
	Mean average.
static const word	EXT_PRIME2MEAN
	Prime-squared average.

Friends
bool	operator== (const fieldAverageItem &a, const fieldAverageItem &b)
bool	operator!= (const fieldAverageItem &a, const fieldAverageItem &b)
Istream &	operator>> (Istream &, fieldAverageItem &)
Ostream &	operator<< (Ostream &, const fieldAverageItem &)

Detailed Description

Helper class to describe what form of averaging to apply. A set will be applied to each base field in Foam::fieldAverage, of the following form.

Usage

<field1>
{
    mean            on;
    prime2Mean      on;
    base            time; // iteration
    window          200;  // optional averaging window
    windowName      w1;   // optional window name (default = "")
    windowType      approximate; // window type

    allowRestart    yes;  // optional, used for windowType 'exact'
}

where the entries mean:

Property	Description	Type	Req'd	Dflt
`mean`	Flag to calculate average	bool	yes	-
`prime2Mean`	Flag to calculate prime-square average	bool	yes	-
`base`	Type of averaging interval	word	yes	-
`window`	Averaging window	scalar	no
`windowName`	Name of the averaging window	word	no	""
`windowType`	Type of averaging window	word	no
`allowRestart`	Flag to allow restart for windowType=exact	bool	no

Options for the base entry:

      time | Averaging interval is based on time
      iter | Averaging interval is based on iterations

Options for the windowType entry:

      none  | no windowing
      exact | allow additional files will be stored and written
      approximate | disallow additional files will be stored and written

Note: To employ the prime2Mean option, the mean option must be enabled.

Source files

Definition at line 153 of file fieldAverageItem.H.

Member Enumeration Documentation

◆ baseType

enum class baseType

strong

Enumeration defining the averaging base type.

Enumerator
ITER
TIME

Definition at line 175 of file fieldAverageItem.H.

◆ windowType

enum class windowType

strong

Enumeration defining the averaging window type.

Enumerator
NONE
APPROXIMATE
EXACT

Definition at line 184 of file fieldAverageItem.H.

Constructor & Destructor Documentation

◆ fieldAverageItem() [1/3]

fieldAverageItem ( )

Construct null.

Definition at line 63 of file fieldAverageItem.C.

Referenced by fieldAverageItem(), operator!=, operator<<, operator=(), operator==, and operator>>.

Here is the caller graph for this function:

◆ fieldAverageItem() [2/3]

fieldAverageItem ( Istream & is )

Construct from Istream.

Definition at line 28 of file fieldAverageItemIO.C.

◆ fieldAverageItem() [3/3]

fieldAverageItem ( const fieldAverageItem & faItem )

Construct as copy.

Definition at line 84 of file fieldAverageItem.C.

References fieldAverageItem().

Here is the call graph for this function:

◆ ~fieldAverageItem()

~fieldAverageItem ( )

Destructor.

Definition at line 110 of file fieldAverageItem.C.

Member Function Documentation

◆ active() [1/2]

bool active ( ) const

inline

Return const access to the active flag.

Definition at line 23 of file fieldAverageItemI.H.

Referenced by fieldAverage::addMeanFieldType().

Here is the caller graph for this function:

◆ active() [2/2]

bool & active ( )

inline

Return non-const access to the active flag.

Definition at line 29 of file fieldAverageItemI.H.

◆ fieldName()

const Foam::word & fieldName ( ) const

inline

Return const access to the field name.

Definition at line 35 of file fieldAverageItemI.H.

Referenced by fieldAverage::addMeanFieldType(), fieldAverage::addMeanSqrToPrime2MeanType(), fieldAverage::addPrime2MeanField(), fieldAverage::addPrime2MeanFieldType(), addToWindow(), calculateMeanField(), calculatePrime2MeanField(), clear(), evolve(), fieldAverage::restoreWindowFieldsType(), and fieldAverage::storeWindowFieldType().

Here is the caller graph for this function:

◆ mean() [1/2]

bool mean ( ) const

inline

Return const access to the mean flag.

Definition at line 41 of file fieldAverageItemI.H.

Referenced by fieldAverage::addMeanField(), fieldAverage::addMeanFieldType(), and fieldAverage::addPrime2MeanField().

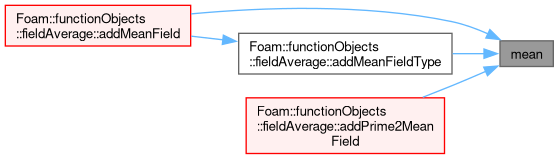

Here is the caller graph for this function:

◆ mean() [2/2]

bool & mean ( )

inline

Return non-const access to the mean flag.

Definition at line 47 of file fieldAverageItemI.H.

◆ meanFieldName()

const Foam::word & meanFieldName ( ) const

inline

Return const access to the mean field name.

Definition at line 54 of file fieldAverageItemI.H.

Referenced by fieldAverage::addMeanFieldType(), fieldAverage::addMeanSqrToPrime2MeanType(), and fieldAverage::addPrime2MeanFieldType().

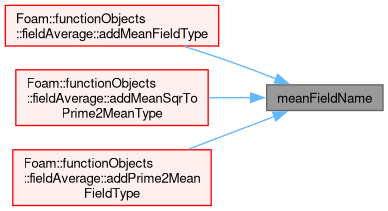

Here is the caller graph for this function:

◆ setMeanFieldName()

void setMeanFieldName ( const word & name )

inline

Set the mean field name.

Definition at line 60 of file fieldAverageItemI.H.

References Foam::name().

Here is the call graph for this function:

◆ prime2Mean() [1/2]

bool prime2Mean ( ) const

inline

Return const access to the prime-squared mean flag.

Definition at line 69 of file fieldAverageItemI.H.

Referenced by fieldAverage::addPrime2MeanField(), and fieldAverage::addPrime2MeanFieldType().

Here is the caller graph for this function:

◆ prime2Mean() [2/2]

bool & prime2Mean ( )

inline

Return non-const access to the prime-squared mean flag.

Definition at line 75 of file fieldAverageItemI.H.

◆ prime2MeanFieldName()

const Foam::word & prime2MeanFieldName ( ) const

inline

Return const access to the prime-squared mean field name.

Definition at line 82 of file fieldAverageItemI.H.

Referenced by fieldAverage::addMeanSqrToPrime2MeanType(), and fieldAverage::addPrime2MeanFieldType().

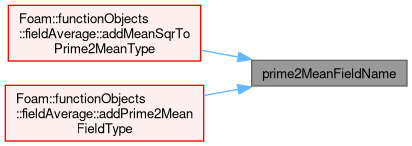

Here is the caller graph for this function:

◆ setPrime2MeanFieldName()

void setPrime2MeanFieldName ( const word & name )

inline

Set the prime-squared mean field name.

Definition at line 88 of file fieldAverageItemI.H.

References Foam::name().

Here is the call graph for this function:

◆ base()

const Foam::word & base ( ) const

inline

Return averaging base type name.

Definition at line 97 of file fieldAverageItemI.H.

◆ totalIter()

Foam::label totalIter ( ) const

inline

Return the total number of iterations item has been evolved.

Definition at line 103 of file fieldAverageItemI.H.

◆ totalTime()

Foam::scalar totalTime ( ) const

inline

Return the total time item has been evolved.

Definition at line 109 of file fieldAverageItemI.H.

◆ window()

Foam::scalar window ( ) const

inline

Return the window length (iterations or seconds).

Definition at line 115 of file fieldAverageItemI.H.

Referenced by fieldAverage::restoreWindowFields().

Here is the caller graph for this function:

◆ windowName()

const Foam::word & windowName ( ) const

inline

Return the (optional) window name.

Definition at line 121 of file fieldAverageItemI.H.

◆ windowTimes()

const Foam::FIFOStack< Foam::scalar > & windowTimes ( ) const

inline

Return the list of window times (windowType = EXACT).

Definition at line 128 of file fieldAverageItemI.H.

◆ windowFieldNames()

const Foam::FIFOStack< Foam::word > & windowFieldNames ( ) const

inline

Return the list of window field names (windowType = EXACT).

Definition at line 135 of file fieldAverageItemI.H.

Referenced by fieldAverage::restoreWindowFieldsType().

Here is the caller graph for this function:

◆ allowRestart()

bool allowRestart ( ) const

inline

Return the allow restart flag.

Definition at line 141 of file fieldAverageItemI.H.

◆ dt()

Foam::scalar dt ( const scalar deltaT ) const

inline

Return the current time interval.

Definition at line 147 of file fieldAverageItemI.H.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Referenced by calculateMeanField(), and calculatePrime2MeanField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Dt()

Foam::scalar Dt ( ) const

inline

Return the total time interval.

Definition at line 174 of file fieldAverageItemI.H.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Referenced by calculateMeanField(), and calculatePrime2MeanField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ windowFieldName()

Foam::word windowFieldName ( const word & prefix ) const

inline

Helper function to construct a window field name.

Definition at line 198 of file fieldAverageItemI.H.

References Foam::name().

Referenced by fieldAverage::storeWindowFieldType().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ inWindow()

bool inWindow ( const scalar t ) const

inline

Return true if time is inside window (including boundaries).

Definition at line 207 of file fieldAverageItemI.H.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Referenced by evolve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ storeWindowFields()

bool storeWindowFields ( ) const

inline

Return true if we wish to store window fields.

Definition at line 232 of file fieldAverageItemI.H.

References EXACT.

◆ writeWindowFields()

bool writeWindowFields ( ) const

inline

Return true if we wish to write window fields.

Definition at line 238 of file fieldAverageItemI.H.

◆ addToWindow()

void addToWindow	(	const word &	fieldName,
		const scalar	deltaT )

Add field to window.

Definition at line 116 of file fieldAverageItem.C.

References fieldName().

Referenced by fieldAverage::storeWindowFieldType().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ evolve()

void evolve ( const objectRegistry & obr )

Evolve and update.

Definition at line 127 of file fieldAverageItem.C.

References objectRegistry::checkOut(), TimeState::deltaTValue(), fieldName(), forAllIters, inWindow(), and objectRegistry::time().

Here is the call graph for this function:

◆ clear()

void clear	(	const objectRegistry &	obr,
		const bool	fullClean )

Clear out all mean fields and (optionally) supporting data.

Definition at line 155 of file fieldAverageItem.C.

References objectRegistry::checkOut(), and fieldName().

Here is the call graph for this function:

◆ readState()

bool readState ( const dictionary & dict )

Read state and re-initialise values.

Definition at line 186 of file fieldAverageItem.C.

References dict.

◆ writeState()

void writeState ( dictionary & dict ) const

Write state for restart.

Definition at line 201 of file fieldAverageItem.C.

References dict.

◆ calculateMeanField()

template<class Type>

bool calculateMeanField ( const objectRegistry & obr ) const

Calculate the mean field value.

Definition at line 25 of file fieldAverageItemTemplates.C.

References Foam::abort(), APPROXIMATE, beta(), TimeState::deltaTValue(), Dt(), dt(), EXACT, Foam::FatalError, FatalErrorInFunction, fieldName(), objectRegistry::findObject(), objectRegistry::lookupObject(), objectRegistry::lookupObjectRef(), n, NONE, and objectRegistry::time().

Here is the call graph for this function:

◆ calculatePrime2MeanField()

template<class Type1, class Type2>

bool calculatePrime2MeanField ( const objectRegistry & obr ) const

Calculate prime-squared average fields.

Definition at line 160 of file fieldAverageItemTemplates.C.

References Foam::abort(), APPROXIMATE, beta(), TimeState::deltaTValue(), Dt(), dt(), EXACT, Foam::FatalError, FatalErrorInFunction, fieldName(), objectRegistry::findObject(), objectRegistry::lookupObject(), objectRegistry::lookupObjectRef(), NONE, Foam::sqr(), and objectRegistry::time().

Here is the call graph for this function:

◆ operator=()

void operator= ( const fieldAverageItem & rhs )

Definition at line 219 of file fieldAverageItem.C.

References fieldAverageItem(), and Foam::rhs().

Here is the call graph for this function:

◆ operator==

bool operator==	(	const fieldAverageItem &	a,
		const fieldAverageItem &	b )

friend

Definition at line 482 of file fieldAverageItem.H.

References b, and fieldAverageItem().

◆ operator!=

bool operator!=	(	const fieldAverageItem &	a,
		const fieldAverageItem &	b )

friend

Definition at line 504 of file fieldAverageItem.H.

References b, and fieldAverageItem().

◆ operator>>

Istream & operator>>	(	Istream &	,
		fieldAverageItem &	)

friend

References fieldAverageItem().

◆ operator<<

Ostream & operator<<	(	Ostream &	,
		const fieldAverageItem &	)

friend

References fieldAverageItem().

Member Data Documentation

◆ EXT_MEAN

const Foam::word EXT_MEAN

static

Mean average.

Definition at line 164 of file fieldAverageItem.H.

Referenced by Foam::functionObjects::operator>>().

◆ EXT_PRIME2MEAN

const Foam::word EXT_PRIME2MEAN

static

Prime-squared average.

Definition at line 169 of file fieldAverageItem.H.

Referenced by Foam::functionObjects::operator>>().

The documentation for this class was generated from the following files:

src/functionObjects/field/fieldAverage/fieldAverageItem/fieldAverageItem.H
src/functionObjects/field/fieldAverage/fieldAverageItem/fieldAverageItem.C
src/functionObjects/field/fieldAverage/fieldAverageItem/fieldAverageItemI.H
src/functionObjects/field/fieldAverage/fieldAverageItem/fieldAverageItemIO.C
src/functionObjects/field/fieldAverage/fieldAverageItem/fieldAverageItemTemplates.C

Public Types

Public Member Functions

Static Public Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ baseType

◆ windowType

Constructor & Destructor Documentation

◆ fieldAverageItem() [1/3]

◆ fieldAverageItem() [2/3]

◆ fieldAverageItem() [3/3]

◆ ~fieldAverageItem()

Member Function Documentation

◆ active() [1/2]

◆ active() [2/2]

◆ fieldName()

◆ mean() [1/2]

◆ mean() [2/2]

◆ meanFieldName()

◆ setMeanFieldName()

◆ prime2Mean() [1/2]

◆ prime2Mean() [2/2]

◆ prime2MeanFieldName()

◆ setPrime2MeanFieldName()

◆ base()

◆ totalIter()

◆ totalTime()

◆ window()

◆ windowName()

◆ windowTimes()

◆ windowFieldNames()

◆ allowRestart()

◆ dt()

◆ Dt()

◆ windowFieldName()

◆ inWindow()

◆ storeWindowFields()

◆ writeWindowFields()

◆ addToWindow()

◆ evolve()

◆ clear()

◆ readState()

◆ writeState()

◆ calculateMeanField()

◆ calculatePrime2MeanField()

◆ operator=()

Friends And Related Symbol Documentation

◆ operator==

◆ operator!=

◆ operator>>

◆ operator<<

Member Data Documentation

◆ EXT_MEAN

◆ EXT_PRIME2MEAN
