Basic second-order convection using face-gradients and Gauss' theorem. More...

#include <fusedGaussConvectionScheme.H>

Inheritance diagram for fusedGaussConvectionScheme< Type >:

Collaboration diagram for fusedGaussConvectionScheme< Type >:

Public Member Functions
	TypeName ("fusedGauss")
	Runtime type information.
	fusedGaussConvectionScheme (const fvMesh &mesh, const surfaceScalarField &faceFlux, const tmp< surfaceInterpolationScheme< Type > > &scheme)
	Construct from flux and interpolation scheme.
	fusedGaussConvectionScheme (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &is)
	Construct from flux and Istream.
const surfaceInterpolationScheme< Type > &	interpScheme () const
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const surfaceScalarField &, const GeometricField< Type, fvPatchField, volMesh > &) const
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	flux (const surfaceScalarField &, const GeometricField< Type, fvPatchField, volMesh > &) const
tmp< fvMatrix< Type > >	fvmDiv (const surfaceScalarField &, const GeometricField< Type, fvPatchField, volMesh > &) const
tmp< GeometricField< Type, fvPatchField, volMesh > >	fvcDiv (const surfaceScalarField &, const GeometricField< Type, fvPatchField, volMesh > &) const
Public Member Functions inherited from convectionScheme< Type >
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (tmp, convectionScheme, Istream,(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	declareRunTimeSelectionTable (tmp, convectionScheme, Multivariate,(const fvMesh &mesh, const typename multivariateSurfaceInterpolationScheme< Type >::fieldTable &fields, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, fields, faceFlux, schemeData))
	convectionScheme (const convectionScheme &)
	Copy construct.
	convectionScheme (const fvMesh &mesh, const surfaceScalarField &)
	Construct from mesh, flux and Istream.
virtual	~convectionScheme ()
	Destructor.
const fvMesh &	mesh () const
	Return mesh reference.
void	operator= (const convectionScheme< Type > &)
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Static Public Member Functions inherited from convectionScheme< Type >
static tmp< convectionScheme< Type > >	New (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return a pointer to a new convectionScheme created on freestore.
static tmp< convectionScheme< Type > >	New (const fvMesh &mesh, const typename multivariateSurfaceInterpolationScheme< Type >::fieldTable &fields, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return a pointer to a new multivariate convectionScheme.

Detailed Description

template<class Type>
class Foam::fv::fusedGaussConvectionScheme< Type >

Basic second-order convection using face-gradients and Gauss' theorem.

Source files

Definition at line 55 of file fusedGaussConvectionScheme.H.

Constructor & Destructor Documentation

◆ fusedGaussConvectionScheme() [1/2]

template<class Type>

fusedGaussConvectionScheme	(	const fvMesh &	mesh,
		const surfaceScalarField &	faceFlux,
		const tmp< surfaceInterpolationScheme< Type > > &	scheme )

inline

Construct from flux and interpolation scheme.

Definition at line 90 of file fusedGaussConvectionScheme.H.

References convectionScheme< Type >::convectionScheme(), and convectionScheme< Type >::mesh().

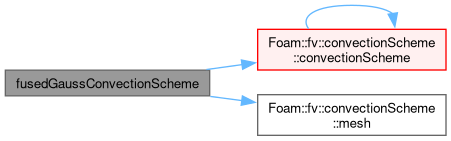

Here is the call graph for this function:

◆ fusedGaussConvectionScheme() [2/2]

template<class Type>

fusedGaussConvectionScheme	(	const fvMesh &	mesh,
		const surfaceScalarField &	faceFlux,
		Istream &	is )

inline

Construct from flux and Istream.

Definition at line 104 of file fusedGaussConvectionScheme.H.

References convectionScheme< Type >::convectionScheme(), convectionScheme< Type >::mesh(), and convectionScheme< Type >::New().

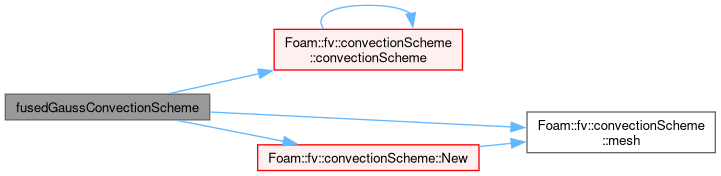

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

template<class Type>

TypeName ( "fusedGauss" )

Runtime type information.

◆ interpScheme()

template<class Type>

const surfaceInterpolationScheme< Type > & interpScheme ( ) const

Definition at line 41 of file fusedGaussConvectionScheme.C.

◆ interpolate()

template<class Type>

tmp< GeometricField< Type, fvsPatchField, surfaceMesh > > interpolate	(	const surfaceScalarField &	,
		const GeometricField< Type, fvPatchField, volMesh > &	vf ) const

virtual

Implements convectionScheme< Type >.

Definition at line 49 of file fusedGaussConvectionScheme.C.

◆ flux()

template<class Type>

tmp< GeometricField< Type, fvsPatchField, surfaceMesh > > flux	(	const surfaceScalarField &	faceFlux,
		const GeometricField< Type, fvPatchField, volMesh > &	vf ) const

virtual

Implements convectionScheme< Type >.

Definition at line 61 of file fusedGaussConvectionScheme.C.

References Foam::interpolate().

Here is the call graph for this function:

◆ fvmDiv()

template<class Type>

tmp< fvMatrix< Type > > fvmDiv	(	const surfaceScalarField &	faceFlux,
		const GeometricField< Type, fvPatchField, volMesh > &	vf ) const

virtual

Implements convectionScheme< Type >.

Definition at line 73 of file fusedGaussConvectionScheme.C.

References Foam::add(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), Foam::correction(), DebugPout, DimensionedField< Type, GeoMesh >::dimensions(), Foam::endl(), forAll, Foam::multiply(), Foam::multiplySubtract(), IOobject::name(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), tmp< T >::ref(), Foam::fvc::surfaceIntegrate(), fvPatchField< Type >::valueBoundaryCoeffs(), and fvPatchField< Type >::valueInternalCoeffs().

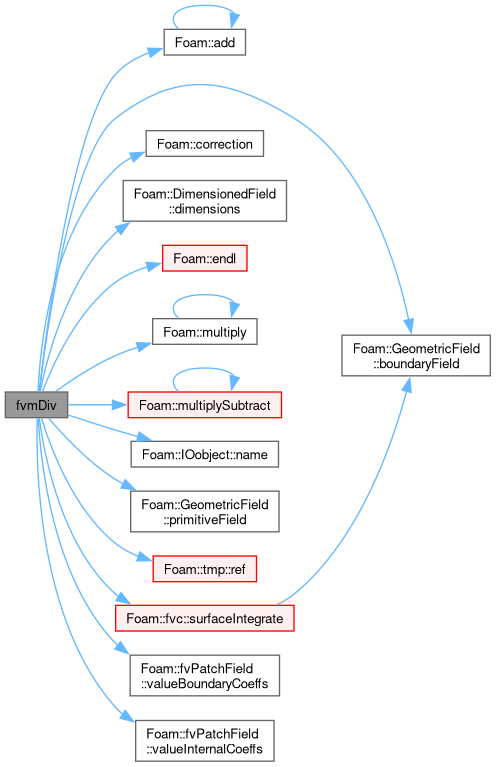

Here is the call graph for this function:

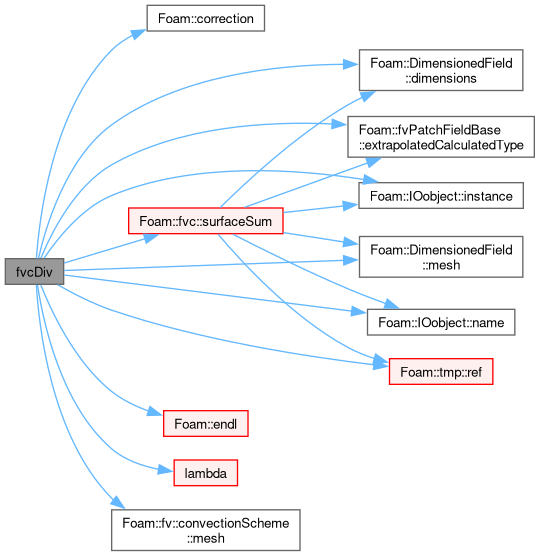

◆ fvcDiv()

template<class Type>

tmp< GeometricField< Type, fvPatchField, volMesh > > fvcDiv	(	const surfaceScalarField &	faceFlux,
		const GeometricField< Type, fvPatchField, volMesh > &	vf ) const
