Source defined by a boundary condition applied to cells next to patches. This fvOption needs to be used with a boundarySourcePatch type of boundary condition (e.g. speciesSorption and enthalpySorption.). More...

#include <patchCellsSource.H>

Inheritance diagram for patchCellsSource:

[legend]

Collaboration diagram for patchCellsSource:

[legend]

Public Member Functions
	TypeName ("patchCellsSource")
	Runtime type information.

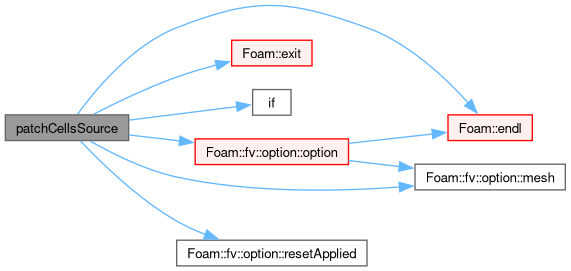

	patchCellsSource (const word &sourceName, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from explicit source name and mesh.
	patchCellsSource (const patchCellsSource &)=delete
	No copy construct.
void	operator= (const patchCellsSource &)=delete
	No copy assignment.
virtual	~patchCellsSource ()=default
	Destructor.

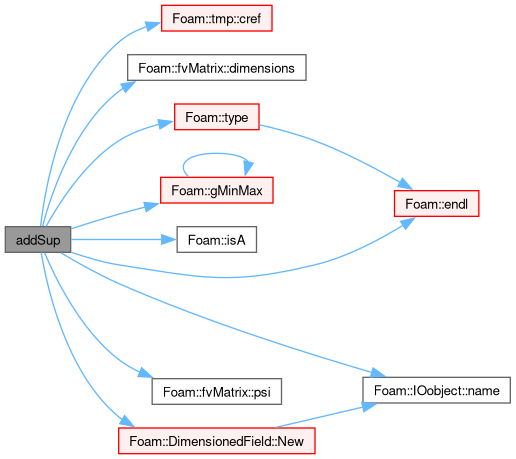

virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
	Add explicit contribution to compressible (momentum, enthalpy, species) equation.
virtual bool	read (const dictionary &dict)
	Read source dictionary.
Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))
	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
autoPtr< option >	clone () const
	Return clone.
virtual	~option ()=default
	Destructor.
const word &	name () const noexcept
	Return const access to the source name.
const fvMesh &	mesh () const noexcept
	Return const access to the mesh database.
const dictionary &	coeffs () const noexcept
	Return dictionary.
bool	active () const noexcept
	True if source is active.
void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi.
bool	active (const bool on) noexcept
	Change source active flag, return previous value.
virtual bool	isActive ()
	Is the source active?
virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list.
virtual void	checkApplied () const
	Check that the source has been applied.
virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	correct (volScalarField &field)
virtual void	correct (volVectorField &field)
virtual void	correct (volSphericalTensorField &field)
virtual void	correct (volSymmTensorField &field)
virtual void	correct (volTensorField &field)
virtual void	correct (surfaceScalarField &field)
virtual void	correct (surfaceVectorField &field)
virtual void	correct (surfaceTensorField &field)
virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessAuxSens (const volScalarField &primalField, const volScalarField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volVectorField &primalField, const volVectorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volTensorField &primalField, const volTensorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	writeHeader (Ostream &) const
	Write the source header information.
virtual void	writeFooter (Ostream &) const
	Write the source footer information.
virtual void	writeData (Ostream &) const
	Write the source properties.

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvOption model.
Public Attributes inherited from option
bool	log
	Switch write log to Info.
Protected Member Functions inherited from option
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries.
Protected Attributes inherited from option
const word	name_
	Source name.
const word	modelType_
	Model type.
const fvMesh &	mesh_
	Reference to the mesh database.
dictionary	dict_
	Top level source dictionary.
dictionary	coeffs_
	Dictionary containing source coefficients.
wordList	fieldNames_
	Field names to apply source to - populated by derived models.
List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry.
bool	active_
	Source active flag.

Detailed Description

Source defined by a boundary condition applied to cells next to patches. This fvOption needs to be used with a boundarySourcePatch type of boundary condition (e.g. speciesSorption and enthalpySorption.).

Usage

Minimal example by using constant/fvOptions:

<fvOptionName>
{
    // Mandatory entries
    type        patchCellsSource;

    // Optional entries (one only!)
    U           <word>;
    he          <word>;
    species     <word>;

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`type`	Type name: patchCellsSource	word	yes	-
`U`	Name of operand velocity field	word	choice	-
`he`	Name of operand energy field	word	choice	-
`species`	Name of operand species field	word	choice	-
