Surface gradient scheme with skewness and full explicit non-orthogonal corrections. More...

#include <skewCorrectedSnGrad.H>

Inheritance diagram for skewCorrectedSnGrad< Type >:

Collaboration diagram for skewCorrectedSnGrad< Type >:

Public Member Functions
	TypeName ("skewCorrected")
	Runtime type information.
	skewCorrectedSnGrad (const fvMesh &mesh)
	Construct from mesh.
	skewCorrectedSnGrad (const fvMesh &mesh, Istream &)
	Construct from mesh and data stream.
virtual	~skewCorrectedSnGrad ()=default
	Destructor.
virtual tmp< surfaceScalarField >	deltaCoeffs (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the interpolation weighting factors for the given field.
virtual bool	corrected () const noexcept
	Return true if this scheme uses an explicit correction.
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	fullGradCorrection (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the explicit correction to the skewCorrectedSnGrad for the given field using the gradient of the field.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	correction (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the explicit correction to the skewCorrectedSnGrad for the given field using the gradients of the field components.
tmp< surfaceScalarField >	correction (const volScalarField &vsf) const
tmp< surfaceVectorField >	correction (const volVectorField &vvf) const
Foam::tmp< Foam::surfaceVectorField >	correction (const volVectorField &vvf) const
Public Member Functions inherited from snGradScheme< Type >
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (tmp, snGradScheme, Mesh,(const fvMesh &mesh, Istream &schemeData),(mesh, schemeData))
	snGradScheme (const fvMesh &mesh)
	Construct from mesh.
virtual	~snGradScheme ()=default
	Destructor.
const fvMesh &	mesh () const
	Return const reference to mesh.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	snGrad (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the snGrad of the given cell field with explicit correction.
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	snGrad (const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the snGrad of the given tmp cell field with explicit correction.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Static Public Member Functions inherited from snGradScheme< Type >
static tmp< snGradScheme< Type > >	New (const fvMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	snGrad (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &, const word &snGradName="snGrad")
	Return the snGrad of the given cell field by using the given deltaCoeffs.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	sndGrad (const GeometricField< Type, fvPatchField, volMesh > &, const word &snGradName="sndGrad")
	Return the sndGrad of the given cell field.

Detailed Description

template<class Type>
class Foam::fv::skewCorrectedSnGrad< Type >

Surface gradient scheme with skewness and full explicit non-orthogonal corrections.

Usage

Minimal example by using system/fvSchemes:

snGradSchemes
{
    snGrad(<term>)       skewCorrected;
}

Source files

Definition at line 66 of file skewCorrectedSnGrad.H.

Constructor & Destructor Documentation

◆ skewCorrectedSnGrad() [1/2]

template<class Type>

skewCorrectedSnGrad ( const fvMesh & mesh )

inline

Construct from mesh.

Definition at line 91 of file skewCorrectedSnGrad.H.

References snGradScheme< Type >::mesh().

Referenced by correction().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ skewCorrectedSnGrad() [2/2]

template<class Type>

skewCorrectedSnGrad	(	const fvMesh &	mesh,
		Istream &	)

inline

Construct from mesh and data stream.

Definition at line 99 of file skewCorrectedSnGrad.H.

References snGradScheme< Type >::mesh().

Here is the call graph for this function:

◆ ~skewCorrectedSnGrad()

template<class Type>

virtual ~skewCorrectedSnGrad ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

template<class Type>

TypeName ( "skewCorrected" )

Runtime type information.

◆ deltaCoeffs()

template<class Type>

virtual tmp< surfaceScalarField > deltaCoeffs ( const GeometricField< Type, fvPatchField, volMesh > & ) const

inlinevirtual

Return the interpolation weighting factors for the given field.

Implements snGradScheme< Type >.

Definition at line 116 of file skewCorrectedSnGrad.H.

References snGradScheme< Type >::mesh(), and surfaceInterpolation::nonOrthDeltaCoeffs().

Referenced by fullGradCorrection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ corrected()

template<class Type>

virtual bool corrected ( ) const

inlinevirtualnoexcept

Return true if this scheme uses an explicit correction.

Reimplemented from snGradScheme< Type >.

Definition at line 127 of file skewCorrectedSnGrad.H.

References Foam::noexcept.

◆ fullGradCorrection()

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::fvsPatchField, Foam::surfaceMesh > > fullGradCorrection ( const GeometricField< Type, fvPatchField, volMesh > & vf ) const

Return the explicit correction to the skewCorrectedSnGrad for the given field using the gradient of the field.

Definition at line 33 of file skewCorrectedSnGrad.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), GeometricField< Type, PatchField, GeoMesh >::component(), deltaCoeffs(), DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimLength, forAll, IOobject::instance(), GeometricField< Type, PatchField, GeoMesh >::internalField(), snGradScheme< Type >::mesh(), mesh, IOobject::name(), snGradScheme< Type >::New(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, GeometricField< Type, PatchField, GeoMesh >::primitiveFieldRef(), Foam::sqr(), snGradScheme< Type >::type(), and Foam::Zero.

Referenced by correction(), and correction().

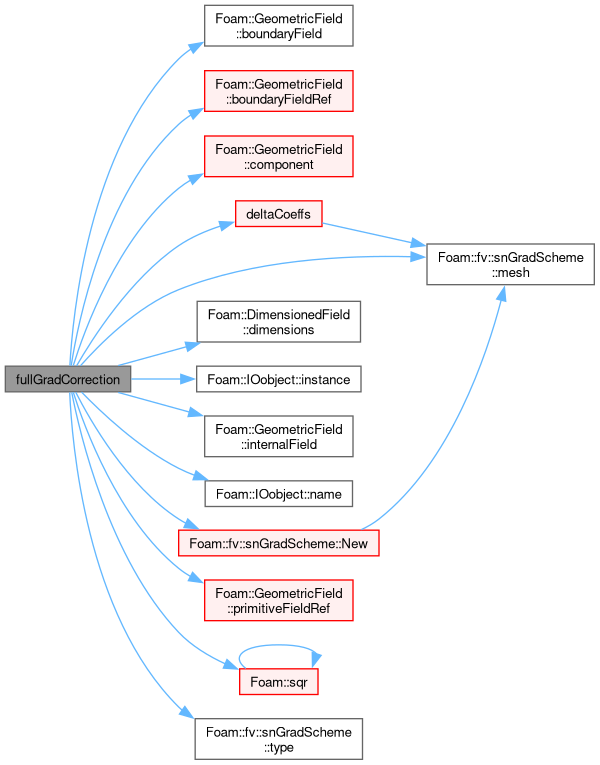

Here is the call graph for this function:

Here is the caller graph for this function:

◆ correction() [1/4]

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::fvsPatchField, Foam::surfaceMesh > > correction ( const GeometricField< Type, fvPatchField, volMesh > & vf ) const

virtual

Return the explicit correction to the skewCorrectedSnGrad for the given field using the gradients of the field components.

Reimplemented from snGradScheme< Type >.

Definition at line 216 of file skewCorrectedSnGrad.C.

References GeometricField< Type, PatchField, GeoMesh >::component(), DimensionedField< Type, GeoMesh >::dimensions(), fullGradCorrection(), IOobject::instance(), snGradScheme< Type >::mesh(), mesh, IOobject::name(), snGradScheme< Type >::New(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, and skewCorrectedSnGrad().

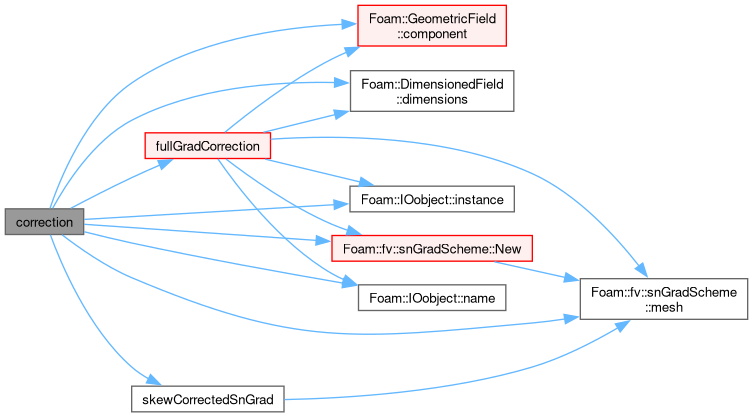

Here is the call graph for this function:

◆ correction() [2/4]

tmp< surfaceScalarField > correction ( const volScalarField & vsf ) const

◆ correction() [3/4]

tmp< surfaceVectorField > correction ( const volVectorField & vvf ) const

◆ correction() [4/4]

Foam::tmp< Foam::surfaceVectorField > correction ( const volVectorField & vvf ) const

Definition at line 44 of file skewCorrectedSnGrads.C.

References fullGradCorrection().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/finiteVolume/finiteVolume/snGradSchemes/skewCorrectedSnGrad/skewCorrectedSnGrad.H
src/finiteVolume/finiteVolume/snGradSchemes/skewCorrectedSnGrad/skewCorrectedSnGrad.C
