animation Class Reference

glTF animation More...

#include <foamGltfAnimation.H>

Inheritance diagram for animation:

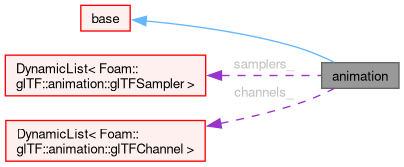

Collaboration diagram for animation:

Classes
struct	glTFSampler
struct	glTFTarget
struct	glTFChannel

Public Member Functions
	animation ()
	Default construct.
	animation (const word &name)
	Construct with name.
	~animation ()=default
	Destructor.
void	addTranslation (const label inputId, const label outputId, const label nodeId, const string &interpolation)
	Add translation.
void	write (Ostream &os) const
	Write.
Public Member Functions inherited from base
	base ()
	Default construct.
	base (const word &name)
	Construct with name.
	~base ()=default
	Destructor.
label &	id () noexcept
	Return access to the ID.
const word &	name () const noexcept
	Return const access to the name.
void	write (Ostream &os) const
	Write.
void	operator= (const base &gltf)

Protected Attributes
DynamicList< glTFSampler >	samplers_
	Samplers.
DynamicList< glTFChannel >	channels_
	Channels.
Protected Attributes inherited from base
word	name_
	Name.
label	id_
	ID.

Detailed Description

glTF animation

Note

Implements the glTF v2 specification

Source files

• foamGltfAnimation.H
• foamGltfAnimation.C

Definition at line 61 of file foamGltfAnimation.H.

Constructor & Destructor Documentation

animation() [1/2]

animation

(

)

Default construct.

Definition at line 25 of file foamGltfAnimation.C.

References base::base(), channels_, and samplers_.

Here is the call graph for this function:

animation() [2/2]

animation ( const word & name )

explicit

Construct with name.

Definition at line 33 of file foamGltfAnimation.C.

References base::base(), channels_, base::name(), and samplers_.

Here is the call graph for this function:

~animation()

~animation ( )

default

Destructor.

References os().

Here is the call graph for this function:

Member Function Documentation

addTranslation()

void addTranslation	(	const label	inputId,
		const label	outputId,
		const label	nodeId,
		const string &	interpolation )

Add translation.

Definition at line 43 of file foamGltfAnimation.C.

References channels_, animation::glTFSampler::input, animation::glTFSampler::interpolation, animation::glTFTarget::node, animation::glTFSampler::output, animation::glTFTarget::path, animation::glTFChannel::samplerId, samplers_, and animation::glTFChannel::target.

write()

void write

(

Ostream &

os

)

const

Write.

Definition at line 65 of file foamGltfAnimation.C.

References channels_, Foam::decrIndent(), forAll, Foam::incrIndent(), Foam::indent(), Foam::nl, os(), and samplers_.

Referenced by Foam::operator<<().

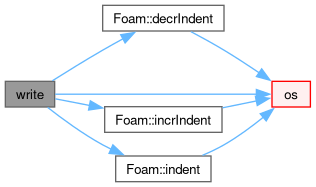

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

samplers_

DynamicList<glTFSampler> samplers_

protected

Samplers.

Definition at line 98 of file foamGltfAnimation.H.

Referenced by addTranslation(), animation(), animation(), and write().

channels_

DynamicList<glTFChannel> channels_

protected

Channels.

Definition at line 103 of file foamGltfAnimation.H.

Referenced by addTranslation(), animation(), animation(), and write().

---

The documentation for this class was generated from the following files:

• src/fileFormats/gltf/foamGltfAnimation.H
• src/fileFormats/gltf/foamGltfAnimation.C
