heRhoThermo< BasicPsiThermo, MixtureType > Class Template Reference

Energy for a mixture based on density. More...

#include <heRhoThermo.H>

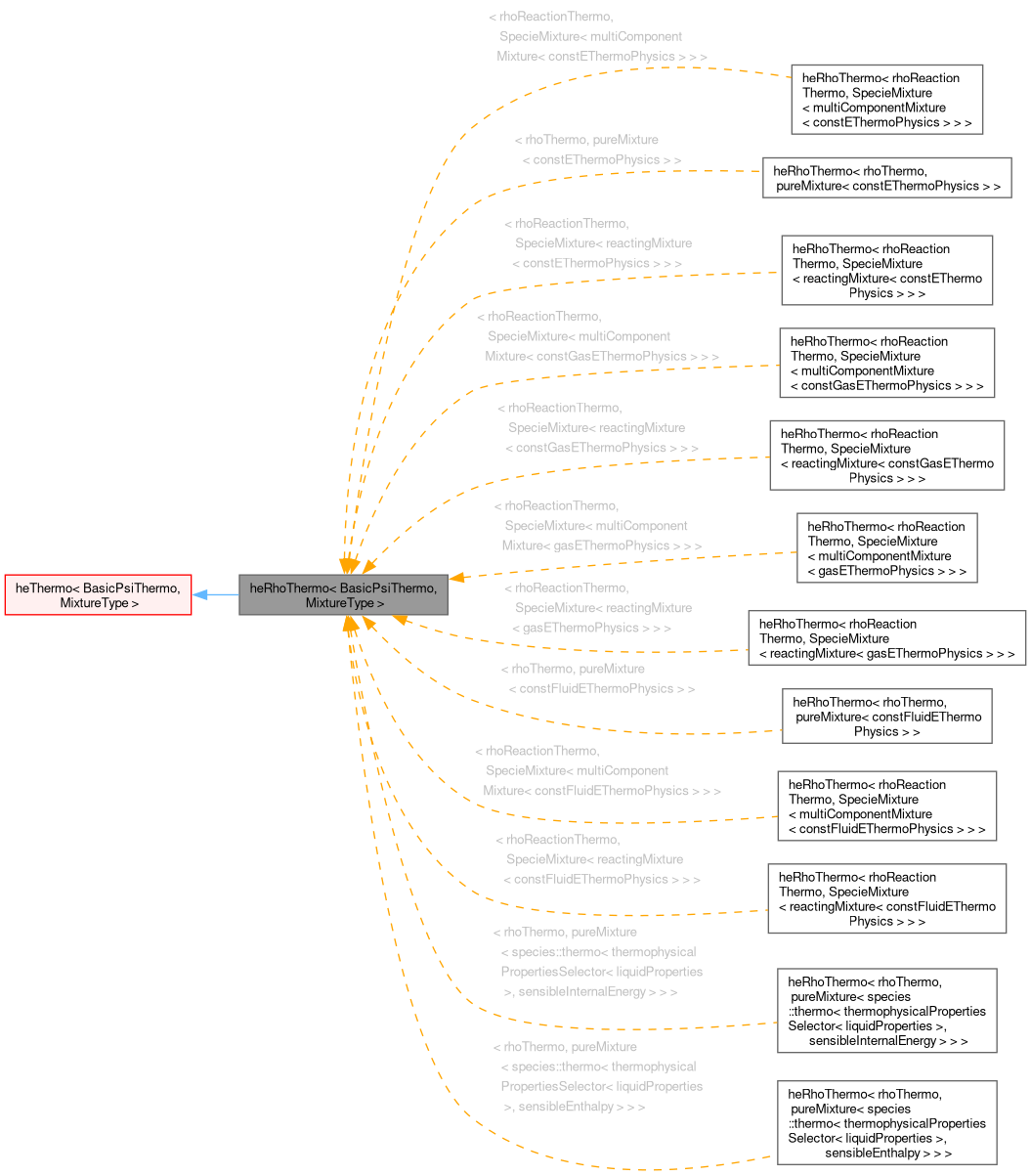

Inheritance diagram for heRhoThermo< BasicPsiThermo, MixtureType >:

Collaboration diagram for heRhoThermo< BasicPsiThermo, MixtureType >:

Public Member Functions
	TypeName ("heRhoThermo")
	Runtime type information.
	heRhoThermo (const fvMesh &, const word &phaseName)
	Construct from mesh and phase name.
	heRhoThermo (const fvMesh &, const word &phaseName, const word &dictName)
	Construct from mesh,dictionary,phase name with a single temperature.
virtual	~heRhoThermo ()
	Destructor.
virtual void	correct ()
	Update properties.
Public Member Functions inherited from heThermo< BasicPsiThermo, MixtureType >
virtual	~heThermo ()
	Destructor.
virtual MixtureType::basicMixtureType &	composition ()
	Return the composition of the mixture.
virtual word	thermoName () const
	Return the name of the thermo physics.
virtual bool	incompressible () const
	Return true if the equation of state is incompressible.
virtual bool	isochoric () const
	Return true if the equation of state is isochoric.
virtual volScalarField &	he ()
	Enthalpy/Internal energy [J/kg].
virtual tmp< volScalarField >	hc () const
	Chemical enthalpy [J/kg].
virtual tmp< scalarField >	THE (const scalarField &he, const scalarField &p, const scalarField &T0, const labelList &cells) const
	Temperature from enthalpy/internal energy for cell-set.
virtual tmp< scalarField >	Cp (const scalarField &p, const scalarField &T, const label patchi) const
	Heat capacity at constant pressure for patch [J/kg/K].
virtual tmp< scalarField >	Cv (const scalarField &p, const scalarField &T, const label patchi) const
	Heat capacity at constant volume for patch [J/kg/K].
virtual tmp< scalarField >	rhoEoS (const scalarField &p, const scalarField &T, const labelList &cells) const
	Density from pressure and temperature.
virtual tmp< volScalarField >	gamma () const
	Gamma = Cp/Cv [].
virtual tmp< scalarField >	Cpv (const scalarField &p, const scalarField &T, const label patchi) const
	Heat capacity at constant pressure/volume for patch [J/kg/K].
virtual tmp< volScalarField >	CpByCpv () const
	Heat capacity ratio [].
virtual tmp< volScalarField >	W () const
	Molecular weight [kg/kmol].
virtual tmp< volScalarField >	kappa () const
	Thermal diffusivity for temperature of mixture [J/m/s/K].
virtual tmp< volScalarField >	alphahe () const
	Thermal diffusivity for energy of mixture [kg/m/s].
virtual tmp< volScalarField >	kappaEff (const volScalarField &) const
	Effective thermal diffusivity for temperature.
virtual tmp< volScalarField >	alphaEff (const volScalarField &alphat) const
	Effective thermal diffusivity of mixture [kg/m/s].
virtual bool	read ()
	Read thermophysical properties dictionary.

Additional Inherited Members
Protected Member Functions inherited from heThermo< BasicPsiThermo, MixtureType >
void	heBoundaryCorrection (volScalarField &he)
	Correct the enthalpy/internal energy field boundaries.
Protected Attributes inherited from heThermo< BasicPsiThermo, MixtureType >
volScalarField	he_
	Energy field.

Detailed Description

template<class BasicPsiThermo, class MixtureType>
class Foam::heRhoThermo< BasicPsiThermo, MixtureType >

Energy for a mixture based on density.

Source files

• heRhoThermo.H
• heRhoThermo.C

Definition at line 49 of file heRhoThermo.H.

Constructor & Destructor Documentation

heRhoThermo() [1/2]

template<class BasicPsiThermo, class MixtureType>

heRhoThermo	(	const fvMesh &	mesh,
		const word &	phaseName )

Construct from mesh and phase name.

Definition at line 144 of file heRhoThermo.C.

References heThermo< BasicPsiThermo, MixtureType >::he_, and mesh.

heRhoThermo() [2/2]

template<class BasicPsiThermo, class MixtureType>

heRhoThermo	(	const fvMesh &	mesh,
		const word &	phaseName,
		const word &	dictName )

Construct from mesh,dictionary,phase name with a single temperature.

Definition at line 167 of file heRhoThermo.C.

References dictName(), heThermo< BasicPsiThermo, MixtureType >::he_, and mesh.

Here is the call graph for this function:

~heRhoThermo()

template<class BasicPsiThermo, class MixtureType>

~heRhoThermo ( )

virtual

Destructor.

Definition at line 193 of file heRhoThermo.C.

Member Function Documentation

TypeName()

template<class BasicPsiThermo, class MixtureType>

TypeName

(

"heRhoThermo< BasicPsiThermo, MixtureType >"

)

Runtime type information.

correct()

template<class BasicPsiThermo, class MixtureType>

void correct ( )

virtual

Update properties.

Definition at line 200 of file heRhoThermo.C.

References DebugInFunction, Foam::endl(), and heThermo< BasicPsiThermo, MixtureType >::he_.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/thermophysicalModels/basic/rhoThermo/heRhoThermo.H
• src/thermophysicalModels/basic/rhoThermo/heRhoThermo.C
